Par Can Light Manufacturers|Led Par Cans Lights|Outdoor Par Cans

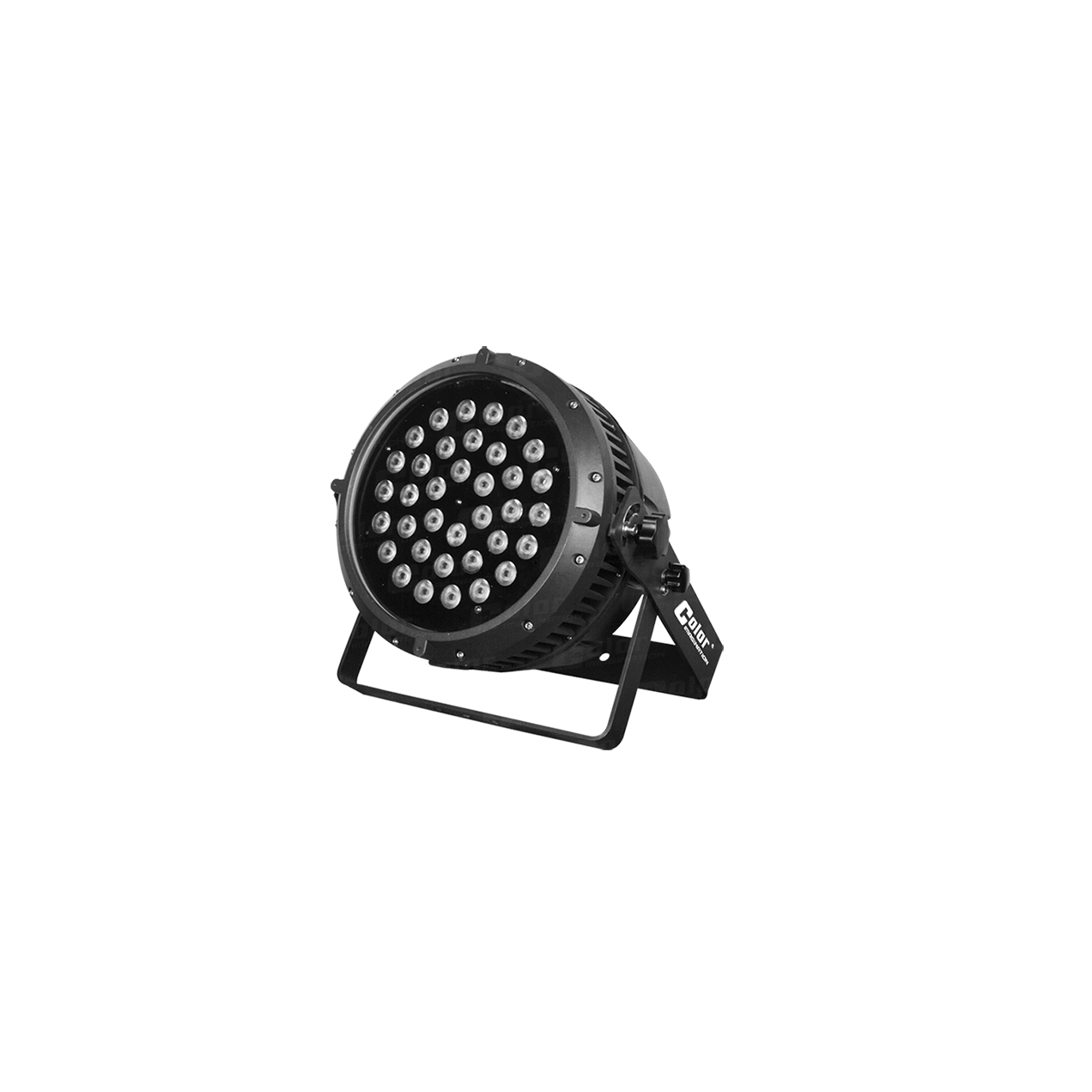

MODEL:LEDPAR 3610FIP SI-112

SI-112_---1

The LEDPAR 3610FIP is a very high power IP65 rated outdoor LED par can using 36*10W 4-in-1 LEDs. It features excellent color mixing, quiet running and flicker free control. The fixtures is built in with internal programs and macros. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system. LEDPAR 3610FIP is designed for applications as large scale concerts, TV studio, indoor architectural lighting, etc.
DownLoad

Technical specifications

  • Light Source

    Source: 36*10W 4-in-1 LEDs, RGBW, low power consumption
    Flicker free operation for broadcast TV and FILM
    Life Span: 50000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)



    Optics

    High efficiency optic system
    25°Beam angle （15°/45°optional)
    35°Field angle
    High output



    Color System

    RGBW
    Smooth and pure color mixing capability



    Strobe Effect

    0-25Hz high speed LED shutter/strobe effect with variable speed



    Dimming System

    0-100% Smooth linear LED dimming



    Control System

    4/8 DMX channels USITT DMX-512
    DMX512, master-slave, sound or auto operation
    Built-in programs
    Shielded input signal protection for stable signal without interference
    IP65 3-pin XLR cables IN/OUT



    Display System

    LED display
    4 Control buttons



    Cooling System

    Advanced cooling system integrated aluminum
    Over temperature protection management



  • Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    IP65 Power cables IN&OUT
    400W Power consumption



    Housing

    Aluminum die-casting structure
    2 Hanging brackets
    Exterior finish: Black



    Installation

    1*Safety attachment point



    Operating Condition

    Operating positions: all (device on floor or fixed to a support)
    -25℃ to 45℃ ambient temperature
    IP65protection rating



    Compliance

    CE
    2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU - Electromagnetic Compatibility (EMC)
    2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 15kg
    G.W.: 17.5kg



    Dimensions

    Product Dimensions: 345(D)*405(W)*335(H)mm
    Packing Dimensions: 390(D)*390(W)*450(H)mm

Dimensions


Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

omega_1

Omega

STANDARD
code:
QTY: 2PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS
