SMARTPAR 1212

SMARTPAR 1212

The SMARTPAR 1212 is a high power indoor LED flat par light using 12*12W 4-IN-1 RGBW LEDs which is designed with 2 individual rings. It’s available for 2800K-5600K color temperature adjustment.



It features excellent color mixing, quiet running and flicker free control. The fixture is built in with 13 internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.



The SMARTPAR 1212 is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, etc.

DownLoad

Technical specifications

  • Light Source

    Source:12*12W 4-IN-1 LEDs (RGBW)
    2 Individual control rings
    Flicker free operation for broadcast TV and FILM
    Life Span: 50000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),
    Control, and Dimming)



    Optics

    High efficiency optic system
    25°Beam angle (other angles optional)
    35°Field angle
    High output



    Color System

    RGBW
    Smooth and pure color mixing capability
    CTO, 2800K-5600K color temperature adjustment



    Built-in Programs

    13 Built-in dynamic effect with variable speed
    Different preset colors



    Strobe Effect

    0-25Hz LED shutter/strobe effect with variable speed



    Dimming System

    0-100% Smooth linear LED dimming



    Control System

    4/5/7/8/10 DMX channels USITT DMX-512
    DMX512, master-slave, sound or auto operation
    DMX recorder and edit function integrated
    IR Remote control
    RDM available (Remote Device Management)
    Wireless system as optional
    Shielded input signal protection for stable
    signal without interference
    3-pin XLR connectors IN/OUT



  • Display System

    1.44” TFT LCD display
    4 Control buttons
    180°Reversible for LCD display
    Display auto OFF
    DMX signal and error monitoring indicators



    Cooling System

    Efficient low noise self adjusting fan cooling system integrated aluminum
    Constant temperature readout and management function
    Over temperature protection management



    Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON connectors IN&OUT
    150W Power consumption



    Housing

    High tension molded fire proof ABS PC
    2 Hanging brackets
    Exterior finish: Black



    Installation

    1*Safety attachment point



    Operating Condition

    Operating positions:
    all (device on floor or fixed to a support)
    -25?? to 45?? ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU - Electromagnetic Compatibility (EMC)
    2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 2.24kg
    G.W.: 3.05kg(1PCS)/13.2kg(4PCS)



    Dimensions

    Product Dimensions: 101(D)*258(W)*264.5(H)mm
    Packing Dimensions: 290(D)*310(W)*170(H)mm(1PCS)
    325(D)*615(W)*375(H)mm(4PCS)



_MG_9923

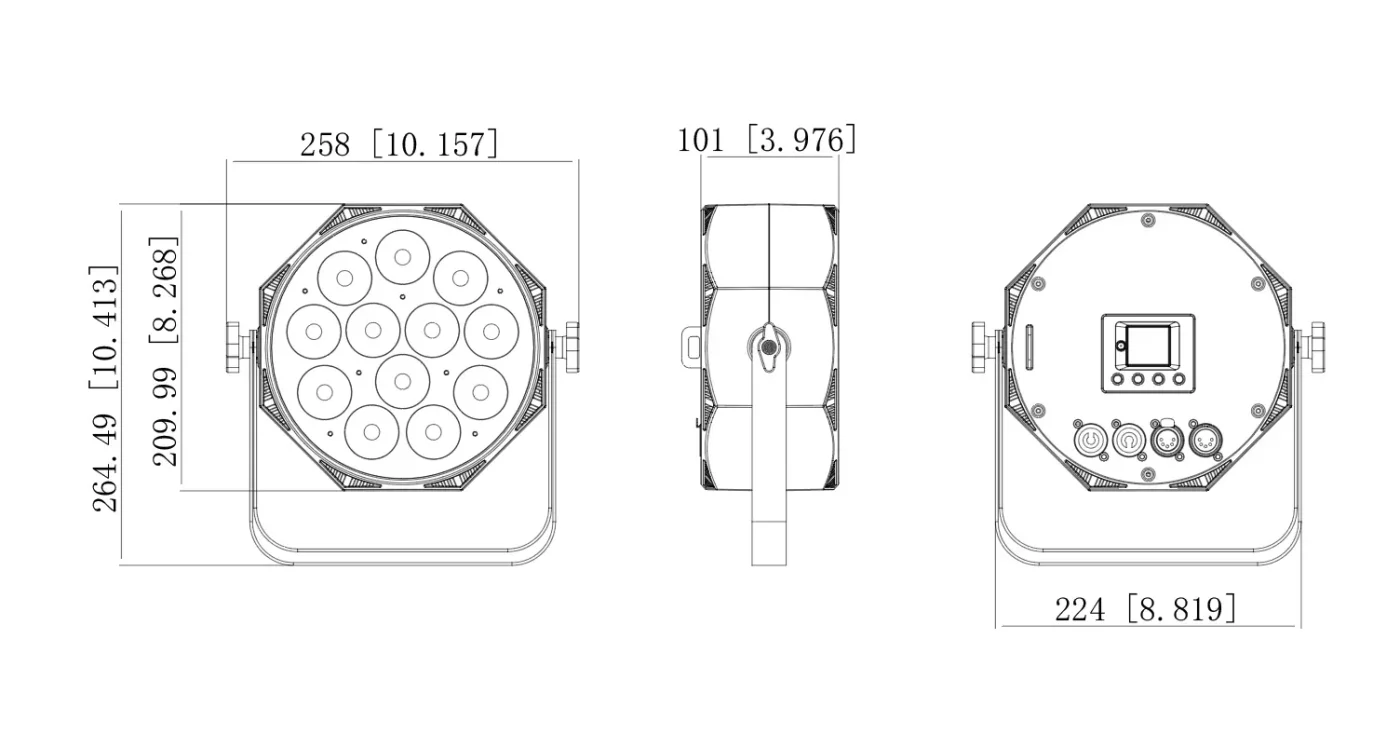

Dimensions

IP1212

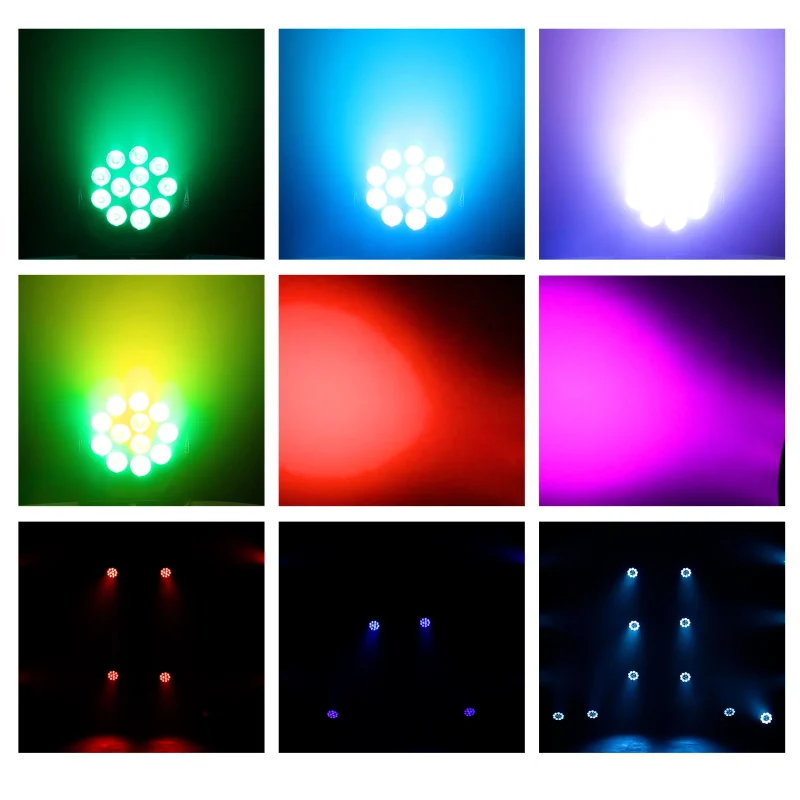

Effect

P1212_1_1

Video

Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 6-IN-1 or 8-IN-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 1PCS

20210127140312_4590204

IR Remote Controller

OPTIONAL
code:
QTY: 1PCS
