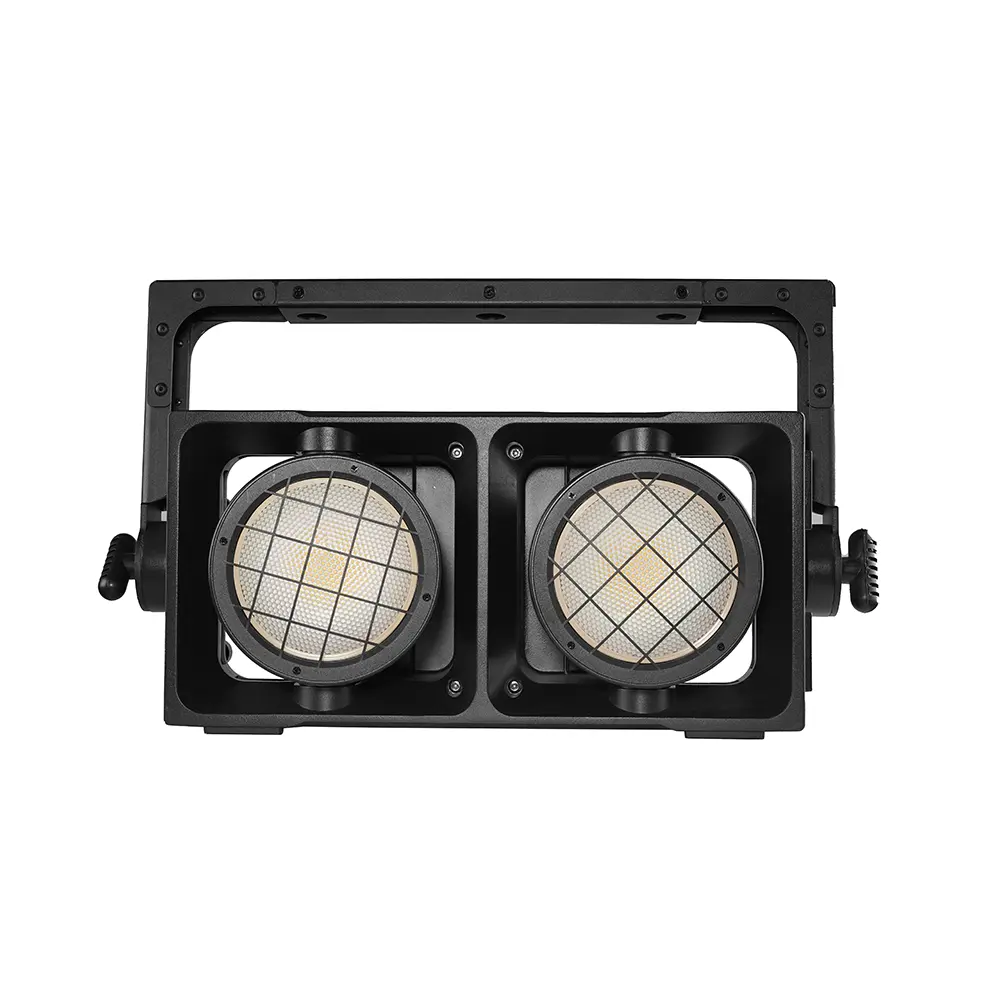

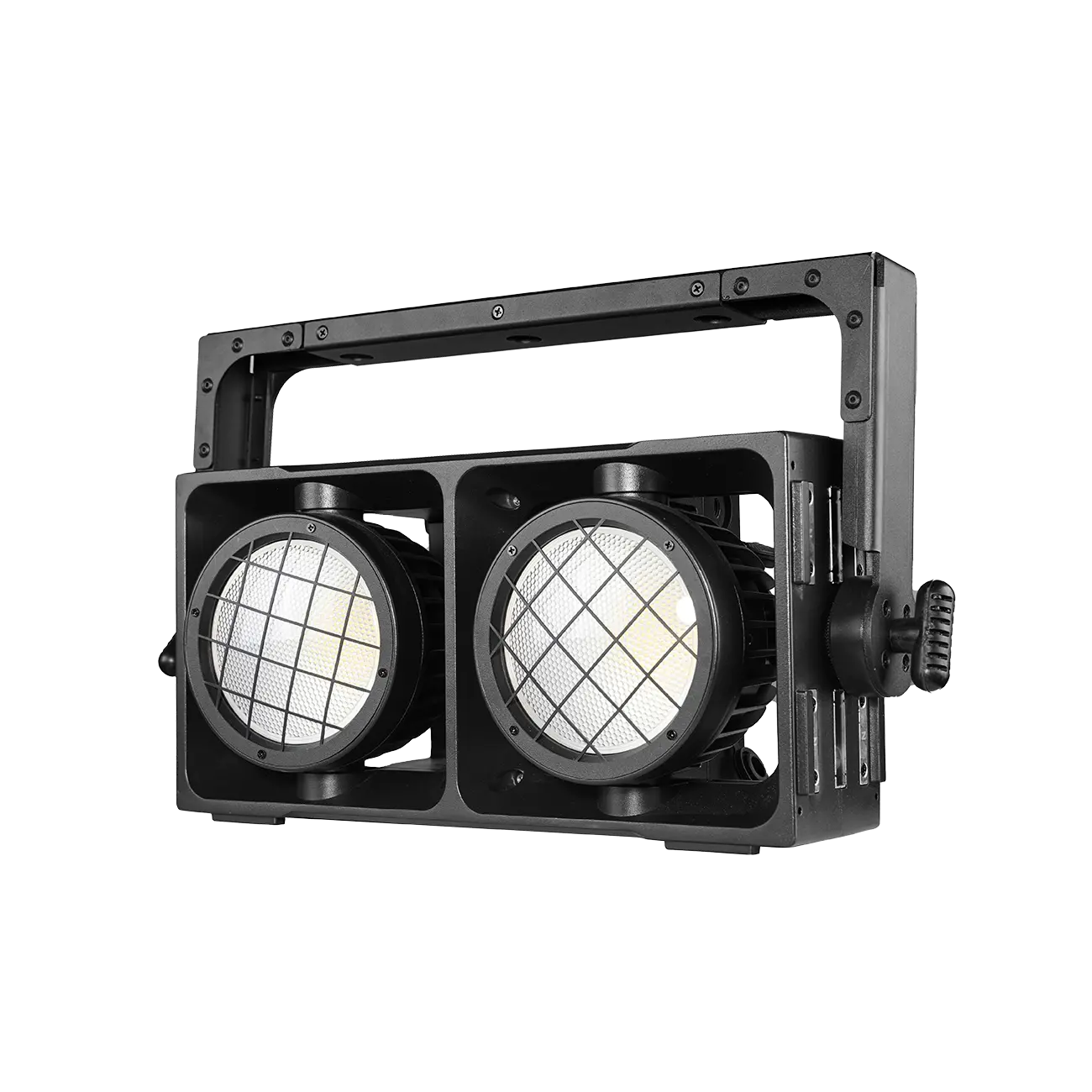

BLINDER 2300P

BLINDER 2300P

The BLINDER 2300-IP is an IP66 rated LED blinder fixture in a very stylish, compact and lightweight die-cast aluminum housing, featuring 2*300 5-IN-1 (RGBWA) COB LEDs, fitted in a 30° beam angle optic system (90° field angle). It produces very high light output with ultra smooth dimmer control and even field coverage. The fixture provides variable speed strobe effect, pulse/random strobe effect and built-in running programs. The fixture supports DMX and RDM protocol.



It is ideal for large scale tour shows, theatre, houses of worship, conference rooms, special photography, TV studios, exhibition centre, universities and schools, hospitality, retail, clubs, etc.

Technical specifications

Light Source
Source: 2*300W 5-IN-1 LEDs, RGBWA
Each LED controllable individually
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics
Specific optic system with 30°beam angle
60° field angle

Color System
Pure RGBWA color mixing
Ultra even light coverage
2700K-10000K color temperature adjustable

Preset Programs
Preset color macros
Preset dynamic programs with variable speed

Strobe Effect
1-25Hz High speed LED shutter/strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming
4 Dimming curves, linear/square law/Inv square law/S-curve
5 Dimming modes

Control System
2/6/11/16 DMX channels USITT DMX-512
RDM available (Remote Device Management)
DMX512, master-slave, sound control or auto operation
Shielded input signal protection for stable signal without interference

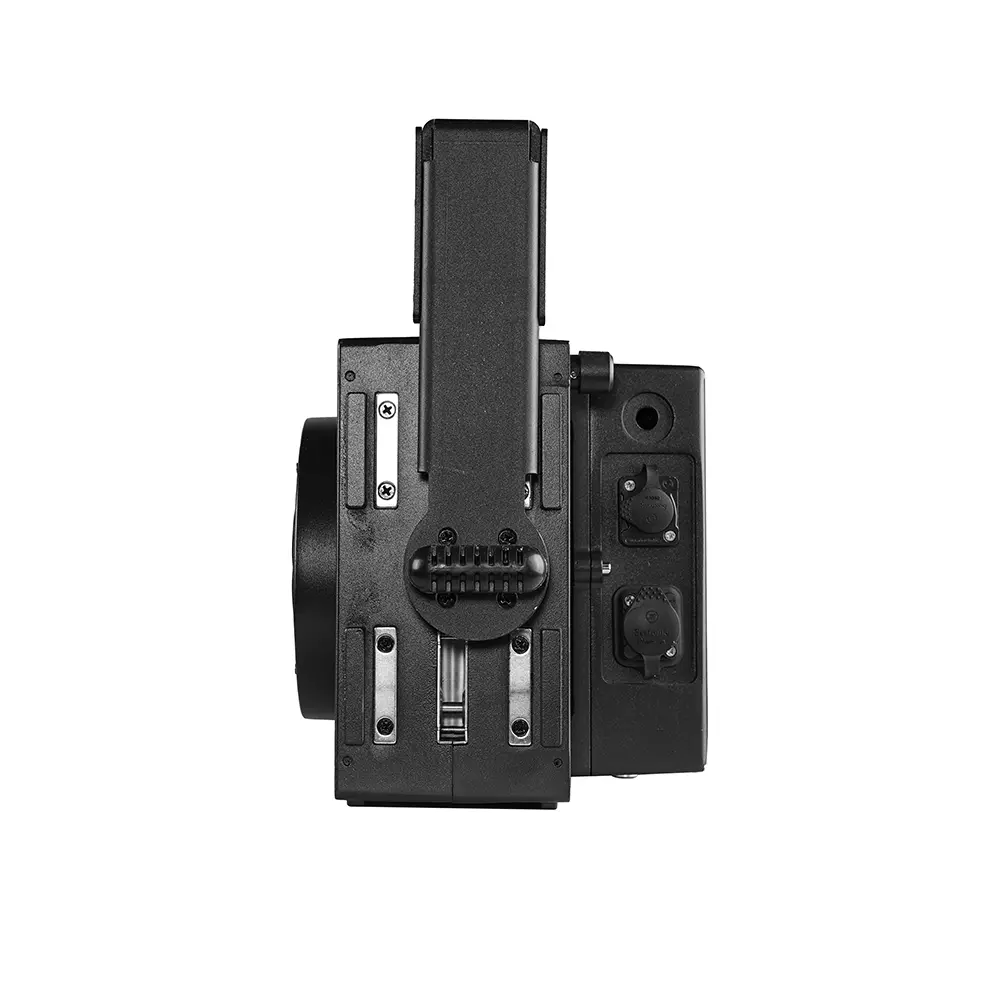

Waterproof 3-Pin XLR DMX connectors IN/OUT

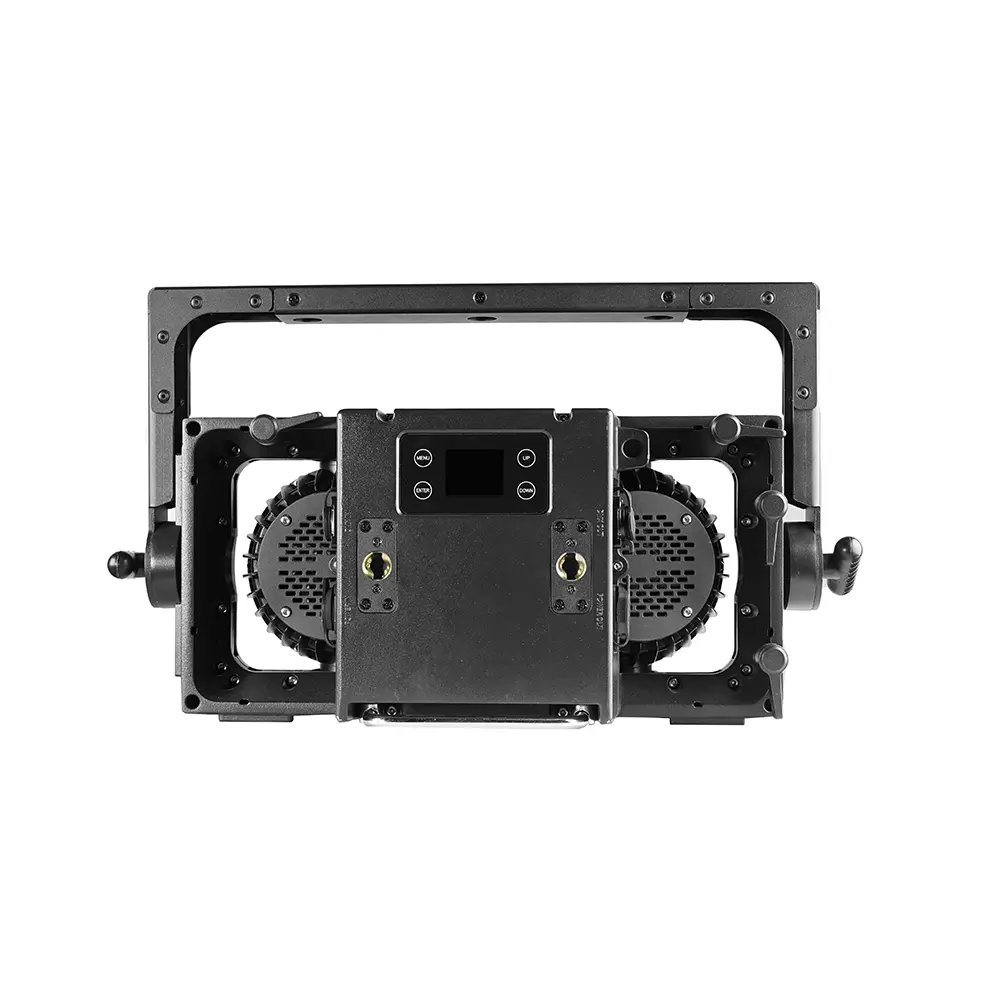

Display System
1.8″ TFT LCD display
4 Touch control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicator
Cooling System
Advanced low noise self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
Waterproof TRUE1 powerCON connectors IN&OUT
620W Power consumption

Housing
Skeleton made of dies-cast aluminum
Exterior finish: Black

Installation
Single hanging brackets
2*1/4 turn fastening Omega Clamps
1*Safety attachment point
Multi units can be combined together

Operating Condition
Operating positions: all
-25℃ to 45℃ ambient temperature
IP66 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 7.7kg
G.W.: 9.2kg

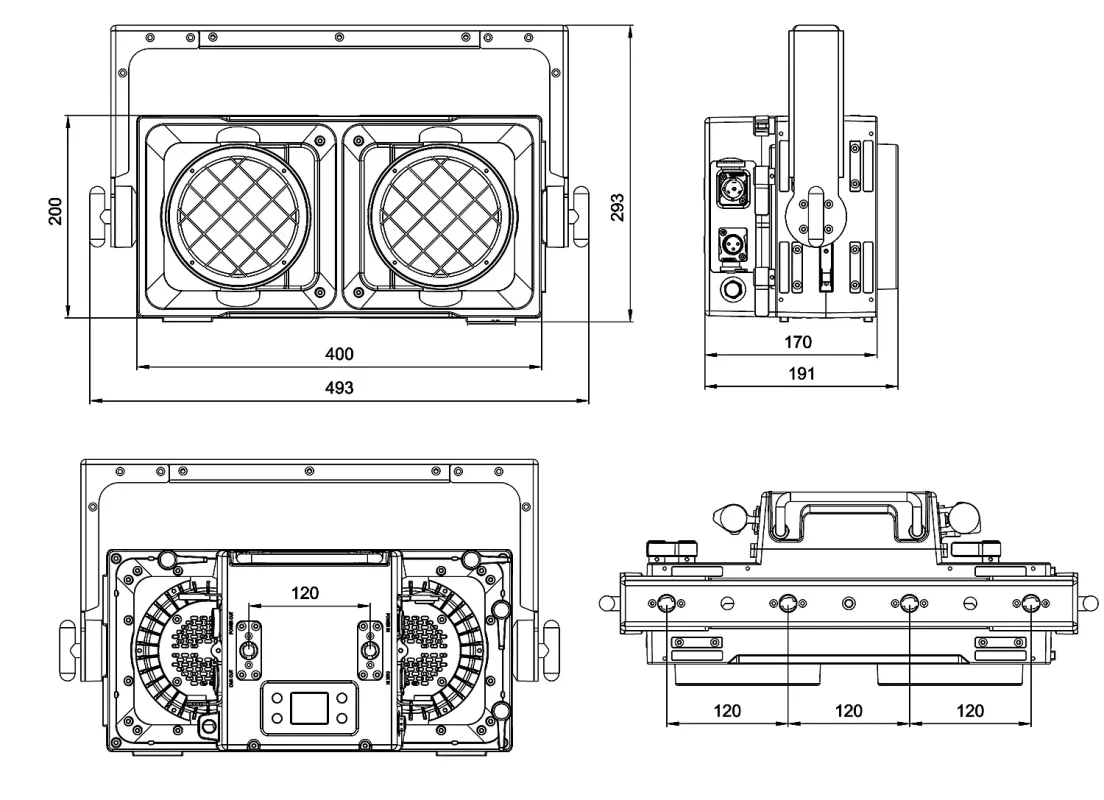

Dimensions
Product Dimensions:191(D)*493(W)*293(H)mm
Packing Dimensions: 300(D)*590(W)*380(H)mm
_MG_179-23-4--

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
