CRAZYCUBE 46

CRAZYCUBE 46

Prepare to be captivated by the CRAZYCUBE 46, an unprecedented marvel in the world of stage lighting. It is a moving head light that stands as a mark to innovation, offering a light that has never before graced the market.



At its core, the CRAZYCUBE 46 is a beacon of creative exploration, thanks to its four individual mini moving heads. These heads produce a narrow angle beam effect (3.5°), casting a spotlight on your imagination. What sets this fixture apart is the unique ability to control each head individually for colors and PAN/TILT movement (76°), providing you with the ultimate canvas to craft your lighting masterpiece.



Experience a dynamic interplay of light and shadows with the CRAZYCUBE 46’s continuous PAN/TILT movement. With the ability to create sweeping arcs, dramatic cuts, or graceful rotations, this fixture infuses life and energy into any application environment.



The heart of this extraordinary fixture lies in its 4*60W 4-IN-1 RGBW LED chips, heralding the zenith of lighting technology. These advanced light sources produce a radiant spectrum of colors, enabling you to paint your surroundings with rich, vibrant hues. From delicate pastels to intense, vivid tones, the CRAZYCUBE 46 opens up a world of possibilities.



In summary, the CRAZYCUBE 46 is a groundbreaking moving head light that redefines the art of lighting. It offers an unprecedented narrow angle beam effect, individual head control, continuous movement, and the brilliance of 60W 4-IN-1 RGBW LED chips. Elevate your lighting designs to new heights with a fixture that is truly exceptional.



The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, ballrooms, banquet halls, etc.

DownLoad

Technical specifications

Light Source
Source:
4*60W 4-IN-1 RGBW LEDs
(4*30)*0.2W 3-IN-1 SMD RGB LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
High efficiency lens

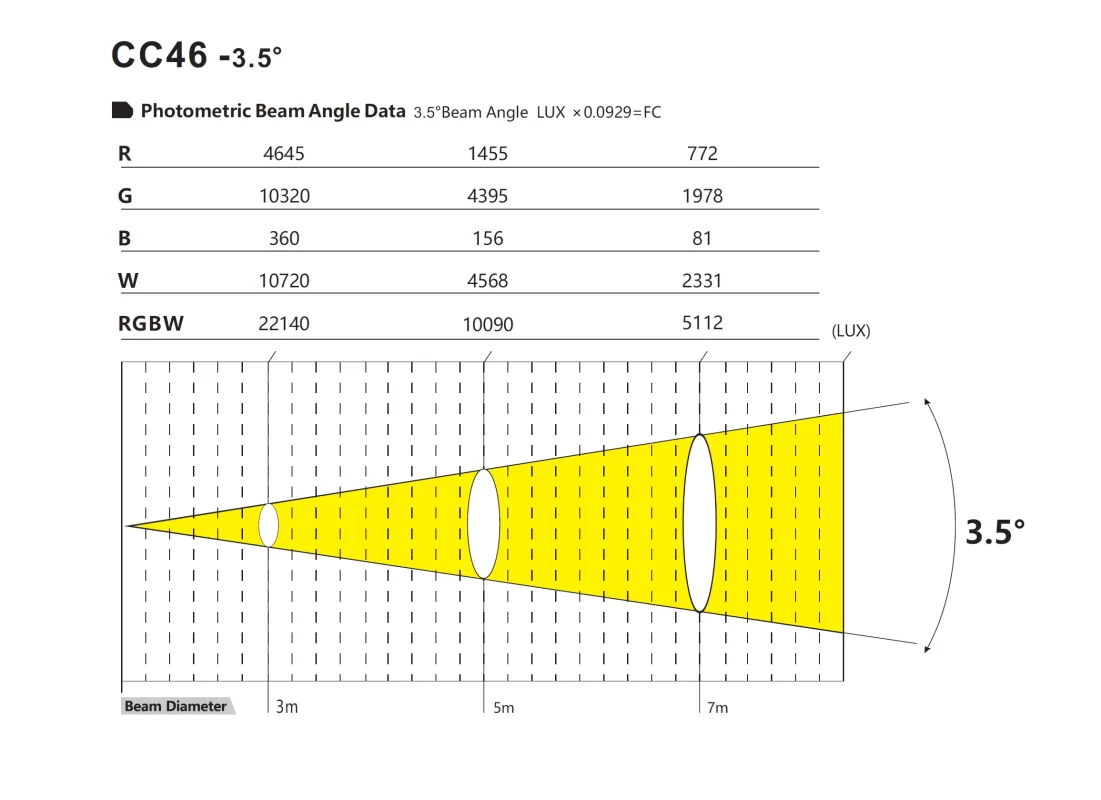

3.5°Projection angle
Sharp and clear beam effect

Movement
The complete head:
PAN: 2 modes
1. 360°Continuous movement
2. 540°(8/16 bit)
TILT: 2 modes
1. 360°Continuous movement
2. 270°(8/16 bit)
Each mini head:
PAN movement: 76° (8/16 bit)
TILT movement: 76° (8/16 bit)
Fast, quiet, smooth and precise 2-phase motors
Smooth, fast and precise resolution for movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Colors
Sophisticated 4 colors RGBW mixed
Linear CTO 2500-8000K
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed

Strip Effect
Brilliant and magic trip effect with different built-in macros
(variable speed control)

Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming

Control System
37/88 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT
Display System
1.44″ TFT LCD display
English/Chinese menu
5 Control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System
Advanced self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/OUT with fuse
400W Power consumption

Housing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Exterior finish: Black

Installation
2*1/4 turn fastening Omega Clamps
1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 35.2kg
G.W.: 40.4kg

Dimensions
Product Dimensions: 236.5(D)*579(W)*634.5(H)mm
Packing Dimensions: 770(D)*705(W)*395(H)mm
_MG_179-23-4--

Dimensions

CC46-size

Accessories

Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 6-IN-1 or 8-IN-1 versions
Clamps
OPTIONAL
code:
QTY: 1PCS
