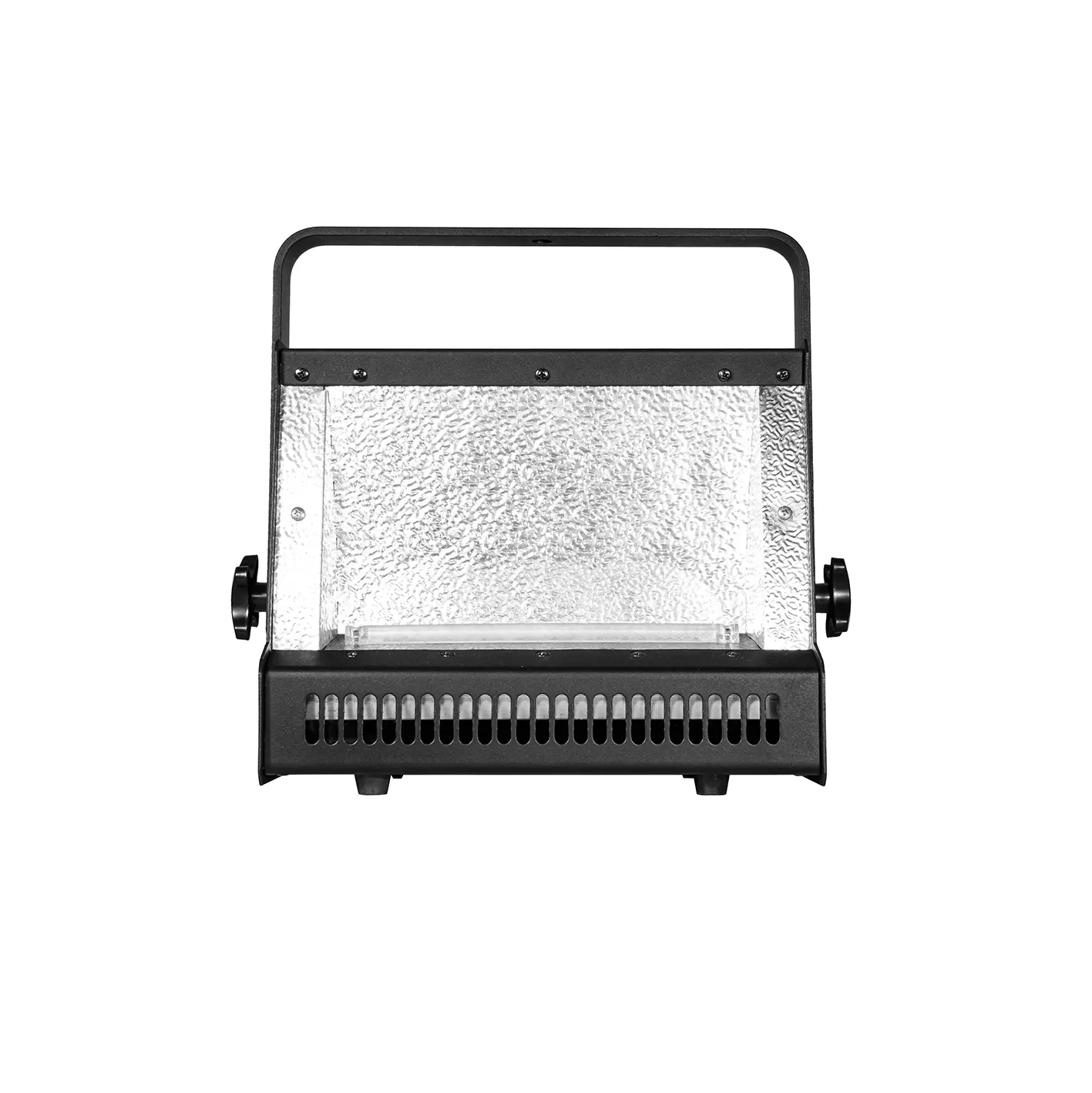

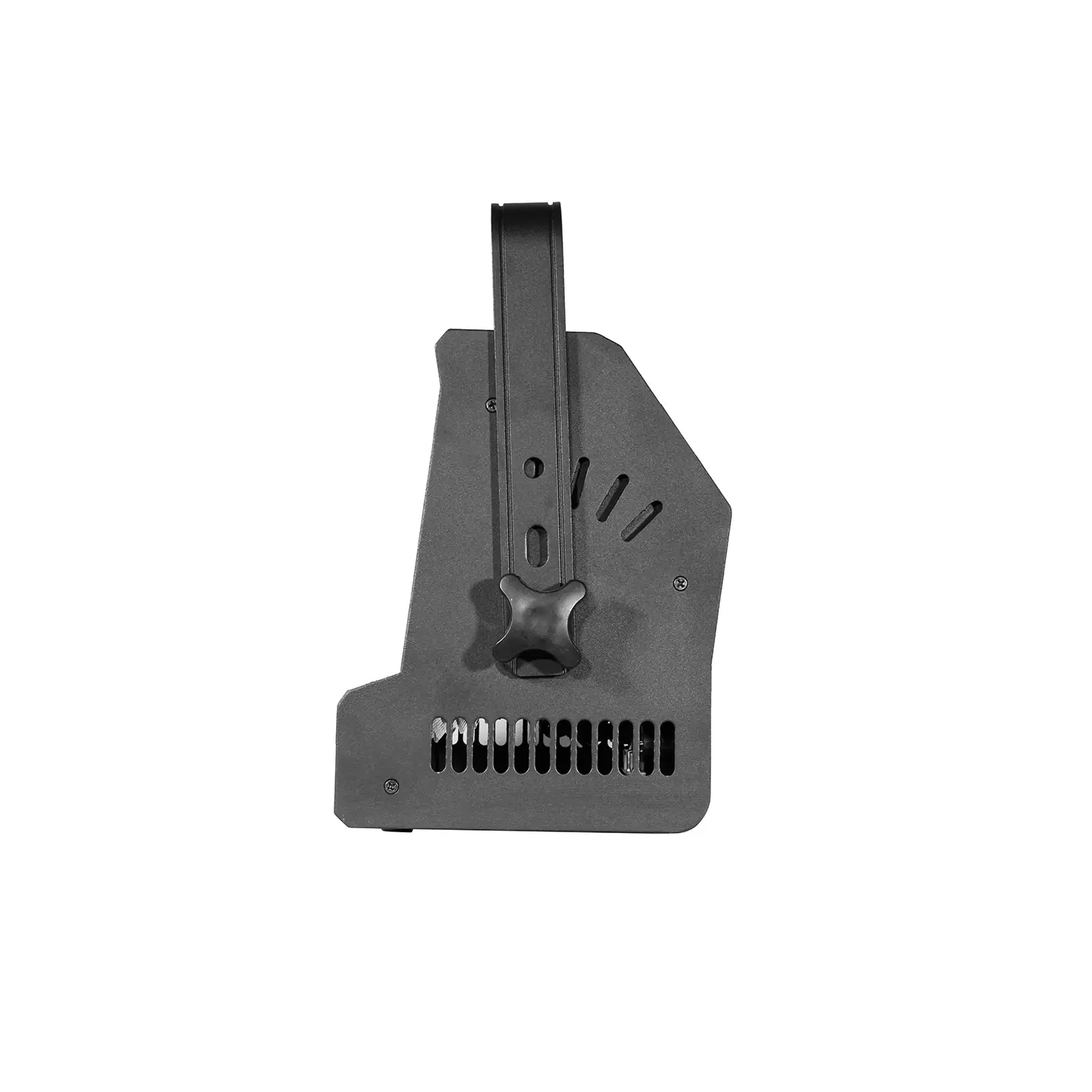

CYC 363
The CYC 363 is a CYCLORAMAS light featuring 36*3W LEDs (RGBA) into high efficiency 90° optics. These features provide the CYCLORAMAS with superior color reproduction and a high light output, offering greater flexibility than tradition ones.
The CYCLORAMAS is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations and theaters.
Technical specifications
Light Source
Source: 36*3W LEDs, RGBA
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
Optics
High efficiency 90° optic system
100°Field angle
Even/soft coverage
High output
Color System
RGBA
Even and pure color mixing
Preset Program
Preset macro programs with variable speed
Strobe Effect
0-25Hz LED shutter/strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming
No noticeable color shift throughout the entire range
Flicker free
Control System
4/8 DMX channels USITT DMX-512
RDM available (Remote Device Management)
DMX512, master-slave, sound or auto operation
DMX recorder and edit function integrated
Shielded input signal protection for stable signal without interference

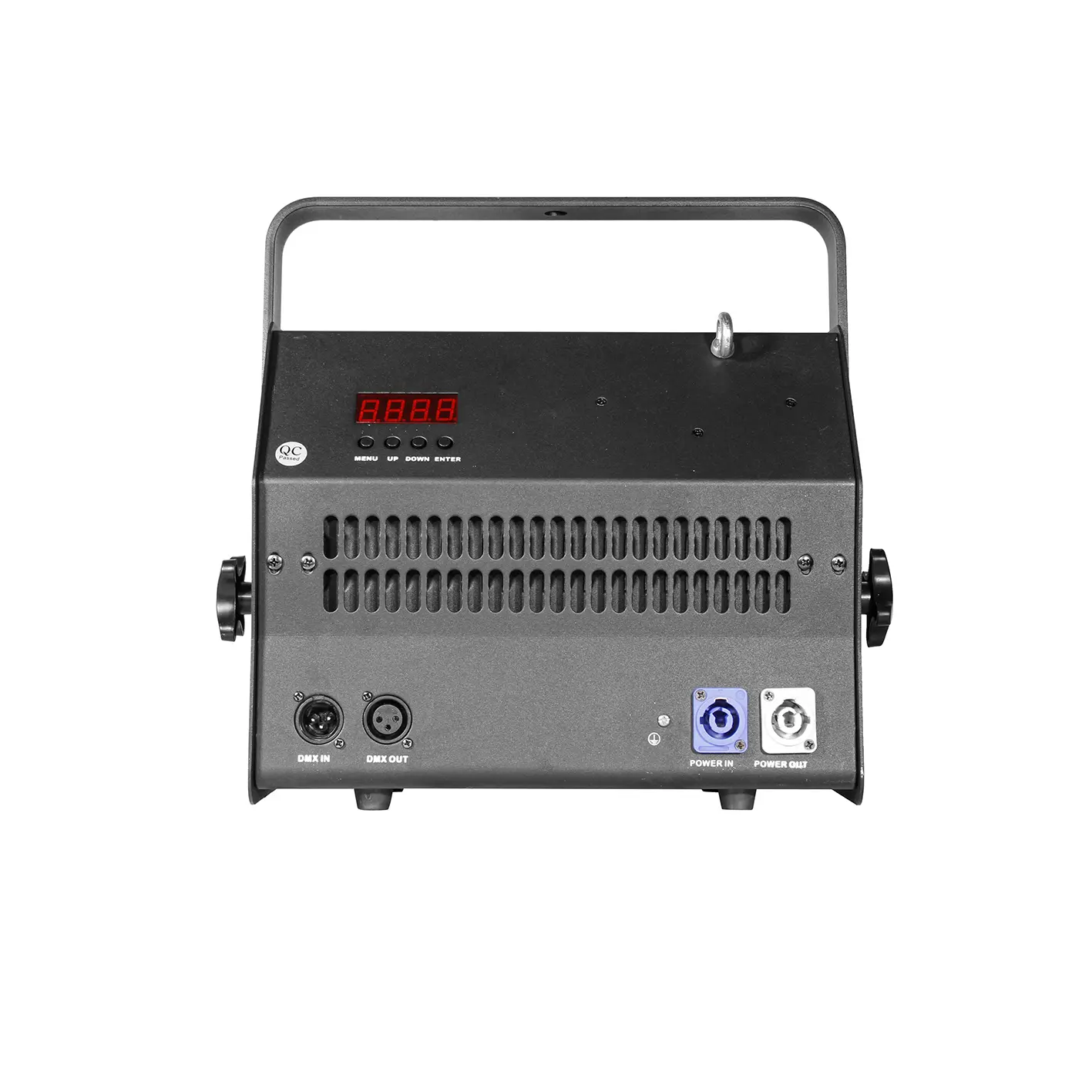

3-Pin XLR DMX connectors IN/OUT
Display System
4-Digit LED display
4 Control buttons
Display auto OFF
Cooling System
Advanced cooling system integrated aluminum
Noise free featured (NO-FAN Designed)
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
POWERCON connectors IN/OUT
100W Power consumption
Housing
Skeleton made of metal plates
1 Hanging bracket
Exterior finish: Black
Installation
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 4.8kg
G.W.: 5.3kg

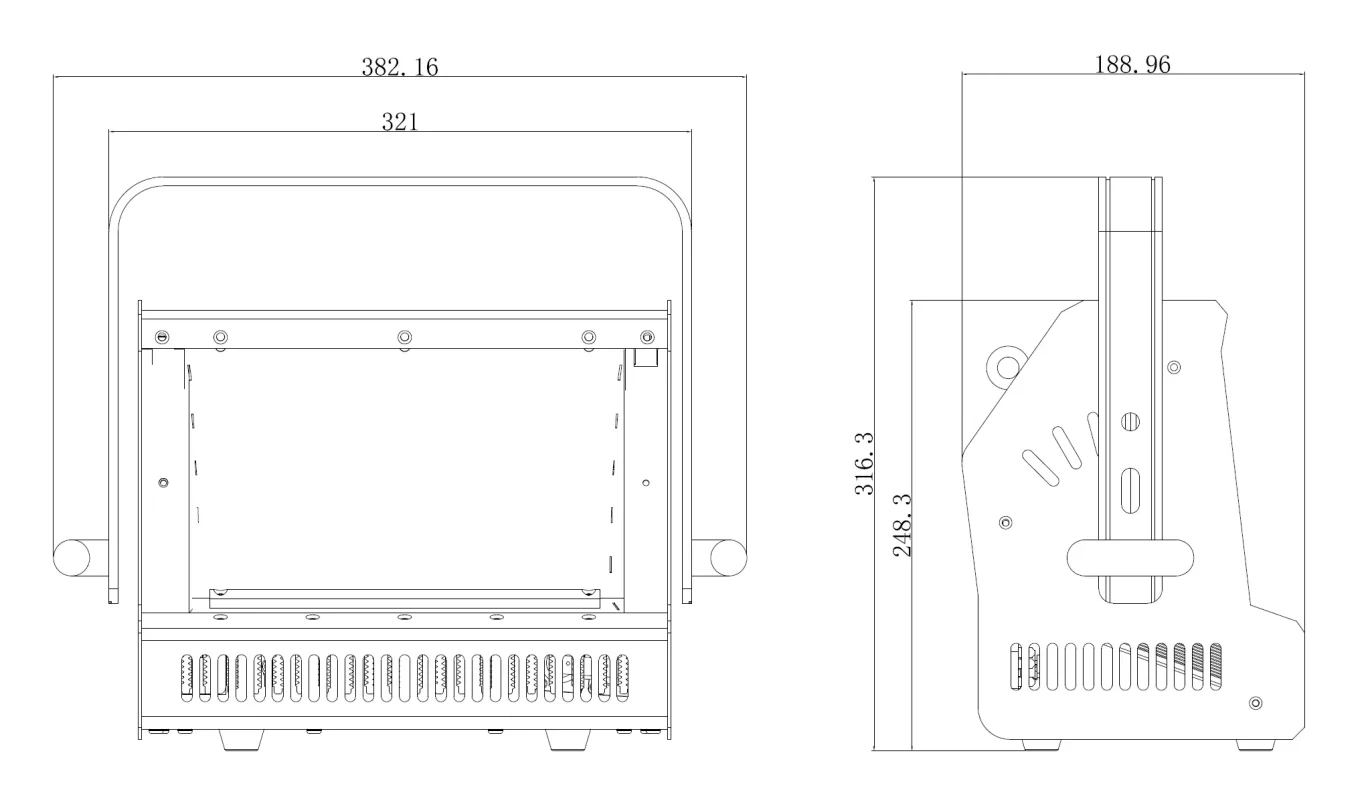

Dimensions
Product Dimensions: 189(D)*382.2(W)*248.3(H)mm
Packing Dimensions: 260(D)*428(W)*390(H)mm
Dimensions
Accessories
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
