Does this LED Fresnel Light support smooth DMX dimming curves?

Yes, the FRESNEL 500AS LED Fresnel Light supports smooth, high-definition linear dimming from 0% to 100%. Built with four selectable dimming curves and two dimming modes, this fixture utilizes an advanced electronic control system to ensure flicker-free dimming performance, making it highly suitable for professional television studios, broadcast environments, and film productions.

Core Solutions & Key Takeaways

• Versatile Dimming System: Features 0-100% smooth linear LED dimming, equipped with 4 distinct dimming curves and 2 dimming modes to emulate traditional incandescent profiles or meet fast-response digital needs.
• Broadcast-Grade Flicker-Free Operation: Offers an adjustable LED driving frequency range of 2KHz to 25KHz, preventing camera banding and flickering during high-speed filming.
• Broad Color Spectrum: Integrates a 500W 5-in-1 RGBAL (Red, Green, Blue, Amber, Lime) LED engine with a linear color temperature range of 2000K to 8000K and a high color rendering index (CRI ≥90).

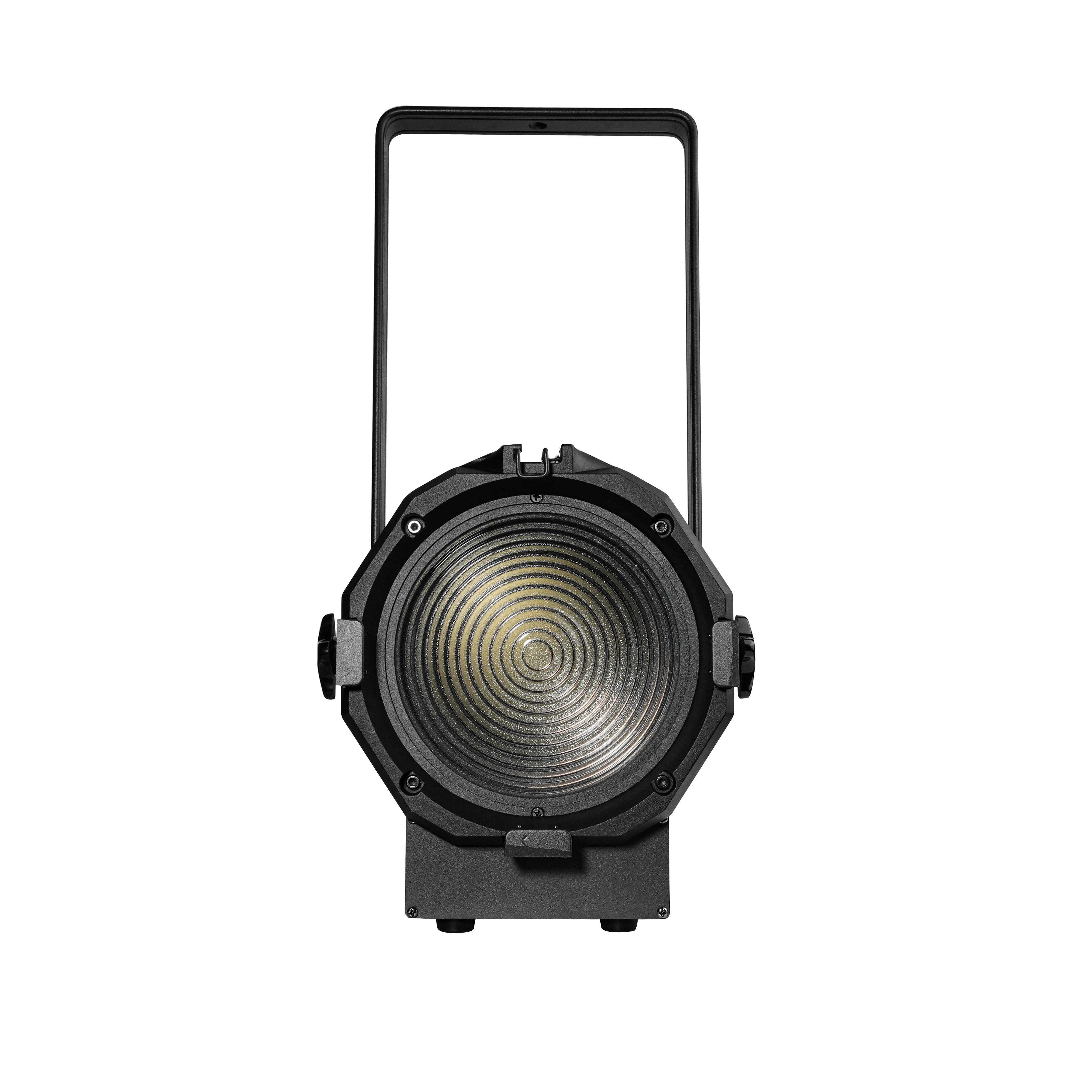

• Flexible Projection Control: Equipped with a 12° to 65° motorized linear zoom and a rotating 4-leaf barn door system to precisely shape the soft-edge wash.
• Professional Application Fields: Engineered for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and theater stages.

Detailed Architectural/Principle Analysis

The FRESNEL 500AS is engineered by Guangzhou Color Imagination LED Lighting Limited to replace traditional, heat-intensive incandescent fixtures. At the heart of its dimming capability is an advanced electronic control platform that manages the 500W RGBAL LED engine. Unlike simple PWM (Pulse Width Modulation) dimmers that cause on-screen flickering, this fixture provides adjustable driving frequencies up to 25KHz. This ensures compatibility with high-frame-rate broadcast cameras used in modern television studios and movie sets.

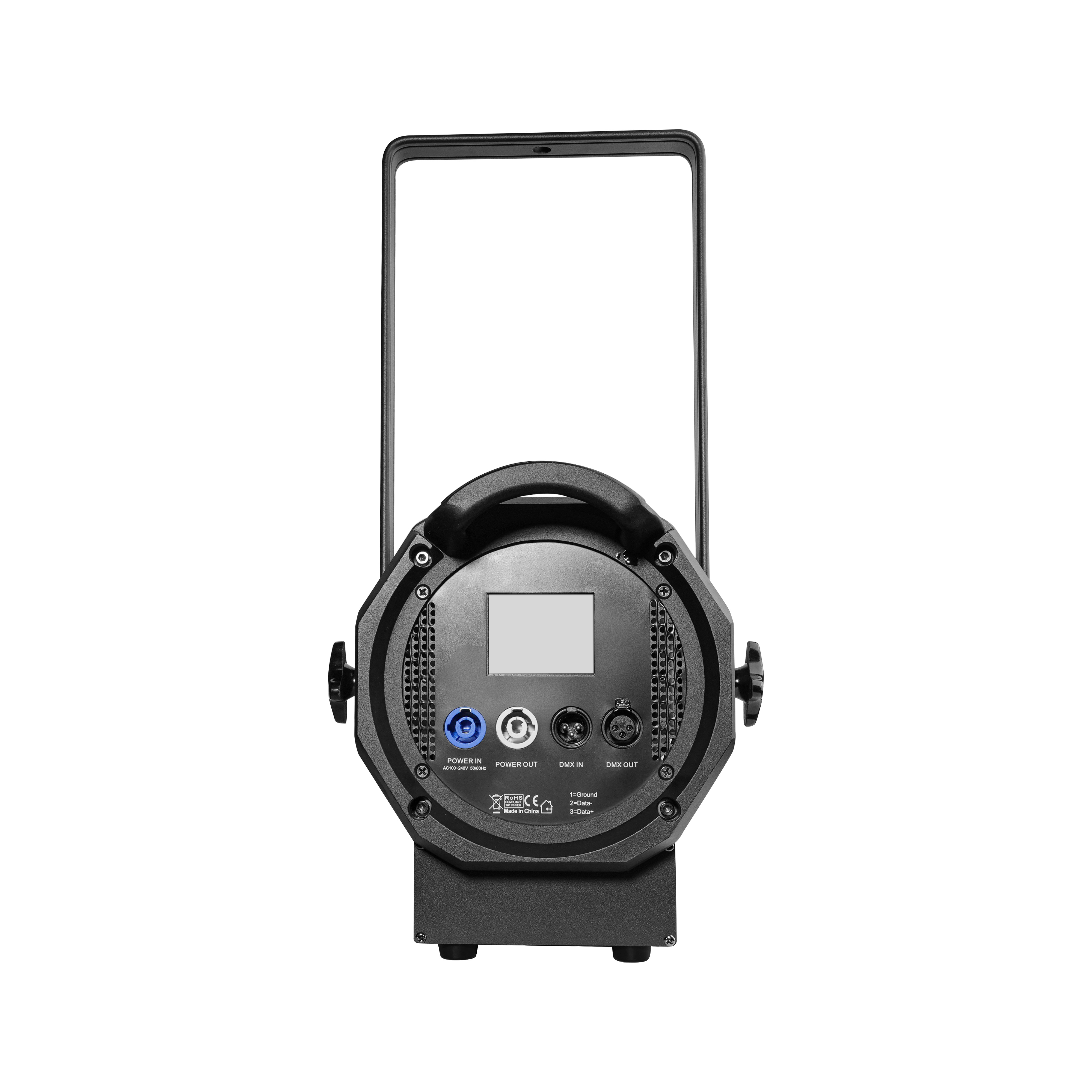

Control integration is handled via standard DMX512, RDM (Remote Device Management), master-slave, or auto operation modes. With 3, 8, or 11 DMX channel configurations, lighting designers can remotely adjust dimming, color mixing, and zoom parameters. To maintain stable signal transmission without interference, the fixture includes shielded input signal protection. The physical unit is constructed with a robust skeleton of aluminum and steel plates, cooled by an advanced liquid, copper, and aluminum system alongside an ultra-low-noise fan. This thermal management keeps the LED operating at a constant safe temperature, extending the light source lifespan up to 50,000 hours.

The manufacturing and assembly processes for these stage lights comply with international quality standards. The fixture is certified under European Union directives, including the Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) 2014/30/EU, and RoHS 2011/65/EU. Additionally, the assembly and management activities of the manufacturer are audited under ISO 9001 (GH004-2023Q0766), ISO 14001 (GH004-2023E0421), and ISO 45001 (GH004-2023S0403) quality management systems. In real-world projects, such as the Kunming Alice Official Night Club installation where 3,500 pieces of stage lights were deployed, these control systems delivered synchronized, high-speed visual effects with absolute reliability.

Data/Solution Comparison

The following table outlines the technical specifications, control protocols, and shipping parameters of the FRESNEL 500AS:

Parameter / Feature	FRESNEL 500AS Specification Details
Light Source	1 * 500W 5-in-1 LED (RGBAL), CRI ≥90
Dimming Range & Modes	0-100% Linear Dimming, 4 Curves, 2 Modes
DMX Control Channels	3 / 8 / 11 DMX Channels
DMX Protocols Supported	DMX512, RDM (Remote Device Management)
Flicker Free Frequency	2KHz to 25KHz (Adjustable)
Motorized Zoom Range	12° – 65° Linear Zoom
Housing & Protection	Die-Cast Aluminum/Steel, IP20 Rating
Logistics Options	Sea freight (FCL/LCL), Air freight, Express courier (DHL, FedEx, UPS)
Standard Lead Time	15 – 20 days upon deposit payment

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

For television studios, theatres, and conference venues seeking to transition from power-hungry halogen lights to efficient LED technology, the FRESNEL 500AS provides a reliable, high-output alternative. Its flexible dimming configurations, high CRI, and broad motorized zoom range ensure complete creative control over the stage or studio set. The manufacturer accommodates global commercial orders with a minimum order quantity (MOQ) of 1 unit, offering standard delivery within 15 to 20 days after deposit payment. Safe transit is guaranteed through professional packaging utilizing reinforced cartons and shock-resistant materials. For detailed technical solutions or support, please reach out to us via jack@color-imagination.com.
