Light Source
Source:
1*150W White LED module
Color Temperature: 7500K(±500K)
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

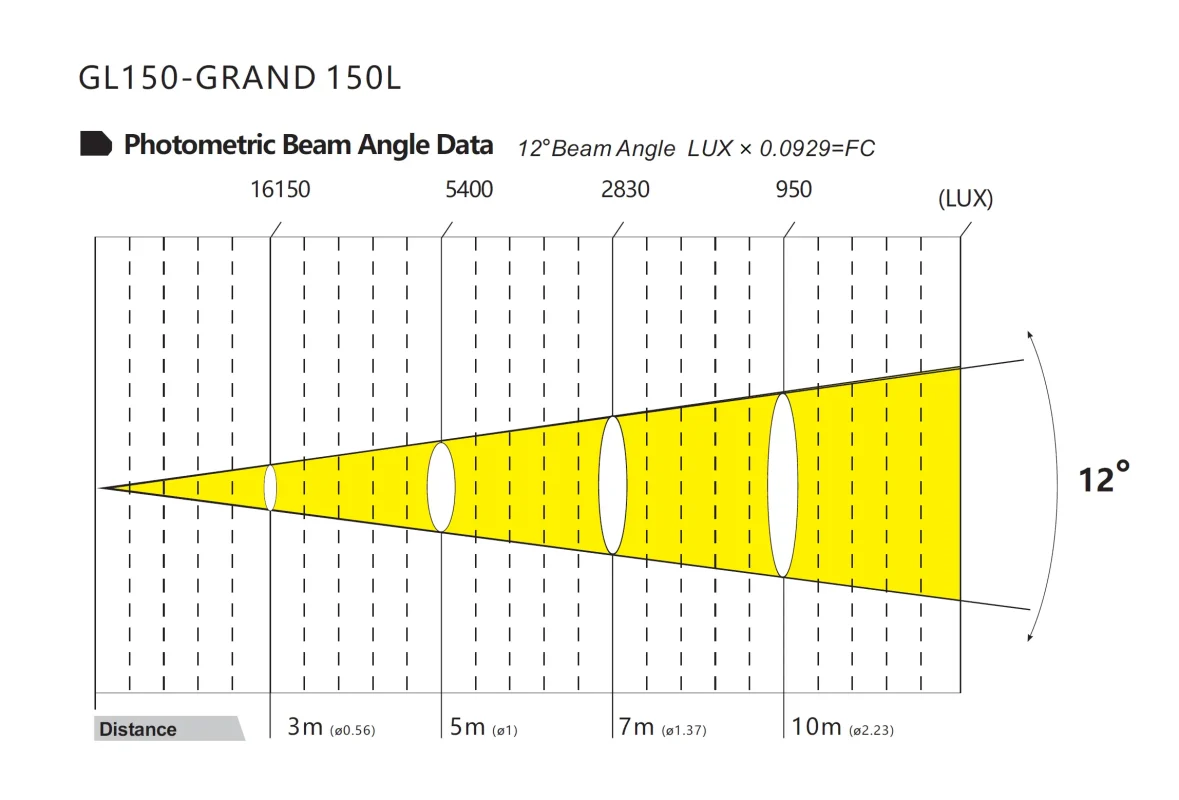

Optics
A set of high resolution and precise optics
12°Projection angle
Linear electric focus with fine control
Movement
PAN: 540°(8/16 bit)
TILT: 270°(8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible

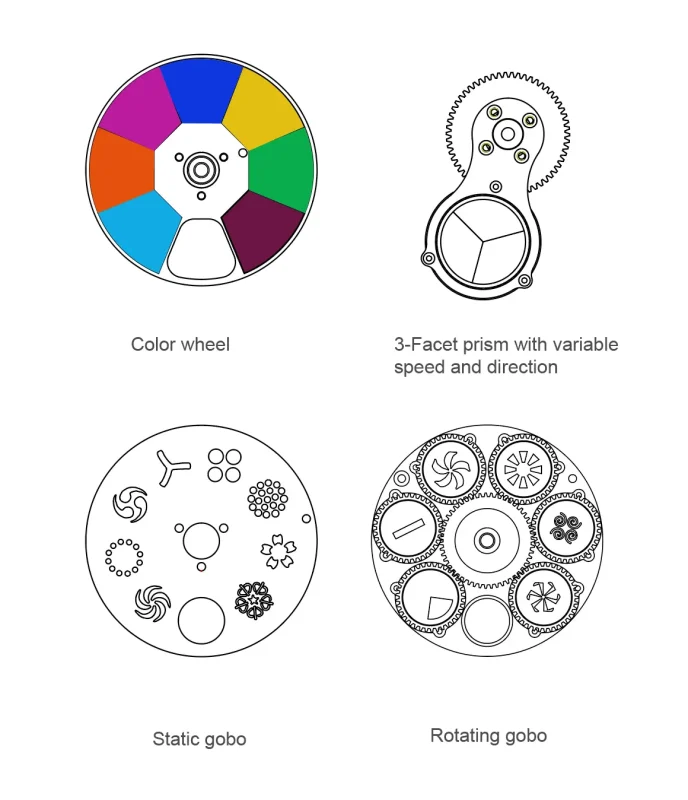

Color System
1 Color wheel with 7 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable
Gobo System
1 Rotating gobo wheel with 6 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
Gobo indexing
Gobo size 22mm (external)/16mm (inner)
1 Static gobo wheel with 7 gobos plus open with dithering effect
Fine control for rotating/static gobo wheels
Gobo overlay (gobo morphing)
Prism System
3-Facet prism with variable speed and direction
Strobe Effect
0-25Hz LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect
Dimming System
0-100% Smooth linear LED dimming
Control System
15/18 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
LUMEN-RADIO wireless receiver built-in (Optional)
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT (Optional with Art-Net)
3-Pin/5-pin XLR connectors IN/OUT
Software Update
Software up-datable through DMX connectors
Multi units up-datable in daisy chain
Display System
1.44″ TFT LCD display
5 Control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicator
Cooling System
Advanced cooling system integrated aluminum
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with fuse
171W Power consumption
Housing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black
Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 6.6kg
G.W.: 8.9kg

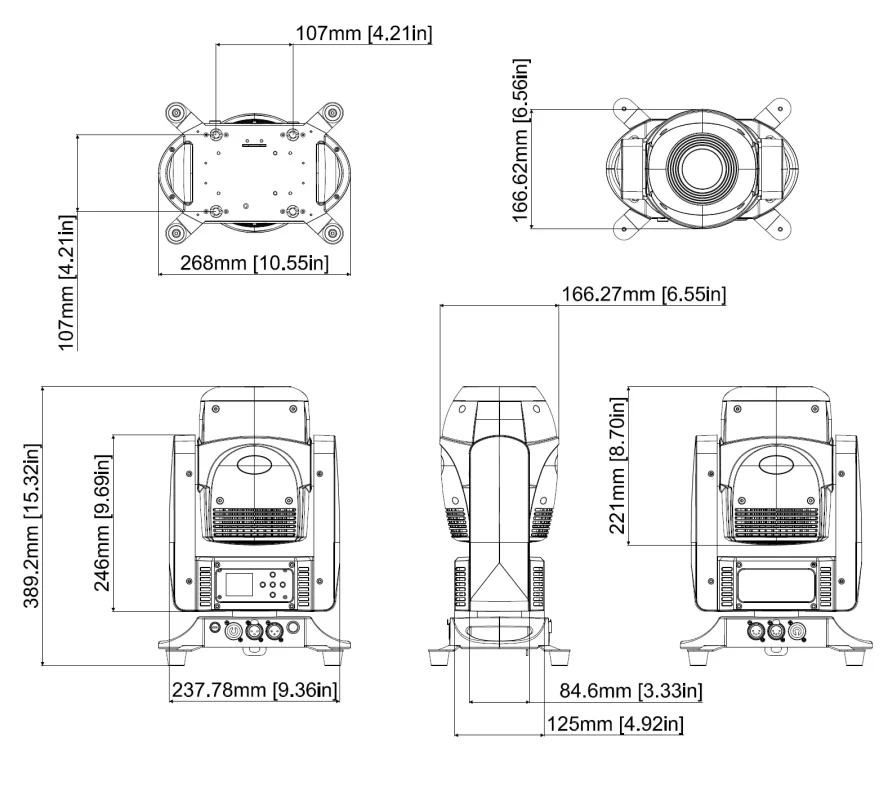

Dimensions
Product Dimensions: 166.3(D)*268(W)*389.2(H)mm
Packing Dimensions: 300(D)*485(W)*365(H)mm
