GRAND 420

GRAND 420

SPOT+BEAM+WASH, 3-Ring Strip Effect, 2 Prism Wheels, Animation Wheel, Continuous PAN/TILT



The GRAND 420 is a new generation professional and intelligent compact LAMP BSW moving head light designed with linear zoom from 4°-32°. The SPOT features a new high intensity and efficiency OSRAM SIRIUS HRI 420W lamp delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. The 3-ring strip light in the front head delivers magic and vivid dynamic lighting effect created by 108*0.2W 3-IN-1 SMD RGB LEDs.

It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, 6-color effect wheel, animation wheel, 2 prism wheels, frost filter, motorized focus, linear dimmer, strobe, etc. It provides 360°continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).



The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the GRAND 310 achieves more than just a striking look.



It’s fast and quiet operation BSW moving head. The fixture is tuned with proper refresh rate for flicker free operation for TV and FILM. It’s a perfect option for live concerts, TV productions, road shows, theatre, conference halls, club/bars, etc.

DownLoad

Technical specifications

  • Light Source
    1*OSRAM SIRIUS HRI 420W lamp
    (30+36+42)*0.2W 3-IN-1 SMD RGB LEDs
    Color Temperature: 7850K(+/- 300K)
    CRI: ≥83(+/- 5)
    Flicker free operation for broadcast TV and FILM
    Life Span: 2500H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

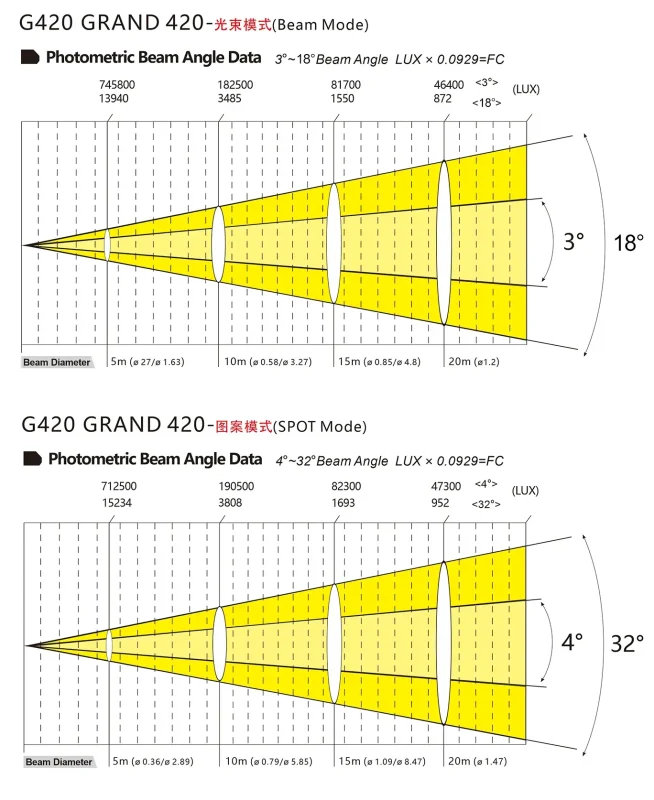

    Optics

    A set of high resolution and precise optics
    Smooth and quiet linear motorized zoom
    SPOT Mode: 4°-32°
    Beam Mode:2.5°
    Smooth and precise linear focus



    Movement

    PAN: 2 modes
    1. 360°Continuous movement
    2. 540°(8/16 bit)
    TILT: 2 modes
    1. 360°Continuous movement
    2. 270°(8/16 bit)
    Fast, quiet, smooth and precise 2-Phase motors
    Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
    Scan position memory, auto reposition after unexpected movement
    PAN/TILT reversible



    Color System

    1 Color wheels with 13 dichroic colors plus open (half color mode available)
    Variable direction rainbow effect with speed adjustable
    6-Color effect wheel



    Gobo System

    1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
    1 Static gobo wheel with 12 gobos plus open
    Gobo overlay (gobo morphing)



    Animation System

    Special dynamic flame or water effect, etc



    Prism System

    2 Prism wheel design
    Prism 1: 4 different prisms, 5-Facet linear prism/3-Facet circular prism/8-Facet circular prism/4+8+16-facet circular prism with variable speed and direction
    Prism 2: 4 different prisms, 6-Facet linear prism/12-facet circular prism/16-facet circular prism/8+16-facet circular prism with variable speed and direction
    Prism indexing
    Prism overlay (prism morphing)
    16 Kinds of prism morphing effect
    24 Kinds of prism effect in total



    Wash System

    Linear frost filter (Hybrid effect for wash)
    Even and soft coverage



    Strobe Effect

    0-20Hz LED shutter/strobe effect with variable speed
    Preset variable/random strobe and dimming pulse effect



  • Dimming System

    0-100% Smooth linear dimming



    Control System

    28/33 DMX channels USITT DMX-512
    DMX512, master-slave, or auto operation
    DMX recorder and edit function integrated
    RDM available (Remote Device Management)
    Art-NET (Optional)
    Wireless receiver system built-in (Optional)
    Shielded input signal protection for stable signal without interference
    RJ45 etherCON IN/OUT (Optional with Art-Net)
    3-Pin and 5-pin XLR DMX connectors IN/OUT



    Software Update

    Software up-datable through DMX connectors
    Muilt units up-datable in daisy chain



    Display System

    1.44″ TFT LCD display
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF
    DMX signal monitoring indicator



    Cooling System

    Advanced low noise cooling system integrated aluminum and fan
    Constant temperature readout and management function
    Over temperature protection management



    Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON IN/ OUT with fuse
    620W Power consumption



    Housing

    High tension molded fire proof housing with PA6+fibre
    Skeleton made of aluminum and steel metal plates
    Two side handles on base
    Exterior finish: Black



    Installation

    2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
    1*Safety attachment point



    Operating Condition

    Operating positions: all (device on floor or fixed to a support)
    -25?? to 45?? ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU – Electromagnetic Compatibility (EMC)
    2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 14.23 kg
    G.W.: 16.16 kg



    Dimensions

    Product Dimensions: 261.8(D)*297.9(W)*513.7(H)mm
    Packing Dimensions: 655(D)*380(W)*355(H)mm



Dimensions

ML200

Effect

Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

omega_1

Omega

STANDARD
code:
QTY: 2PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 2PCS
