How does White Laser Moving Head Light compare to traditional discharge lights?
White laser moving head lights deliver an ultra-narrow 1° beam angle and a solid, near-parallel light projection over extreme distances. Unlike traditional discharge lights, which rely on gas-discharge lamps, white laser fixtures offer higher optical precision, lower power consumption, and longer light source lifespans without rapid brightness decay.
Core Solutions & Key Takeaways
- Unmatched Beam Precision: The 1° beam angle produces a highly concentrated, solid beam ideal for long-throw aerial effects.
- Extended Lifespan: The white laser source lasts up to 12,000 hours, significantly reducing maintenance compared to discharge lamps.
- Energy Efficiency: High-output illumination is achieved with a total power consumption of only 185W.
- Versatile Application Scenarios: Optimized for concerts, festivals, theaters, TV studios, live events, rental productions, nightclubs, and houses of worship.
Detailed Architectural & Principle Analysis

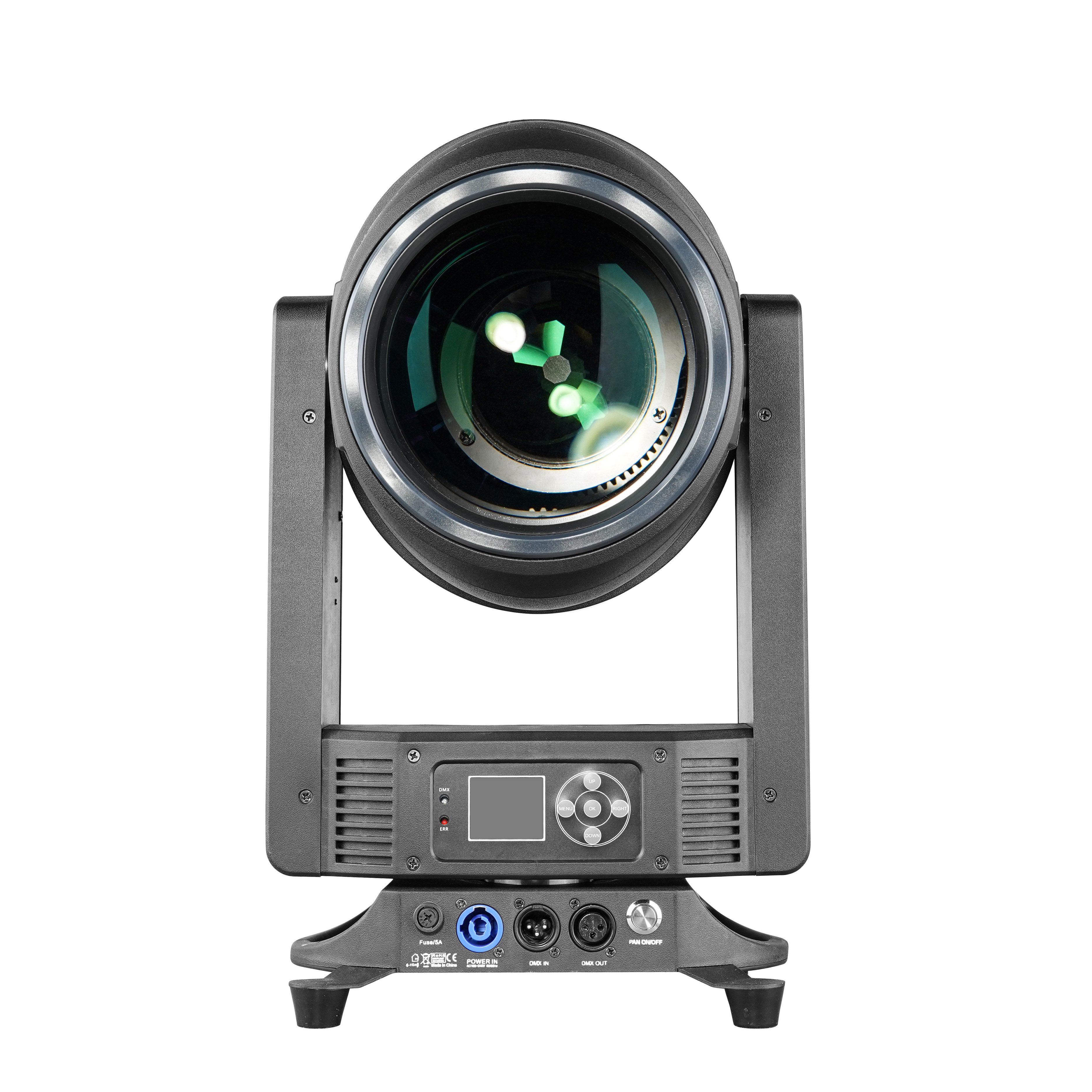

The transition from traditional discharge lamps to solid-state laser technology represents a major shift in entertainment lighting design. Traditional discharge fixtures utilize high-pressure gas lamps that generate substantial heat, require high power, and suffer from rapid lumen depreciation over a short operational lifespan. In contrast, the SKYTOUCH 150 utilizes a sealed 150W white laser module integrated with a high-resolution optical system. This configuration projects a 1° parallel beam through a 160mm front lens, maintaining beam intensity over extreme distances with minimal dispersion.
Operational stability is maintained via an advanced low-noise, self-adjusting fan cooling system built into an aluminum and steel skeleton. This cooling design prevents thermal degradation, preserving the 12,000-hour lifespan of the laser source. For control flexibility, the fixture supports DMX512, RDM (Remote Device Management), and optional Art-Net. It features 360-degree continuous pan and tilt rotation driven by precise 3-phase motors, enabling fast and smooth movement configurations.
In practical applications, this technology has demonstrated high reliability. For example, during the Kunming Alice Official Night Club project in Yunnan Province, China, 3,500 pieces of stage lights were deployed. The installation combined beam, wash, effect, and pixel fixtures to establish an immersive, synchronized environment. The integration of high-precision beams allowed the venue to run continuous, high-intensity shows with lower power requirements and reduced maintenance cycles compared to traditional discharge setups.
Data/Solution Comparison
| Technical Parameter | 150W White Laser Moving Head (SKYTOUCH 150) | Traditional Discharge Moving Head |
|---|---|---|
| Light Source Lifespan | 12,000 Hours | 1,500 – 3,000 Hours |
| Beam Angle | 1° (Near-parallel solid beam) | Typically 2° – 5° (Divergent beam) |
| Power Consumption | 185W (Active PFC, AC100-240V) | Often 300W – 500W+ |
| Control Protocols | DMX512, RDM, Optional Art-Net | Standard DMX512 |
| IP Rating & Compliance | IP20, CE (LVD, EMC, RoHS) | Varies; standard indoor models |
| Color & Gobo Systems | 13 colors + 6-color wheel, 19 static gobos | Standard color and gobo wheels |
Frequently Asked Questions (FAQ)
Are white laser moving heads safe for indoor entertainment venues?
Yes. The fixture utilizes a fully sealed, integrated white laser module combined with precise optical systems to ensure the beam remains controlled, stable, and safe for indoor applications such as concert halls, clubs, and corporate events when installed according to standard safety guidelines.
How does the maintenance of a laser fixture compare to discharge lights?
Laser moving heads require significantly less maintenance. Traditional discharge lamps must be replaced every 1,500 to 3,000 hours due to brightness decay and failure risks. The white laser source provides up to 12,000 hours of operation, resulting in lower long-term operating costs and minimal downtime.
Can the laser beam produce wash effects, or is it strictly a tight beam?
While the primary function of the fixture is to deliver an ultra-narrow 1° beam, the integration of a frost filter and a dedicated wash system allows it to diffuse the light, providing even and soft coverage when wider wash illumination is required.
Final Conclusion & Recommendations
Selecting a white laser moving head light over traditional discharge fixtures offers distinct advantages in beam sharpness, operational longevity, and energy efficiency. For production houses, rental companies, and venue installations requiring long-throw aerial effects with low power consumption, solid-state laser fixtures represent the modern standard. Guangzhou Color Imagination LED Lighting Limited delivers innovative, CE and ISO-certified stage lighting products designed to meet demanding global standards. The company supports international orders with a minimum order quantity (MOQ) of 1 unit, offering standard delivery times of 20 to 30 days following deposit payment. For detailed technical solutions or support, please reach out to us via jack@color-imagination.com.
