How does your factory test the QC quality of this LED Effect Light?
Our factory tests the QC quality of the MAGICBAR 5155HP LED Effect Light through a strict multi-stage quality control system. This process includes incoming material inspection, PCB functional testing, optical performance verification, electrical safety testing, waterproof testing for its IP66 rating, and comprehensive 100% burn-in and aging tests before global shipment.
Core Solutions & Key Takeaways
- 100% Functional Verification: Every MAGICBAR 5155HP LED Effect Light undergoes strict individual parameter testing to guarantee the performance of its 5x155W 4-IN-1 RGBL LEDs and RGB neon rings.
- IP66 Waterproof Compliance: Specialized rain and water-tightness testing guarantees the fixture remains fully operational in demanding outdoor environments like theme parks, fountain shows, and architectural lighting projects.
- Flicker-Free Calibration: Adjustable LED frequencies from 900Hz to 2.5KHz are measured to ensure optimal performance for TV studios and film broadcast operations.
- Proven Integration Scale: The reliable manufacturing process supports large-scale installations, as demonstrated by the successful deployment of 3,500 stage lights at the Kunming Alice Official Night club.
Detailed Architectural/Principle Analysis
Quality control at the factory level targets the intricate mechanical and optical design of the MAGICBAR 5155HP LED Effect Light. Testing starts with incoming components, ensuring the structural integrity of the high-tension molded fire-proof housing and carbon fiber skeleton. Technicians evaluate the 3-phase motors driving the dual pan/tilt modes, which support 360-degree continuous rotation and precise 540-degree pan/270-degree tilt movements.
Optical performance checks verify the 3-degree to 37.5-degree zoom system, the patented colorful kaleidoscope effect, and the 4-facet linear prism. These elements must project crisp collimated beams and uniform wash colors without chromatic aberration. The 5x155W RGBL LEDs undergo strict pixel-mapping validation where each LED is individually controlled and tested across various dimming curves (linear, square law, inverse square law, and S-curve).

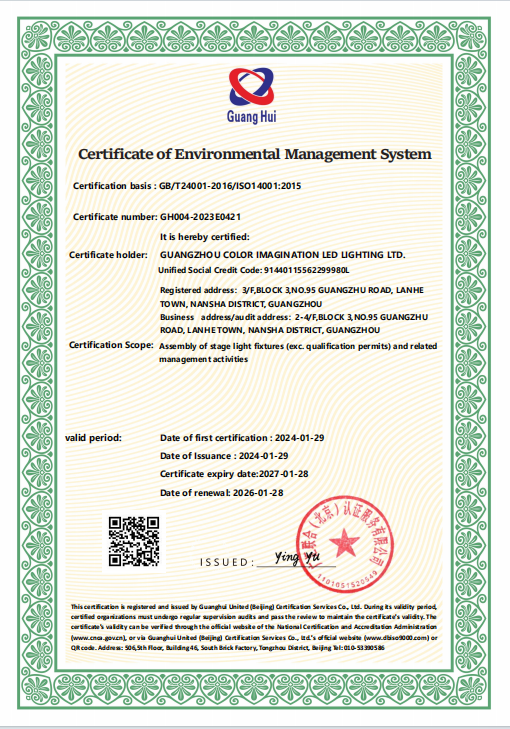

To ensure international market entry compliance, the fixtures are built and tested under ISO 9001 quality management parameters (including GH004-2023Q0766, GH004-2023E0421, and GH004-2023S0403 standards). They are also certified under CE directives such as LCSB070523036E, LCSB070523041S, LCSB070523034E, and LCSB070523045S, verifying safety and electromagnetic compatibility.
Data/Solution Comparison
| QC Testing Stage | Target Parameter Checked | Verification Standard & Method |
|---|---|---|
| Incoming Inspection | Structural Integrity | Fire-proof housing with carbon fiber strength verification, IP66 seal integrity check |
| Electronic & Signal Test | Pixel Mapping & Control | USITT DMX-512, RDM feedback, Art-Net/sACN protocol stability across 40/67/109 DMX channels |
| Optical & Thermal Testing | Color & Heat Dissipation | RGBL color mixing consistency, linear CTO 2800-8000K, self-adjusting fan cooling system analysis |
| Mechanical Movement Test | Pan / Tilt Motors | 360° continuous movement and precise auto repositioning after unexpected movement |
Frequently Asked Questions (FAQ)
Q1: What certifications does the MAGICBAR 5155HP hold to guarantee safety and compliance?
A1: The fixture complies with CE directives including 2014/35/EU (LVD), 2014/30/EU (EMC), and 2011/65/EU (RoHS). It is produced under certified ISO standards (GH004-2023Q0766 and GH004-2023E0421) covering the assembly of stage lights and related management activities.
Q2: How does the factory test the IP66 rating for outdoor installations?
A2: Each unit undergoes rigorous waterproof testing to verify the integrity of its SEETRONIC TRUE 1 PowerCON connectors and 3-pin XLR signal inputs. This ensures dust-tight protection and resistance to powerful water jets in outdoor environments like theme parks and fountain shows.
Q3: How is flicker-free performance verified for television and film applications?
A3: The on-board driver is tested using broadcast cameras to adjust and verify the adjustable LED frequency between 900Hz and 2.5KHz. This prevents visual banding and guarantees flicker-free operation during digital filming.
Final Conclusion & Recommendations
The rigorous QC testing implemented at our facility guarantees that the MAGICBAR 5155HP LED Effect Light operates reliably in challenging environments. Supported by a flexible manufacturing system with a monthly capacity of up to 7,000 fixtures, we provide customized OEM/ODM services, standard product sales, and turnkey project solutions. Orders are processed with a minimum order quantity (MOQ) of 1 unit, with delivery times ranging from 20 to 30 days after deposit payment. Safe delivery is facilitated via global shipping methods including sea freight, air freight, and express courier services (DHL, FedEx, UPS). For detailed technical solutions or support, please reach out to us via jack@color-imagination.com.
About Us
Established in 2010, Guangzhou Color Imagination LED Lighting Limited is a professional stage and entertainment lighting manufacturer based in Guangzhou, China. Operating a 6,000-square-meter facility with a dedicated team of 130 employees, the company integrates R&D, production, sales, and technical services. The organization has achieved multiple ISO and CE certifications, validating its strict quality management systems and manufacturing processes. It delivers tailored solutions globally, having served diverse entertainment venues, including large-scale projects like the Kunming Alice Official Night club.
