MAGICDOT 155P
The MAGICDOT 155P is an IP66 rated high-performance MINI LED moving head effect light that is equipped with a powerful 155W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICDOT 155P is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. There is another very unique feature that the DOT provides ultra eye-catching colorful kaleidoscope effect (patented). It’s designed with a 4-facet linear prism which brings more vivid benefit to its users. Also, thanks to the ingenious front neon ring design, the DOT could bring ultra brilliant and magic lighting effect to the lighting designers.
The MAGICDOT 155P is designed flexible 360°continuous PAN/TILT movement, which allows the head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.
The MAGICDOT 155P also features a range of advanced lighting effects, including strobe and color mixing effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.
In addition to its advanced features, the MAGICDOT 155P is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different MAGICDOT 155P seamlessly to make them a lighting bar and get synchronized movement that produces an impressive wave of light (BEAM or WASH or kaleidoscope effect), paralleled to each other due to its 3°-37.5°zoom range.
The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
Technical specifications
Light Source
Source:
1*155W 4-IN-1 RGBL LEDs
34*0.5W 3-IN-1 SMD RGB LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
1PCS high efficiency lens
3°-37.5°Zoom range
Movement
PAN: 2 modes
1. 360° Continuous movement
2. 270° (8/16 bit)
TILT: 2 modes
1. 360° Continuous movement
2. 270° (8/16 bit)
Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
Colors
Sophisticated 4 colors RGBL mixed
Linear CTO 2800-8000K
Sharp beam effect
Pure and even wash effect
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed
Strip Effect
Strip effect with different built-in macros
(variable speed control)
Kaleidoscope Effect (patented)
Multi tiny beam punching out from the head
Rotatable continuously with variable speed and direction
Prism System
4-facet linear prism with variable speed and direction
Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming
4 Dimming curves, linear/square law/Inv square law/S-curve
Control System
24/35 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
Waterproof 3-Pin XLR connectors IN/OUT
Software Update
Software up-datable through USB or DMX connectors
Muilt units up-datable in daisy chain
Display System
1.8″ TFT LCD display
English/Chinese menu
5 Control buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
Waterproof SEETRONIC’s TRUE 1 PowerCON IN/OUT with fuse
150W Power consumption
Housing
High tension molded fire proof housing with carbon fibre
Skeleton made of aluminum and steel metal plates
Exterior finish: Black
Installation
1*1/4 turn fastening Omega Clamps
Specific parts for seamless combination between lights
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP66 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 8.7kg
G.W.: 11.2kg
Dimensions
Product Dimensions: 200(D)*283.4(W)*424.5(H)mm
Packing Dimensions: 385(D)*525(W)*320(H)mm

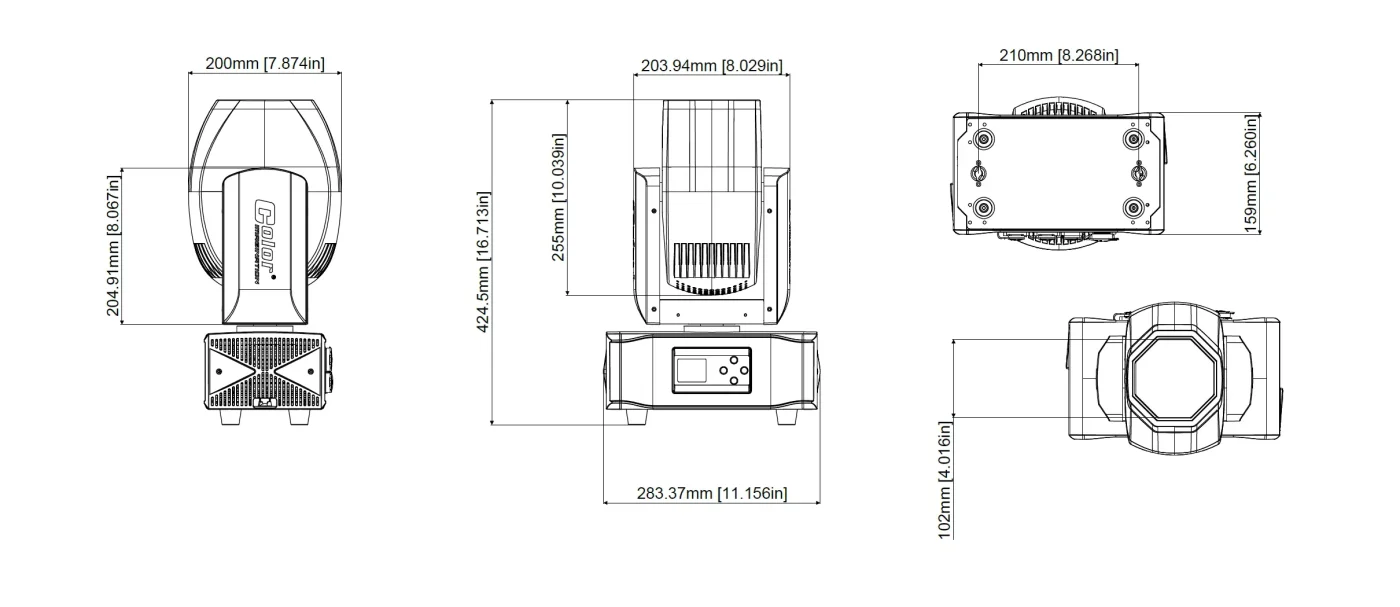

Dimensions

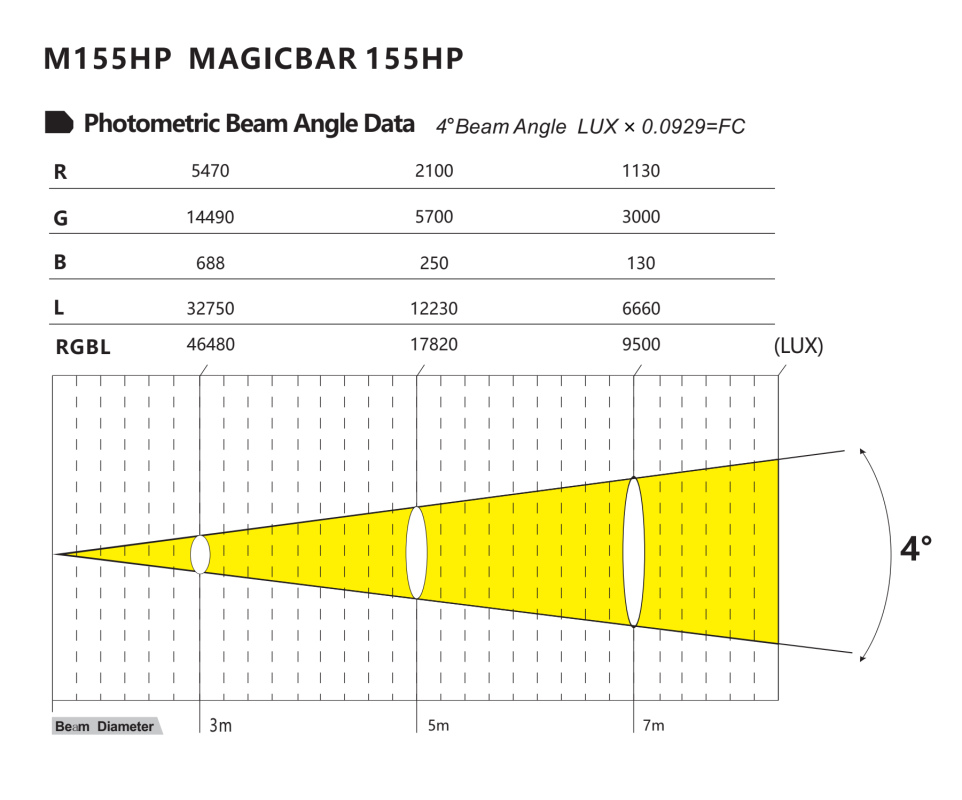

Photometric
Accessories
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
