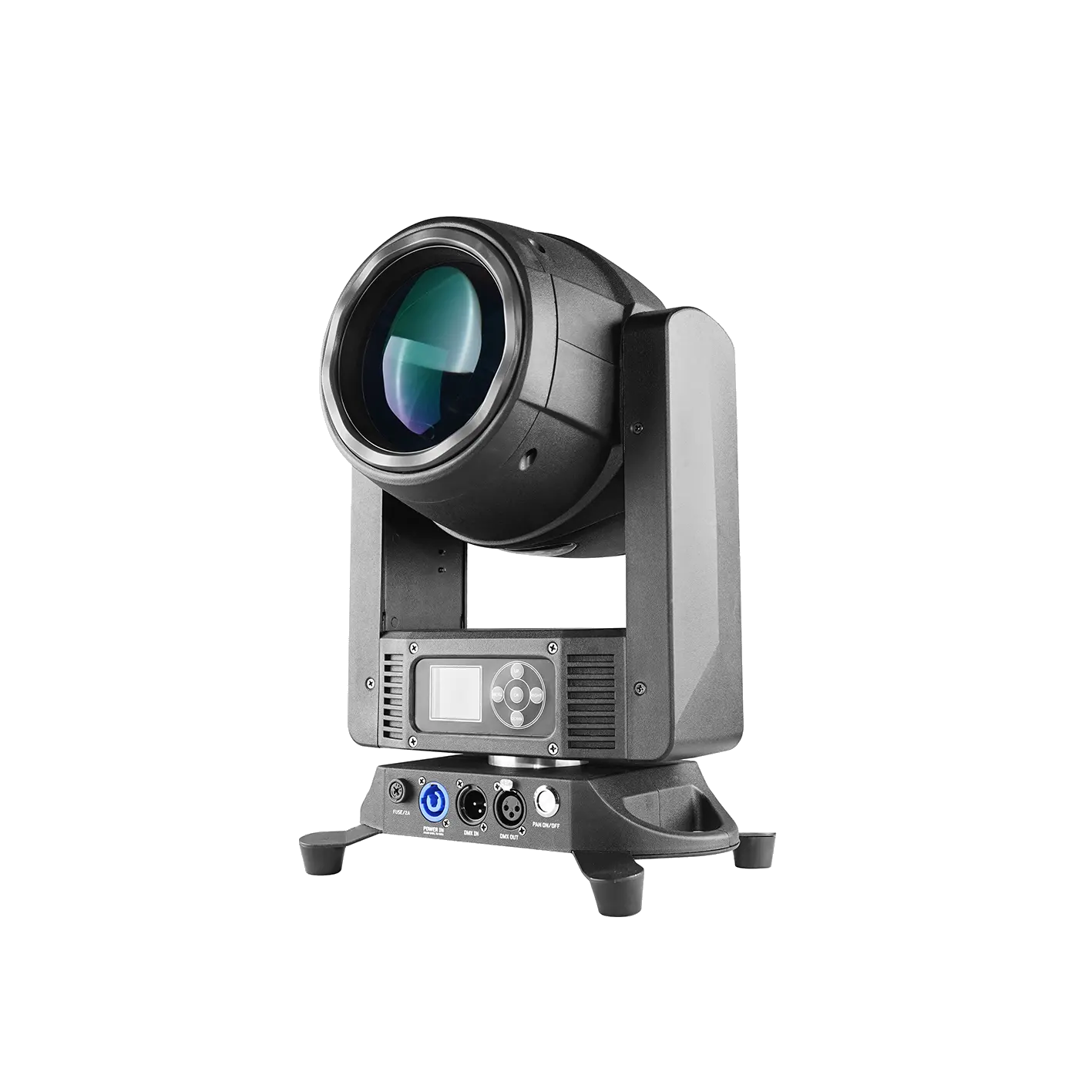

MASTER 100LI

MASTER 100LI

The MASTER 100LI is an intelligent moving head beam light designed aiming at providing users LOW-COST, COMPACT-SIZE, LIGHT-WEIGHT and UNIQUE-STYLE benefit. This helps to make this head much novel and differentiated than traditional moving lights. It’s designed with an ultra high intensity 100W white LED source in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system. The fixture features super bright and sharp beam effects at this power with low power consumption.



The fixture features 2°beam angle which helps to provide ultra long throw solid beam effect. The MASTER 100LI comes with a range of effects: 19 static gobos, 17 dichroic colors, 6-Color Wheel, 2 prisms, frost, focus, front circular strip light effect, etc. The fixture supports DMX, RDM (Remote Device Management).



The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the MASTER 100LI achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.



It’s fast and quiet operation LED source moving head beam. It’s a perfect option for indoor application like small concerts, conference hall, DJ shows, club&bar, etc.

Technical specifications

Light Source
Source:
1*100W LED module (ultra bright)
Color Temperature: 8000K
CRI (Ra): ≥70
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics
A set of high resolution and precise optics
2°Beam angle
Smooth and precise linear focus

Movement
PAN: 540°(8/16 bit)
TILT: 270°(8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible

Color System
1 Color wheel with 17 dichroic colors plus open
Variable direction rainbow effect with speed adjustable
6-Color wheel with variable direction and speed control

Gobo System
1 Static gobo wheel with 19 gobos plus open

Prism System
2 Prism wheels design
Prism 1: 5-Facet linear prism with variable speed and direction
Prism 2: 8-Facet circular prism with variable speed and direction
Prism indexing
Prism overlay (prism morphing)

Strobe Effect
0-25Hz shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect

Wash System
Even and soft coverage

Dimming System
0-100% Smooth linear dimming

Control System
16/19 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
LUMEN-RADIO wireless receiver built-in (Optional)
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT (Optional with Art-Net)
3-Pin/5-pin XLR connectors IN/OUT
Software Update
Software up-datable through DMX connectors
Multi units up-datable in daisy chain

Display System
1.44″ TFT LCD display
5 Control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicator

Cooling System
Advanced low noise self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with fuse
128W Power consumption

Housing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black

Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 9.5kg
G.W.: 12kg

Dimensions
Product Dimensions: 206.6(D)*268(W)*436.2(H)mm
Packing Dimensions: 365(D)*515(W)*310(H)mm
_MG_179-23-4--

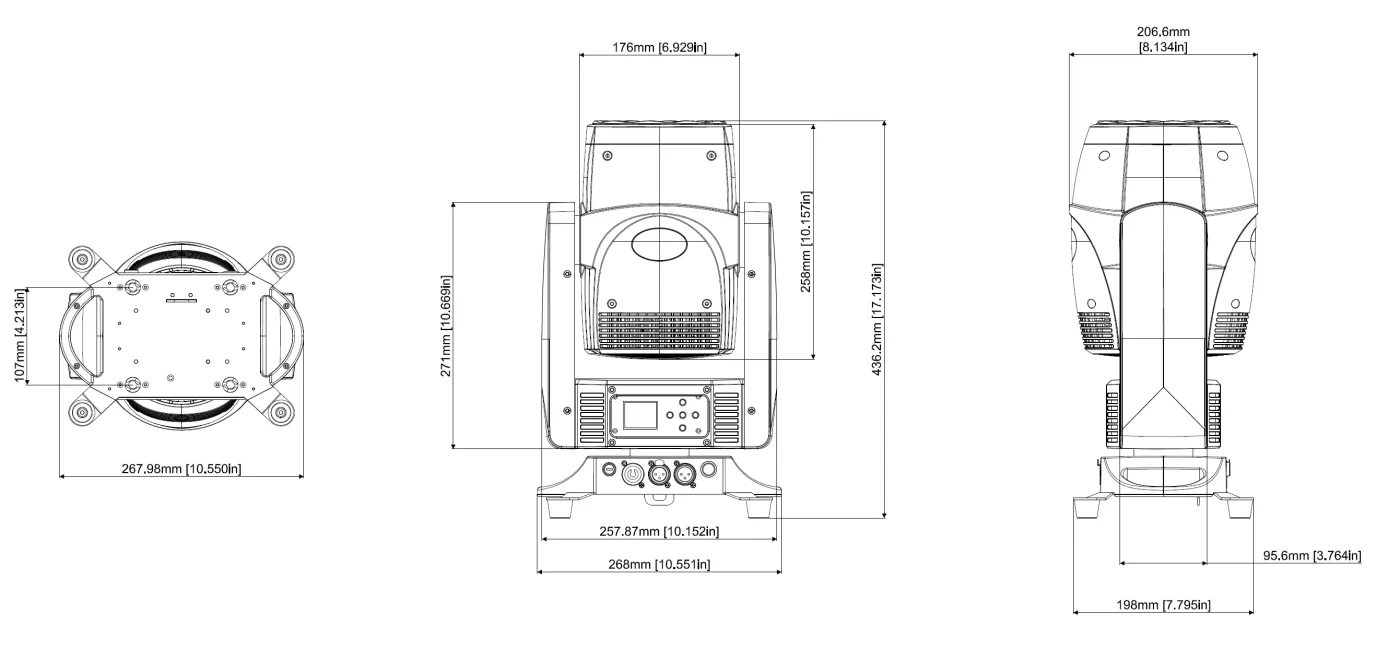

Dimensions

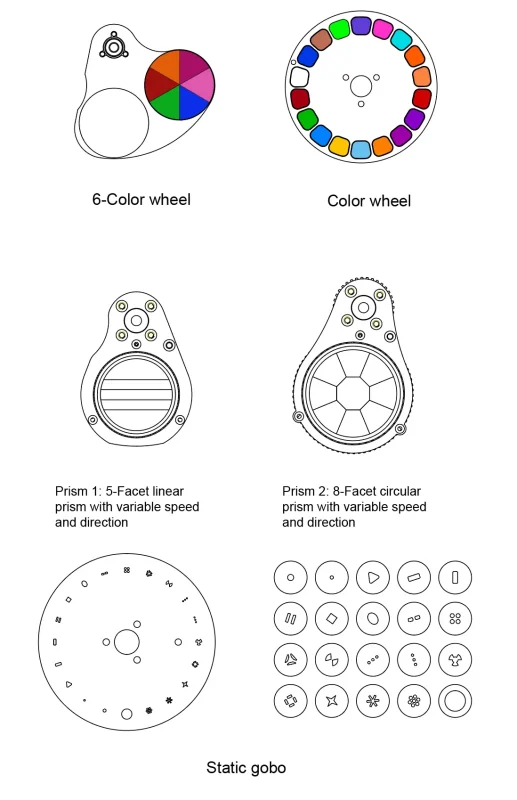

Effect

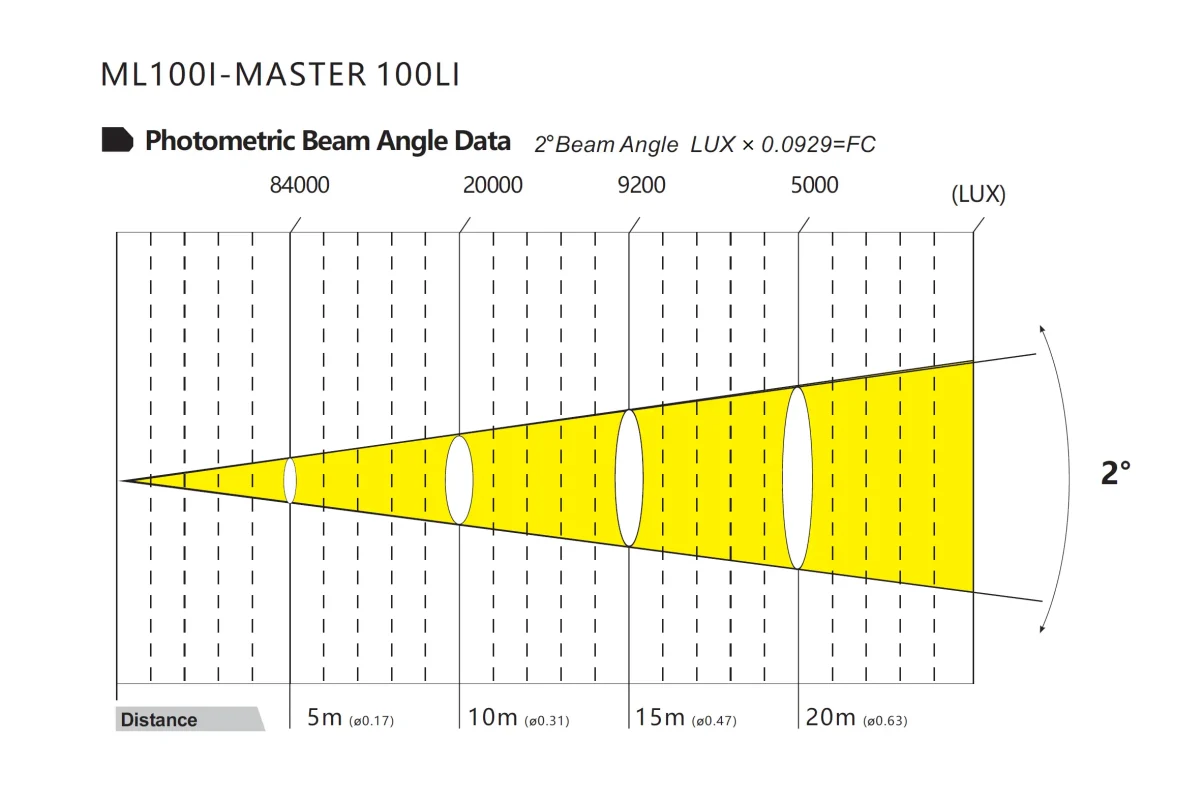

Photometric

Accessories

Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
