MASTER 420C
BEAM+WASH, CMY+CTO, 1.8° Angle, Ø160mm Front Lens,Front Neon Ring, 2 Prism Wheels, Continuous PAN/TILT
The MASTER 420C is an ultra compact and light weight stylish moving head beam light designed with a full CMY color mixing system and CTO color correction. It features an OSRAM SIRIUS HRI 420W lamp, integrated with a set of unique high resolution optical system (160cm front lens).

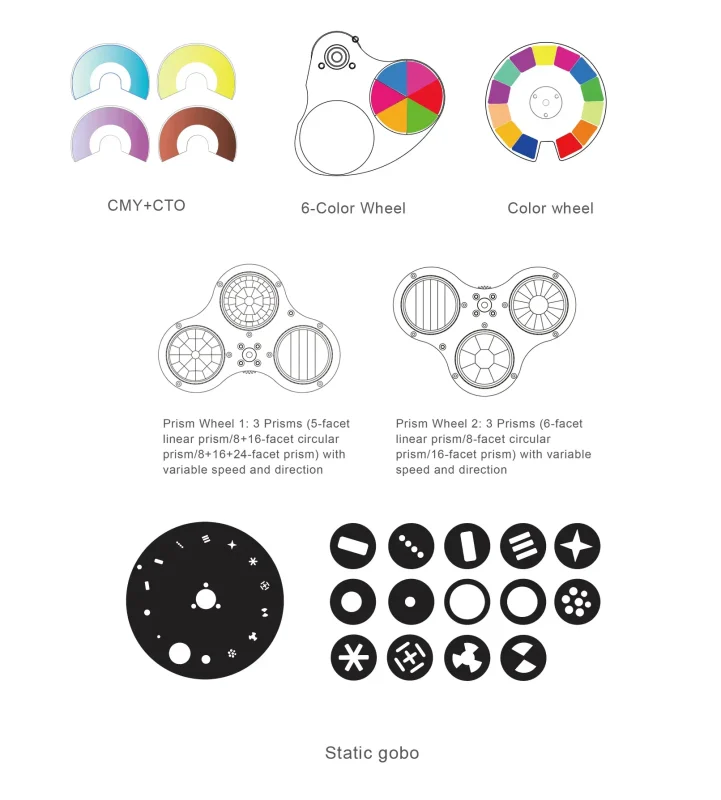

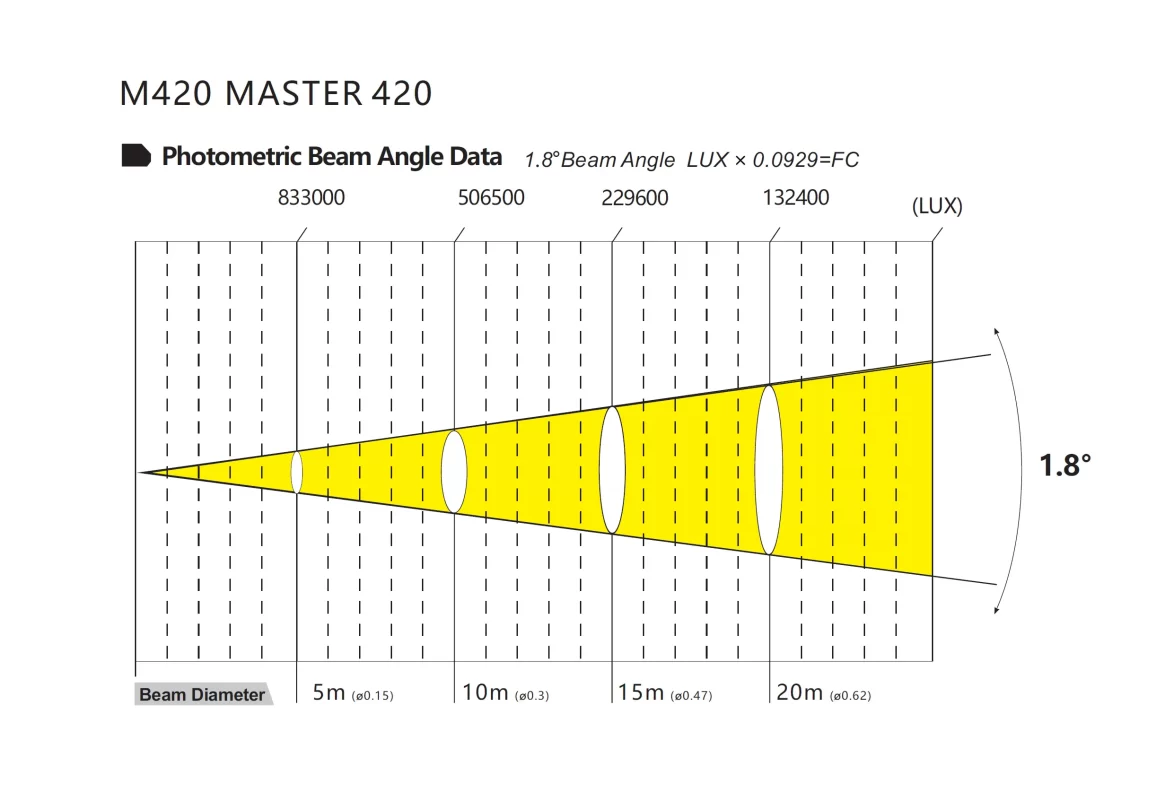

The fixture features 1.8°beam angle which helps to provide ultra long throw solid beam effect. The front ring strip light delivers a magic lighting effect created by 30*0.2W 3-IN-1 SMD RGB LEDs. The MASTER 420C is designed with a range of effects: 13 static gobos, 13 dichroic colors, 6-Color Wheel, 2 prism wheels, frost, focus, etc. It provides 360°continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).
The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the MASTER 420C achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.
It’s fast and quiet operation moving head beam. It’s a perfect option for indoor application like large scale live concerts, TV productions, road shows, conference halls, clubs, etc.
Technical specifications
Optics
Movement
Color System
Strip Effect
Gobo System
Prism System
Strobe Effect
Wash System
Control System
Software Update
Display System
Cooling System
Power Supply
Housing
Installation
Operating Condition
Compliance
Weight
Dimensions
Dimensions
Effect
Accessories
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
Download
