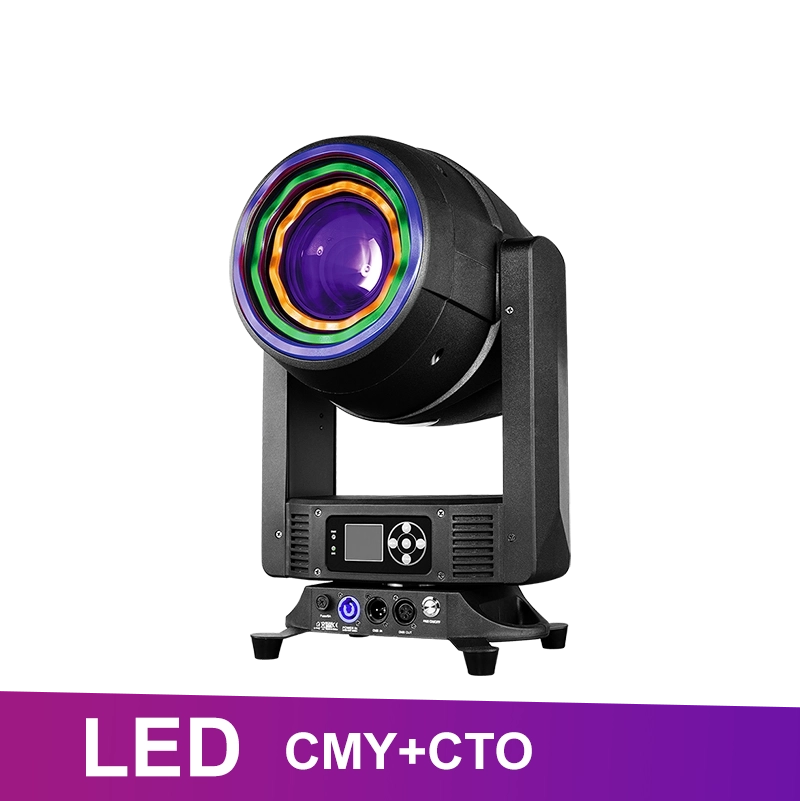

GRAND 280C
SPOT+BEAM+WASH, CMY+CTO, 3-Ring Strip Effect, 2 Prism Wheels, Animation Wheel, Continuous PAN/TILT
The GRAND 280C is a new generation professional and intelligent compact LED BSW moving head light designed with a full CMY color mixing system plus CTO color correction, smooth and linear zoom from 4°-32°. The SPOT features a new high intensity and efficiency OSRAM 280W 8500K LED module delivering ultra high light output through a set of high resolution and precise optics that helps to provide extremely clear and even spot coverage. The 3-ring strip light in the front head delivers magic and vivid dynamic lighting effect created by 108*0.2W 3-IN-1 SMD RGB LEDs.
It offers a full complement of other professional characteristics, rotating gobo wheel, static gobo wheel, color wheel, 6-color effect wheel, animation wheel, 2 prism wheels, frost filter, motorized focus, linear dimmer, strobe, etc. It provides 360°continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).
The fixture’s exterior housing is beautifully balanced design with supremely harmonious interior structure for remarkable control. The sculpted body of the GRAND 280C achieves more than just a striking look.
It’s fast and quiet operation LED BSW moving head. The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for live concerts, TV productions, road shows, theatre, conference halls, club/bars, etc.
DownLoadTechnical specifications
-
Light Source
Source:
1*OSRAM 280W White LED module
(30+36+42)*0.2W 3-IN-1 SMD RGB LEDs
Color Temperature: 8500K(±500K)
CRI: ≥70
12000 Lumen (Source)
Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)Optics
A set of high resolution and precise optics
Smooth and quiet linear motorized zoom

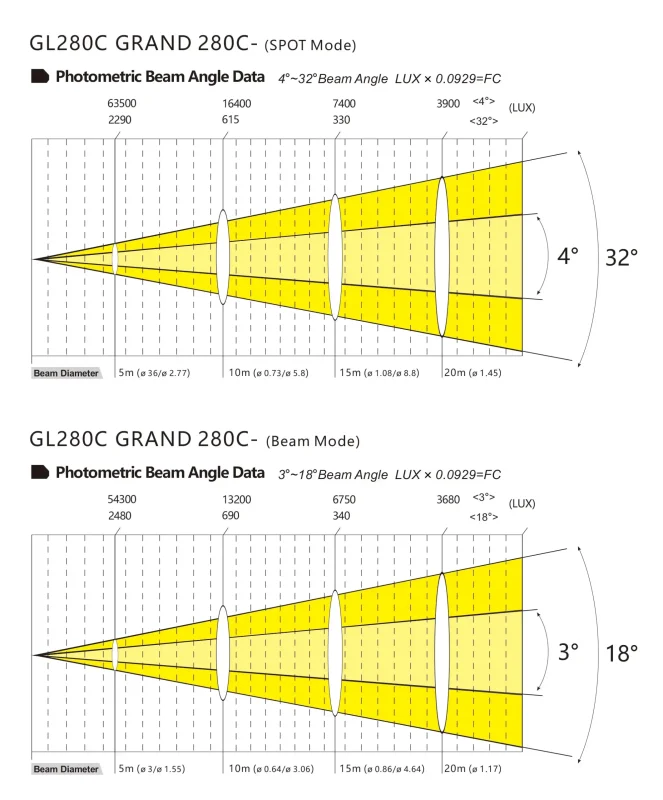

SPOT Mode: 4°-32°
Beam Mode:2.5°
Smooth and precise linear focusMovement
PAN: 2 modes
1. 360°Continuous movement
2. 540°(8/16 bit)
TILT: 2 modes
1. 360°Continuous movement
2. 270°(8/16 bit)
Fast, quiet, smooth and precise 2-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversibleColor System
Full CMY color mixing system with linear CTO color correction
4 Color wheels with 13 dichroic colors plus open (half color mode available)
Variable direction rainbow effect with speed adjustable
6-Color effect wheelGobo System
1 Rotating gobo wheel with 8 rotatable and interchangeable glass gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
1 Static gobo wheel with 12 gobos plus open
Gobo overlay (gobo morphing)Animation System
Special dynamic flame or water effect, etc
Prism System
2 Prism wheel design
Prism 1: 4 different prisms, 5-Facet linear prism/3-Facet circular prism/8-Facet circular prism/4+8+16-facet circular prism with variable speed and direction
Prism 2: 4 different prisms, 6-Facet linear prism/12-facet circular prism/16-facet circular prism/8+16-facet circular prism with variable speed and direction
Prism indexing
Prism overlay (prism morphing)
16 Kinds of prism morphing effect
24 Kinds of prism effect in totalWash System
Linear frost filter (Hybrid effect for wash)
Even and soft coverageStrobe Effect
0-25Hz LED shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect -
Dimming System
0-100% Smooth linear dimming
Control System
34/39 DMX channels USITT DMX-512
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
Wireless receiver system built-in (Optional)
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT (Optional with Art-Net)
3-Pin and 5-pin XLR DMX connectors IN/OUTSoftware Update
Software up-datable through DMX connectors
Muilt units up-datable in daisy chain
1.44" TFT LCD display
5 Control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicatorCooling System
Advanced low noise cooling system integrated aluminum and fan
Constant temperature readout and management function
Over temperature protection managementPower Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with fuse
420W Power consumptionHousing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black
Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment pointOperating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection ratingCompliance
CE
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)Weight
N.W.: 14.27 kg
G.W.: 16.2 kgDimensions
Product Dimensions: 261.8(D)*297.9(W)*513.7(H)mm
Packing Dimensions: 655(D)*380(W)*355(H)mm

Dimensions

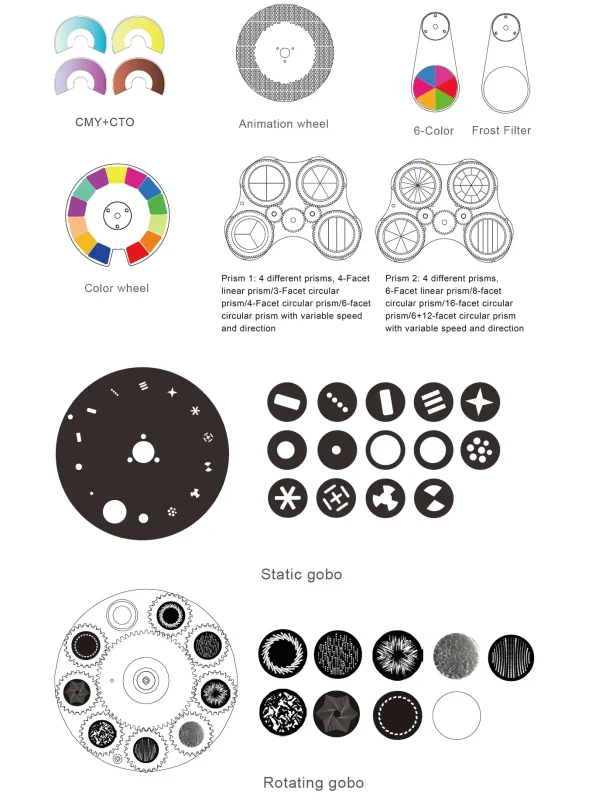

Effect
Accessories

Power Cable
STANDARD
code:
QTY: 1PCS

Signal Cable
STANDARD
code:
QTY: 1PCS

Omega
STANDARD
code:
QTY: 2PCS

Safety Cable
STANDARD
code:
QTY: 1PCS

Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps
OPTIONAL
code:
QTY: 2PCS
