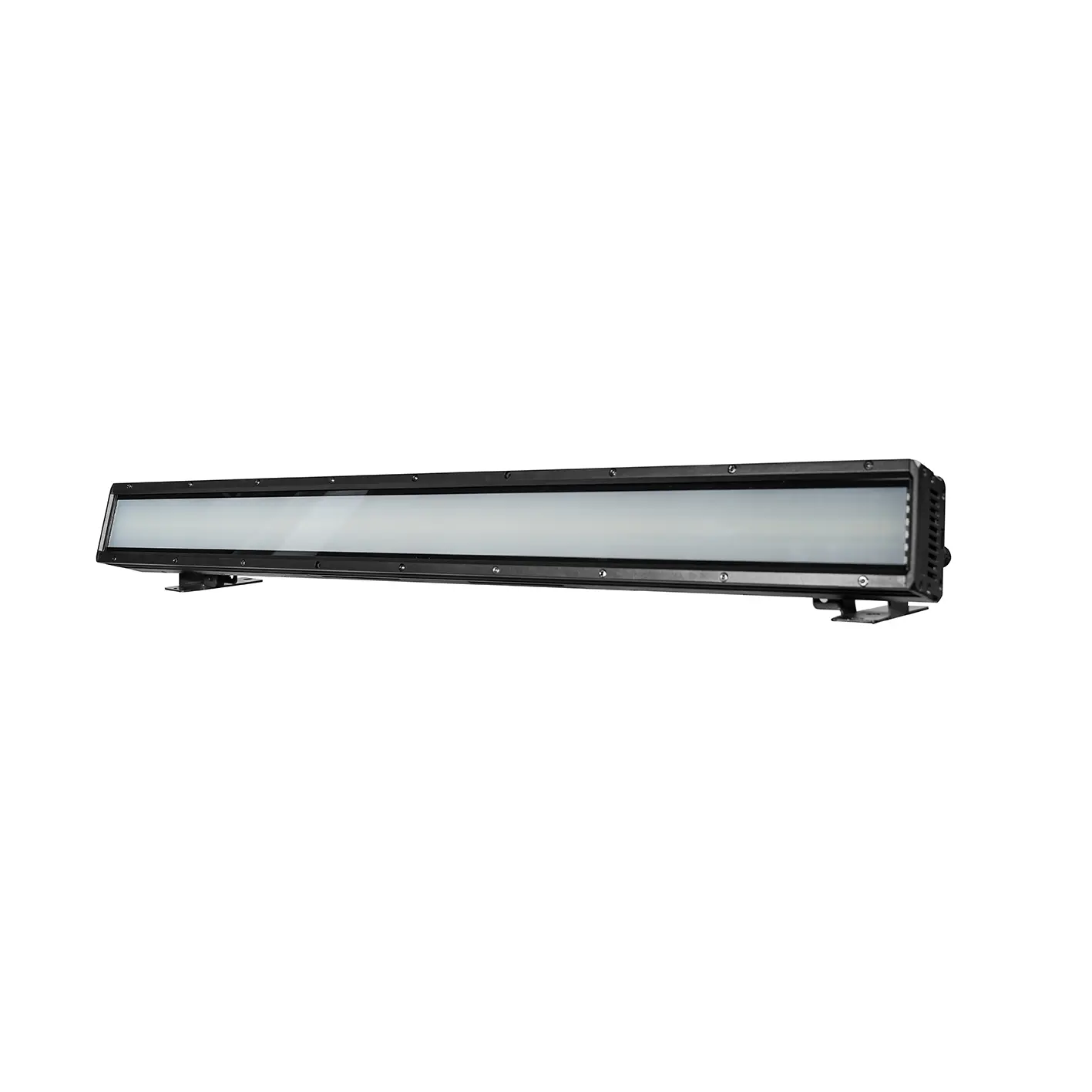

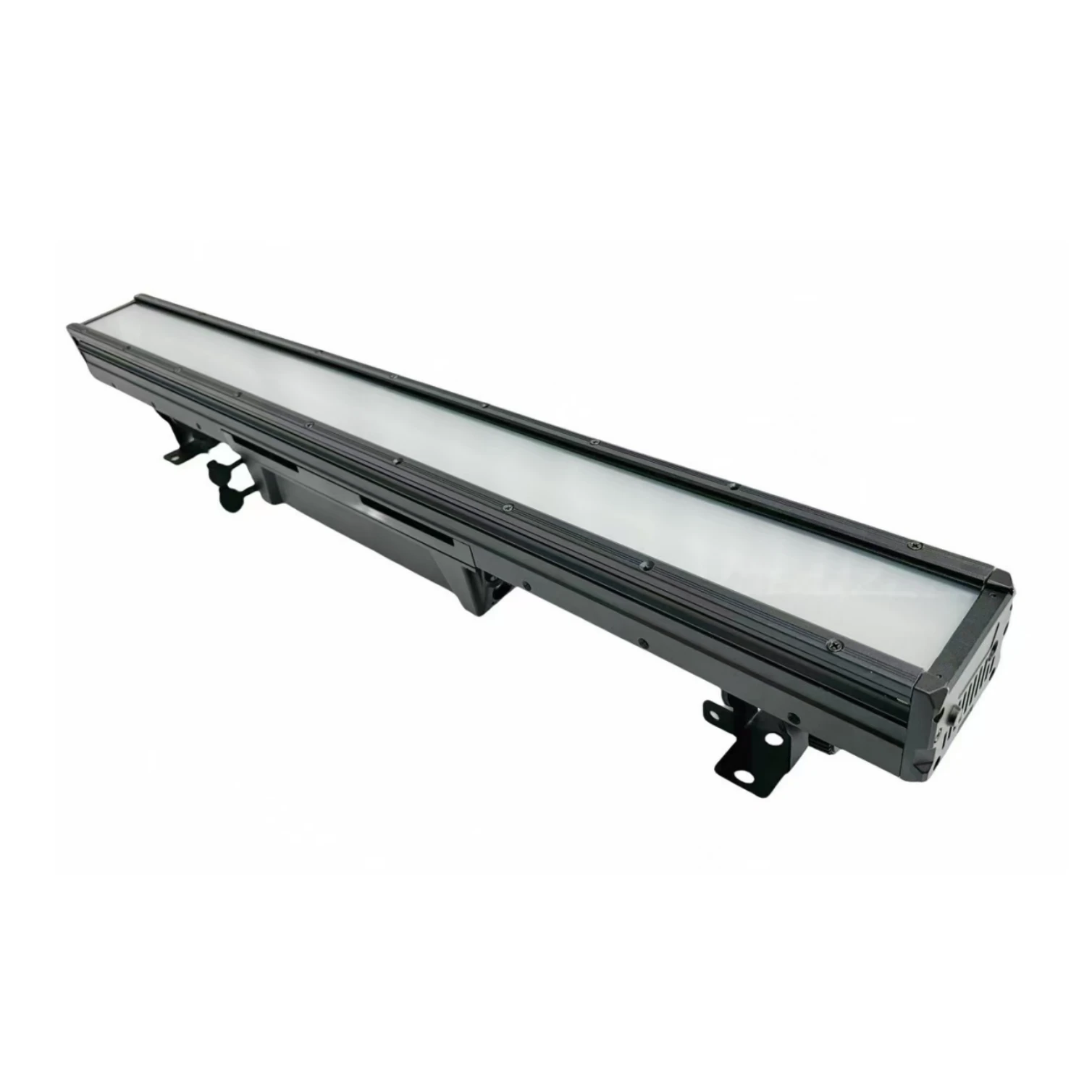

BARSTROBE 500IP

The BARSTROBE 500IP is an ultra high power IP65 rated strobe lighting bar basing on LED technology, with electronic frost filter. It features with 112*2W 6500K Cool-White LEDs with 16 segments control, plus 672*0.3W 5050 RGB 3in1 with 32 segments control. All these segments, either the main strobe or the auxiliary light, can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.

Technical specifications

Light Source

112*2W Cool-White 6500K, 16 segments

672*0.3W 5050 RGB 3in1, 32 segments

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

Beam Angle :

RGB: 101°

CW: 108°

Field Angle :

RGB: 149°

CW: 152°

Colors

Sophisticated 3 colors RGB mixed

Cool white 6500K

Preset 33 colors

Dynamic Effect

29 Built-in pre-programmed effects with variable speed

Frost

Electronic frost function

Dimming

0-100% Smooth linear LED dimming with fine tune function

4 Dimming curves

Strobe Effect

0-25Hz shutter/strobe effects at variable speed

Random strobe effect

Pulse strobe effect

Control System

7/15/17/21/33/39/65/112/117 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

IP65 3-Pin XLR connectors IN/OUT

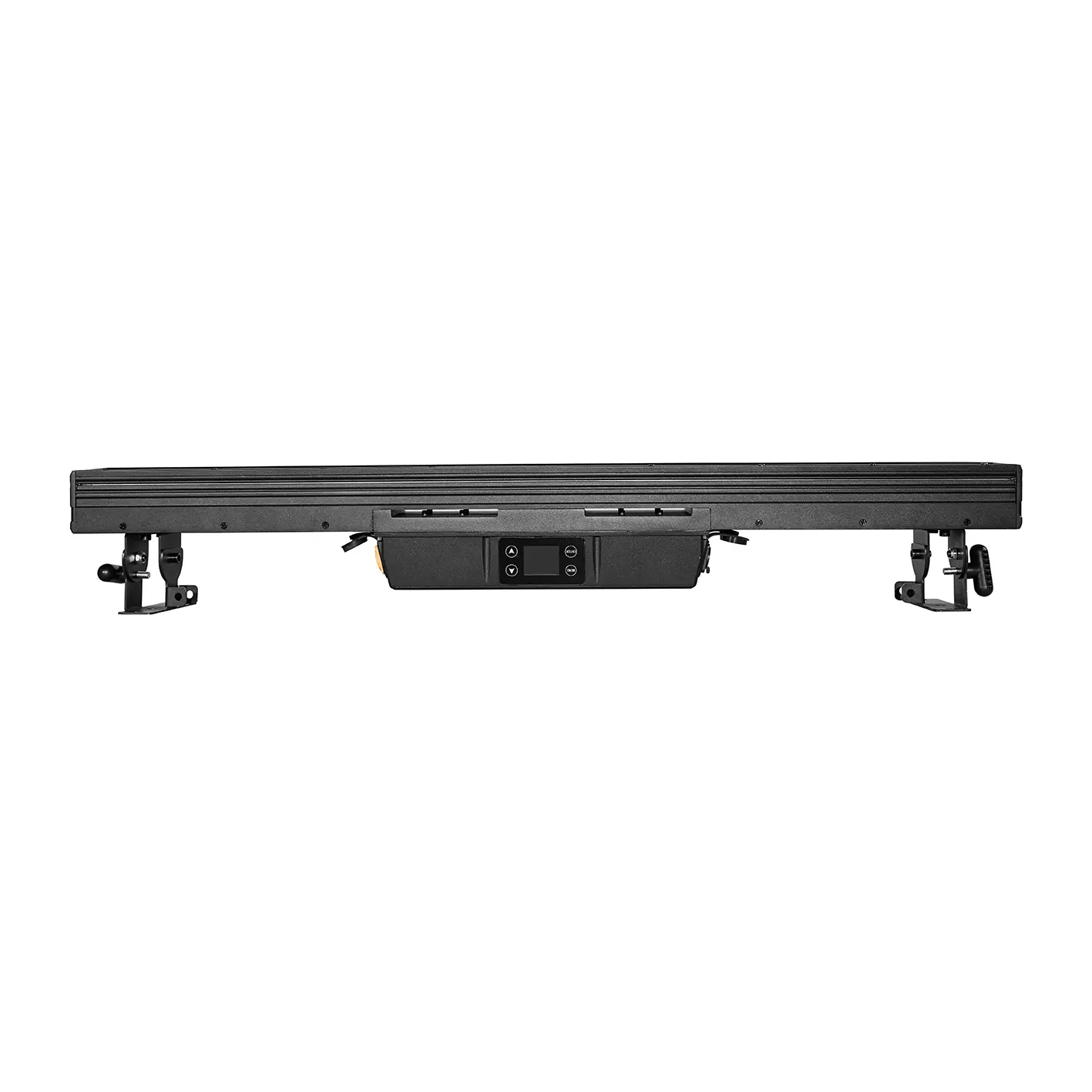

Display System

1.8” High resolution TFT LCD display

4 Light control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System

Advanced cooling system integrated aluminum

Temperature controlled, overheating protection

Power Supply

Electronic supply with active PFC

IP65 powercon connectors IN/OUT

AC100-240V 50/60Hz

425W Power consumption (Full ON)

Housing

Die-cast aluminum housing

Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Mounting Options

Two hanging points on the brackets

1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25°C to 45°C ambient temperature

IP65 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 8.2kg

G.W.: 10.5kg

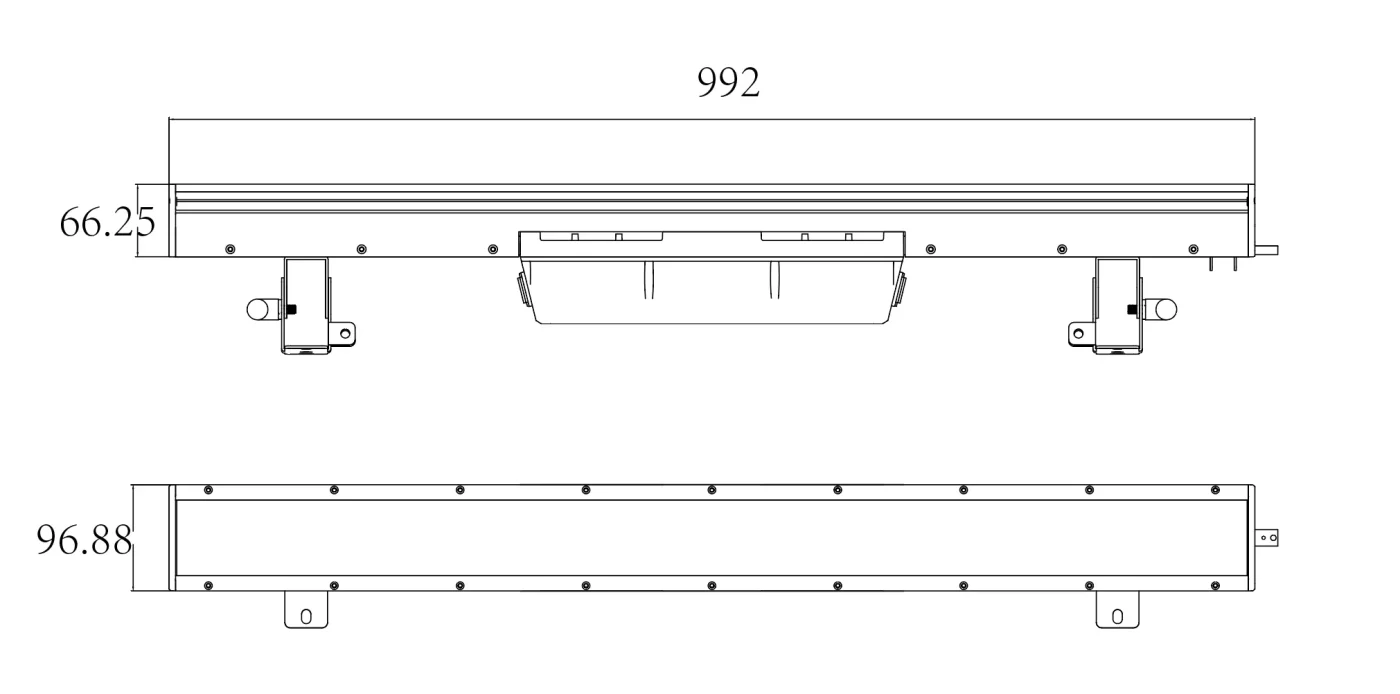

Dimensions

Product Dimensions: 96.9(D)*992(W)*239(H)mm

Packing Dimensions: 180(D)*1160(W)*260(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
