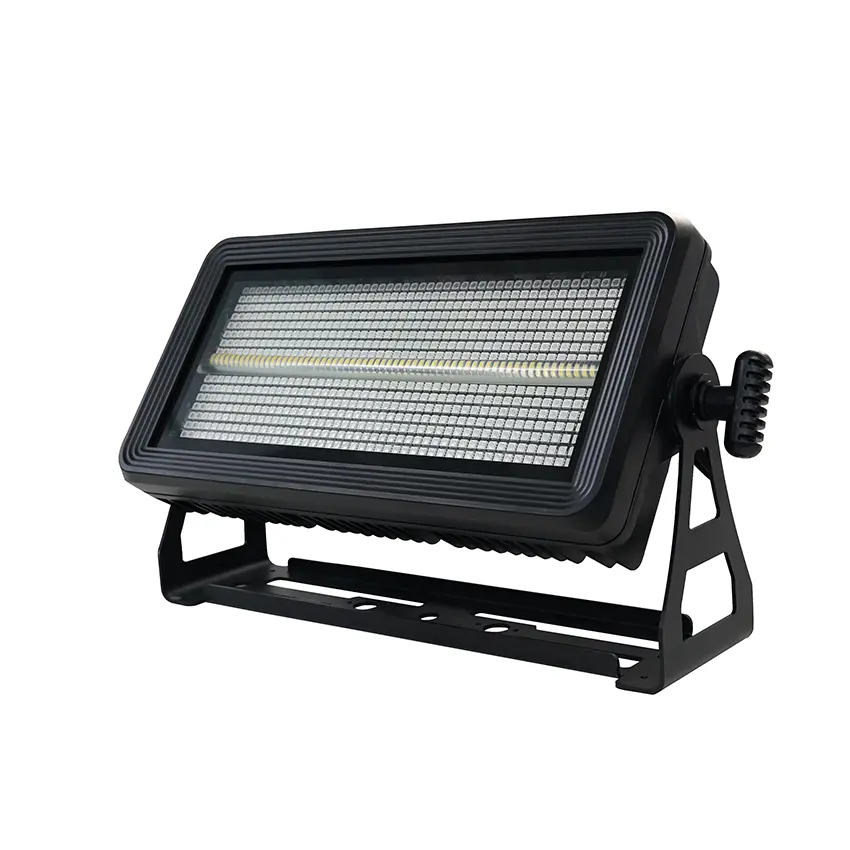

STROBE 400IP

The STROBE 400IP is an ultra high power IP65 rated strobe light basing on LED technology. It features 126*3W Cool-White 6500K LEDs in 36 segments, plus 504*0.6W RGB 3in1 LEDs. All these segments can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.

Technical specifications

Light Source

126*3W Cool-White 6500K LEDs, 36 segments

504*0.6W 3-in-1 RGB LEDs

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

120°Projection angle

Colors

6500K cold white

Sophisticated 3 colors RGB mixed

Even and soft light coverage with pure mixing

Effect

Built-in pre-programmed effects (59 kinds)

Built-in pre-programmed shapes (60 kinds)

Built-in pre-programmed dynamic color macros with variable speed (15 kinds)

Dimming

0-100% Smooth linear LED dimming

Background colors with 0-100% dimming

Strobe Effect

0-25Hz shutter/strobe effects at variable speed

Control System

12/45/117 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

IP65 3-Pin XLR DMX cables IN/OUT

Display System

4-Digit LED display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Temperature controlled, overheating protection

(output decreased when over heat)

Power Supply

Electronic power supply with PFC

AC100-240V 50/60Hz

IP65 Power cables In/Out

400W Power consumption(full)/1300W (when doing strobe)

Housing

Skeleton made of die-cast aluminum and steel metal plates

1 Hanging bracket

Exterior finish: Black

Mounting Options

Safety wire attachment: foldout eyelets

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25°C to 45°C ambient temperature

IP65 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 13.8kg

G.W.: 15.5kg

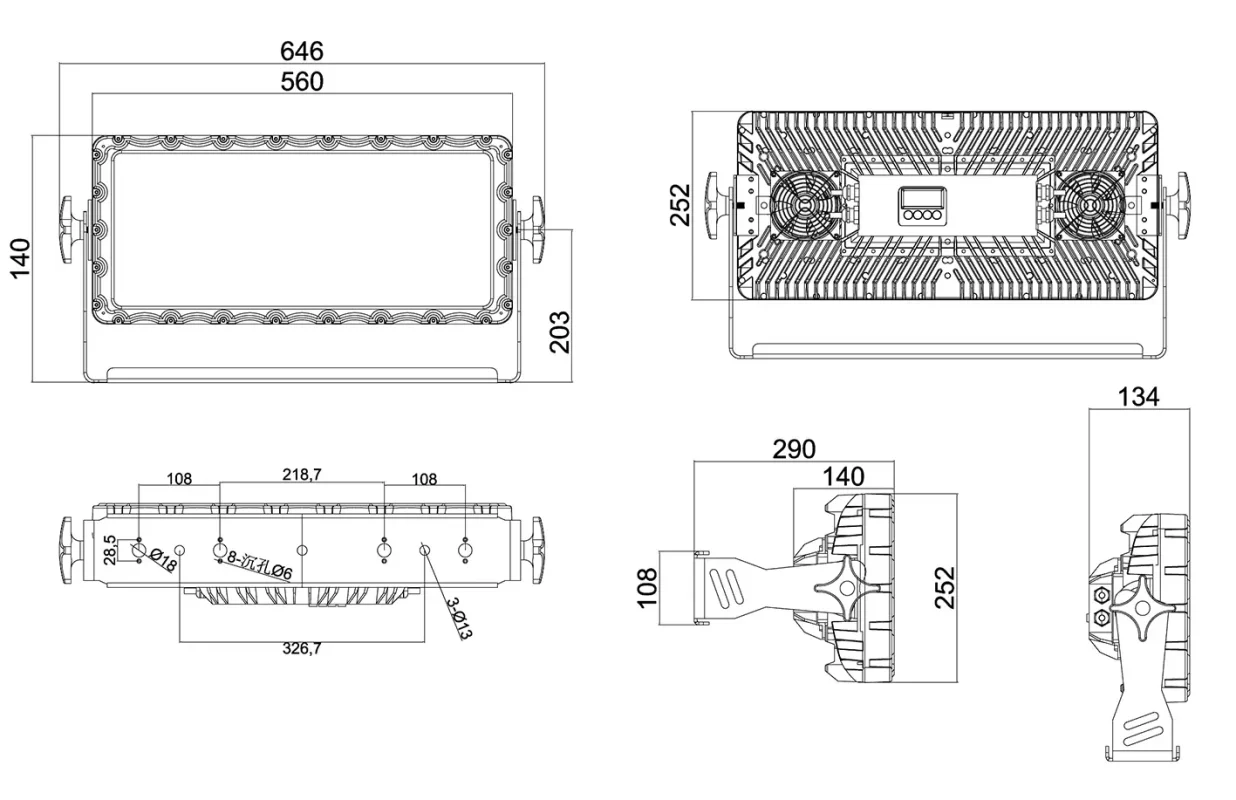

Dimensions

Product Dimensions: 127(D)*640(W)*252(H)mm

Packing Dimensions: 400(D)*790(W)*250(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
