Light Source
7*60W RGBW 4-in-1 LEDs (main source)
12*4W RGB 3-in-1 LEDs (Filament Aura)
Flicker free operation for broadcast TV and FILM
LED PWM frequency: 2.4KHz-24KHz
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
7PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency
6°-60°Smooth and quiet linear motorized zoom with fine control
360°Continuous front lens rotation with variable speed
Movement
PAN movement: 540° (8/16 bit)
TILT movement: 270° (8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible
Colors
Pixel mapping capability with each LED
Sophisticated 4 colors RGBW mixed
Even and soft light coverage with pure mixing
Linear color temperature adjustment: 2000K-12850K
Virtual color wheel with preset colors
Preset dynamic effects with variable speed
AURA Effect
7 Segments controllable individually
Sophisticated 3 colors RGB mixed
Linear color temperature adjustment: 2000K-12850K
Virtual color wheel with preset colors (same as main source)
Preset dynamic effects
Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Random strobe effect with variable speed
Preset pulse strobe effect
Dimming System
0-100% Smooth linear LED dimming
4 Dimming curves, linear/square law/Inv square law/S-curve
Control System
20/36/57/78 DMX channels USITT DMX-512
DMX512, master-slave, auto operation and sound control
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
IP66 3-pin XLR DMX connectors IN/OUT
RJ45 Ethernet connectors IN/OUT (optional)
Display System
1.77″ TFT LCD display
4 Touch control buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management (output decreased when over heat)
Power Supply
Electronic power supply
AC100-240V 50/60Hz
IP65 True-1 power connectors IN/OUT with switch and fuse
480W Power consumption
Housing
Skeleton made of Die-cast aluminum and steel metal plates
Two side handles on base
Exterior finish: Black
Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature

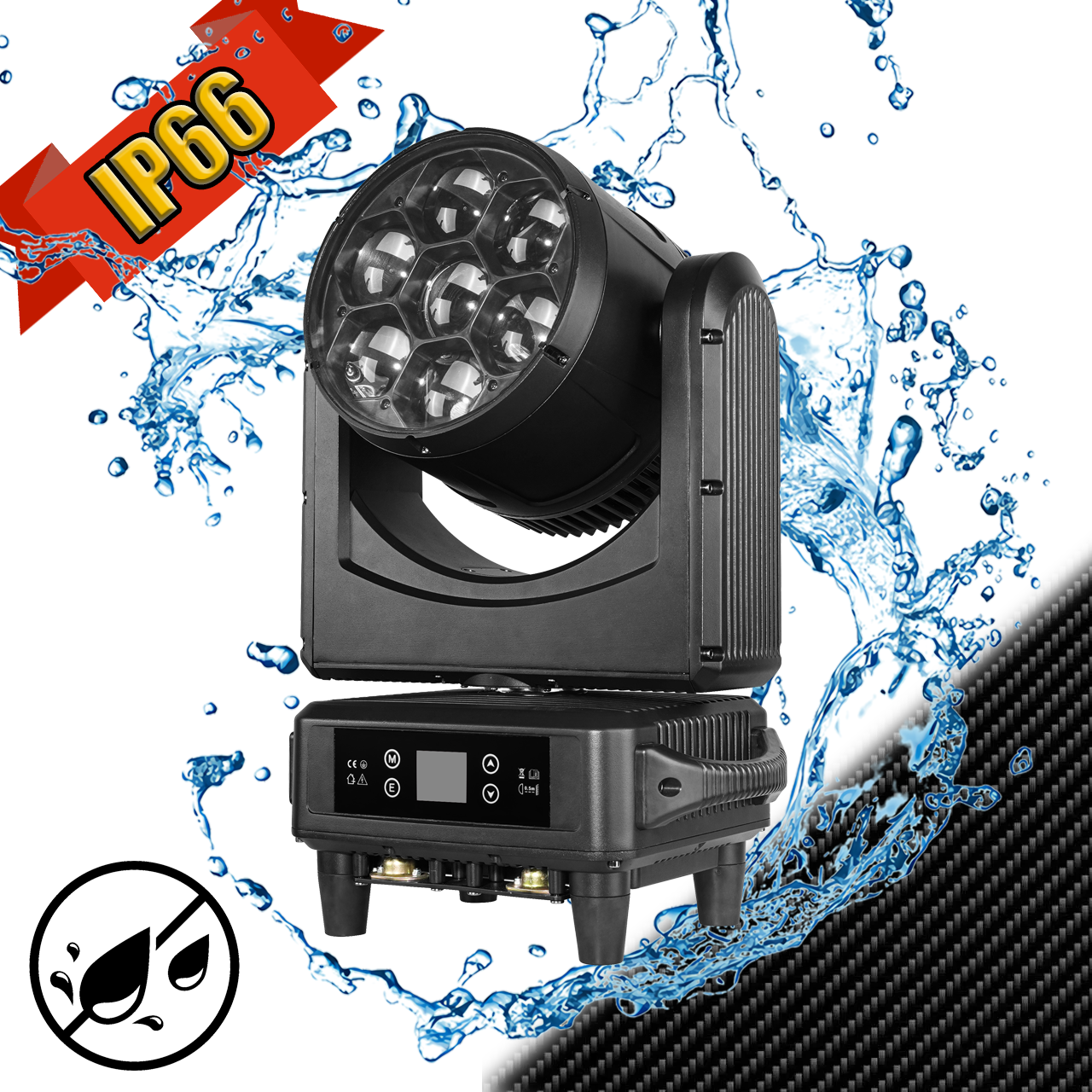

IP66 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 15.3kg
G.W.: 18.5kg

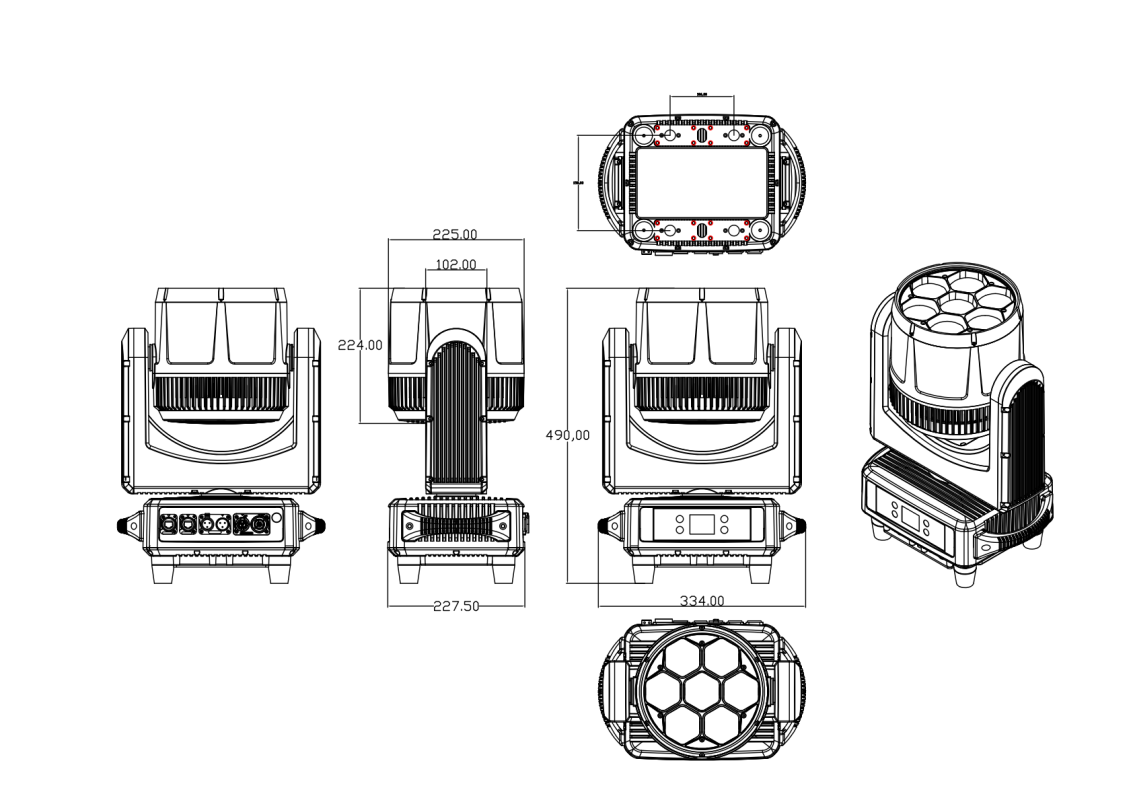

Dimensions
Product Dimensions: :227.5(D)*334(W)*490(H)mm
Packing Dimensions: 340(D)*490(W)*640(H)mm
