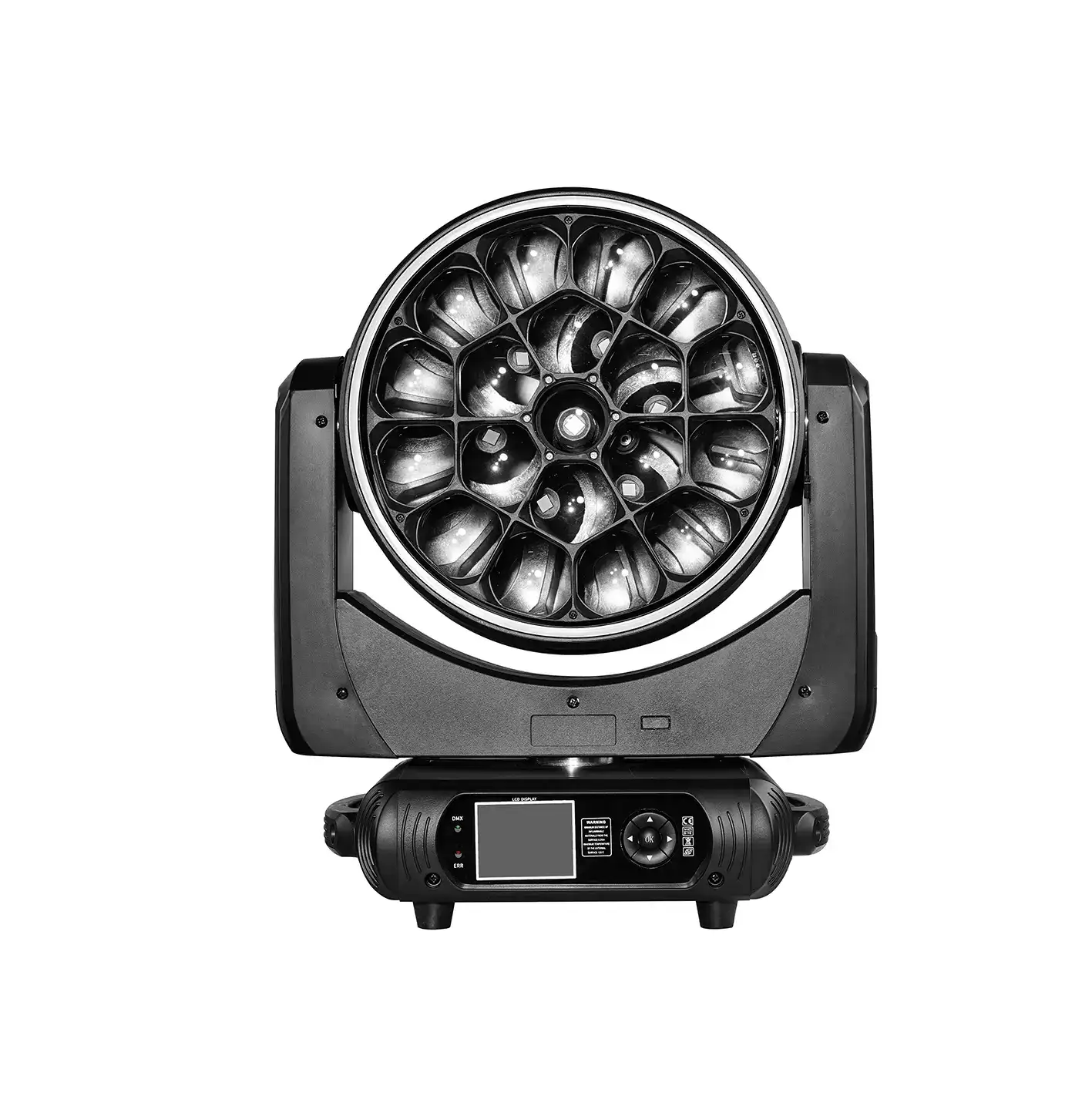

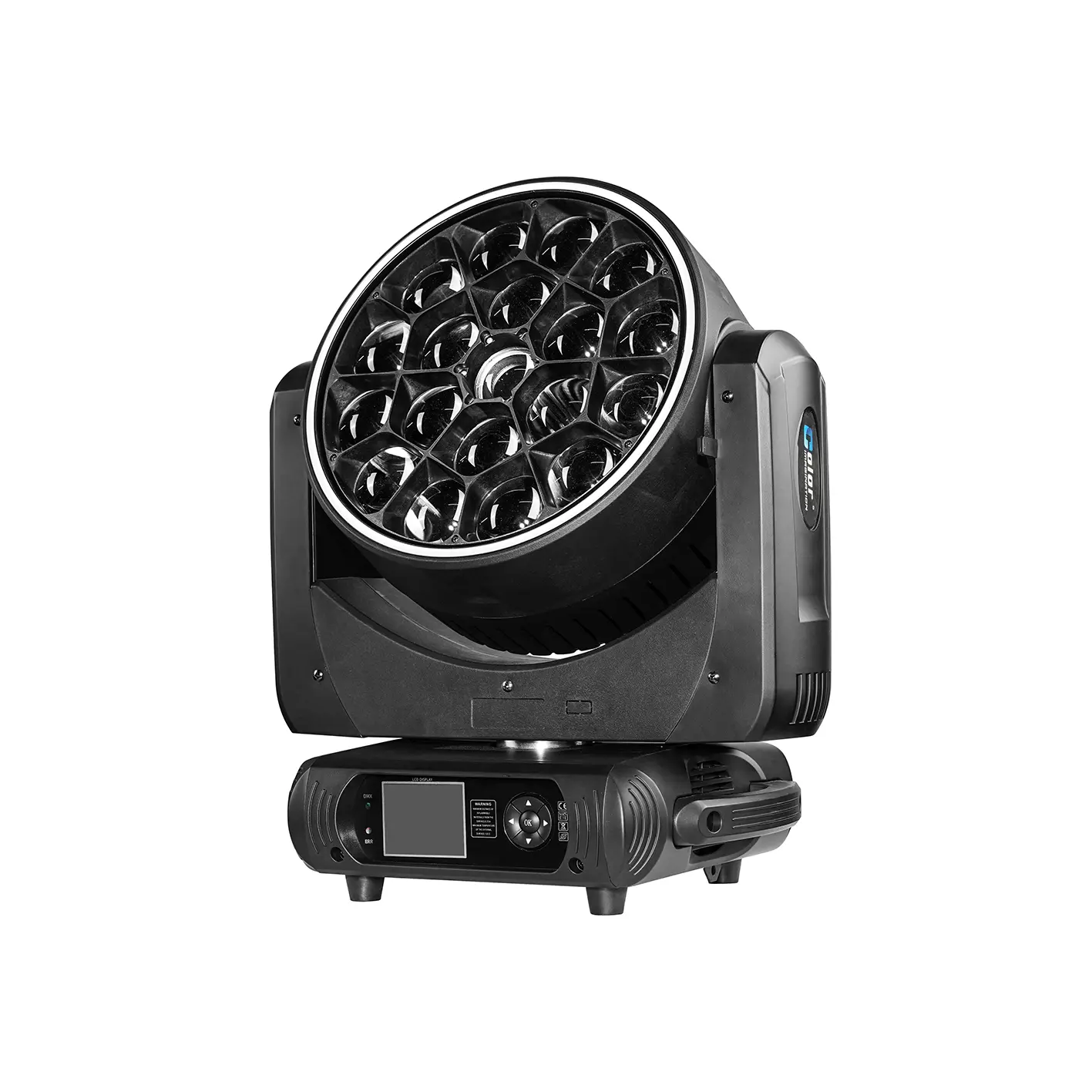

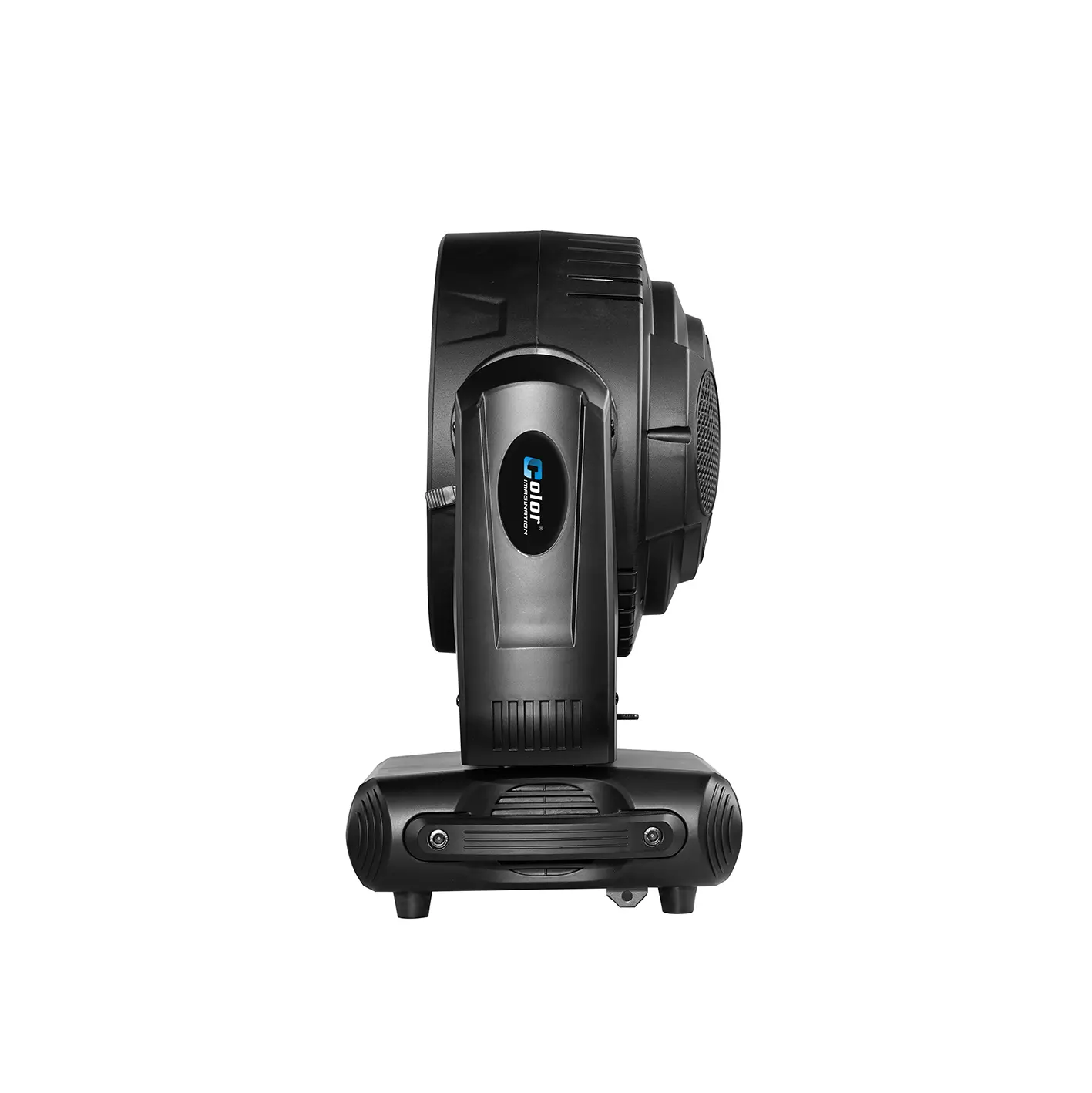

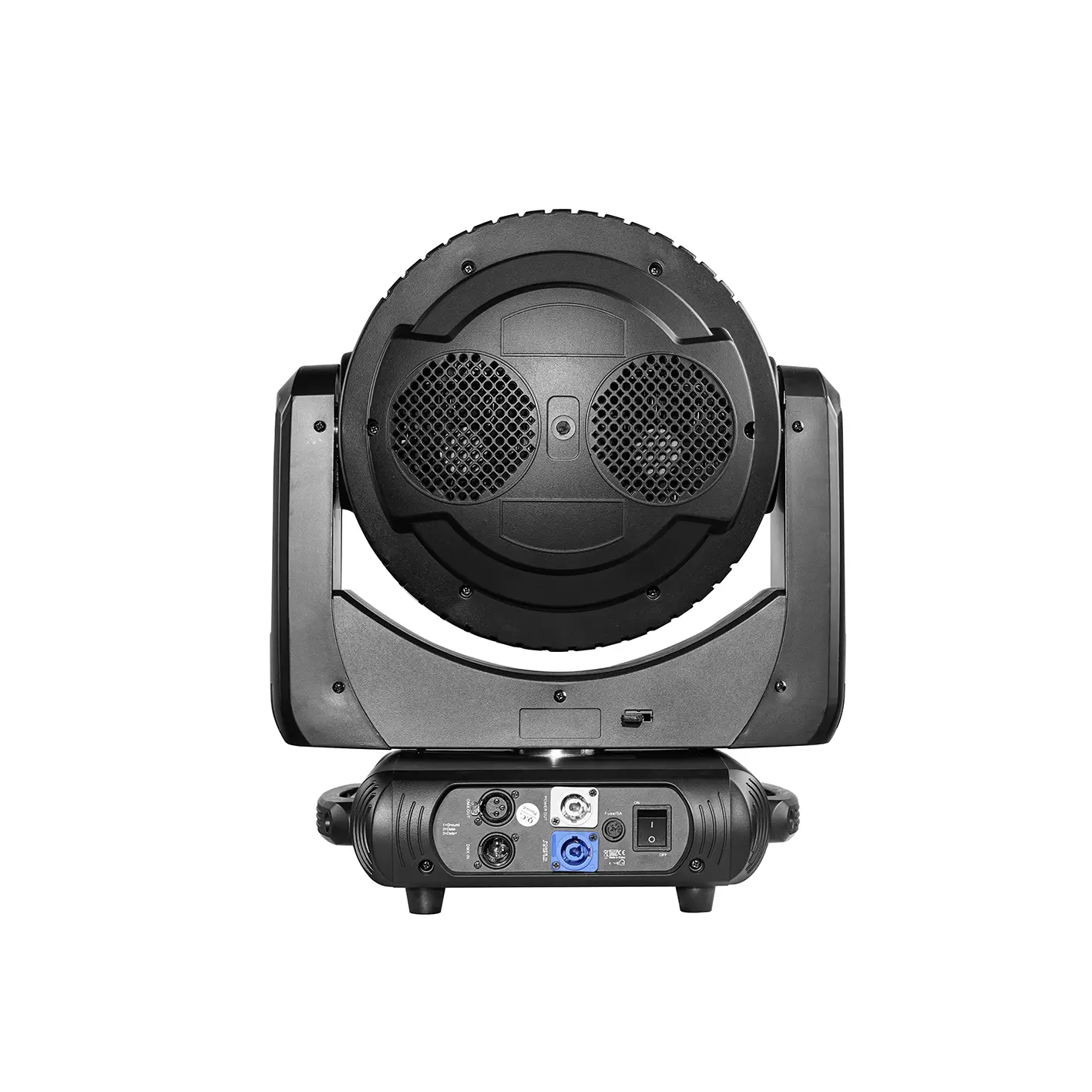

FLYEYE 1940FP
The FLYEYE 1940FP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 19x40W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects. The strip light in the front head delivers magic and vivid dynamic lighting effect created by 76*0.2W 3-IN-1 SMD RGB LEDs.
The ZOOM system ranges from 6° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 6°. And it will bring pure and even wash coverage effect when it zooms to 60°.
The fixture provides 4 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.
It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.
Technical specifications
-
Source:
Light Source
19*40W RGBW 4-in-1 LEDs
76*0.2W 3-IN-1 SMD RGB LEDs
Flicker free operation for broadcast TV and FILM?
Life Span: 50000H?
The life span may vary depending on several following factors but not limited to:?
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),
Control, and Dimming, etc)
Optics19PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency?
6°-60°Smooth and quiet linear motorized zoom with fine control
360°Continuous front lends rotation with variable speed
PAN movement: 540° (8/16 bit)?
Movement
PAN movement: 250° (8/16 bit)?
Fast, quiet, smooth and precise 3-Phase motors?
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement?
PAN/TILT reversible
Pixel mapping capability with each LED
Colors
Sophisticated 4 colors RGBW mixed?
Even and soft light coverage with pure mixing
Linear color temperature adjustment
Preset color macros
Strip Effect1 Neon ring effect with different built-in macro effects
(variable speed control)
Different static shape selections?
Visual Effect
Different dynamic shape selections with variable speed
Shape fading effect?Shape color options with 0-100% dimming
Background colors options with 0-100% dimming
Ringlike LED pixel strip for magic visual effects
Strobe Effect1-25Hz shutter/strobe effect with variable speed
Random strobe effect with variable speed?
Preset pulse strobe effect?
Different foreground/background strobe effect
0-100% Smooth linear LED dimming
Dimming System
Fine dimming control
25/39/82/115 DMX channels USITT DMX-512?
Control System
DMX512, master-slave, auto operation and sound control
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
Wireless receiver system built-in (Optional)
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT (Optional with Art-Net)
3-pin XLR DMX connectors IN/OUT -
2.4" TFT LCD display
Display System
5 Control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicator
Advanced cooling system integrated aluminum and copper with liquid
Cooling System
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function?
Over temperature protection management (output decreased when over heat)
Electronic power supply?
Power Supply
AC90-240V 50/60Hz?
PowerCON IN/OUT with swtich and fuse
760W Power consumption
Moulded fire proof ABS PC?
Housing
Skeleton made of aluminum and steel metal plates
Two side handles on base?
Exterior finish: Black
2*1/4 turn fastening Omega Clamps
Installation
(Adaptable vertically and horizontally)
1*Safety attachment point
Operating positions: all (device on floor or fixed to a support)
Operating Condition
-25 to 45 ambient temperature?
IP20 protection rating
CE?
Compliance
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU - Electromagnetic Compatibility (EMC)?
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
N.W.: 15.2kg
Weight
G.W.: 18.7kg
Product Dimensions: 231(D)*405 (W)*440(H)mm
Dimensions
Packing Dimensions: 390(D)*620(W)*510(H)mm
Effect
Video
Accessories
Power Cable
STANDARDcode:
QTY: 1PCS
Signal Cable
STANDARDcode:
QTY: 1PCS
Omega
STANDARDcode:
QTY: 2PCS
Safety Cable
STANDARDcode:
QTY: 1PCS
Road Case
OPTIONALcode:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONALcode:
QTY: 2PCS
Download
