Can this LED Effect Light be customized with special housing colors?

The MAGICBAR 5155HP LED Effect Light features a high-tension molded fire-proof housing with carbon fiber and an aluminum and steel skeleton finished in standard black. Custom housing colors are not standard; however, specialized project requirements can be accommodated through the comprehensive OEM and ODM manufacturing services offered by the manufacturer, Color Imagination.

Core Solutions & Key Takeaways

• Rugged and Flexible Construction: Built with high-tension molded fire-proof housing, carbon fiber, and a steel skeleton to withstand demanding touring, concert, and live event environments.
• Advanced Optical Performance: Equipped with five 155W 4-IN-1 RGBL LEDs and a patented kaleidoscope effect, delivering a 3° to 37.5° zoom range for sharp beams or even wash lighting.
• Broad Application Range: Ideal for indoor and outdoor scenarios including TV studios, film production, theme parks, live concerts, and architectural shows due to its IP66 protection rating and flicker-free operation.
• Customization via OEM/ODM: While finished in black, custom features, housing modifications, and hardware adjustments are supported through dedicated research and development capabilities.

Detailed Architectural/Principle Analysis

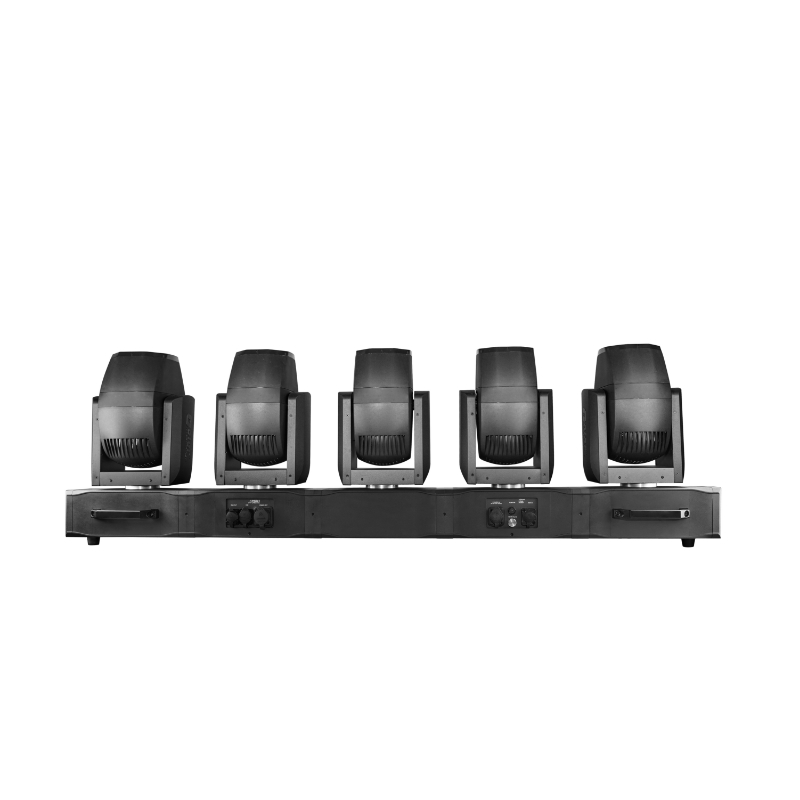

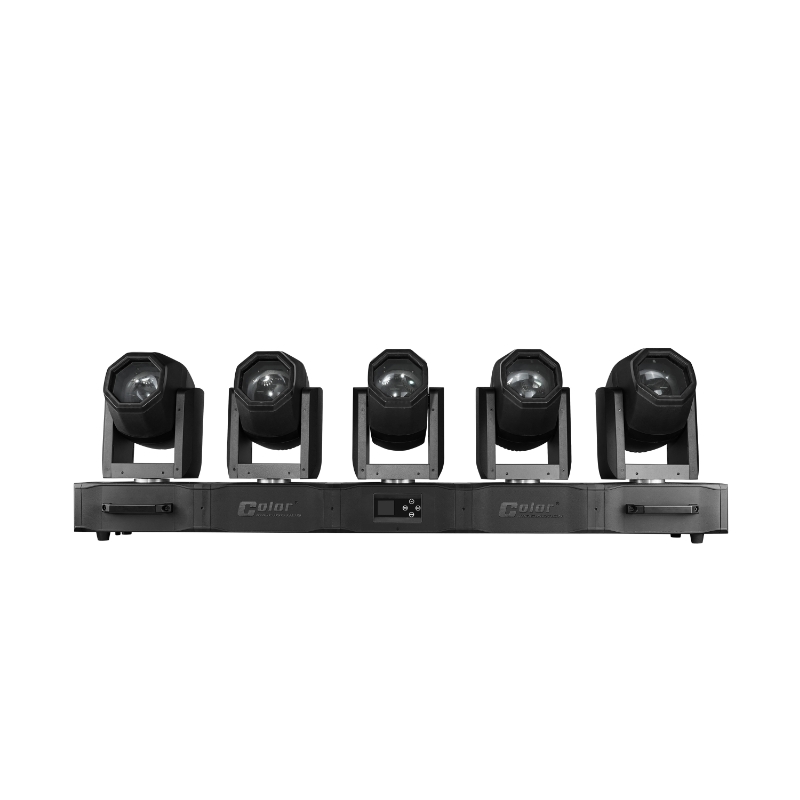

The MAGICBAR 5155HP is engineered for high-performance entertainment and architectural lighting applications. It houses five individual moving MINI heads, each utilizing a 155W 4-IN-1 RGBL LED light source. The fixture features two distinct Pan/Tilt modes: a continuous 360° rotation for dynamic effects, and a traditional 540° Pan / 270° Tilt mode powered by fast, three-phase motors. For broadcast television and film environments, the LED refresh rate is adjustable from 900Hz to 2.5KHz, ensuring flicker-free performance.

The structural integrity of the fixture is maintained by an aluminum and steel metal plate skeleton wrapped in a black, fire-proof, high-tension molded carbon fiber housing. This combination ensures physical durability while keeping the net weight at 40.3 kg. The IP66 weatherproofing is achieved through sealed joints, waterproof 3-pin XLR connectors, and SEETRONIC TRUE 1 PowerCON input/output ports, allowing reliable operation in ambient temperatures ranging from -25℃ to 45℃.

Compliance and safety are verified by multiple certifications. The fixture meets European low voltage and electromagnetic compatibility standards, holding CE certificates LCSB070523036E, LCSB070523041S, LCSB070523034E, and LCSB070523045S. In real-world applications, such as the Kunming Alice Official Night Club project in Yunnan Province, China, where 3,500 pieces of stage lights were deployed, these fixtures demonstrate high stability and synchronized pixel-mapping capabilities under continuous operating conditions.

Data/Solution Comparison

Technical Parameter	MAGICBAR 5155HP Specifications	Project Customization Options (OEM/ODM)
Housing Material	High-tension molded fire-proof housing with carbon fiber	Custom exterior materials or branding plates
Exterior Finish Color	Standard Black	Custom colors (subject to minimum order quantities)
Light Source	5*155W RGBL LEDs + (5*34)*0.5W RGB SMDs	Alternative LED engine configurations
Ingress Protection	IP66 Dust/Waterproof	Maintained across structural modifications
Control Protocols	DMX512, RDM, Master-Slave, Sound Active	Custom software or firmware profiles

Frequently Asked Questions (FAQ)

Can the housing color of the MAGICBAR 5155HP be customized for architectural integration?
Yes. While the standard production run is finished in black, customized housing colors can be developed through OEM/ODM services to match specific architectural projects or brand requirements, depending on the order volume.

How does the MAGICBAR 5155HP perform in wet or outdoor environments?
The fixture has an IP66 protection rating, making it completely dust-tight and protected against powerful water jets. It features waterproof SEETRONIC TRUE 1 PowerCON connectors and waterproof 3-pin XLR signal inputs/outputs, making it suitable for wet outdoor environments such as fountain shows and theme parks.

What mounting options are available for this LED effect light?
The unit comes equipped with two 1/4-turn fastening Omega clamps, specific alignment parts for seamless mechanical combination between multiple bars, and preset installation points. It can be installed vertically or horizontally on the MAGICBASE 2 system to function as a unified moving head fixture.

Final Conclusion & Recommendations

The MAGICBAR 5155HP is a robust IP66-rated LED effect light designed for professional touring, broadcast, and architectural installations. While black is the standard exterior finish, the underlying manufacturing infrastructure allows for custom modifications, including housing aesthetics, under OEM/ODM terms. For projects requiring specific colors, custom branding, or synchronized system setups, direct technical coordination is recommended to establish lead times (typically 20-30 days after deposit) and minimum order requirements. For detailed technical solutions or support, please reach out to us via jack@color-imagination.com.
