CRAZYBASE 1

CRAZYBASE 1

The CRAZYBASE 1 is a dynamic solution designed to be an optional system kit for the CRAYZBAR series fixtures. It’s an innovative moving head base that allows you to install a non-moving head fixture on it and turn the fixtures to be a complete moving head light to get dynamic effects.

You could mount the CRAZYBAR products horizontally or vertically on the CRAZYBASE. Suggested as following options:
Horizontally:
CRAZYBAR 86/66/46
CRAZYBAR 86X/66X/46X
CRAZYBAR 66M/46M
Vertically:
CRAZYBAR 86
CRAZYBAR 86X
CRAZYBAR 66M

The CRAZYBASE offers smooth continuous PAN movement with various speeds. The unit could spin up to 50 RPM. It could load a fixture with 50KG less weight. It’s with very SMART power system and DMX system for the BASE itself and the mounted fixtures on it. So there are no concerns of tangled power or DMX cables when using the continuous PAN system.

Overall, the CRAZYBASE 1 is a super flexible system to bring unique features to the CRAZYBAR series, which help the users to get much more lighting benefit. And, it’s also available to mount other brands’ static/non-moving fixtures on CRAZYBASE 1 and make them to moving lights (some extra accessories need to be made accordingly).

DownLoad

Technical specifications

  • Movement
    PAN: 2 modes
    1. 360° Continuous movement
    2. 540° (8/16 bit)
    Fast, quiet, smooth and precise 2-phase motors
    Smooth, fast and precise resolution for movement with low noise operation
    Scan position memory, auto reposition after unexpected movement
    50KG Max mounted weight
    50RPM Max rotation speed



    Control System

    5 DMX channels USITT DMX-512
    DMX512, master-slave, sound activated or auto operation
    DMX recorder and edit function integrated
    RDM available (Remote Device Management)
    Shielded input signal protection for stable signal without interference
    3-Pin XLR connectors IN/OUT (for the base)
    3-Pin XLR connector OUT (for the mounted lights)



    Display System

    1.44″ TFT LCD display
    English/Chinese menu
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF



    Cooling System

    Advanced self-adjusting fan cooling system
    Constant temperature readout and management function
    Over temperature protection management



    Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON IN/OUT with fuse (for the base)
    PowerCON OUT (for the mounted lights)
    16W Power consumption(CB1)
    Max power consumption: 220VA
    Mains out: 2300VA@230V; 1250VA@110V



  • Housing
    High tension molded fire proof housing with PA6+fibre
    Skeleton made of aluminum and steel metal plates
    Exterior finish: Black



    Installation

    2*1/4 turn fastening Omega Clamps
    3*Safety attachment point



    Operating Condition

    Operating positions: all (device on floor or fixed to a support)
    -25℃ to 45℃ ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU – Electromagnetic Compatibility (EMC)
    2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 10kg
    G.W.: 12kg



    Dimensions

    Product Dimensions: 276.68(D)*476.83(W)*152(H)mm
    Packing Dimensions: 330(D)*530(W)*210(H)mm



Lighting Accessories-cb1

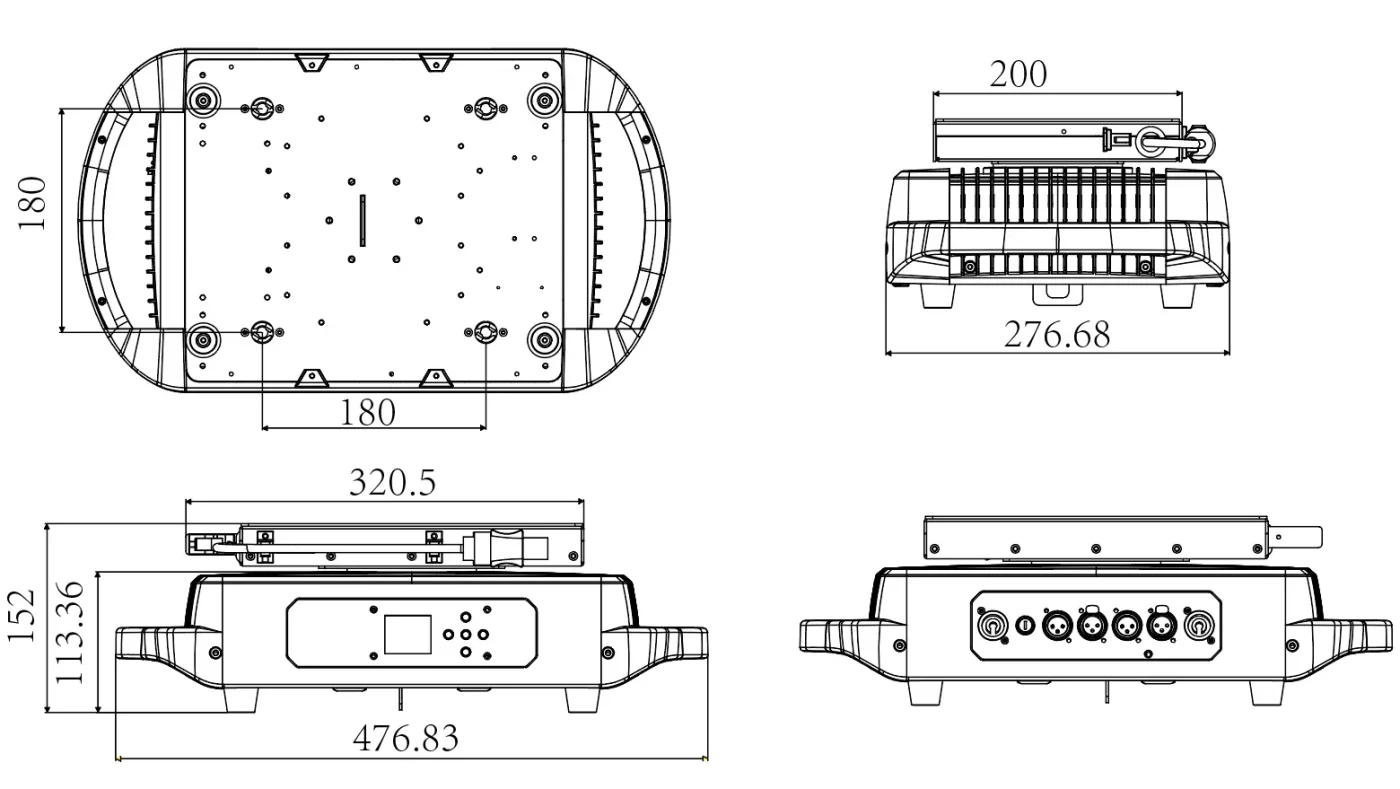

Dimensions

Dimension-cb1
Dimension-cb1

Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 6-IN-1 or 8-IN-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 1PCS
