CRAZYBAR 66

CRAZYBAR 66

The CRAZYBAR 66 is a high-performance stage lighting bar fixture that features 6 individual moving MINI heads, each of which is equipped with a powerful 60W 4-IN-1 RGBW LED light source. With its versatile design and advanced features, specially the mirror based optical system, the CRAZYBAR 66 is capable of producing a wide range of dynamic sharp and collimated BEAM lighting effects that are sure to captivate audiences and enhance performances. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the lighting designers.

One of the standout features of the CRAZYBAR 66 is its flexible 360°continuous TILT movement, which allows each lighting head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The CRAZYBAR 66 also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the CRAZYBAR 66 is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different CRAZYBAR 66 seamlessly and get synchronized movement that produces an impressive wave of light, paralleled to each other due to it’s 3.5°projection angle.

Overall, the CRAZYBAR 66 is a powerful and versatile lighting fixture that is sure to impress audiences and enhance performances. Its advanced features and flexible design make it a popular choice among lighting professionals and performers alike.



The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.

DownLoad

Technical specifications

  • Light Source
    Source:
    6*60W 4-IN-1 RGBW LEDs
    (6*30)*0.2W 3-IN-1 SMD RGB LEDs
    Flicker free operation for broadcast TV and FILM
    Life Span: 50000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)



    Optics

    6PCS high efficiency lens
    3.5°Projection angle



    Movement

    TILT: 2 modes
    1. 360° Continuous movement
    2. 240° (8/16 bit)
    Fast, quiet, smooth and precise 2-phase motors
    Smooth, fast and precise resolution for TILT movement with low noise operation
    Scan position memory, auto reposition after unexpected movement



    Color System

    Pixel mapping capability with each LEDs controllable individually
    Sophisticated 4 colors RGBW mixed
    Linear CTO 2500-8000K
    Sharp beam effect
    Preset static patterns
    Preset dynamic patterns with variable speed
    Preset dynamic color macro with variable speed



    Strip Effect

    Each head with strip effect with different built-in macros
    (variable speed control)



    Strobe Effect

    1-25Hz shutter/strobe effect with variable speed
    Preset pulse strobe effect with variable speed
    Random strobe effect with variable speed



    Dimming System

    0-100% Smooth linear LED dimming



    Control System

    22/49/73 DMX channels USITT DMX-512
    DMX512, master-slave, sound activated or auto operation
    DMX recorder and edit function integrated
    RDM available (Remote Device Management)
    Shielded input signal protection for stable signal without interference
    3-Pin XLR connectors IN/OUT



    Display System

    1.44″ TFT LCD display
    English/Chinese menu
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF



  • Cooling System
    Advanced self-adjusting fan cooling system integrated aluminum
    Constant temperature readout and management function
    Over temperature protection management

    Power Supply
    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON IN/OUT with fuse
    470W Power consumption



    Housing

    High tension molded fire proof housing with PA6+fibre
    Skeleton made of aluminum and steel metal plates
    Exterior finish: Black



    Installation

    2*1/4 turn fastening Omega Clamps
    Specific parts for seamless combination between lights
    1*Safety attachment point



    Operating Condition

    Operating positions: all (device on floor or fixed to a support)
    -25?? to 45?? ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU – Electromagnetic Compatibility (EMC)
    2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 14.4 kg
    G.W.: 17.5 kg



    Dimensions

    Product Dimensions: 168(D)*1200(W)*235.5(H)mm
    Packing Dimensions: 200(D)*1300(W)*390(H)mm



_MG_179-23-6-

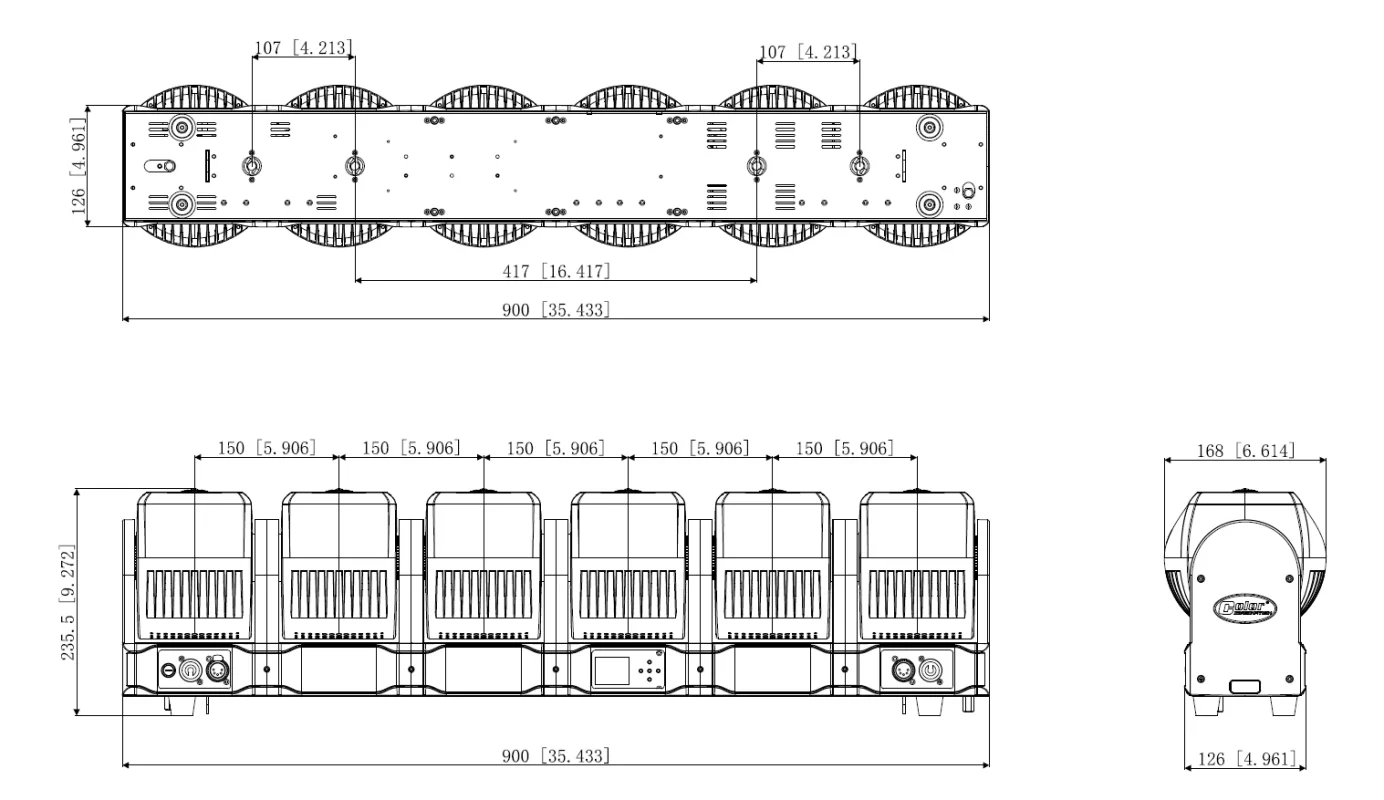

Dimensions

C6---

Effect


Video

Photometrics

C1----

Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

omega_1

Omega

STANDARD
code:
QTY: 2PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 2PCS


Frost Filter

OPTIONAL
code:
QTY: 1PCS
