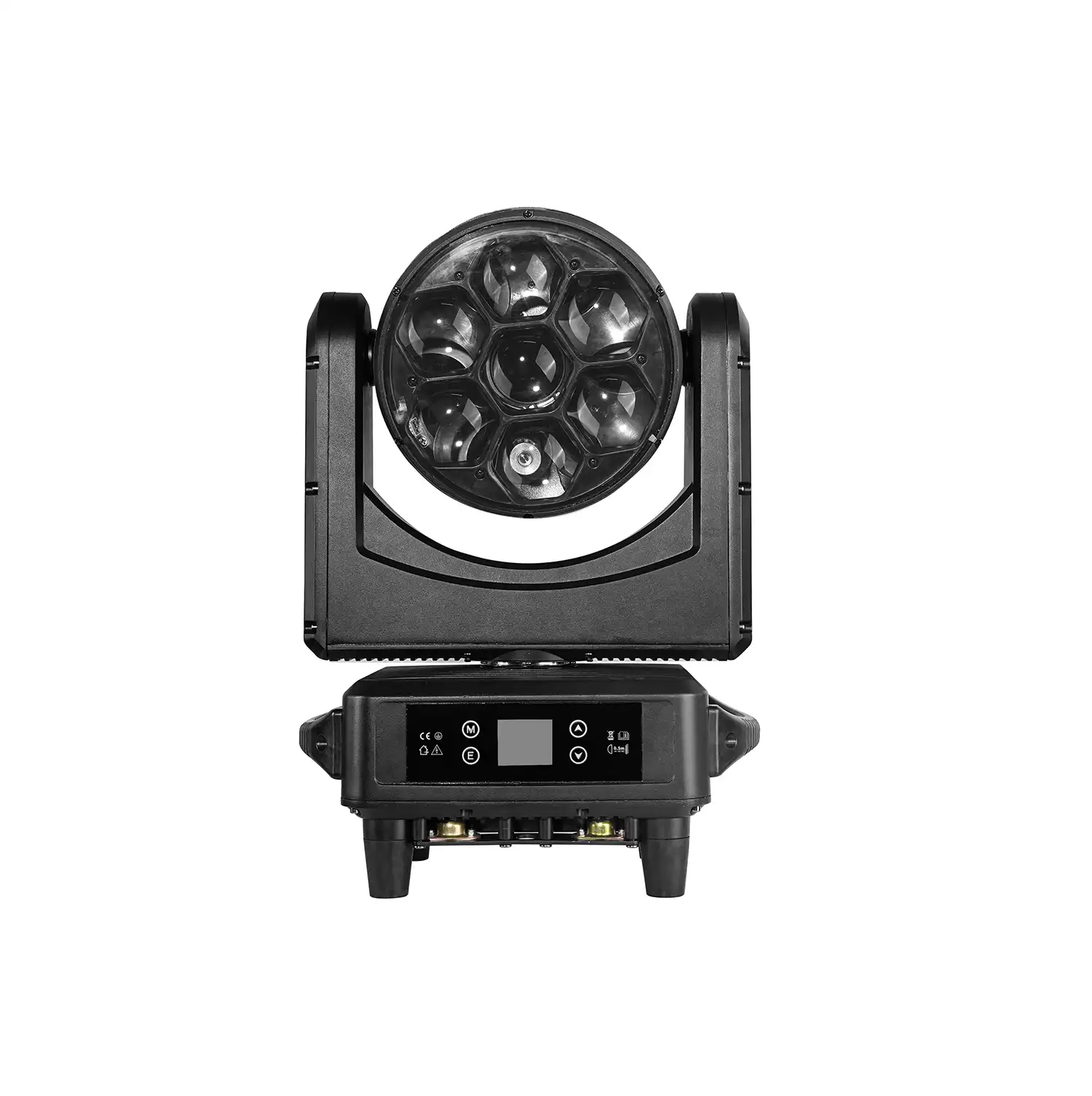

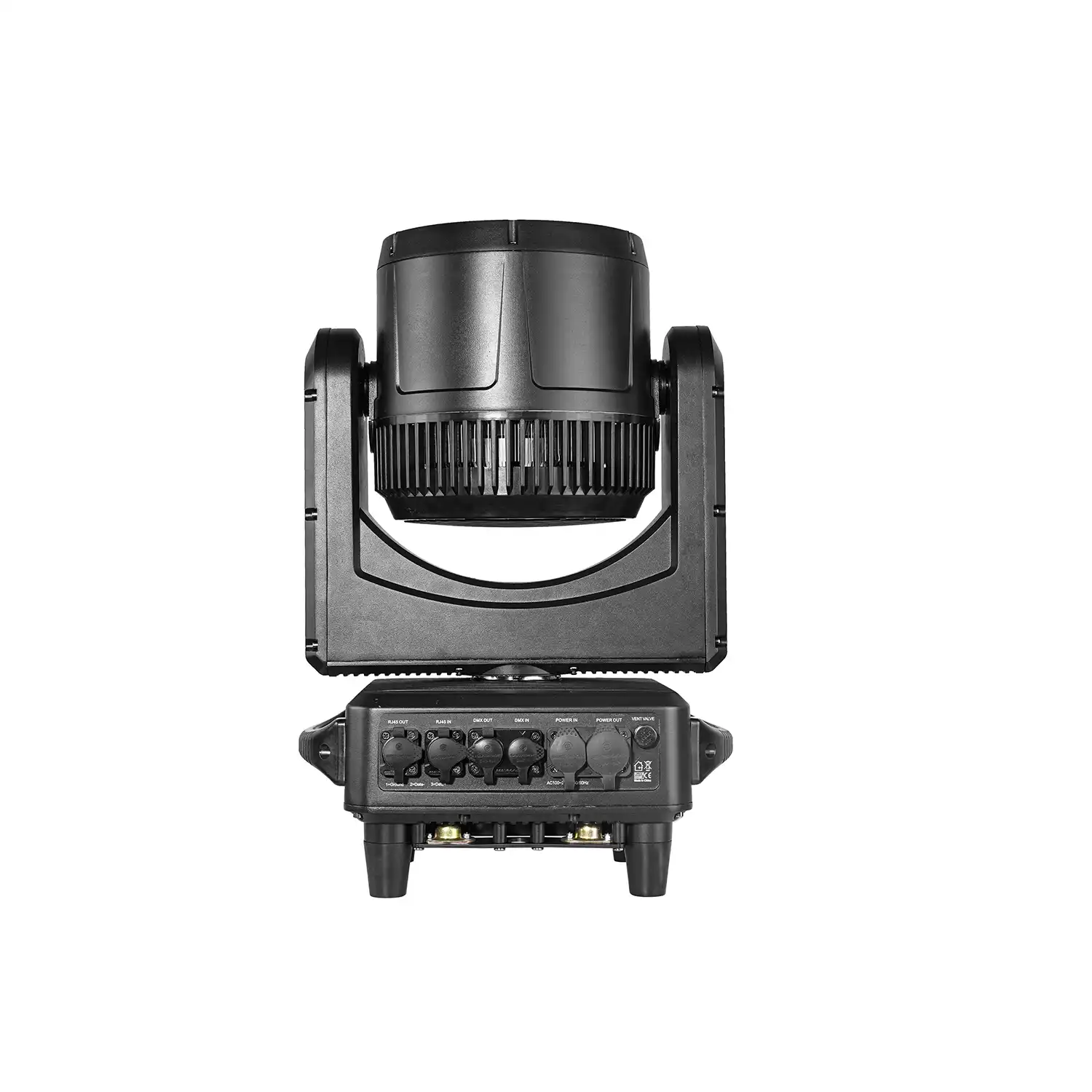

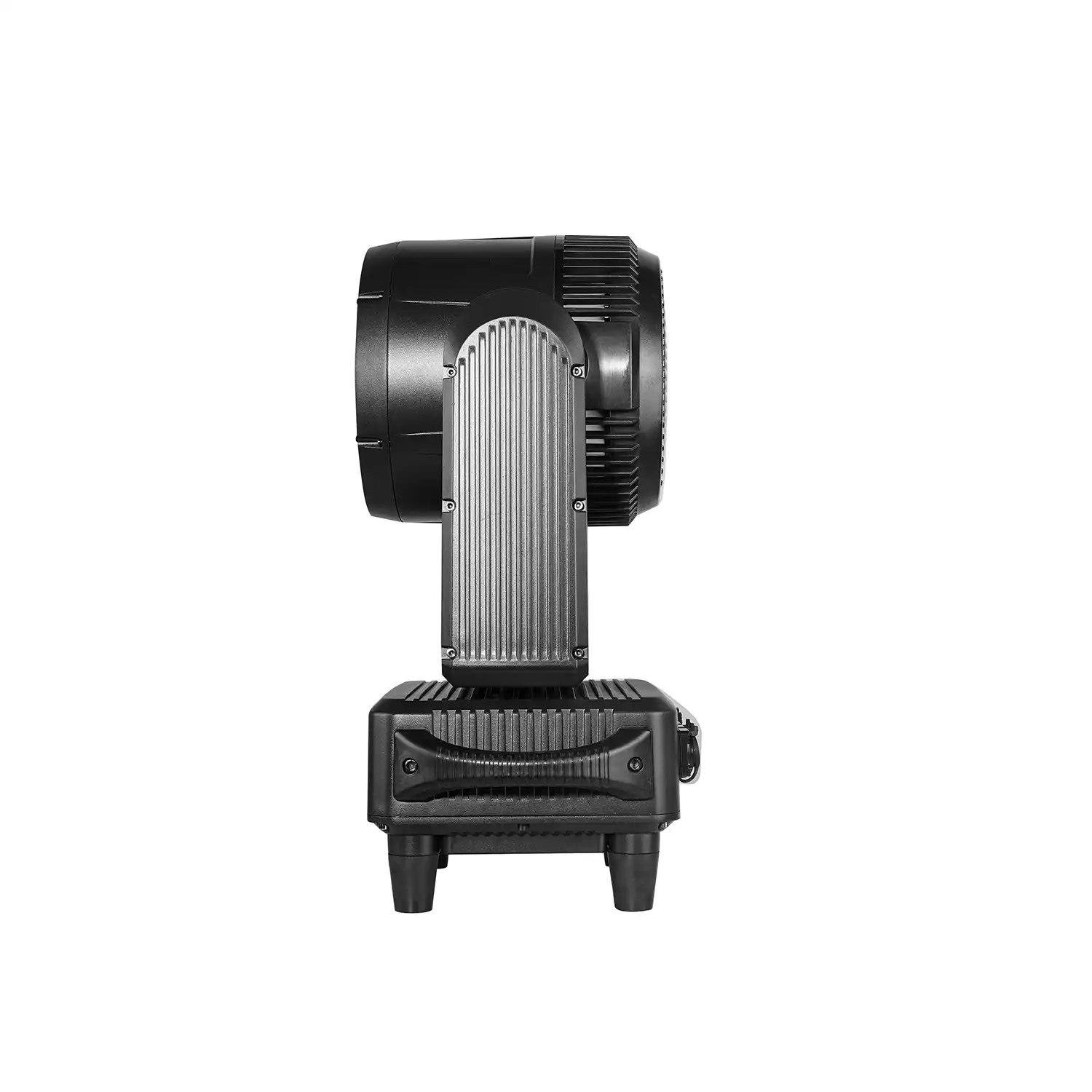

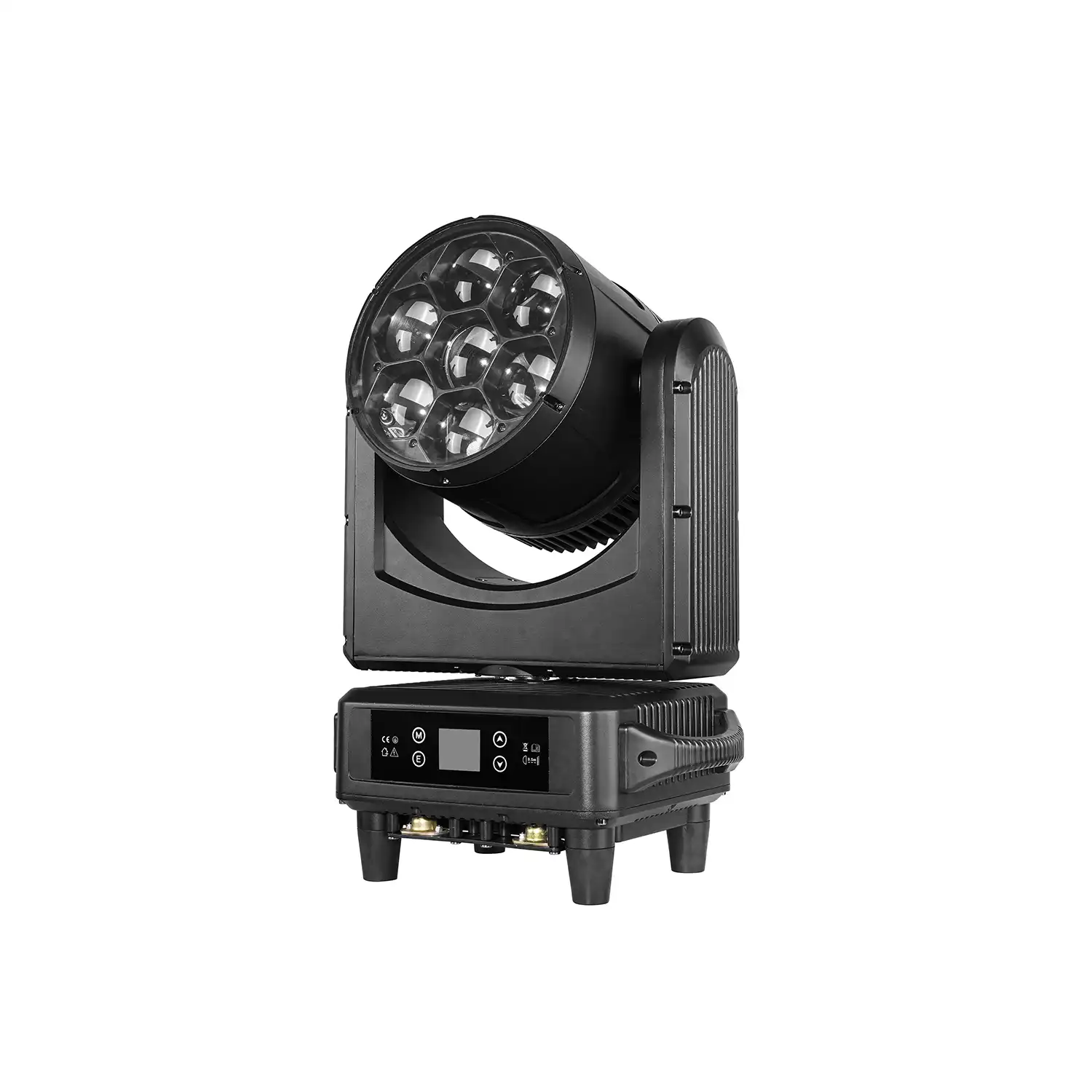

FLYEYE 760FIP

The IP65 rated FLYEYE 760FIP is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 7*60W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.

The ZOOM system ranges from 6° to 60°with smooth and quiet working. The fixture will bring brilliant dazzling hard BEAM effect when it zooms to 6°. And it will bring pure and even wash coverage effect when it zooms to 60°.

The fixture provides 3 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light.

It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

Technical specifications

Light Source
Source:
7*60W RGBW 4-in-1 LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics
7PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency
6°-60°Smooth and quiet linear motorized zoom with fine control
360°Continuous front lens rotation with variable speed

Movement

PAN movement: 540° (8/16 bit)

TILT movement: 250° (8/16 bit)

Fast, quiet, smooth and precise 3-Phase motors

Smooth, fast and precise resolution for PAN/TILT movement with low noise operation

Scan position memory, auto reposition after unexpected movement

PAN/TILT reversible

Colors

Pixel mapping capability with each LED

Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing

Linear color temperature adjustment

Preset color macros

Visual Effect

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

Strobe Effect

1-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Different foreground/background strobe effect

Dimming System

0-100% Smooth linear LED dimming

Fine dimming control

Control System

23/35/51 DMX channels USITT DMX-512

DMX512, master-slave, auto operation and sound control
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
IP65 3-pin XLR DMX connectors IN/OUT

RJ45 Ethernet connectors IN/OUT

Display System

1.77″ TFT LCD display

4 Touch control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management (output decreased when over heat)

Power Supply

Electronic power supply

AC100-240V 50/60Hz
