How does this IP65 Waterproof Moving Head Light handle heavy rain?

This IP65 Waterproof Moving Head Light handles heavy rain through its IP66-rated, fully sealed protective enclosure. This advanced dustproof and waterproof design isolates the internal optical system, 150W white laser source, and electronic components from external moisture, ensuring stable operation during outdoor installations like theme parks and live concerts.

Core Solutions & Key Takeaways

Complete Environmental Isolation: The IP66 protection rating guarantees total protection against dust ingress and high-pressure water jets from heavy downpours.
Robust Architectural Housing: Constructed with high-tension molded fireproof housing with carbon fiber, supported by an aluminum and steel metal skeleton to withstand harsh outdoor weathering.
Sealed Cable Connections: Utilizes waterproof SEETRONIC TRUE1 powerCON input/output connectors and waterproof 3-pin or 5-pin XLR DMX connectors to prevent moisture entry at connection points.
Versatile Outdoor Application: Engineered for demanding scenarios such as fountain shows, architectural projects, theme parks, and outdoor live music festivals.

150W white laser beam moving head light with IP66 waterproof housing

Detailed Architectural/Principle Analysis

The fixture, commercially designated as the FAST 1500, relies on a fully sealed module that houses a 150W White Laser source. This sealed structural design prevents moisture, humidity, and fine dust particles from entering the optical chamber. By keeping the internal environment dry, the Ø180mm front lens and high-resolution optical system maintain a precise 1-degree beam angle without internal condensation or beam degradation during heavy rain events.

Thermal management is critical in wet environments where external temperatures drop rapidly. The light integrates an advanced, low-noise, self-adjusting fan cooling system with aluminum heat dissipation. This system continuously monitors temperature readouts and manages heat levels through integrated software, preventing internal condensation. Furthermore, the unit features 3-phase motors that deliver smooth 360-degree continuous pan and tilt movements, operating reliably even under physical water load.

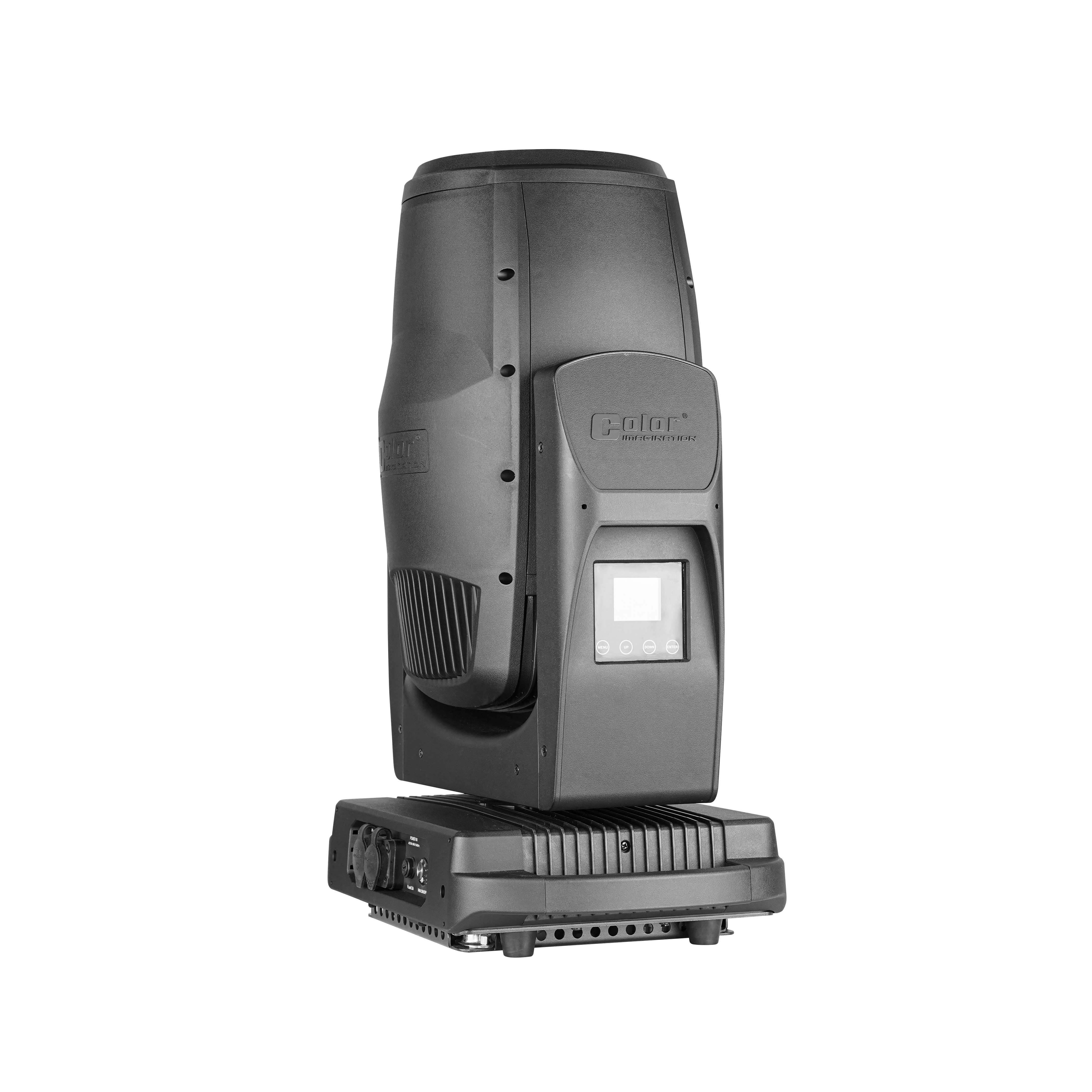

Sealed base and connections of the IP66 waterproof moving head light

Product compliance is verified under multiple international standards, including CE certifications for low voltage safety (2014/35/EU) and electromagnetic compatibility (2014/30/EU). The assembly and management processes conform to ISO standards, specifically certified under GH004-2023E0421, GH004-2023Q0766, and GH004-2023S0403. In practice, similar stage lighting systems from the same manufacturer have been successfully deployed in high-capacity venues, such as Kunming Alice Official Night Club in Yunnan Province, China, demonstrating continuous durability and reliability under intensive operational schedules.

Data/Solution Comparison

Technical Parameter	Specification / Rating	Operational Benefit in Heavy Rain
Ingress Protection	IP66 Protection Rating	Prevents high-pressure water jet penetration from any direction
Light Source	150W White Laser (9000K)	Maintains ultra-long-throw solid beam visibility through rain sheets
Power Connection	Waterproof SEETRONIC TRUE1	Ensures safe, short-circuit-free electrical supply during wet weather
Signal Connection	Waterproof 3-Pin / 5-Pin XLR	Guarantees uninterrupted DMX/RDM control signal transmission
Housing Material	Carbon fiber fireproof mold & steel	Resists physical impacts and environmental stress oxidation

Frequently Asked Questions (FAQ)

Can the fixture operate continuously in temperatures below freezing during rainfall?

Yes. The unit is designed to operate in ambient temperatures ranging from -25°C to 45°C. Its intelligent thermal management system prevents internal freezing and ensures stable motor movement.

What happens to the optical beam quality when rainwater hits the front lens?

The high-output 150W white laser source and Ø180mm front lens project a highly concentrated 1-degree parallel beam. This tight beam shape minimizes light scattering caused by falling rain, maintaining a solid, long-throw visual effect.

Does the fixture require specialized mounting brackets for outdoor installations?

No. It includes two 1/4 turn fastening Omega Clamps that adapt vertically and horizontally, allowing secure rigging on trusses or floors in any orientation during outdoor events.

Final Conclusion & Recommendations

For outdoor venues, architectural projects, and touring rental companies, deploying fixtures with robust ingress protection is necessary to avoid equipment failure and electrical hazards. The FAST 1500 moving head offers complete structural sealing, waterproof SEETRONIC connectors, and an efficient thermal management system, making it highly reliable under severe weather conditions. When planning projects, utilize sea freight, air freight, or express courier shipping methods to ensure prompt delivery. For detailed technical solutions or support, please reach out to us via jack@color-imagination.com.
