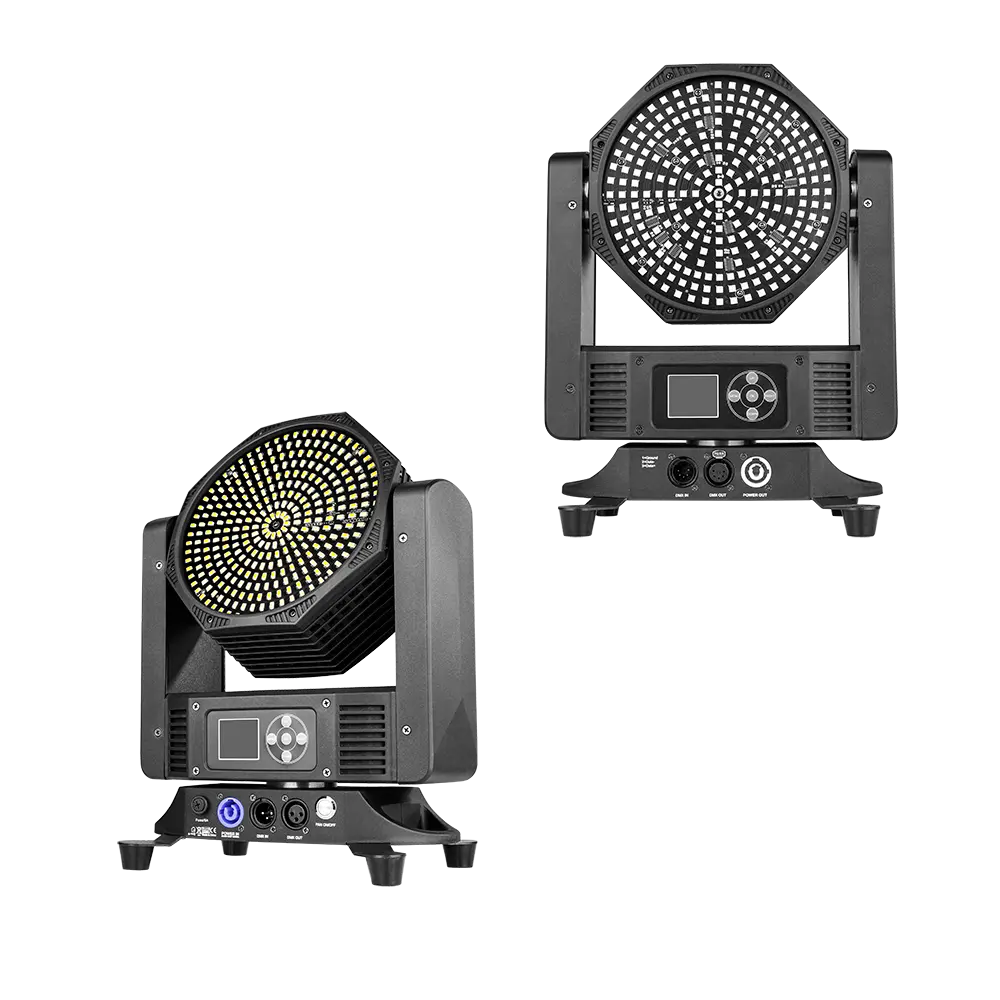

SMARTFACE 32

The DOUBLE-SIDED designed SMARTFACE 32 is an ultra compact and light weight stylish moving head strobe light (2 Faces). Face 1 features 246*0.2W 5050 3-IN-1 RGB LEDs which is designed with 9 individual rings. It’s available for 2800K-5600K color temperature adjustment. Face 2 features 324*0.5W 5730 WW+CW LEDs which is designed with 9 individual rings. It’s available for 2500K-4600K color temperature adjustment. The fixture could be used not just only as a wash light (specially moving face light) but also as a remarkable moving strobe light.

It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

It features excellent color mixing, quiet running and flicker free control. The fixture is built in with different internal dynamic effect with variable speed. The moving head also features optimum optic design integrated with extremely effective aluminum heat sink system.

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTFACE 32 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

The SMARTFACE 32 is designed for applications as concerts, TV studios, banquet halls, bars, pubs, DJ entertainment, ballrooms, etc.

Technical specifications

Light Source

Source:

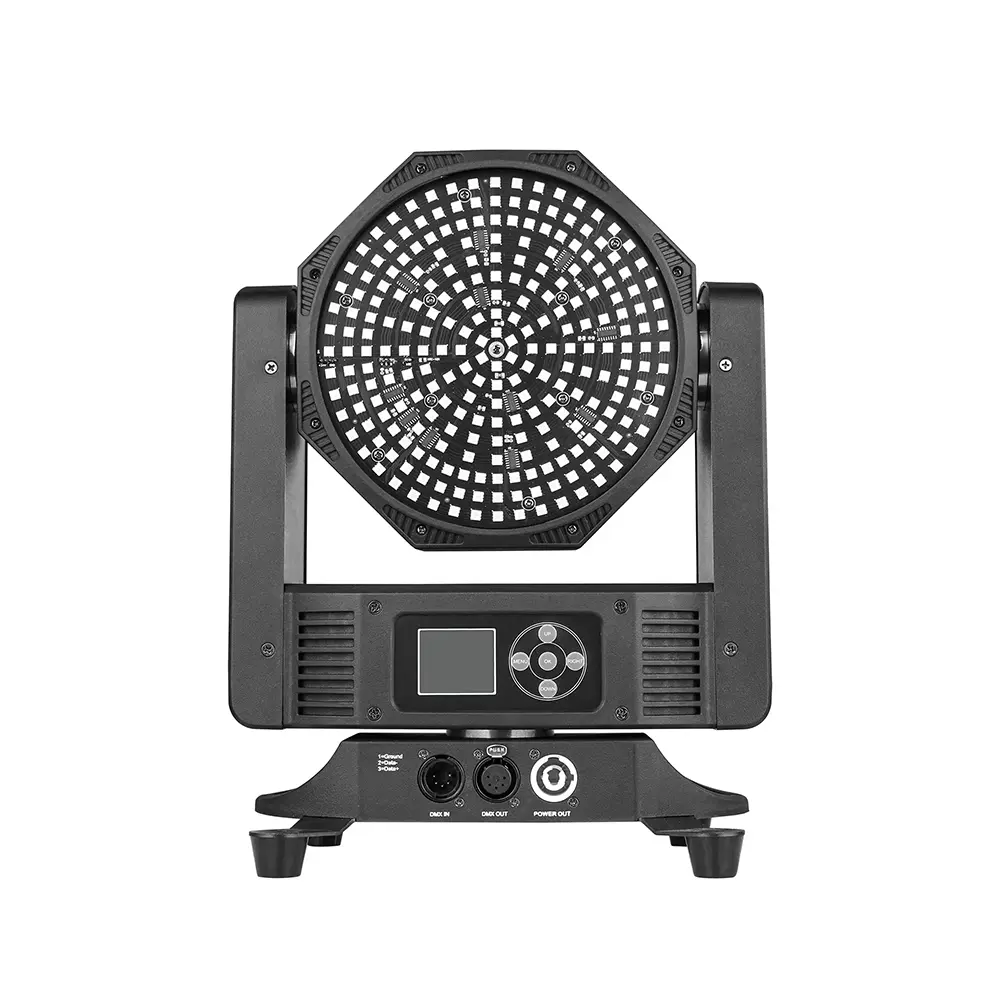

Face 1:

246*0.2W 5050 3-IN-1 LEDs (RGB)

9 Individual control rings

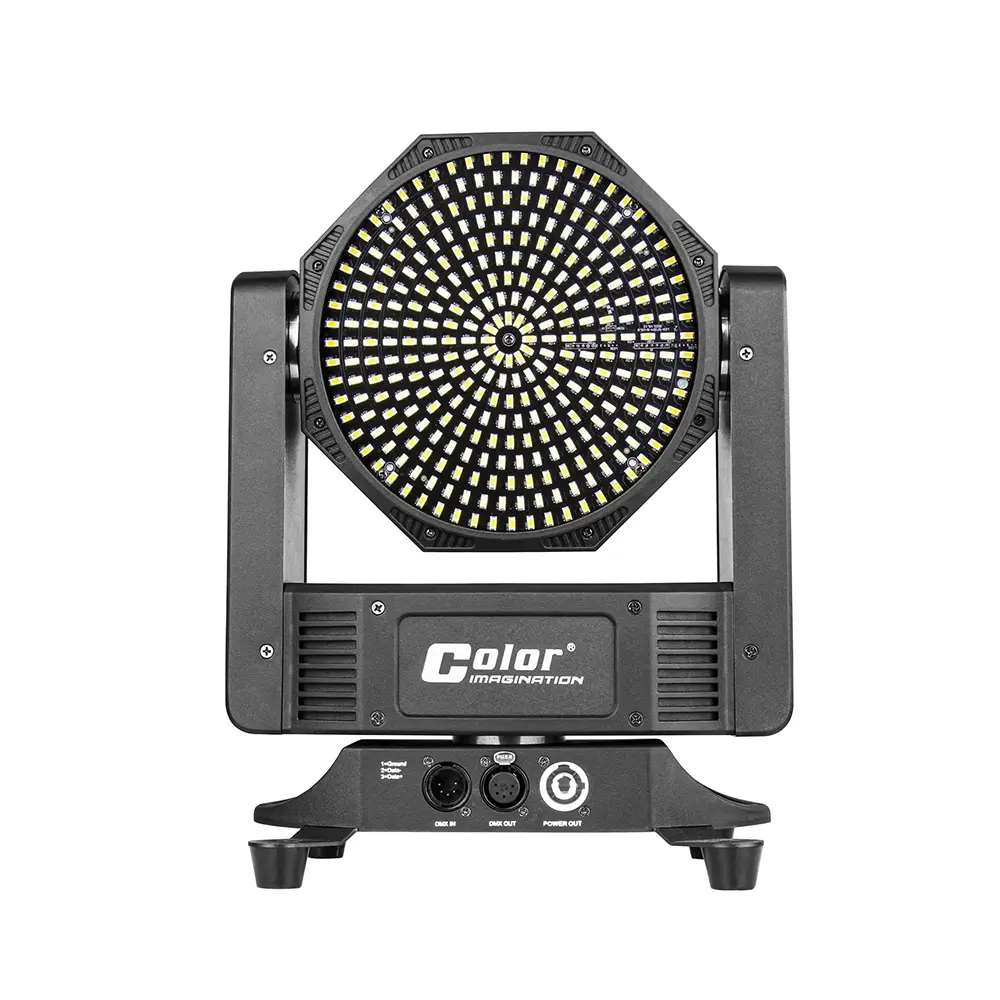

Face 2:

324*0.5W 5730 LEDs (WW+CW )

9 Individual control rings

Flicker free operation for broadcast TV and FILM

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

Face 1:

120°Field angle

High output

Face 2:

120°Field angle

High output

Movement

PAN: 2 modes

1. 360°Continuous movement

2. 540°(8/16 bit)

TILT: 2 modes

1. 360°Continuous movement

2. 270°(8/16 bit)

Fast, quiet, smooth and precise 2-Phase motors

Smooth, fast and precise resolution for PAN/TILT movement with low noise operation

Scan position memory, auto reposition after unexpected movement

PAN/TILT reversible

Color System

Face 1:

RGB

Smooth and pure color mixing capability

CTO, 2800K-5600K color temperature adjustment

Face 2:

Warm white+cold white

Smooth and pure color mixing capability

CTO, 2500K-4600K color temperature adjustment

Built-in Programs

Different built-in dynamic effect with variable speed

Different preset colors

Strobe Effect

0-25Hz LED shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

Control System

23/51 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin and 5-pin XLR DMX connectors IN/OUT

Software Update

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

Display System

1.44” TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal and error monitoring indicators

Cooling System

Advanced low noise self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN&OUT

203.5W Power consumption

Housing

High tension molded fire proof housing with PA6+fibre

Skeleton made of aluminum and steel metal plates

Two side handles on base

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 7.23kg

G.W.: 9.16kg

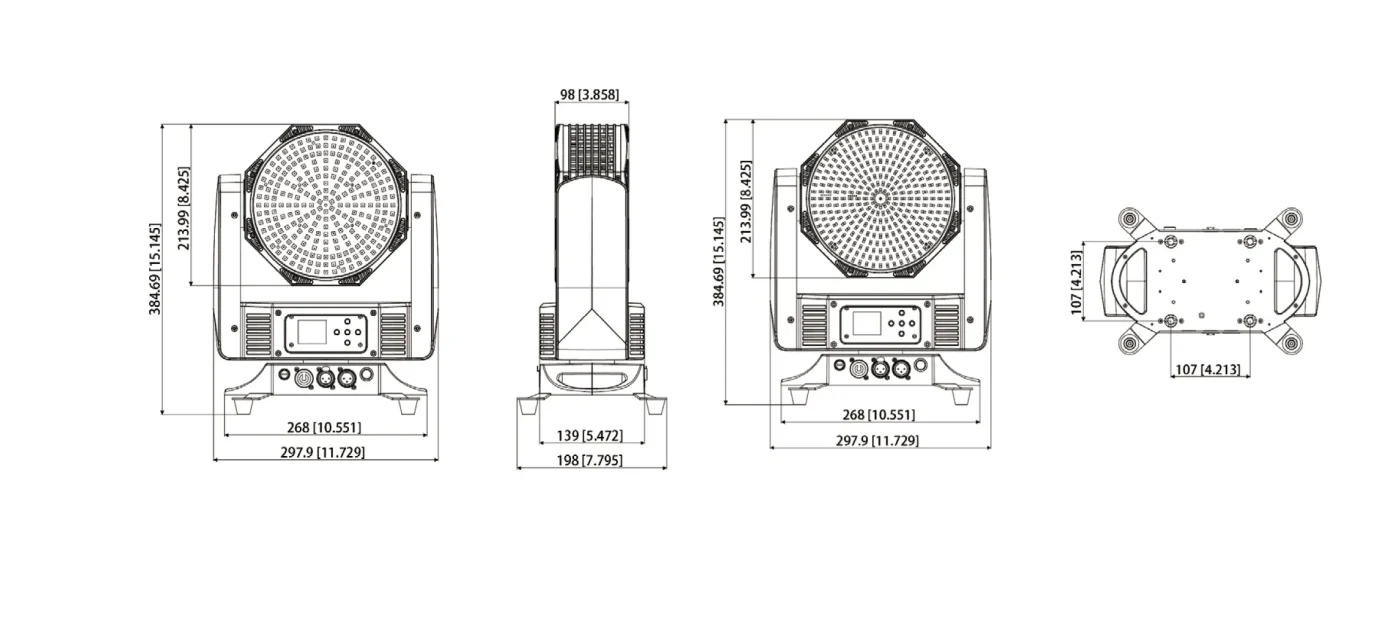

Dimensions

Product Dimensions: 139(D)*297.9(W)*376.7(H)mm

Packing Dimensions: 405(D)*365(W)*295(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions
