SMARTFACE 712EC

SMARTFACE 712EC

The DOUBLE-SIDED designed SMARTFACE 712EC is an ultra compact and light weight stylish moving head WASH+STROBE light (2 Faces). Face 1 features 7*12W 4-IN-1 RGBW LEDs+60*0.2W 3-IN-1 RGB LEDs. It’s available for 2800K-5600K color temperature adjustment. With the unique and creative exceptional luminaire surround the main lens, it helps to generate complex graphic effects. It can be used alone or in combination with the main LEDs. Face 2 features 246*0.2W 5050 3-IN-1 RGB LEDs which is designed with 9 individual rings. It’s available for 2800K-5600K color temperature adjustment. The fixture could be used not just only as a wash light (specially moving face light) but also as a remarkable moving strobe light.

It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).



It features excellent color mixing, quiet running and flicker free control. The fixture is built in with different internal dynamic effect with variable speed. The moving head also features optimum optic design integrated with extremely effective aluminum heat sink system.

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTFACE 712EC achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.



The SMARTFACE 712EC is designed for applications as concerts, TV studios, banquet halls, bars, pubs, DJ entertainment, ballrooms, etc.

DownLoad

Technical specifications

  • Light Source

    Source:
    Face 1:
    7*12W 4-IN-1 LEDs (RGBW)
    60*0.2W 3-IN-1 LEDs (RGB )
    Pixel mapping capability for the exceptional luminaire
    Face 2:
    246*0.2W 5050 3-IN-1 LEDs (RGB)
    9 Individual control rings
    Flicker free operation for broadcast TV and FILM
    Life Span: 50000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)



    Optics

    Face 1:
    High efficiency optic system
    25°Beam angle (other angles optional)
    35°Field angle
    Face 2:
    120°Field angle
    High output



    Movement

    PAN: 2 modes
    1. 360°Continuous movement
    2. 540°(8/16 bit)
    TILT: 2 modes
    1. 360°Continuous movement
    2. 270°(8/16 bit)
    Fast, quiet, smooth and precise 2-Phase motors
    Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
    Scan position memory, auto reposition after unexpected movement
    PAN/TILT reversible



    Color System

    Face 1:
    RGBW for main light
    Smooth and pure color mixing capability
    CTO, 2800K-5600K color temperature adjustment
    RGB for auxiliary light
    Background colors adjustable for auxiliary light
    Face 2:
    RGB
    Smooth and pure color mixing capability
    CTO, 2800K-5600K color temperature adjustment



    Built-in Programs

    Different built-in dynamic effect with variable speed
    Different preset colors



    Strobe Effect

    0-25Hz LED shutter/strobe effect with variable speed



    Dimming System

    0-100% Smooth linear LED dimming



    Control System

    9/18 DMX channels USITT DMX-512
    DMX512, master-slave, sound or auto operation
    DMX recorder and edit function integrated
    RDM available (Remote Device Management)
    Art-NET (Optional)
    Wireless receiver system built-in (Optional)
    Shielded input signal protection for stable signal without interference
    RJ45 etherCON IN/OUT (Optional with Art-Net)
    3-Pin and 5-pin XLR DMX connectors IN/OUT



  • Software Update

    Software up-datable through DMX connectors
    Muilt units up-datable in daisy chain



    Display System

    1.44” TFT LCD display
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF
    DMX signal and error monitoring indicators



    Cooling System

    Advanced noise-free cooling system integrated aluminum
    Constant temperature readout and management function
    Over temperature protection management



    Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON connectors IN&OUT
    190W Power consumption



    Housing

    High tension molded fire proof housing with PA6+fibre
    Skeleton made of aluminum and steel metal plates
    Two side handles on base
    Exterior finish: Black



    Installation

    2*1/4 turn fastening Omega Clamps
    (Adaptable vertically and horizontally)
    1*Safety attachment point



    Operating Condition

    Operating positions: all (device on floor or fixed to a support)
    -25?? to 45?? ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU - Electromagnetic Compatibility (EMC)
    2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 7.23 kg
    G.W.: 9.16 kg



    Dimensions

    Product Dimensions:
    139(D)*297.9(W)*376.7(H)mm
    Packing Dimensions:
    405(D)*365(W)*295(H)mm



DM712EC

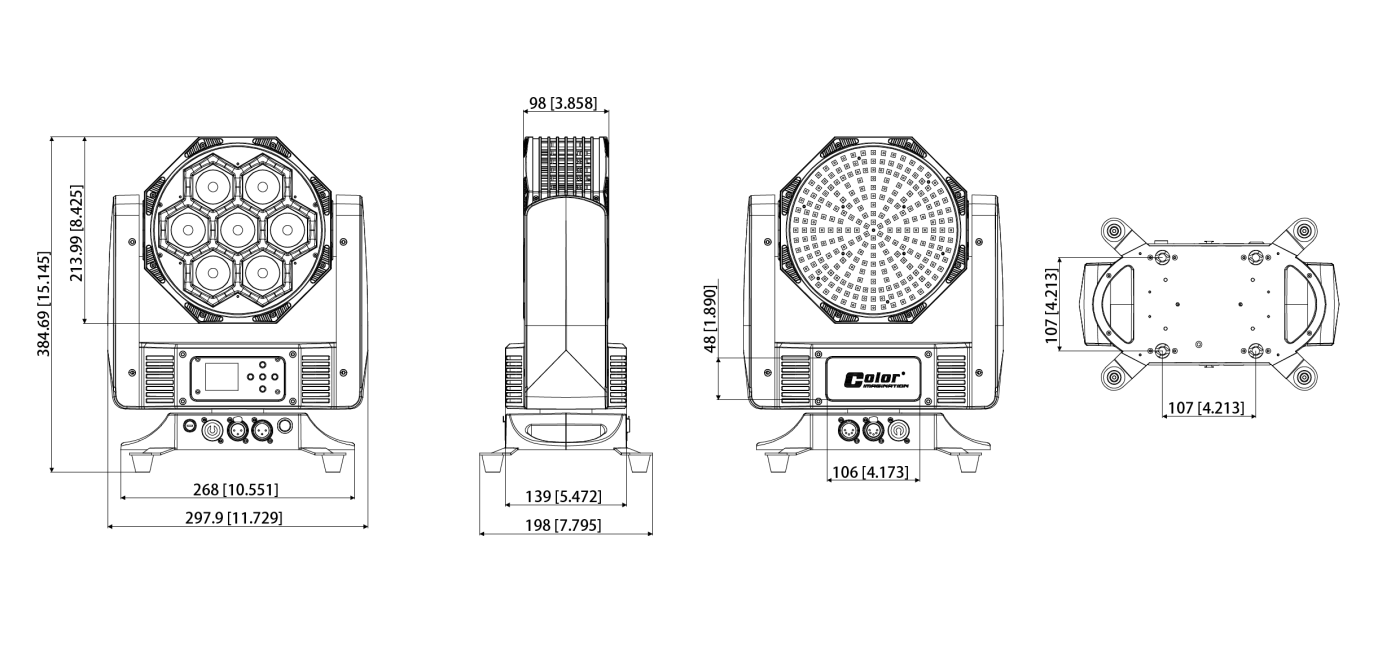

Dimensions

SMARTFACE-712EC-01

Accessories

20210127140312_9902883

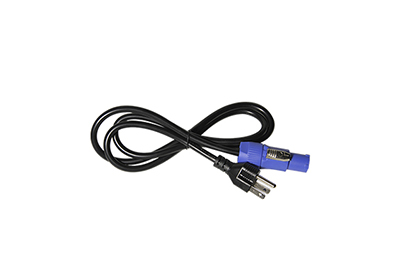

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

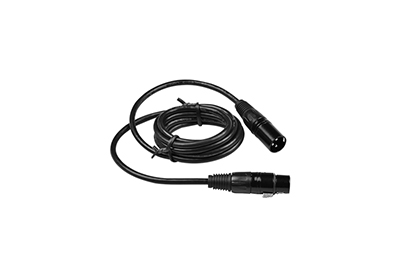

Signal Cable

STANDARD
code:
QTY: 1PCS

omega_1

Omega

STANDARD
code:
QTY: 2PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 2PCS
