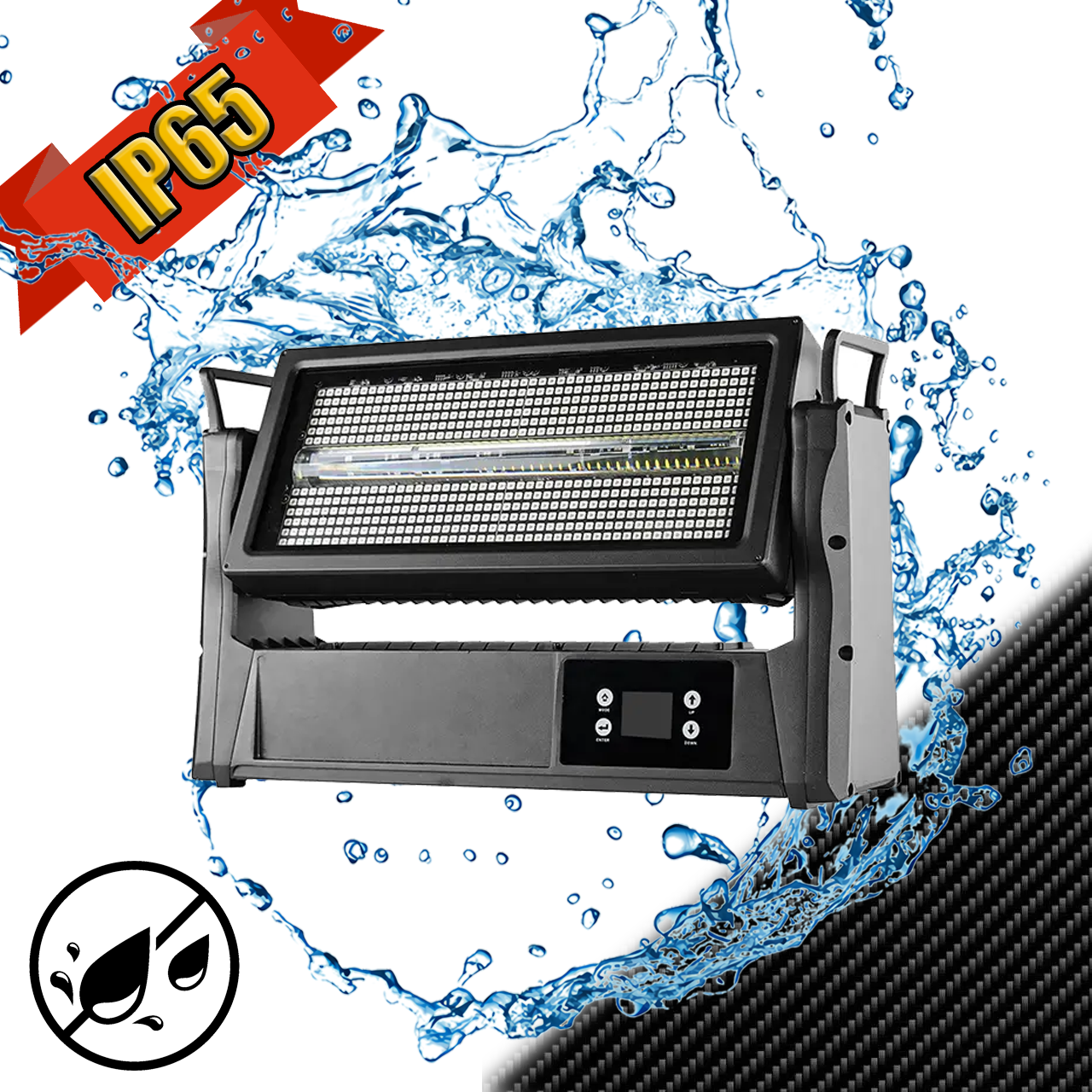

STROBE 1120P

The STROBE 1120P is an ultra high power IP65 rated strobe light basing on LED technology. It features an LED tube (main strobe) with 144*5W Cool-White 6500K LEDs in 8 segments, plus 576*0.6W RGB 3in1 LEDs (auxiliary panel light) in 16 segments. All these segments, either the main strobe or the auxiliary panel light, can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. with 255° tilt movement and high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

The molded housing is designed compact and stylish. Rated IP65, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.

Technical specifications

Light Source

Main Strobe Tube

144*5W Cool-White 6500K LEDs, 8 segments
Auxiliary Strobe Panel

576*0.6W 3-in-1 RGB LEDs, 16 segments

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics
High resolution and precise optic system

120°Projection angle

Movement

Tilt movement: Motorized 255° (8/16-bit)

Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Colors
6500K cold white

Sophisticated 3 colors RGB mixed

Even and soft light coverage with pure mixing

Dynamic Effect
Built-in pre-programmed effects with variable speed and direction

Main strobe tube: 12 kinds

Auxiliary Strobe Panel: 50 kinds

Dimming

0-100% Smooth linear LED dimming

Background colors with 0-100% dimming

Strobe Effect
0-25Hz shutter/strobe effects at variable speed

Control System
8/18/61 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

IP65 3-Pin XLR DMX connectors IN/OUT

Display System
Illuminated graphic LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System
Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Temperature controlled, overheating protection

(output decreased when over heat)

Power Supply

Electronic power supply with PFC

AC100-240V 50/60Hz

IP65 TRUE1 Power connectors In/Out

1000W Power consumption

Housing
Skeleton made of die-cast aluminum and steel metal plates

Two side handles on the arms

Exterior finish: Black

Mounting Options

Standing: Rubber feet

Hanging: Omega-Bracket

Safety wire attachment: foldout eyelets

Operating Condition
Operating positions: all (device on floor or fixed to a support)

-25°C to 45°C ambient temperature
IP65 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 12.5kg
G.W.: 14kg

Dimensions

Product Dimensions: 138(D)*516(W)*317(H)mm

Packing Dimensions: 230(D)*640(W)*360(H)mm
