TRIANGLE PLUS-M1
The TRIANGLE PLUS-M1 is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together. The more fixtures combined, the more vivid lighting effects will be created for the stages. It features 16*30W 1500K+5500K LED modules and 576*0.3W 3200K LEDs surrounding the main module as auxiliary light. All the LEDs are controllable individually by 16 modules.
The TRIANGLE PLUS-M1 supports DMX, RDM (Remote Device Management), Art-Net protocol. There are 3 installation capabilities with corresponding kits: truss-hanging, wall-mounting and floor-stacking.
The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, clubs, etc.
Technical specifications
Light Source
Source:
16*30W LED modules, 1800K+5500K
576*0.3W SMD LEDs, 3200K
16 LED modules controllable individually
Flicker free operation for broadcast TV and FILM
LED driving frequency adjustable
White balance adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.
Optics
A set of high temperature resistant squamous reflector optic system
60°Beam angle for each module
Color System
3200K surrounding effect
1500K-5500K color temperature tunable by mixing
Strobe Effect
25T/sec high speed shutter/strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming
5 Dimming curves, linear/square law/Inv square law/S-curve/soft curve
Control System
8/80/83/128 DMX channels USITT DMX-512
DMX512, master-slave, sound control or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET available
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT
3-Pin XLR connectors IN/OUT
Software Update
Software up-datable through DMX connectors
Muilt units up-datable in daisy chain
Display System
1.8″ TFT LCD display
5 Control buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced noise free cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON connectors IN/OUT
850W Power consumption
Housing
Skeleton made of high tension steel metal plates
Dual back handles
Exterior finish: Black
Installation
2*1/4 Turn fastening Omega Clamps
3 Sets seamless combined system (Female and Male)
Truss-hanging kits, 2 options (Optional)
Wall-mounting kit (Optional)
Floor-stacking kit (Optional)
Operating Condition
Operating positions: all
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
N.W.: 8.3kg
G.W.: 10.5kg
Dimensions
Product Dimensions:148(D)*800(W)*690(H)mm
Packing Dimensions:238(D)*896(W)*896(H)mm

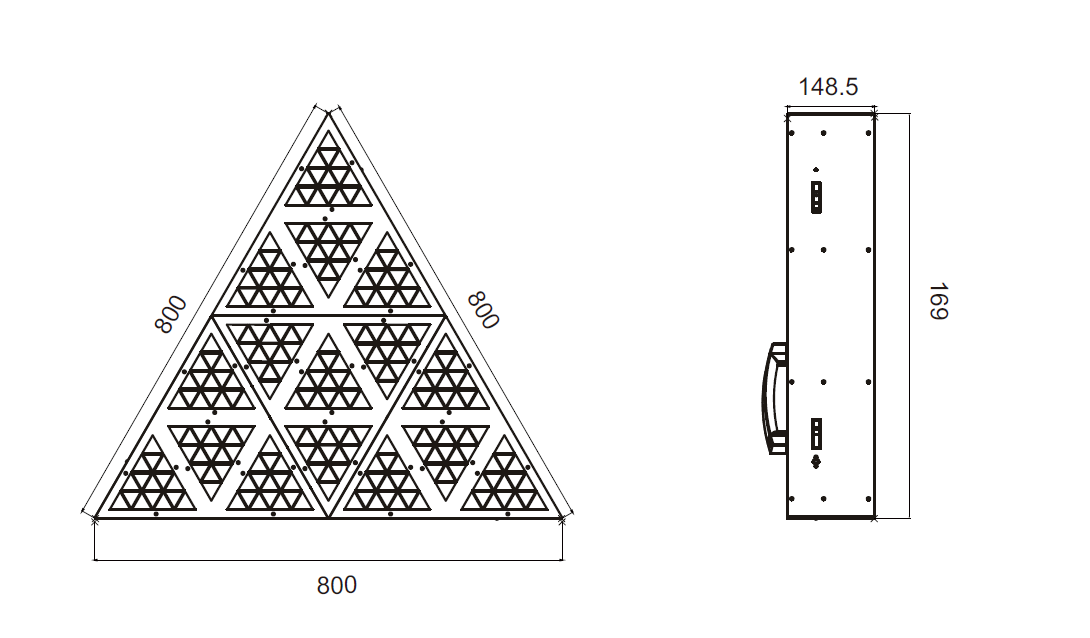

Dimensions
Accessories
Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
Omega
STANDARD
code:
QTY: 2PCS
