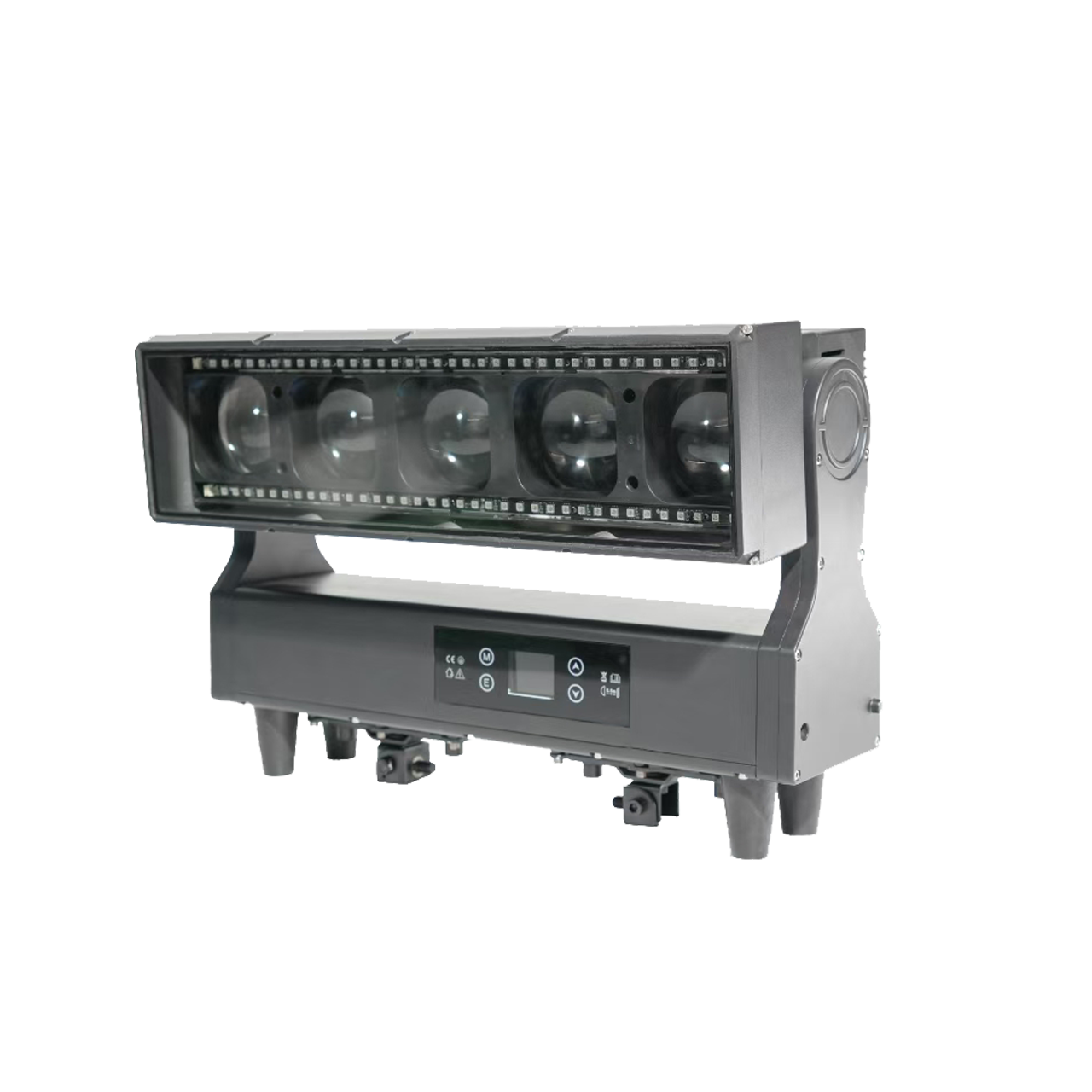

ZOOMBAR 560EP

The ZOOMBAR 560EP is an ultra high power LED based moving head effect bar with smart and compact stylish housing with a smooth, fast and quiet TILT movement. The zoom range makes the fixture with sharp beam effect and pure even wash coverage. It features 5*60W 4-IN-1 RGBW LED sources (main light) with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The strip light on two sides and the backlight are designed with many built-in dynamic effects. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns to it’s users for easy operation. The 2*1/4 turn fastening omega clamps. The fixture supports DMX, RDM (Remote Device Management). Two fixtures can be joined together seamlessly with the specific parts.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.

Technical specifications

Light Source

Source:
Main Light:

5*60W 4-IN-1 LEDs, RGBW
Strip Light:

40*1W RGB LEDs+40*1W CW LEDs+40*1W WW LEDs

Back Light:

90*0.2W RGB LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics

10PCS high efficiency acrylic lens

Motorized zoom angle for main light

2 Sections zoomable individually

Beam Angle: 2°-23°
Field Angle: 2.5°-32°

Movement

TILT movement: 270°(8/16 bit)

Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Colors and Effect

Main Light (RGBW):
Pixel mapping capability with each LEDs controllable individually
Sophisticated 4 colors RGBW mixed
Sharp beam effect

Pure and even wash effect

2500K-8000K Color temperature adjustment
Preset dynamic patterns with variable speed
Preset color macros

Strip Light (CW+WW):

10 Sections controllable individually

2600K-6500K Color temperature adjustment
Preset dynamic patterns with variable speed

Strip Light (RGB):

RGB mixed

10 Sections controllable individually
Preset dynamic patterns with variable speed

Preset color macros

Back Light (RGB):

10 Sections controllable individually
Preset dynamic patterns with variable speed

Preset color macros

Strobe Effect
1-25Hz high speed shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

2 Dimming modes: fast/smooth

Control System
21/34/55/69/94/97 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated
RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

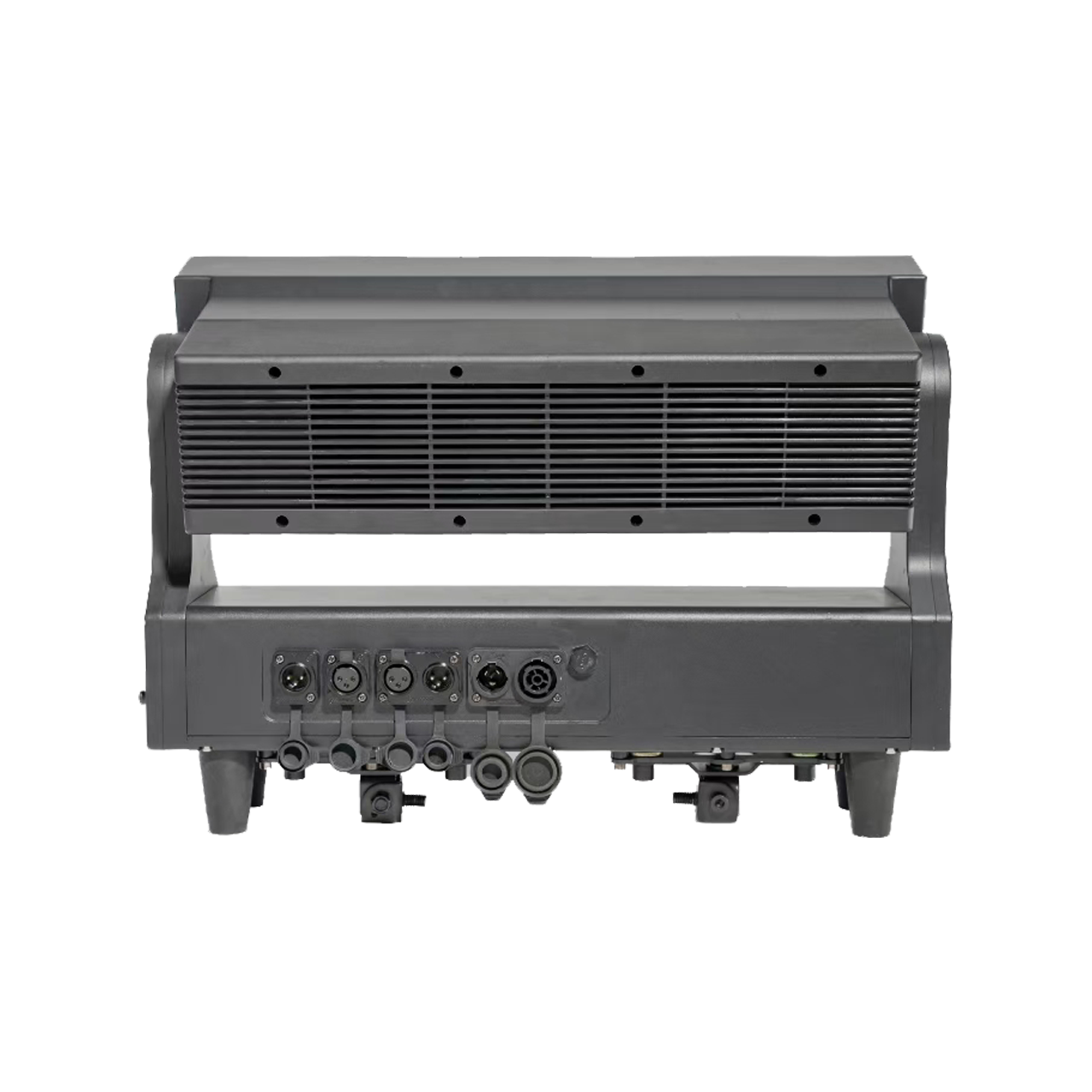

Waterproof 3-pin XLR connectors IN/OUT

Display System
1.77″ TFT LCD display

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System
Advanced low noise cooling system integrated aluminum and fan

Constant temperature readout and management function

Over temperature protection management

Power Supply
Electronic supply with active PFC

AC100-240V 50/60Hz
Waterproof TRUE-1 PowerCON IN/OUT with fuse

430W Power consumption

Housing

Die-case aluminum housing
Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)

-25℃ to 45℃ ambient temperature
IP66 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 18kg
G.W.: 20.7kg

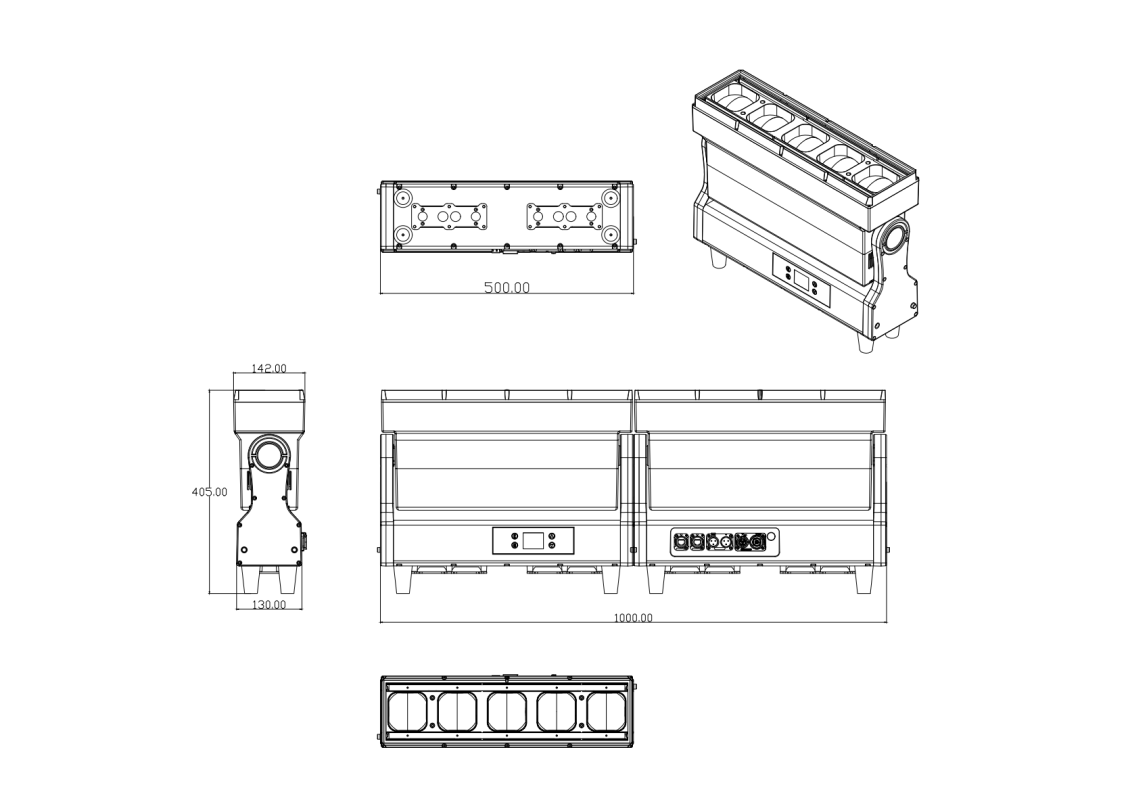

Dimensions

Product Dimensions: 142(D)*500(W)*405(H)mm

Packing Dimensions: 485(D)*580(W)*240(H)mm
