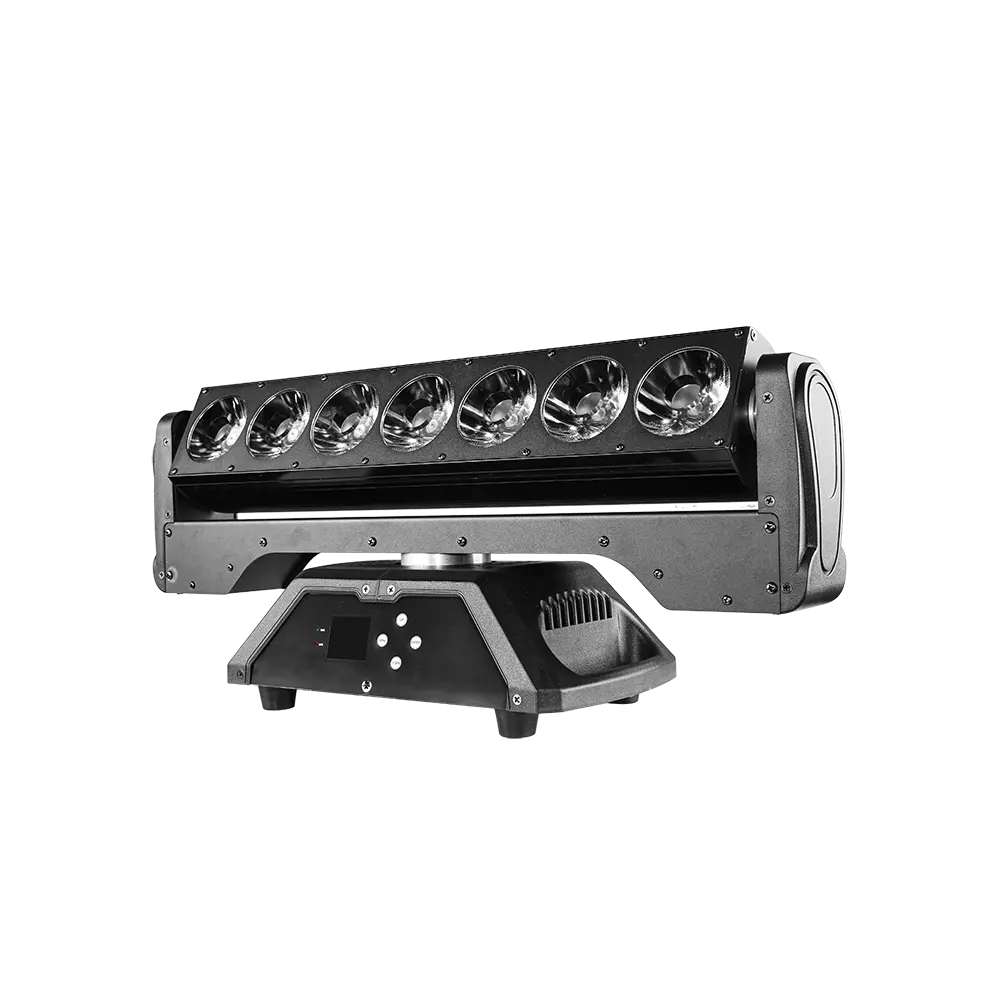

MAGICBLADE 715FP

The MAGICBLADE 715FP is a unique moving head effect bar light. It features 7*15W RGBW 4-in-1 LEDs for beautiful and saturate beam and wash effects. The pixel mapping capability allows you to create dynamic visual effects and color variations. Each LED will act as a pixel functioning all kinds of graphic images. Also it provides variable built-in dynamic patterns to the users for easy operation. Designed with a smart and compact stylish fireproof housing, it ensures a smooth, fast and quiet movement, with a 360°continuous PAN/TILT movement. It supports DMX/RDM. And the 2*1/4 turn fastening omega clamps make the mounting easy and convenient.

The fixture is tuned with proper LED refresh rate for flicker free operation. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.

Technical specifications

Light Source

Source: 7*15W RGBW 4-in-1 LEDs

Flicker free operation for broadcast TV and FILM

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics

7PCS high efficiency lens

4.5°Beam angle

Movement

PAN: 2 modes

1. 360° Continuous movement

2. 540° (8/16 bit)

TILT: 2 modes

1. 360° Continuous movement

2. 270° (8/16 bit)

Fast, quiet, smooth and precise 2-phase motors

Smooth, fast and precise resolution for TILT movement with low noise operation

Scan position memory, auto reposition after unexpected movement

Colors and Effect

Perfect RGBW LED beam and saturate wash effect

Pixel mapping capability

Preset dynamic patterns with variable speed

Strobe

1-25Hz shutter/strobe effect with variable speed

Dimming

0-100% linear dimming

Control System

18/42 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

Display System

LCD display

English/Chinese menu

4 Control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN with switch and fuse

180W Power consumption

Housing

Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25° to 45° ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 7.3kg

G.W.: 9.5kg

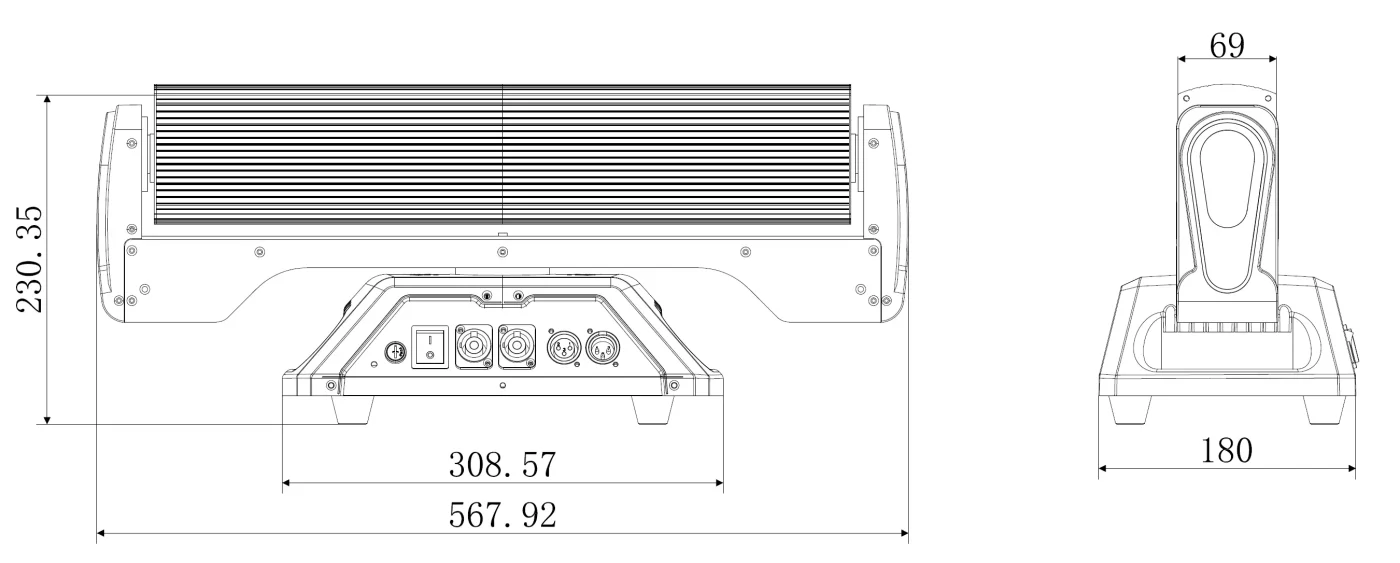

Dimensions

Product Dimensions: 180(D)*567.9(W)*230.4(H)mm

Packing Dimensions: 290(D)*640(W)*340(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
