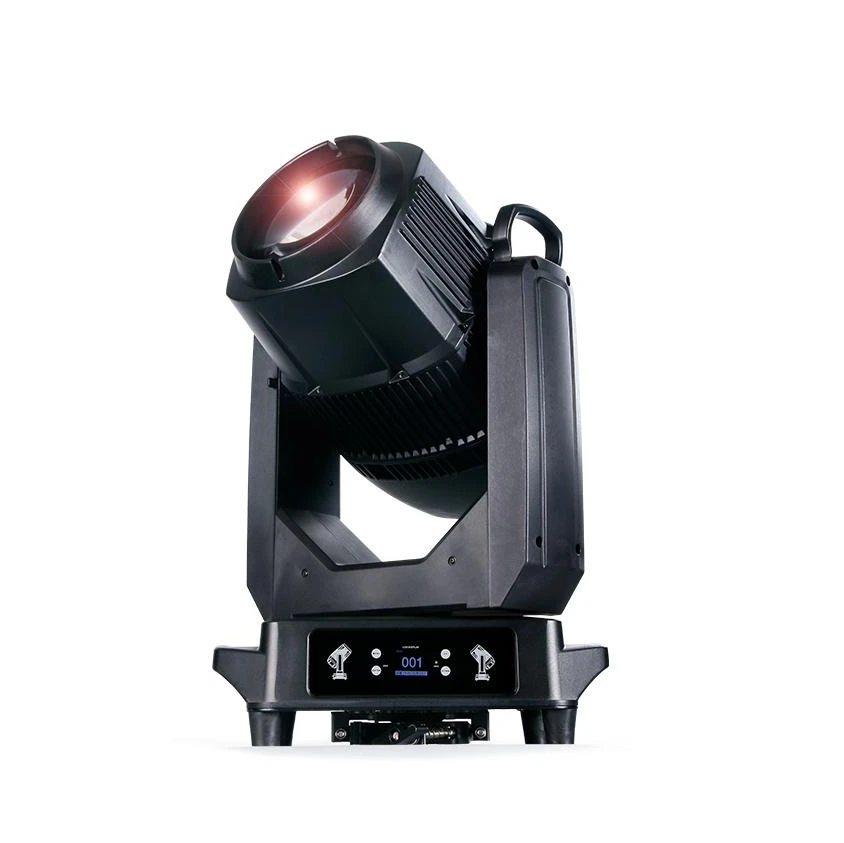

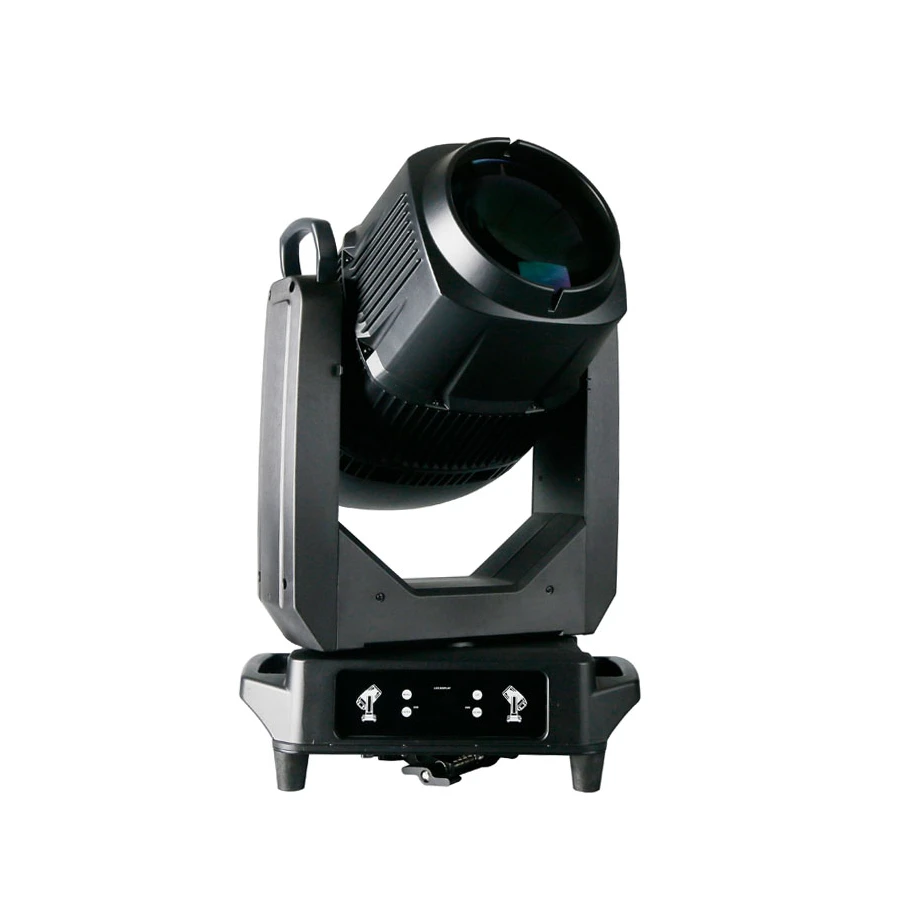

BEAM 420P

Today more and more moving heads are being exposed to wet, humid and extreme conditions. With numerous multi-environmental application requirements, Color Imagination recently launched an IP66 rated moving head beam which integrates BEAM and WASH in one fixture, featuring 1.4°beam angle. The OSRAM SIRIUS HRI 420W pro lamp delivers high lumen through a high definition optic lens that brings incredibly ultra brightness and sharp beam effect with even and clear spot image.

As structure is perfectly designed with ultimate heat sink system, the BEAM 420P will keep itself in excellent performance in all functions even though in raining, dirty, sandy or water environment. There will be no accumulation of dust or external impact on inside components like optics, gobos, color filters or the light source. And there will be no smoke fluid or humidity gathering inside.

The BEAM 420P offers a full complement of professional characteristics, including static gobo wheel, color wheel, 6-color effect wheel, 16-facet prism, 8-facet prism, frost filter, motorized linear focus, variable speed shutter/strobe; and mechanical dimmer, etc. The fixture supports DMX, RDM (Remote Device Management).

The BEAM 420P’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.

Technical specifications

Light Source
Source: OSRAM SIRIUS HRI 420W lamp
Color Temperature: 7850K(+/- 300K)

CRI: ≥83(+/- 5)
Flicker free operation for broadcast TV and FILM
Life Span: 2500H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

Optics
A set of high resolution and precise optics
Large size 200mm front glass lenses

1.4°Beam angle

Smooth motorized focus

Movement

PAN movement: 540°(8/16 bit)

PAN movement: 270°(8/16 bit)

Fast, quiet, smooth and precise 3-Phase otors
Magnet encoding wheel integrated with motor
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible

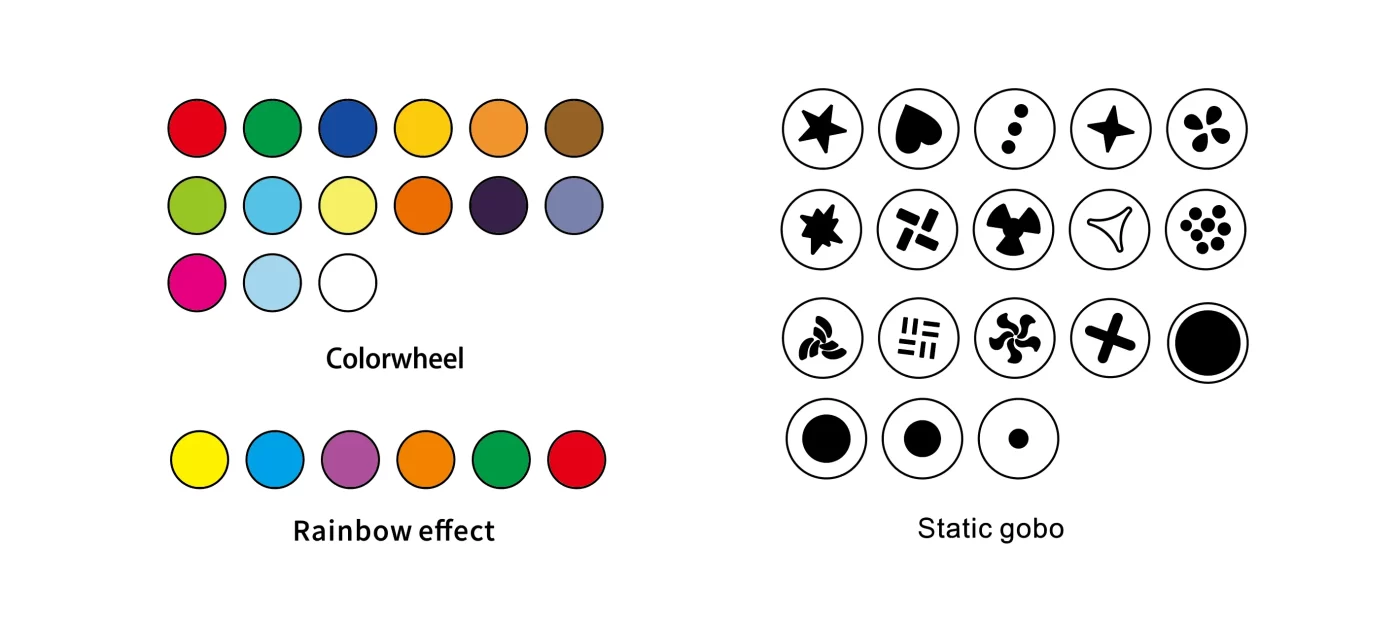

Color System
1 Color wheel with 14 dichroic colors plus open, half-color mode available

Variable direction rainbow effect with speed adjustable

6-Color effect wheel

Gobo System

1 Static gobo wheel with 17 gobos plus open, with gobo shaking

Prism System
16-Facet prism with variable speed and direction

8-Facet linear prism with variable speed and direction
Prism morphing effect

Strobe Effect
25T/sec high speed shutter/strobe effect with variable speed

Preset variable/random strobe effect with variable speed

Dimming System
0-100% Smooth linear mechanichal dimming

Wash System

Frost filter (Hybrid effect for wash)

Even and soft coverage

Control System
16/20 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated
RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

IP rated DMX cables with 3-Pin XLR connectors IN/OUT

Software Update

Software up-datable through DMX connectors
Muilt units up-datable in daisy chain

Display System
2.4″ TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

Cooling System
Advanced cooling system integrated aluminum and copper with liquid

Low noise fan cooling system

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic ballast: PT-SIRIUS 420W
Electronic supply with active PFC

AC100-240V 50/60Hz
IP rated power cable IN/OUT

580W Power consumption

Housing

Die-cast aluminum housing
Skeleton made of aluminum and steel metal plates

Two side handles both on base and arm

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)

-25℃ to 45℃ ambient temperature
IP66 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 30.5kg
G.W.: 33.5kg

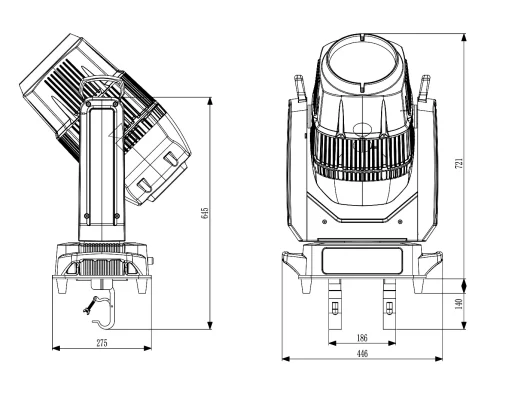

Dimensions

Product Dimensions:275(D)*444.6(W)*730(H)mm

Packing Dimensions: 455(D)*768(W)*525(H)mm
