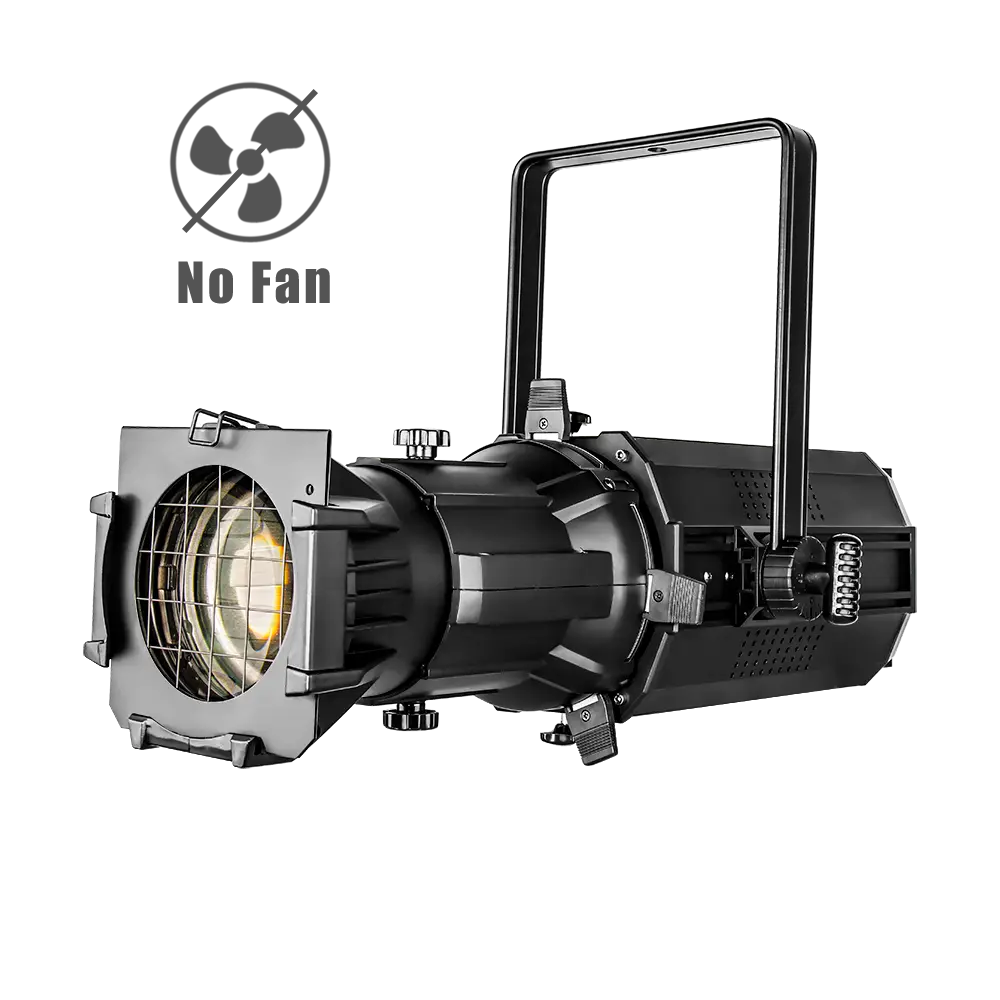

PROFILE 200F

This profile is a high definition and noise free LED studio light integrated into a die-cast aluminum alloy housing. It features a 200W 4-IN-1 LED, RGBW, which delivers brightest output and the boldest rendering of the colors. The fixture is a professional SPOT lighting system with the lens tube interchangeable, 5°/10°/19° /26°/36°/50°field angles optional for on-site application need.

The PROFILE is equiped with a very versatile dimming system and reasonable LED driving frequency . The CRI is ≥90 (customiz -able). It’s controllable by DMX512 or RDM.

The fixture comes with 4 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame is included kit and gobo slot/manual IRIS system are optional kits. The PROFILE is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.

Technical specifications

Light Source

Source: 1*200W 4-IN-1 LED (RGBW)

CRI: ≥90 (customizable)

Flicker free operation

for broadcast TV and FILM

Life Span: 50000H

The life span may vary depending on

several following factors but not limited to:

Environmental Conditions, Power/Voltage,

Usage Patterns (On-Off Cycling), Control,

and Dimming)

Optics

A set of high resolution and precise optics

5°/10°/19°/26°/36°/50°Lens tube

interchangeable

Lens tube 45°rotatable

Manual focus

Framing System

4 Metal spot cutting slots

Color System

RGBW color mixing

Pure and even coverage

Color frame included

Preset Programs

8 Preset colors

Different built-in dynamic programs

Gobo System

Gobo holder as optional

IRIS System

Manual IRIS system as optional

Strobe Effect

0-25Hz LED shutter/strobe effect with

variable speed

Dimming System

0-100% Smooth linear LED dimming

Control System

9 DMX channels

RDM available

(Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable

signal without interference

3-Pin XLR DMX connectors IN/OUT

Display System

1.8″ TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display Auto OFF

Cooling System

Advanced cooling system integrated

aluminum and copper with liquid

Efficient noise free cooling system (no fan)

Constant temperature readout and

management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

200W Power consumption

Housing

Skeleton made of aluminum

and steel metal plates

Exterior finish: Black

Installation

Single haning bracket

1*Safety attachment point

Operating Condition

Operating positions: all

-25° to 45° ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment

supplied at low voltage (L VD)

2014/30/EU – Electromagnetic Compatibility

(EMC)

2011/65/EU – Restriction of the use of certain

hazardous substances (RoHS)

Weight

N.W.: 9.9kg

G.W.: 11.5kg

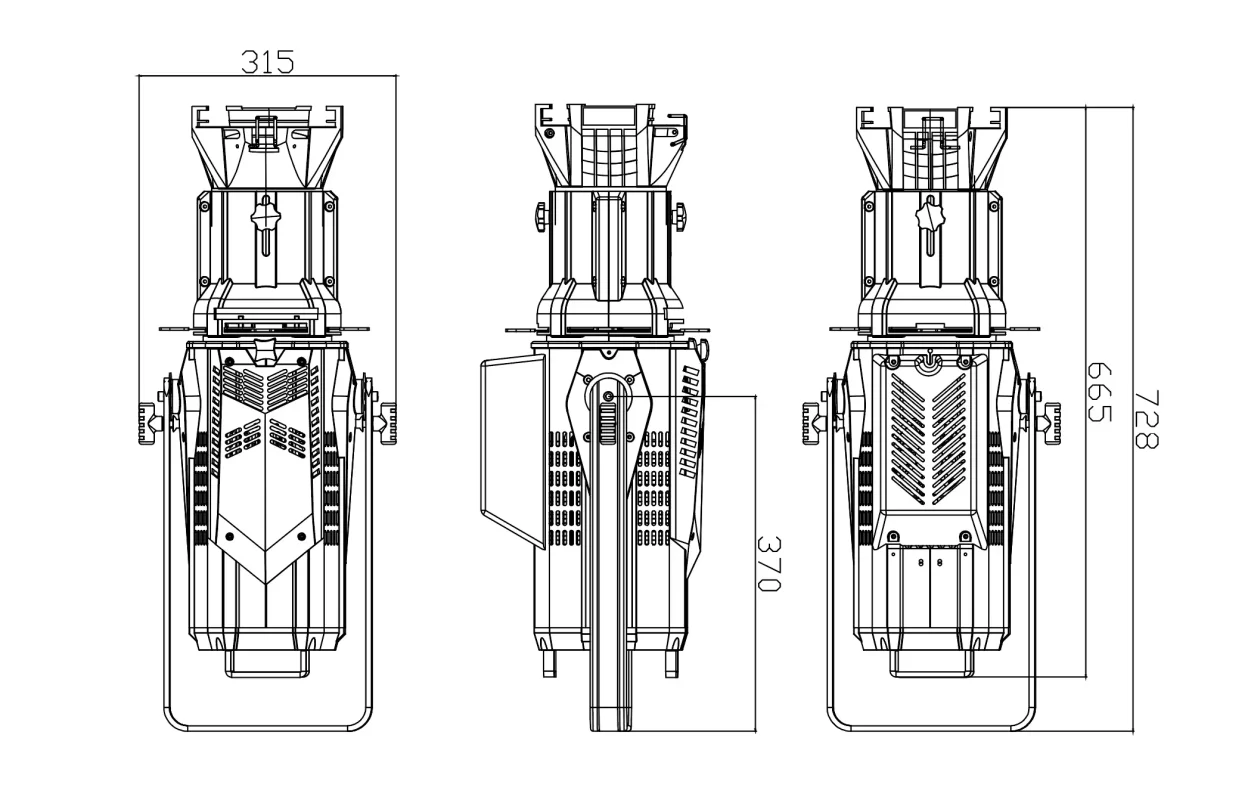

Dimensions

Product Dimensions:315(D)*680(W)*310(H)mm

Packing Dimensions:350(D)*750(W)*345(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
