CURVEBAR 1080EP

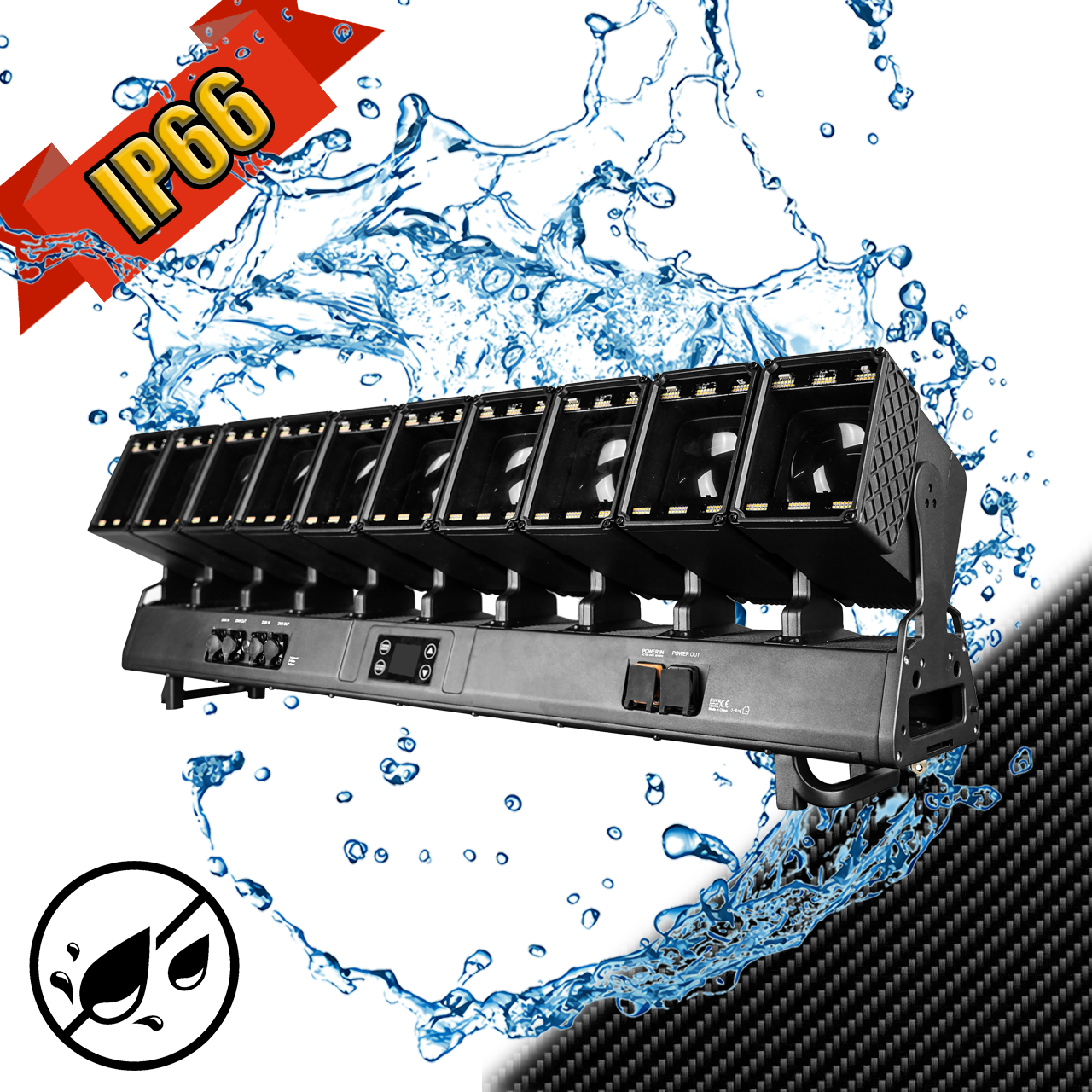

The CURVEBAR 1080EP is an IP66 rated stage lighting wave bar fixture that features 10 individual MINI moving heads, each of which is with a 80W 4-IN-1 RGBW LED. The BAR is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the users.
The CURVEBAR 1080EP also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.
The BAR is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different CURVEBAR 1080EP seamlessly and get synchronized movement that produces an impressive wave of light (BEAM or WASH), paralleled to each other due to it’s 5.5°-37°zoom range.
The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.
Technical specifications
Source:
10*80W 4-IN-1 RGBW LEDs
360*0.5W amber LEDs+360*0.5W cold white LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H600Hz-15KHz LED frequency adjustable (1200Hz as default)The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics
5PCS high efficiency lens
5.5°-37°Zoom range (main source)
120°Beam angel (strip)
Movement
TILT: 270° (8/16 bit)
Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
Colors
Pixel mapping capability with each LEDs controllable individually
Sophisticated 4 colors RGBW mixed
Linear CTO 2700-8000K
White light CTC
Preset white light CTC effect with variable speed
Sharp beam effect
Pure and even wash effect
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed
Background color macros
Strip Effect
Each head with strip effect with different built-in macros (amber+CW)
(variable speed control)
Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed
Dimming System
0-100% Smooth linear LED dimming
4 Dimming curves, linear/square law/Inv square law/S-curve
2 Dimming modes
Control System
29/56/144/216/262/282 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-Net as optional
Waterproof RJ45 connectors IN/OUT
Shielded input signal protection for stable signal without interference
Waterproof 3-Pin XLR connectors IN/OUT
Software Update
Software up-datable through DMX connectors
Multi units up-datable in daisy chain
Display System
1.8″ TFT LCD display
English/Chinese menu
4 Touch control buttons
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
Waterproof TRUE-1 power connects IN/OUT with fuse
880W Power consumption
Housing
High tension molded die-cast aluminum housing
Skeleton made of aluminum and steel metal plates
Exterior finish: Black
Installation
2*1/4 turn fastening Omega Clamps
Specific parts for seamless combination between lights
2*Safety attachment point
Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP66 protection rating
Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
Weight
G.W.: 31.2kg

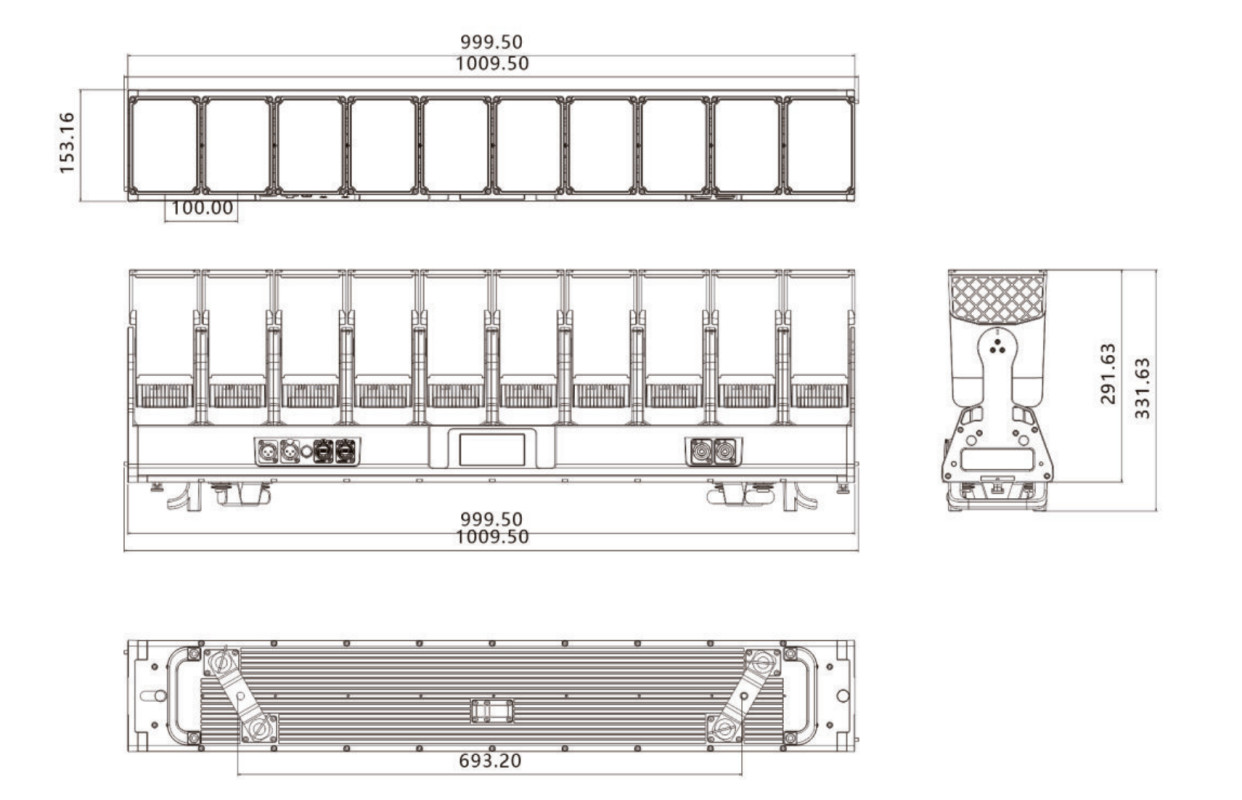

Dimensions
Product Dimensions: 153.2(D)*1009.5(W)*331.6(H)mm
Packing Dimensions: 410(D)*1135(W)*230(H)mm
