SMARTPAR 1212P
The SMARTPAR 1212P is an IP65 rated high power indoor LED flat par light using 12*12W 4-IN-1 RGBW LEDs which is designed with 2 individual rings. It’s available for 2800K-5600K color temperature adjustment.
It features excellent color mixing, quiet running and flicker free control. The fixture is built in with 13 internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.
The SMARTPAR 1212P is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, architectural lighting projects, gardens, theme parks, etc.
Technical specifications
Light SourceSource:12*12W 4-IN-1 LEDs (RGBW)
2 Individual control rings
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),
Control, and Dimming)
OpticsHigh efficiency optic system
25°Beam angle (other angles optional)
35°Field angle
High output
RGB
Color System
Smooth and pure color mixing capability
CTO, 2800K-5600K color temperature adjustment
Built-in Programs13 Built-in dynamic effect with variable speed
Different preset colors
0-25Hz LED shutter/strobe effect with variable speed
Strobe Effect
Dimming System0-100% Smooth linear LED dimming
4/5/7/8/10 DMX channels USITT DMX-512
Control System
DMX512, master-slave, sound or auto operation
DMX recorder and edit function integrated
IR Remote control
RDM available (Remote Device Management)
Wireless system as optional
Shielded input signal protection for stable signal without interference
IP65 Rated 3-pin XLR connectors IN/OUT
1.44” TFT LCD display
Display System
4 Touch control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal and error monitoring indicators
Efficient low noise self adjusting fan cooling system integrated aluminum
Cooling System
Constant temperature readout and management function
Over temperature protection management
Electronic supply with active PFC
Power Supply
AC100-240V 50/60Hz
IP65 Rated PowerCON connectors IN&OUT
150W Power consumption
High tension molded fire proof ABS PC
Housing
2 Hanging brackets
Exterior finish: Black
1*Safety attachment point
Installation
Operating positions:
Operating Condition
all (device on floor or fixed to a support)
-25?? to 45?? ambient temperature
IP65 protection rating
CE
Compliance
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
N.W.: 5.14kg
Weight
G.W.: 5.99kg(1PCS)/25.89kg(4PCS)

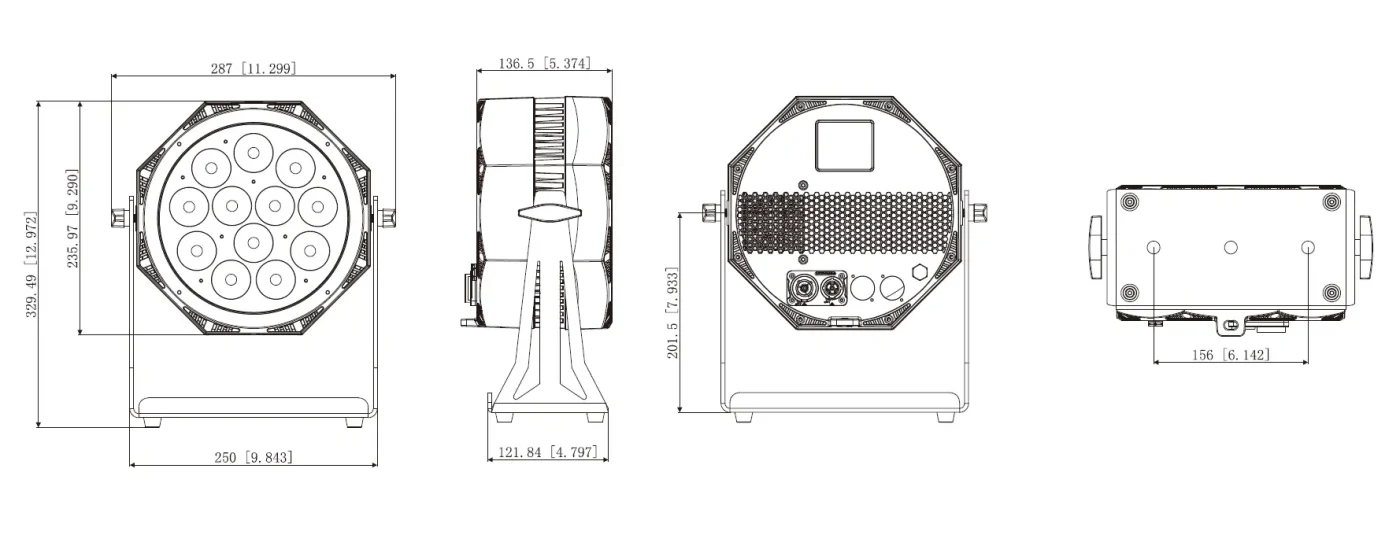

Product Dimensions:
Dimensions
132.5(D)*280(W)*315.5(H)mm
Packing Dimensions:
360(D)*310(W)*200(H)mm (1PCS)
375(D)*655(W)*440(H)mm (4PCS)
Standard1
Standard2

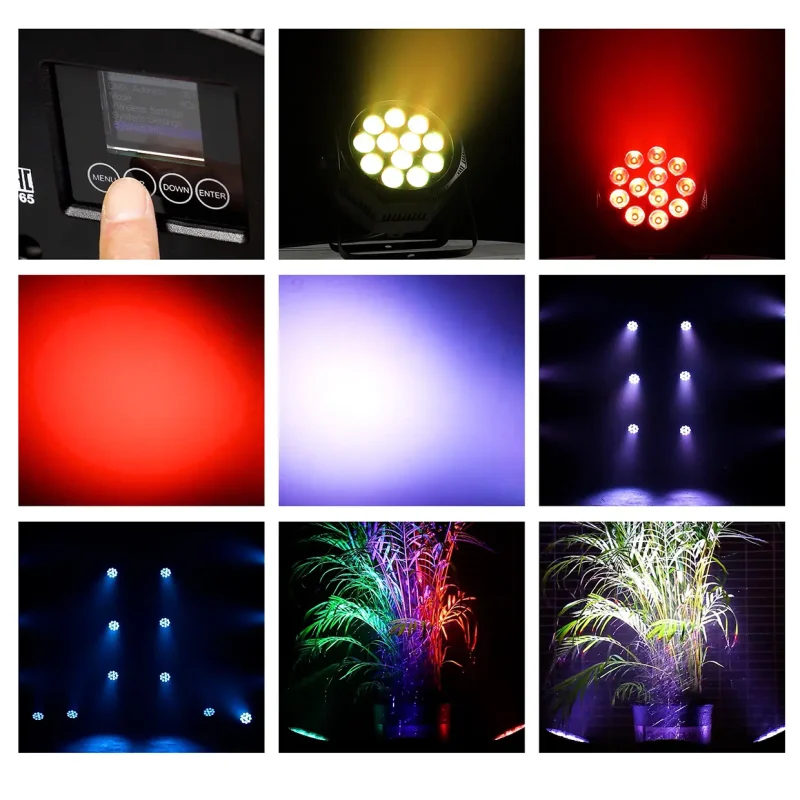

Effect
Video
Accessories

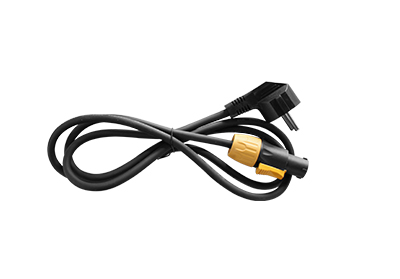

Power Cable
STANDARDcode:
QTY: 1PCS

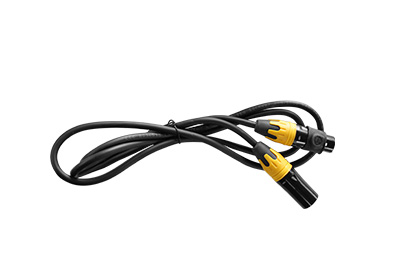

Signal Cable
STANDARDcode:
QTY: 1PCS

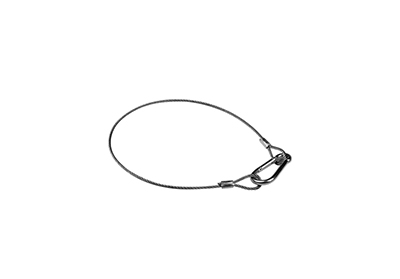

Safety Cable
STANDARDcode:
QTY: 1PCS

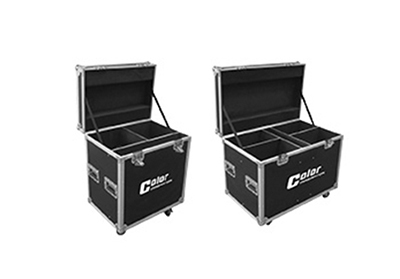

Road Case
OPTIONALcode:
Available for 6-IN-1 or 8-IN-1 versions

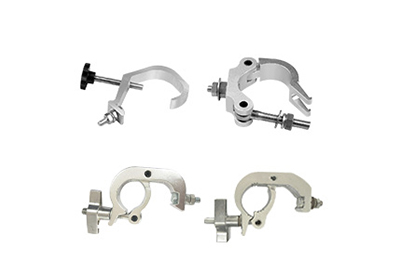

Clamps
OPTIONALcode:
QTY: 1PCS

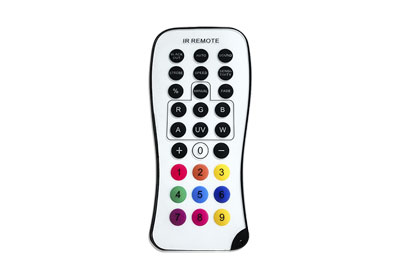

IR Remote Controller
OPTIONALcode:
QTY: 1PCS

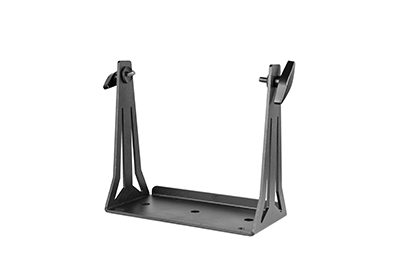

Architectural Stand
OPTIONALcode:
QTY: 1PCS

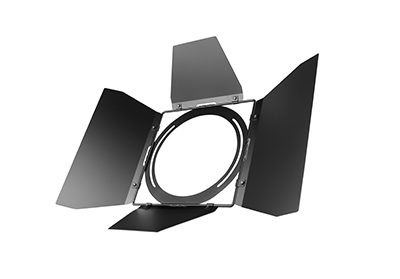

Barndoor
OPTIONALcode:
QTY: 1PCS
