SMARTPAR 720E

The SMARTPAR 720E is a high power indoor LED flat par light with auxiliary effects using 7*20W 6-IN-1 RGBWA+UV LEDs+60*0.2W 3-IN-1 RGB LEDs. It’s available for 2500K-6500K color temperature adjustment.

It features excellent color mixing, quiet running and flicker free control. The fixture is built in with internal dynamic effects with variable speed. The PAR also features optimum optic design integrated with extremely effective aluminum heat sink system.

The SMARTPAR 720E is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, etc.

Technical specifications

Light Source

Source:

7*20W 6-IN-1 LEDs (RGBWA+UV)

60*0.2W 3-IN-1 LEDs (RGB )

Flicker free operation for broadcast TV and FILM

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

High efficiency optic system

25°Beam angle (other angles optional)

35°Field angle

High output

Color System

RGBWA+UV for main light

Smooth and pure color mixing capability

CTO, 2500K-6500K color temperature adjustment

RGB for auxiliary light

Background colors adjustable for auxiliary light

Built-in Programs

Different built-in dynamic effect with variable speed

Different preset colors

Strobe Effect

0-25Hz LED shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

Control System

10/12/17 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

IR Remote control (Optional)

RDM available (Remote Device Management)

Wireless system (Optional)

Shielded input signal protection for stable signal without interference

3-pin XLR connectors IN/OUT

Display System

1.44” TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal and error monitoring indicators

Cooling System

Efficient low noise self adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN&OUT

159W Power consumption

Housing

High tension molded fire proof ABS PC

2 Hanging brackets

Exterior finish: Black

Installation

1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

CE

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 2.34kg

G.W.: 3.19kg(1PCS)/15.21kg(4PCS)

Dimensions

Product Dimensions: 101(D)*258(W)*264.5(H)mm

Packing Dimensions: 300(D)*315(W)*185(H)mm(1PCS)

330(D)*620(W)*380(H)mm(4PCS)

_MG_179-23-4--

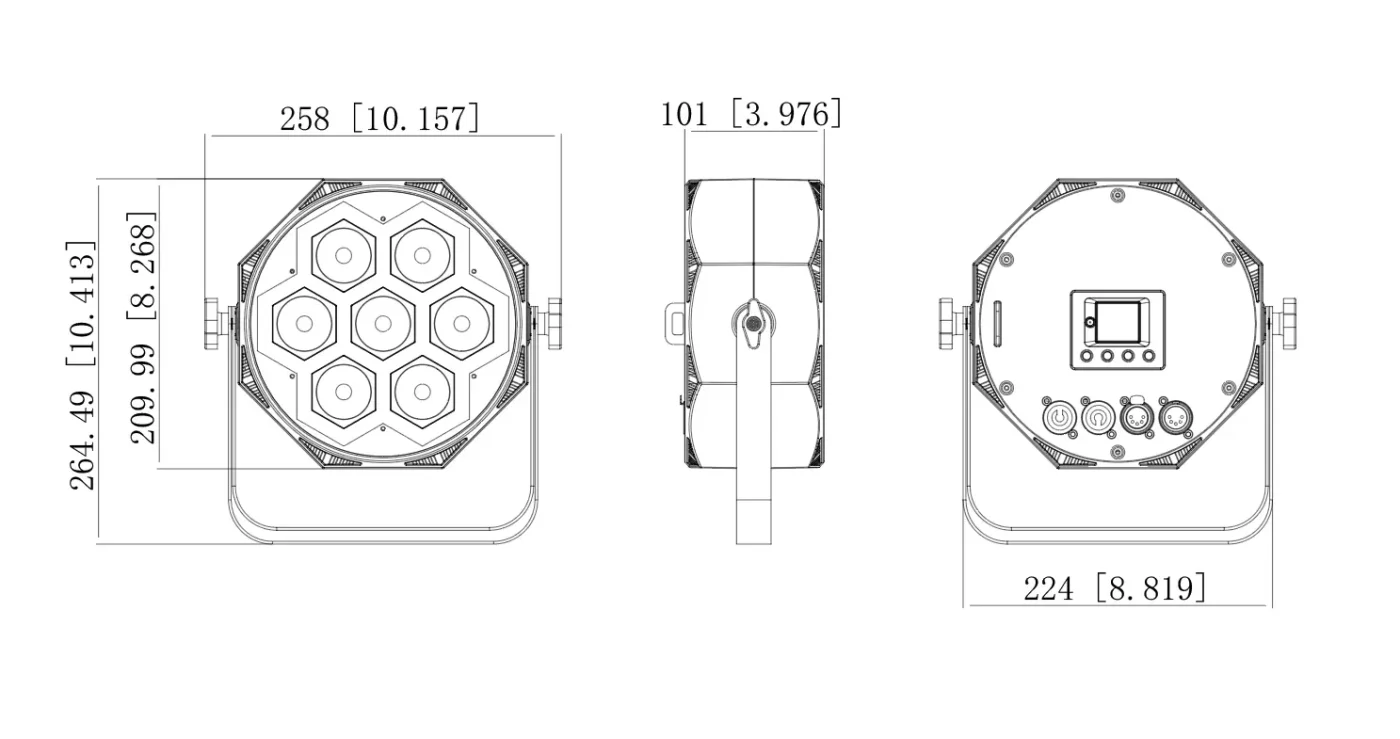

Dimensions

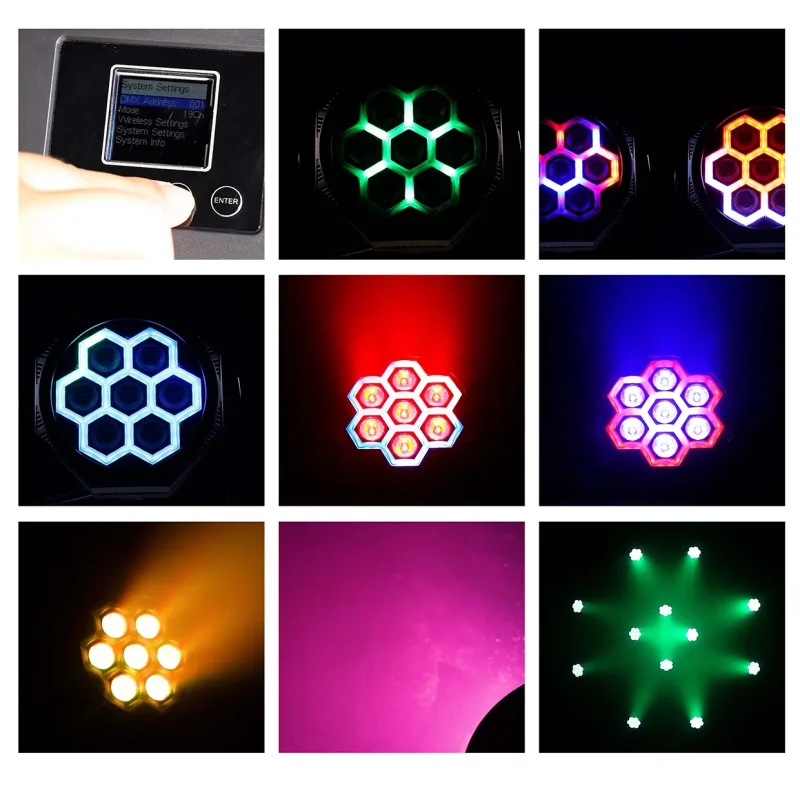

Effect

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 6-IN-1 or 8-IN-1 versions

Clamps

OPTIONAL
code:
QTY: 1PCS

IR Remote Controller

OPTIONAL
code:
QTY: 1PCS
