FAST 1000C

FAST 1000C

White Laser, 1° Angle, CMY, Ø180mm Front Lens, Continuous PAN/TILT

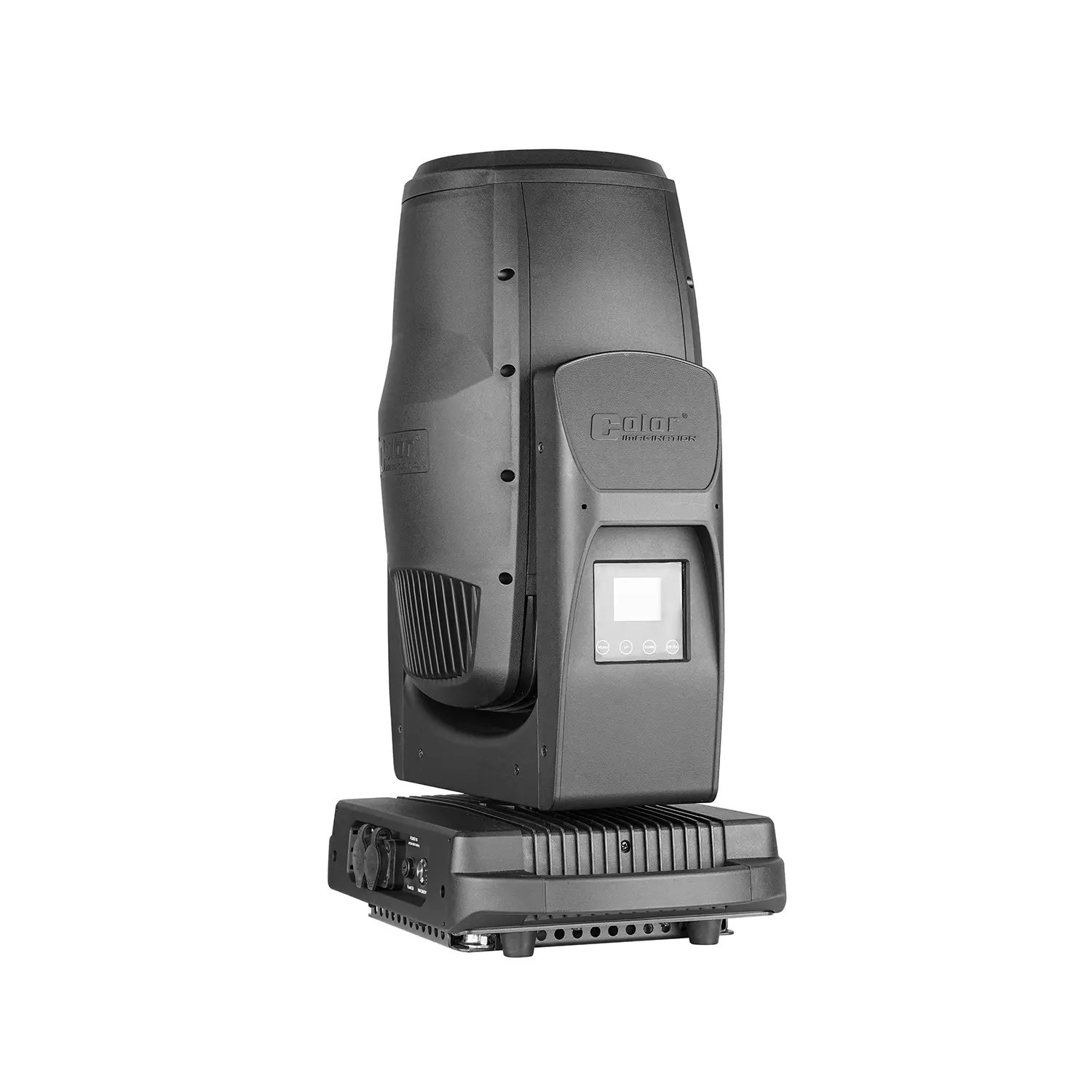

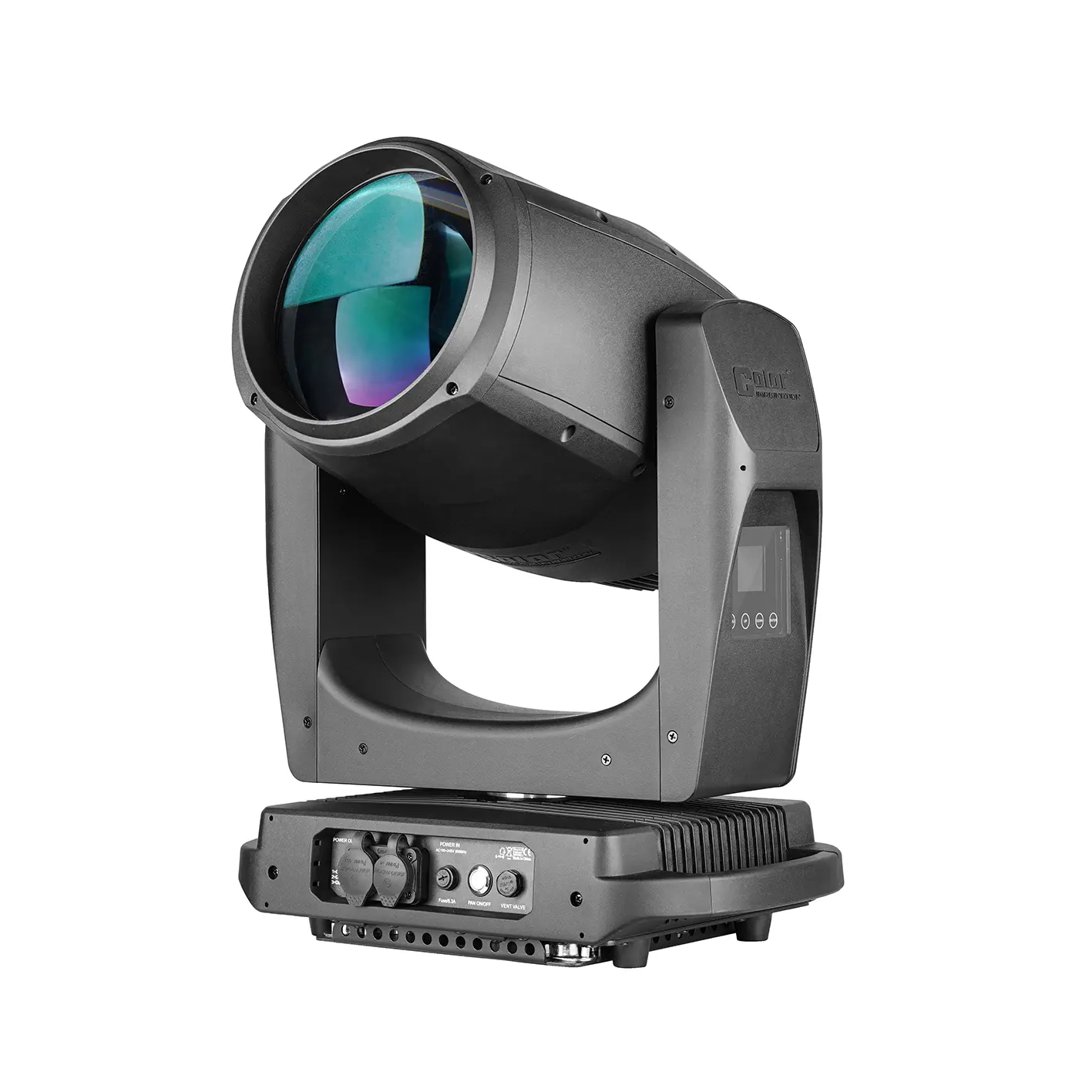

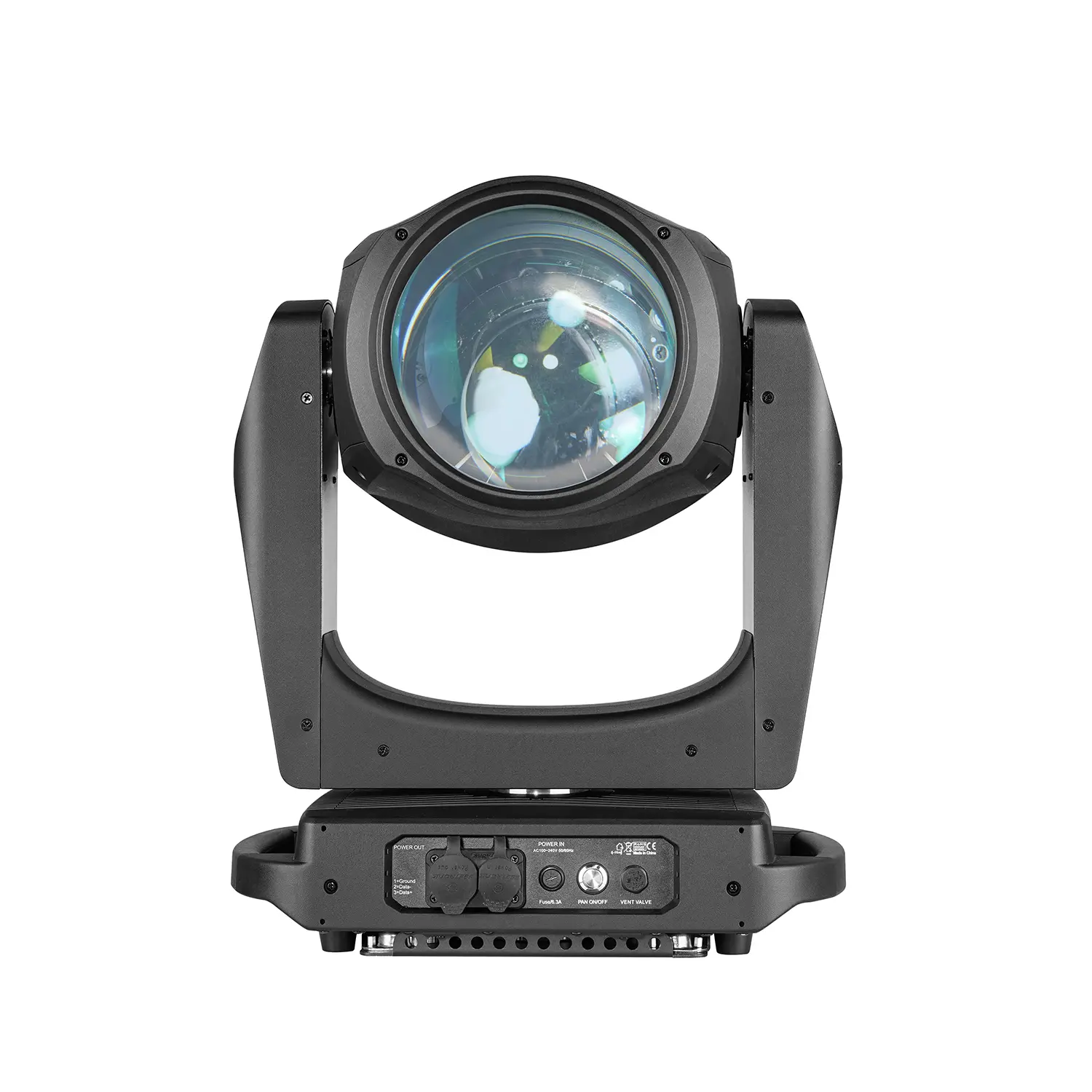

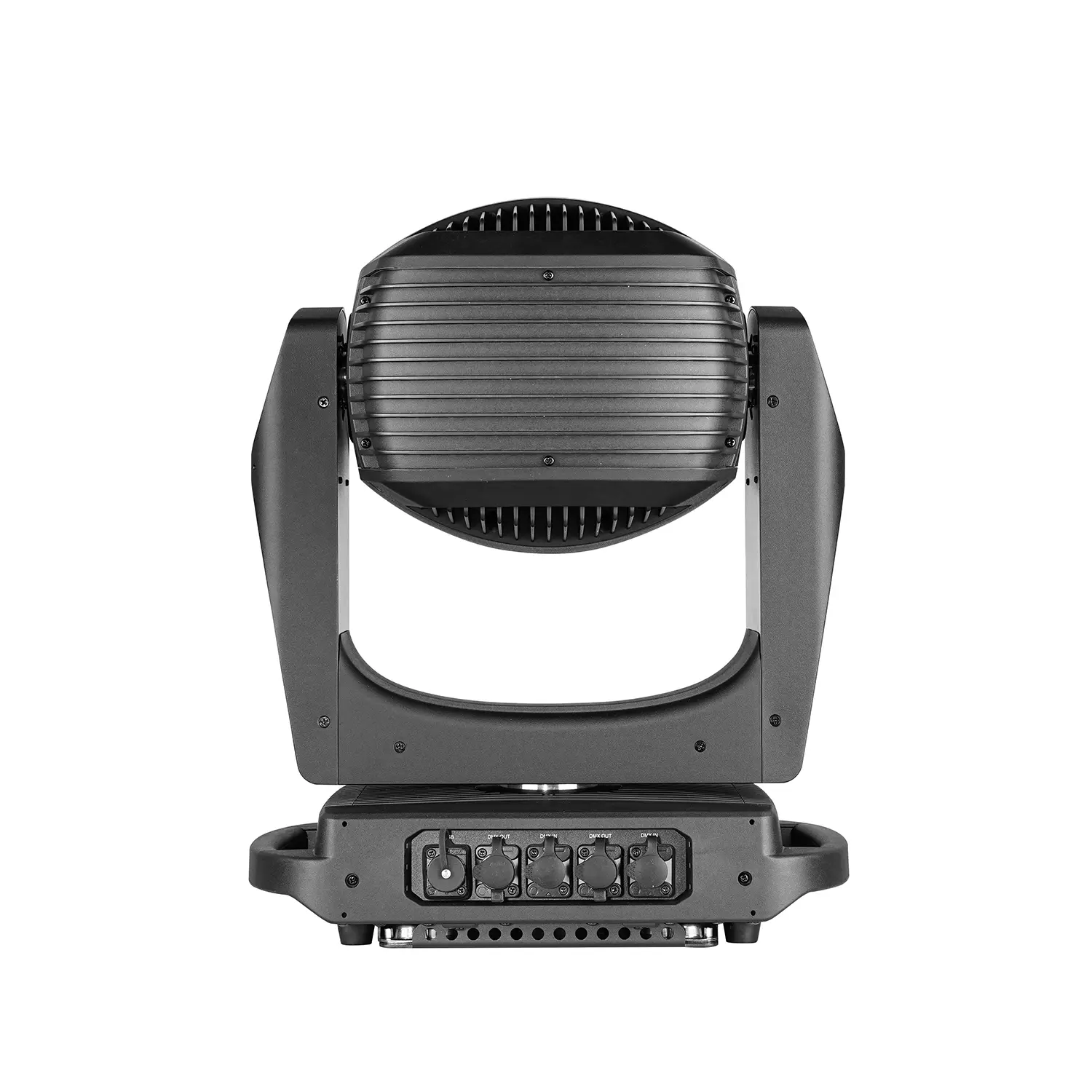

The FAST 1000C in new IP66 concept is an ultra compact and light weight stylish moving head beam light with a white LASER source in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system (180CM front lens).



The fixture features 1°beam angle which helps to provide ultra long throw solid beam effect that it is close to parallel beam. The F1000C is designed with a range of effects: CMY system, 19 static gobos, 13 dichroic colors, 6-Color Wheel, 2 prisms, frost, focus, etc. It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).



The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the The F1000C achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.



It’s fast and quiet operation LASER source moving head beam. The F1000C’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.

Technical specifications

Light Source
Source:
1*YLX 100W White Laser
Color Temperature: 8500K
CRI: ≥70
Flicker free operation for broadcast TV and FILM
Life Span: 12000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics
A set of high resolution and precise optics
Ø180mm Front lens
1°Beam angle
Smooth and precise linear focus

Movement
PAN: 2 modes
1. 360°Continuous movement
2. 540°(8/16 bit)
TILT: 2 modes
1. 360°Continuous movement
2. 270°(8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement
PAN/TILT reversible

Color System
CMY color mixing system
1 Color wheel with 13 dichroic colors plus open
Variable direction rainbow effect with speed adjustable
6-Color wheel with variable direction and speed control

Gobo System
1 Static gobo wheel with 19 gobos plus open

Prism System
2 Prisms design
Prism 1: 6-Facet linear prism with variable speed and direction
Prism 2: 8-facet circular prism with variable speed and direction
Prism 1 indexing
Prism overlay (prism morphing)

Strobe Effect
0-25Hz shutter/strobe effect with variable speed
Preset variable/random strobe and dimming pulse effect

Wash System
Even and soft coverage

Dimming System
0-100% Smooth linear dimming

Control System
22 DMX channels USITT DMX-512
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
Wireless receiver system built-in (Optional)
Shielded input signal protection for stable signal without interference
Waterproof RJ45 etherCON IN/OUT (Optional with Art-Net)
Waterproof SEETRONIC’s 3-Pin and 5-pin XLR DMX connectors IN/OUT
Software Update
Software up-datable through USB connector or DMX connectors
Muilt units up-datable in daisy chain

Display System
1.8″ TFT LCD display (in the arm)
4 Touch control buttons
180°Reversible for LCD display
Display auto OFF
DMX signal monitoring indicator

Cooling System
Advanced low noise self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
Waterproof SEETRONIC’s TRUE1 powerCON connectors IN&OUT
131W Power consumption

Housing
High tension molded fire proof housing with carbon fiber
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black

Installation
2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP66 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 24.4kg
G.W.: 28.1kg

Dimensions
Product Dimensions: 268.4(D)*407.5(W)*581.5(H)mm
Packing Dimensions: 495(D)*675W)*350(H)mm
_MG_179-23-4--

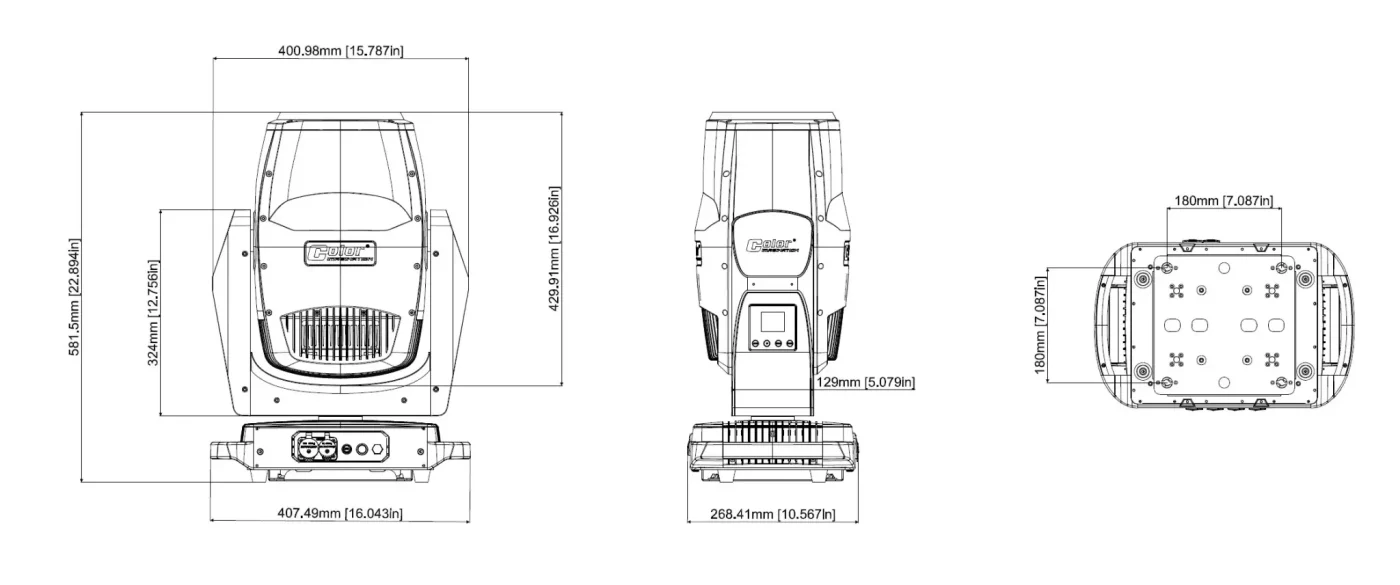

Dimensions

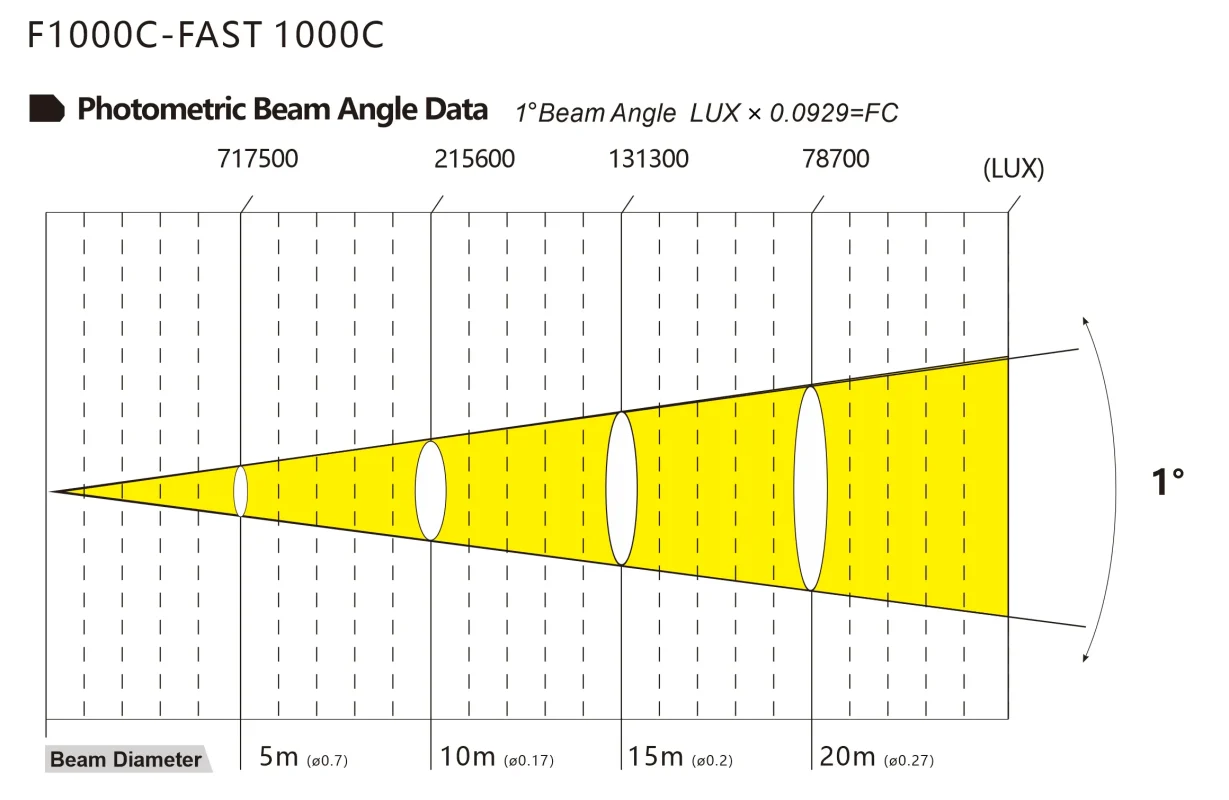

Photometric

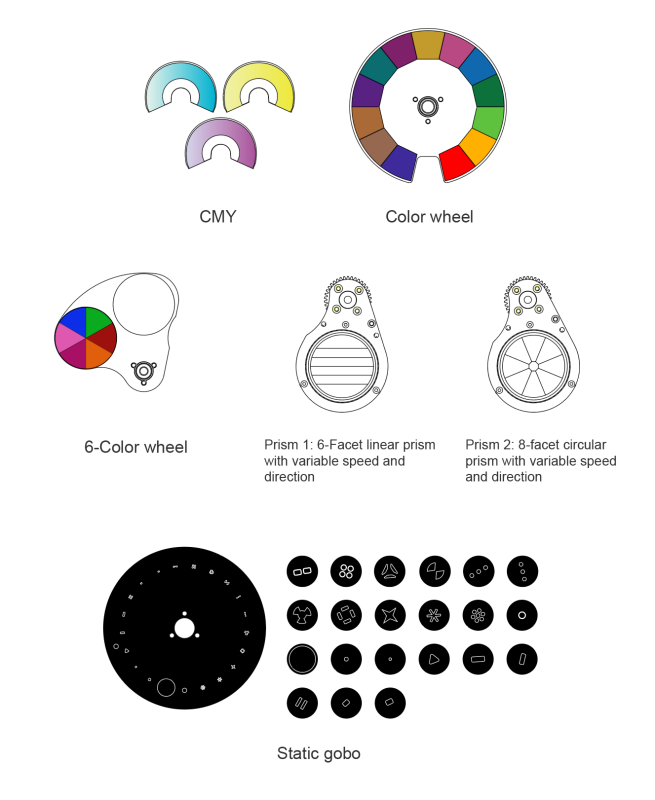

Effect

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
