SKYTOUCH 100

SKYTOUCH 100

White Laser, 1.1° Angle, Ø160mm Front Lens, Front Neon Ring, 2 Prism Wheels, Continuous PAN/TILT



The SKYTOUCH 100 is an ultra compact and light weight stylish moving head beam light with a 100W white LASER source in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system.



The fixture features 1.1°beam angle which helps to provide ultra long throw solid beam effect that it is close to parallel beam. The SKYTOUCH 100 is designed with a range of effects: 13 static gobos, 13 dichroic colors, 6-Color Wheel, 2 prism wheels, frost, focus, etc. It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).



The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the SKYTOUCH 100 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.



It’s fast and quiet operation LASER source moving head beam. It’s a perfect option for indoor application like live concerts, conference hall, club&bar, etc.

DownLoad

Technical specifications

  • Light Source
    Source:
    1*100W White Laser
    30*0.2W 3-IN-1 RGB LEDs
    Color Temperature: 8500K
    CRI: ≥70
    Flicker free operation for broadcast TV and FILM
    Life Span: 12000H
    The life span may vary depending on several following factors but not limited to:
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),
    Control, and Dimming)



    Optics

    A set of high resolution and precise optics
    Ø160mm Front lens

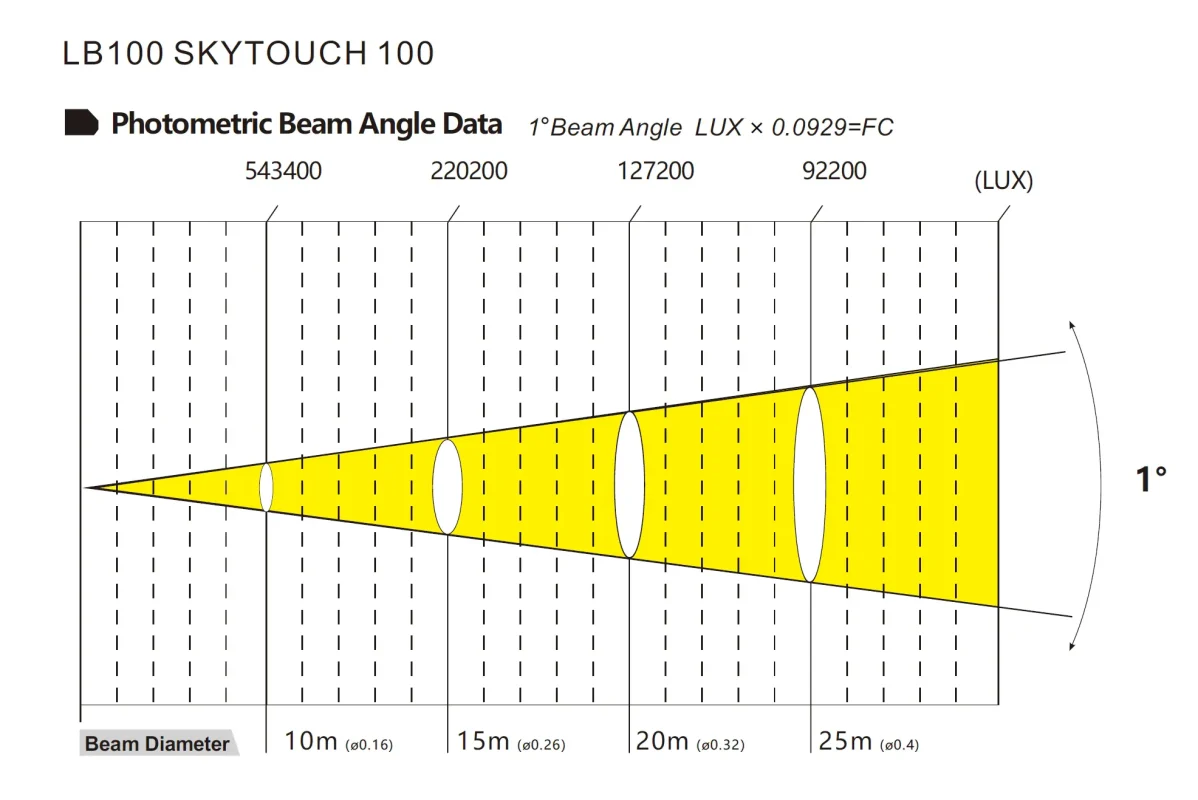

    1.1°Beam angle
    Smooth and precise linear focus



    Movement

    PAN: 2 modes
    1. 360°Continuous movement
    2. 540°(8/16 bit)
    TILT: 2 modes
    1. 360°Continuous movement
    2. 270°(8/16 bit)
    Fast, quiet, smooth and precise 3-Phase motors
    Smooth, fast and precise resolution for PAN/TILT movement with low noise operation
    Scan position memory, auto reposition after unexpected movement
    PAN/TILT reversible



    Color System

    1 Color wheel with 13 dichroic colors plus open
    Variable direction rainbow effect with speed adjustable
    6-Color wheel with variable direction and speed control



    Neon Effect

    1 Neon ring effect with different built-in macro effects
    (variable speed control)



    Gobo System

    1 Static gobo wheel with 13 gobos plus open



    Prism System

    2 Prism wheel design
    Prism 1: 3 different prisms, 5-Facet linear prism/8-Facet circular prism/4+8+16-facet circular prism with variable speed and direction
    Prism 2: 3 different prisms, 6-Facet linear prism/16-facet circular prism/8+16-facet circular prism with variable speed and direction
    Prism indexing
    Prism overlay (prism morphing)



    Strobe Effect

    0-25Hz shutter/strobe effect with variable speed
    Preset variable/random strobe and dimming pulse effect



    Wash System

    Even and soft coverage



  • Dimming System
    0-100% Smooth linear dimming

    Control System

    23/25 DMX channels USITT DMX-512
    DMX512, master-slave, or auto operation
    DMX recorder and edit function integrated
    RDM available (Remote Device Management)
    Art-NET (Optional)
    Wireless receiver system built-in (Optional)
    Shielded input signal protection for stable signal without interference
    RJ45 etherCON IN/OUT (Optional with Art-Net)
    3-Pin and 5-pin XLR DMX connectors IN/OUT



    Software Update

    Software up-datable through DMX connectors
    Muilt units up-datable in daisy chain



    Display System

    1.44″ TFT LCD display
    5 Control buttons
    180°Reversible for LCD display
    Display auto OFF
    DMX signal monitoring indicator



    Cooling System

    Advanced noise-free cooling system integrated aluminum
    Constant temperature readout and management function
    Over temperature protection management



    Power Supply

    Electronic supply with active PFC
    AC100-240V 50/60Hz
    PowerCON IN/ OUT with fuse
    150W Power consumption



    Housing

    High tension molded fire proof housing with PA6+fibre
    Skeleton made of aluminum and steel metal plates
    Two side handles on base
    Exterior finish: Black



    Installation

    2*1/4 turn fastening Omega Clamps
    (Adaptable vertically and horizontally)
    1*Safety attachment point



    Operating Condition

    Operating positions:
    all (device on floor or fixed to a support)
    -25° to 45° ambient temperature
    IP20 protection rating



    Compliance

    CE
    2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
    2014/30/EU – Electromagnetic Compatibility (EMC)
    2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)



    Weight

    N.W.: 13.6kg
    G.W.: 15.6kg



    Dimensions

    Product Dimensions: 261.8(D)*297.9(W)*513.7(H)mm
    Packing Dimensions: 655(D)*380(W)*355(H)mm

Dimensions

ML200

Effect

Accessories

20210127140312_9902883

Power Cable

STANDARD
code:
QTY: 1PCS

20210127140314_1778837

Signal Cable

STANDARD
code:
QTY: 1PCS

omega_1

Omega

STANDARD
code:
QTY: 2PCS

20210127140313_3653090

Safety Cable

STANDARD
code:
QTY: 1PCS

20210127140313_8340644

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

20210127140312_4590204

Clamps

OPTIONAL
code:
QTY: 2PCS
