Laser Technology in Outdoor Concert Stage Lights: Performance and Precision

The air in an outdoor arena is never truly clean. Dust, moisture, and smoke conspire to swallow light, turning standard beams into muddy, faded washes before they even reach the crowd. For lighting designers, fighting this atmospheric scattering is a constant, exhausting battle.

Traditional arc lamps try to punch through the haze by brute force, sucking massive amounts of power while generating scorching heat. It is an inefficient approach that feels increasingly outdated. Audiences expect sharper visuals, and venues demand lower footprints.

That is where specialized laser illumination changes the game entirely. By shifting from traditional discharge bulbs to solid-state laser engines, modern concert stage lights achieve a level of structural coherence that was previously impossible. The light does not just spread; it pierces.

The Role of White Laser Sources in Long-Throw Lighting

Imagine trying to throw a handful of sand across a river versus firing a single, well-aimed stone. Traditional light sources act like that sand, scattering wide and losing intensity over massive distances.

A white laser engine operates on an entirely different physical principle. For us, deploying a premium 120W white laser source is about creating a dense, highly concentrated core of energy that remains tightly bound over hundreds of meters.

[120W Laser Source] ---> [Ø180mm Front Lens] ---> 1° Ultra-Narrow Sharp Beam

This source does not produce a raw, destructive colored laser line. Instead, it pumps safe energy through a specialized phosphor element to emit a crisp, ultra-bright 9000K white beam. It mimics the stark, dramatic quality of natural starlight.

In broadcasting and filming, standard lighting often creates a subtle, maddening flicker on high-definition cameras. This laser system eliminates that entirely, ensuring a completely stable, flicker-free presentation for high-speed television capture.

The Lifespan Reality: While standard discharge lamps degrade rapidly after a few hundred hours, this solid-state engine boasts a 12,000-hour operational life, though actual longevity naturally fluctuates based on dimming patterns and local voltage stability.

Achieving Narrow-Beam Accuracy with Advanced Optics

A powerful light source is completely useless if your optical glass cannot tame it. Without precise geometry, a laser beam bleeds at the edges, losing its dramatic impact and scattering into a soft, blurry glow.

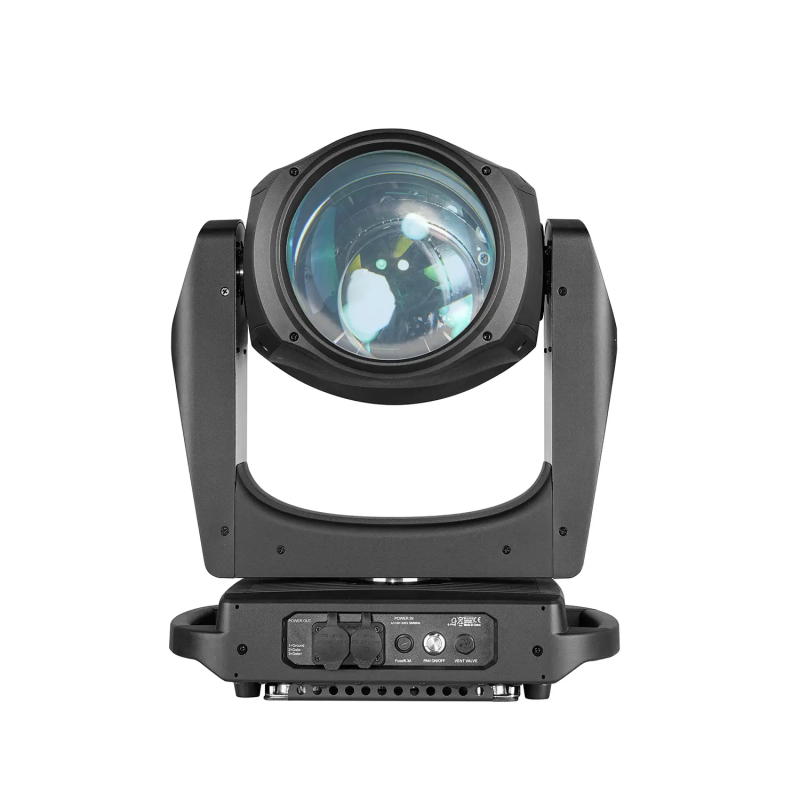

To prevent this distortion, the fixture relies on a massive ∅180mm front aperture paired with a series of high-resolution, custom-ground lenses. This glass forces the intense white light into a razor-thin 1° beam angle.

Optical Component	Technical Metric	Functional Purpose
Front Aperture	∅180mm Lens	Maximizes light collection and beam density
Beam Angle	1°Solid Cone	Creates a true “light sword” effect across the sky
Focusing System	Linear Focus	Maintains edge-to-edge sharpness during distance changes

When you project this beam across a massive outdoor festival site, it holds its shape perfectly. The edge definition remains sharp, refusing to dissolve into the ambient darkness.

It gives designers the ability to draw geometric patterns directly into the night sky. The contrast between the brilliant beam and the dark air becomes a fundamental design element.

Dynamic Beam Effects and Precision Movement in Live Environments

Live tracking requires immense agility. If a performer moves suddenly across a massive stage, a sluggish, heavy fixture will lag behind, ruining the theatrical timing and breaking the audience’s immersion.

By utilizing high-torque, 3-phase stepper motors, the fixture achieves ultra-smooth, low-noise positioning across a dual-mode 540° pan and 270° tilt. It can also switch into a continuous 360° rotation for chaotic, high-energy aerial effects.

[3-Phase Motors] ---> Smooth, Low-Noise Acceleration ---> Instant Auto-Repositioning

If a structural truss sways in high winds or suffers an accidental physical bump, the internal scan position memory immediately takes over. The fixture automatically detects the misalignment and snaps back to its programmed position without manual intervention.

Inside the color and texture systems, creative flexibility is immense:

• Dual Layered Prisms: A 6-facet linear prism and an 8-facet circular prism can index, rotate, and overlay simultaneously to shatter a single beam into a dense forest of light.
• Gobo Morphing: Overlapping a rotating glass gobo wheel with a 19-position static wheel allows textures to fluidly melt into one another.
• Six-Color Wheel: An independent multi-color glass system adds vibrant, multi-tonal rainbow effects across the air.

This allows a single fixture to transform instantly. It can shift from a pencil-thin architectural pointer to a massive, spinning geometric texture in the blink of an eye.

Weatherproof Engineering for Demanding Outdoor Venues

Outdoor festivals are notorious for punishing hardware. A sudden summer downpour, a coastal gale filled with salt spray, or a desert dust storm can easily destroy delicate internal electronics in a single evening.

Protecting these components requires a rugged, dual-layer approach. The fixture features a high-tension, fire-proof composite exterior reinforced by a rigid internal skeleton of aluminum and steel plates.

[Carbon-Fiber Fireproof Shell] + [Aluminum Skeleton] ---> IP66 Weatherproof Seal

With a certified IP66 protection rating, the housing completely repels heavy rain and blowing dust. It eliminates the need for bulky, expensive plastic rain covers that distort optical clarity and complicate rigging.

Managing heat in a sealed enclosure is incredibly tricky. An advanced, self-adjusting fan system continually monitors an internal aluminum heat sink, maintaining a safe balance between cooling performance and whisper-quiet operation.

For modern data distribution, the base incorporates waterproof SEETRONIC power and signal connectors. This ensures rock-solid DMX512 and RDM control stability, even when the stage is completely drenched.

Choosing the right tool for large-scale venues ultimately comes down to reliability and precision. By integrating long-range laser technology into an IP66 chassis, these specialized concert stage lights provide the unyielding power needed to dominate the night sky.
