Next-Generation Optical Precision: An In-Depth Look at the GRAND 330C LED BSW Moving Head

Modern stage design demands absolute control over photons. Lighting designers no longer just illuminate a space; they sculpt the atmosphere itself. The introduction of advanced professional stage lights has shifted the boundaries of what is possible in a live venue. As a manufacturer dedicated to engineering premium professional stage lighting fixtures, we observe how compact design intersects with raw optical power. The GRAND 330C represents a deliberate engineering step, combining beam, spot, and wash capabilities into a single, highly efficient housing. It is built for environments where physical space is limited, but performance expectations remain uncompromising.

High-Efficiency OSRAM LED and Precise Optics

At the heart of the fixture lies a custom-engineered optical train. The light engine utilizes a single OSRAM 270W white LED module, which operates at a crisp color temperature of 8000K. It outputs 14,800 lumens at the source. This raw power passes through a set of high-resolution lenses, creating an incredibly flat, even field.

When zoomed down to a tight 3° beam, the light pierces the air with sharp intensity. Opening up the motorized linear zoom to a wide 32° spot floods the stage with uniform coverage. There are no hot spots, nor are there any distracting yellow rings at the beam edges. In a real-world concert environment, this versatility means a single rig can handle sharp aerial effects and clean scenic projections without switching fixtures.

Projection Mode	Zoom Angle Range	Primary Application Field
Beam Mode	3° – 18°	Sharp aerial mid-air matrices, high-energy punctuation
Spot Mode	4° – 32°	Crisp pattern projection, clean scenic illumination
Wash Mode	Variable Soft Edge	Soft architectural blending, even stage fills

Advanced Color Mixing and Dynamic Effects

Color dictates the emotional undercurrent of any performance. The GRAND 330C features a full CMY color mixing system, accompanied by a linear CTO color correction filter. This mechanical configuration allows smooth, predictable transitions from highly saturated concert hues to the subtle, warm ambers required in theatrical spaces. Designers can match the color temperature of traditional tungsten fixtures seamlessly.

Unlike basic color wheels that jump abruptly between hues, this system operates with fluid mechanical precision, mimicking the organic shift of natural light.

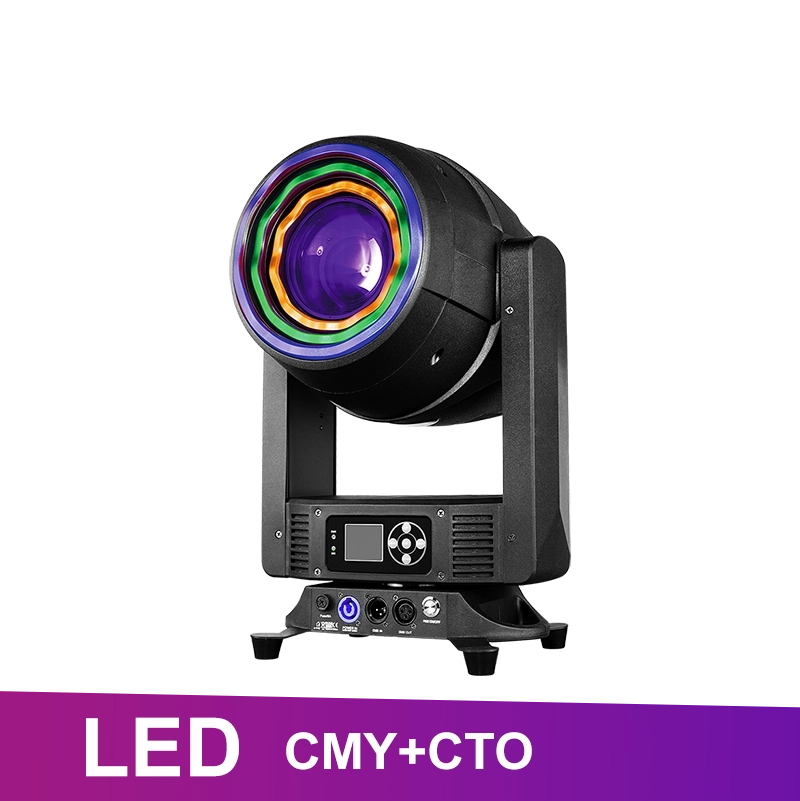

Adding another layer of visual depth, the front lens head integrates a unique 3-ring strip light. Powered by 108 individual 0.2W SMD RGB LEDs, this design element offers vivid dynamic lighting effects independent of the main beam. During a television broadcast, when the camera catches the fixture directly, this multi-ring strip provides an eye-catching aesthetic, turning the light source itself into a piece of digital scenery.

Comprehensive Texture and Motion Control

Texture defines the space within a beam. The internal mechanics of the GRAND 330C hold an impressive array of manipulation tools. It houses a rotating gobo wheel with eight interchangeable glass gobos, alongside a static wheel featuring 13 fixed patterns. Through gobo morphing, two patterns can blend over each other, creating moving textures that simulate organic chaos.

The dual prism wheels open up 24 distinct combinations. By overlaying a 4-facet linear prism with a 16-facet circular prism, the projected image multiplies into a dense, shifting lattice of light. An independent animation wheel adds realistic liquid or flame effects, essential for narrative storytelling in high-end theater productions using professional stage lights.

• Continuous Pan/Tilt: The fast 3-phase motors enable 360° continuous rotation, removing physical limits during high-energy sequences.
• Precision Indexing: 8/16-bit resolution ensures that slow, sweeping cues remain perfectly smooth without stepping.
• Auto Repositioning: If bumped during a live performance, the scan position memory corrects the head automatically.

Optimized Structure and Broadcast-Ready Performance

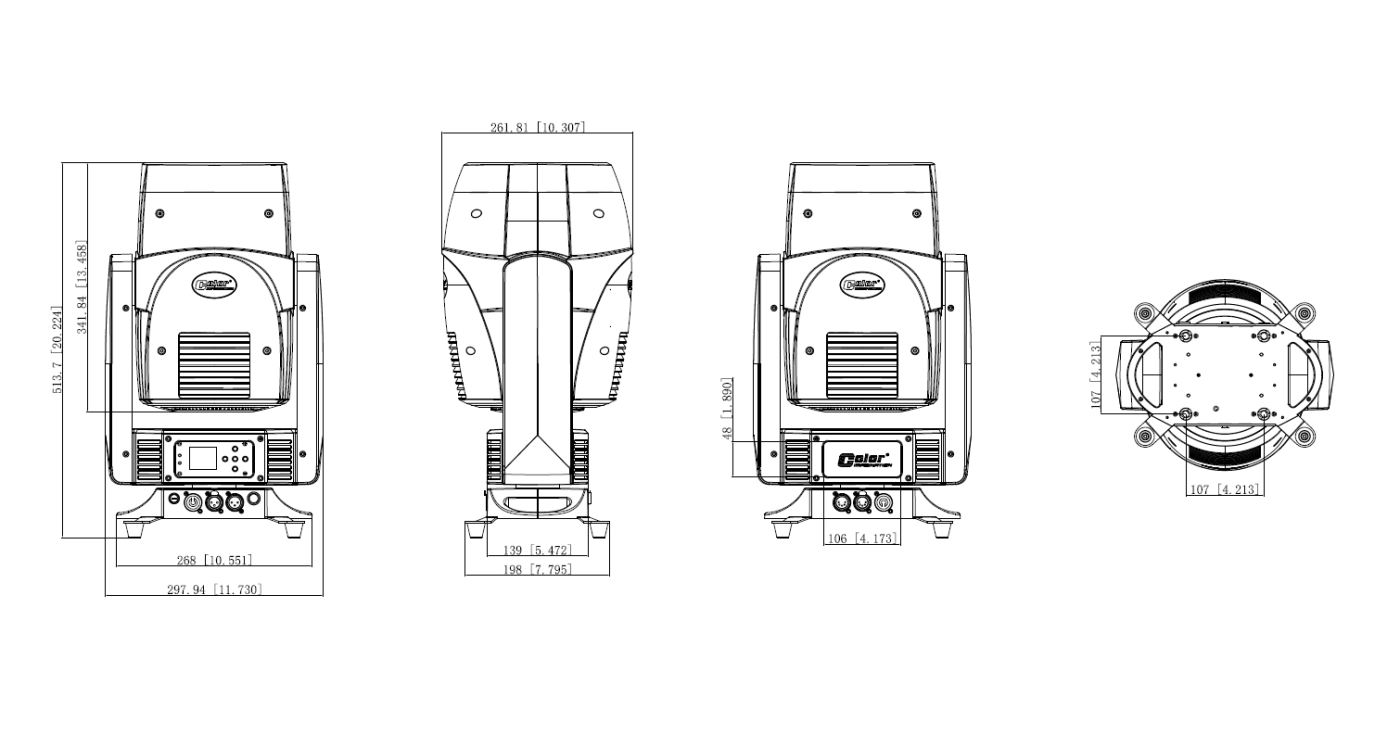

A professional fixture must perform flawlessly under the unforgiving scrutiny of high-definition cameras. The GRAND 330C is tuned with an optimized LED refresh rate, ensuring completely flicker-free operation for television broadcasts and cinematic film shoots. Its exterior shell, constructed from high-tension molded fire-proof PA6 and reinforced fiber, wraps tightly around a robust aluminum and steel skeleton. Weighing just 14.27 kg, it reduces the overall load on touring trusses while maintaining remarkable structural integrity.

Active cooling systems monitor internal temperatures constantly, adjusting the low-noise fans in real time to prevent thermal degradation of the LED module. For modern production crews, control versatility is mandatory. The unit supports standard DMX-512 with 29 channels, full RDM management, and optional Art-Net or wireless receivers. This level of engineering reflects the founding ethos of Color Imagination LED Lighting Limited, a company established by professional lighting engineers in 2010 to deliver reliable, energy-saving professional stage lights globally.
