C-PANEL 448

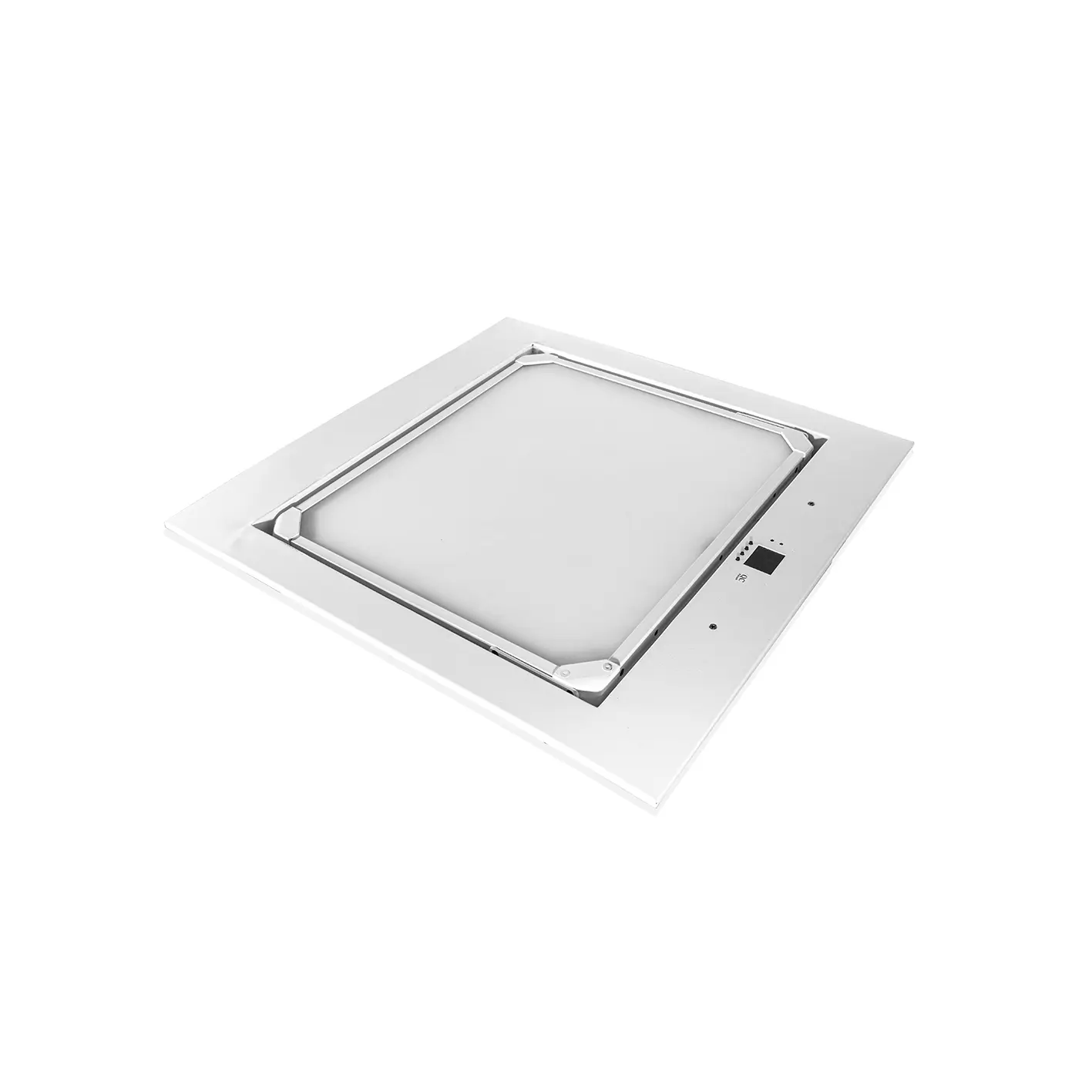

The flexible and modular concept NO-FAN designed C-PANEL 448 is an embedded soft studio panel light featuring 448*0.5W premium quality, high CRI and surface mount stable LEDs , cold white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 6500K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than traditional ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations, also for office, conference hall that needed ceiling mounting.

Technical specifications

Light Source

Source: 224*0.5W cold white+224*0.5W warm white LEDs

CRI: ≥95

Flicker free operation for broadcast TV and FILM

Frequency adjustable between 10KHz and 15KHz

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

High resolution and precise front soft diffusion panel

180°Projection angle

Motorized projection angle adjustable

Color System

3200K Warm white

6500K Cold white

Tungsten simulation effect

Smooth color temperature adjustment, 3200K-6500K

Strobe Effect

1-25Hz high speed LED shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

Control System

7 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-3-Pin XLR DMX connectors IN/OUT

Display System

1.8″ TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display Auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Noise free featured (NO-FAN Designed)

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

200W Power consumption

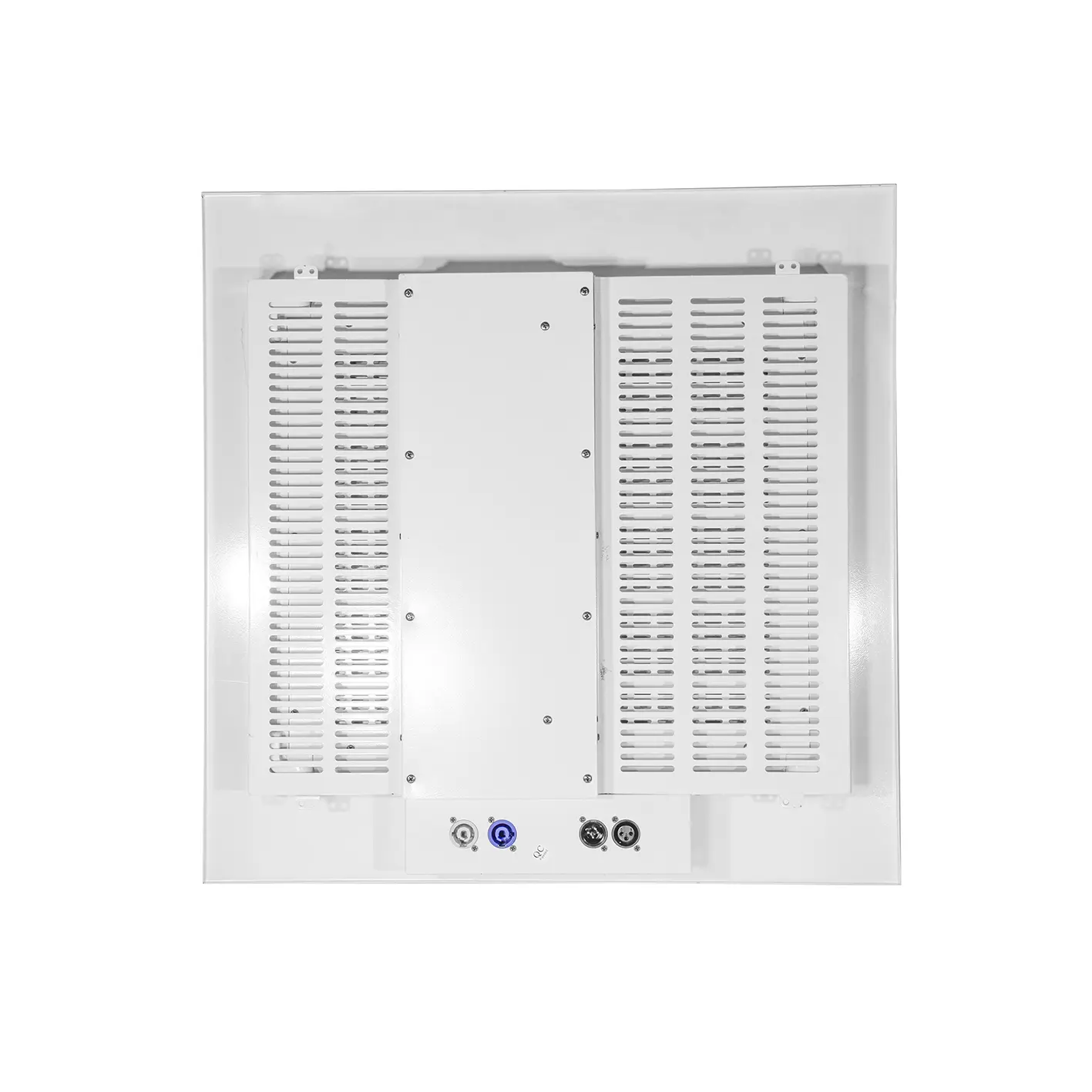

Housing

Skeleton made of steel metal plates

Exterior finish: white

Installation

Embedded into ceiling

Operating Condition

Operating positions: all

Tripod stand as optional

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 4.8kg

G.W.: 5.3kg

Dimensions

Product Dimensions: 540(D)*540(W)*70(H)mm

Packing Dimensions: 670(D)*670(W)*180(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
