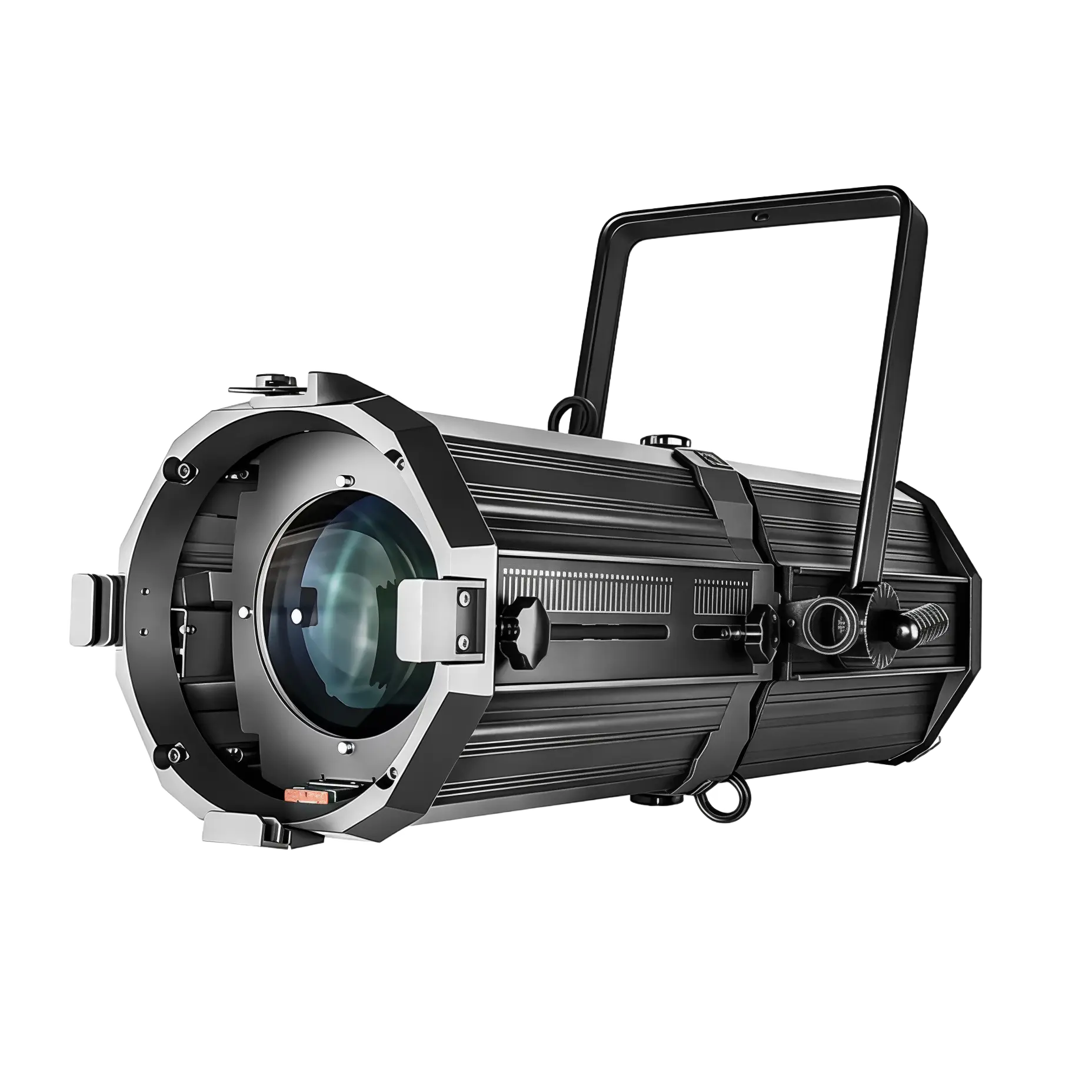

PROFILE 500MZ-S

This profile is a high definition and ultra low noise LED studio light integrated into a die-cast aluminum alloy housing. It features a 500W 5-IN-1 LED, RGBAL which delivers brightest output and the boldest rendering of the colors. The fixture is a professional SPOT lighting system with with manual zoom range from 15°-40°for on-site application need.

The PROFILE is equiped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame is included kit and gobo slot/manual IRIS system are optional kits.

The PROFILE is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.

DownLoad

Technical specifications

Light Source

Source: 1*500W 5-IN-1 LED (RGBAL)
CRI: ≥90
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following f
actors but not limited to:
Environmental Conditions, Power/Voltage,
Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

A set of high resolution and precise optics

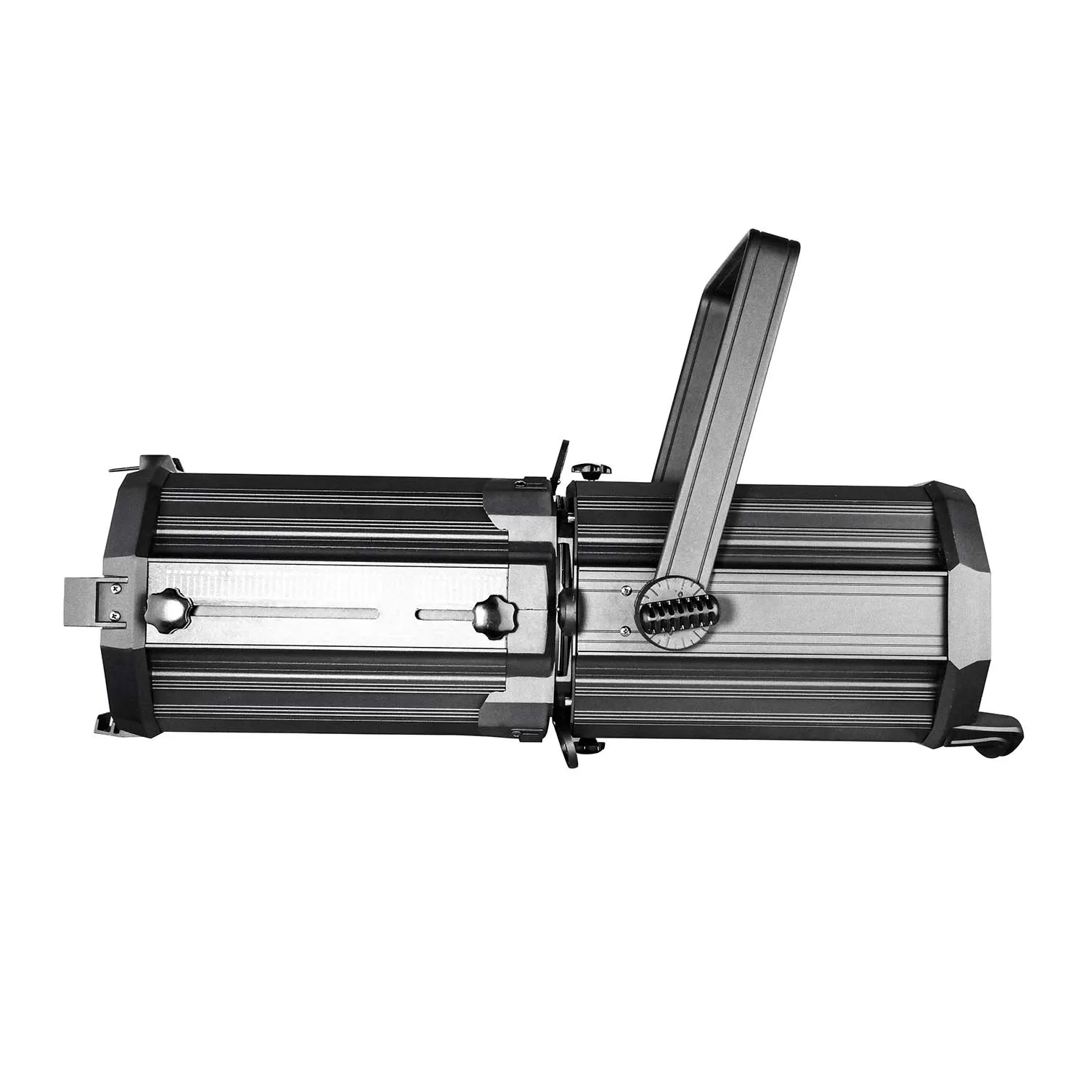

15°-40°Manual zoom range
Lens tube 45°rotatable
Manual focus

Framing System

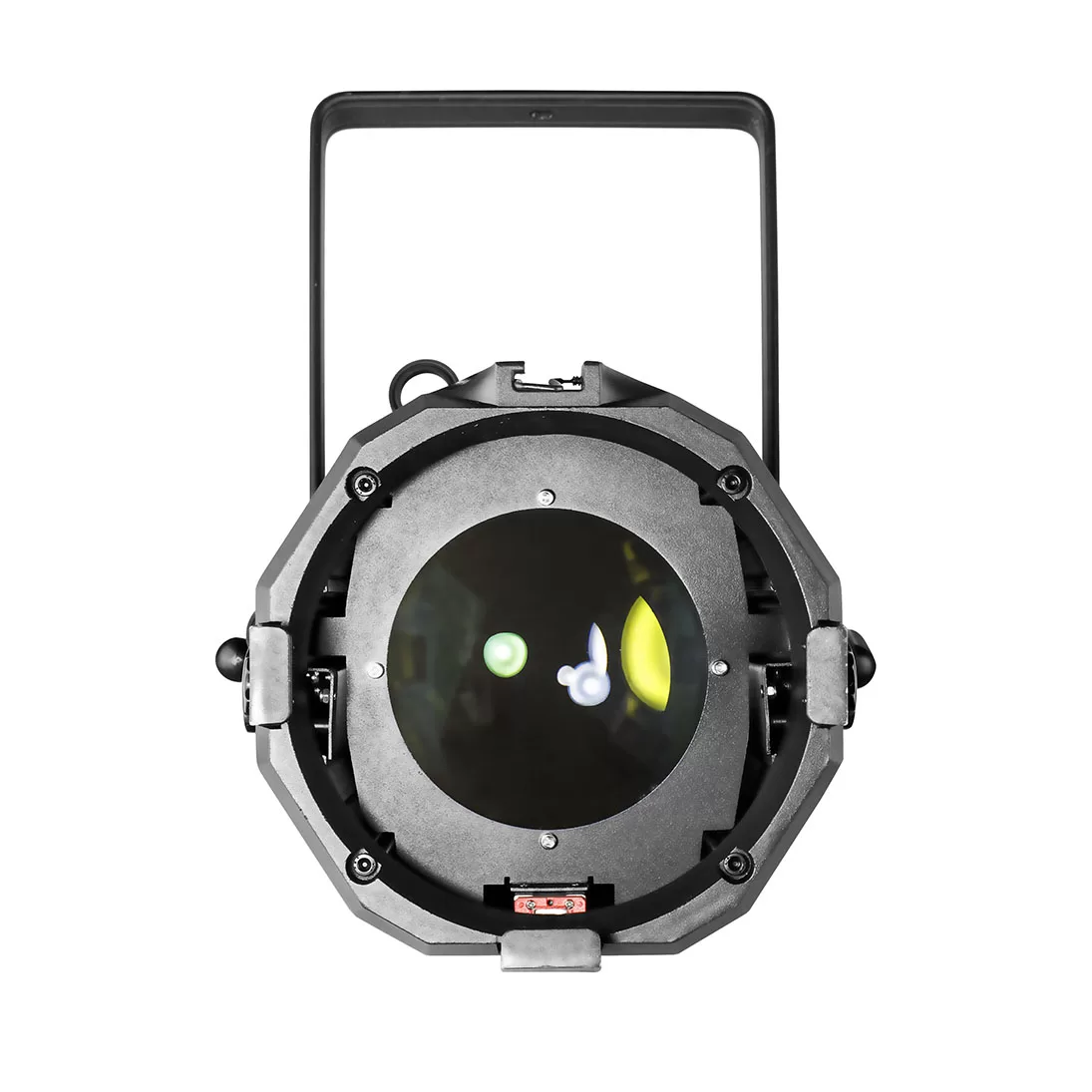

4 Metal spot cutting slots

Color System

RGBAL color mixing
Poure and even coverage
2800K-10000K Linear color temperature adjustment
Color frame included

Preset Programs

Different preset colors
Different built-in dynamic programs

Gobo System

Gobo holder as optional

IRIS System

Manual IRIS system as optional

Strobe Effect

0-25Hz LED shutter/strobe effect with
variable speed

Dimming System

0-100% Smooth linear LED dimming
4 Dimming curves

Control System

13 DMX channels
RDM available (Remote Device Management)
DMX512, master-slave, or auto operation
DMX recorder and edit function integrated
Shielded input signal protection for stable signal
without interference

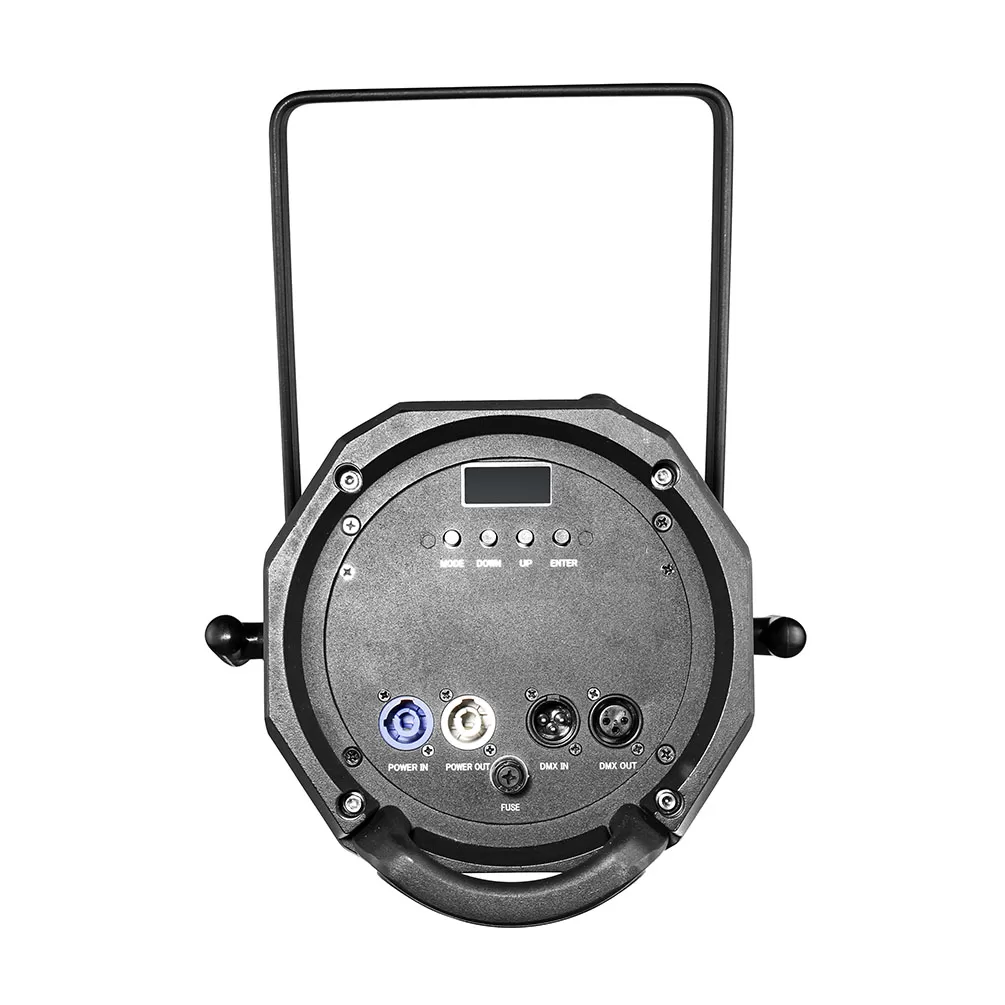

3-Pin XLR DMX connectors IN/OUT
Display System

1.8" TFT LCD display
4 Control buttons
180°Reversible for LCD display
Display Auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid
Efficient ultra lower fan cooling system
Constant temperature readout and management function
Over temperature protection management

Power Supply

Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON IN/ OUT with fuse
550W Power consumption

Housing

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

Installation

Single haning bracket
1*Safety attachment point

Operating Condition
Operating positions: all
-25?? to 45?? ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU - Safety of electrical equipment
supplied at low voltage (L VD)
2014/30/EU - Electromagnetic Compatibility
(EMC)
2011/65/EU - Restriction of the use of certain
hazardous substances (RoHS)

Weight
N.W.: 12.6kg
G.W.: 14.5kg

Dimensions
Product Dimensions:
243(D)*765(W)*303(H)mm
Packing Dimensions:
305(D)*825(W)*355(H)mm
