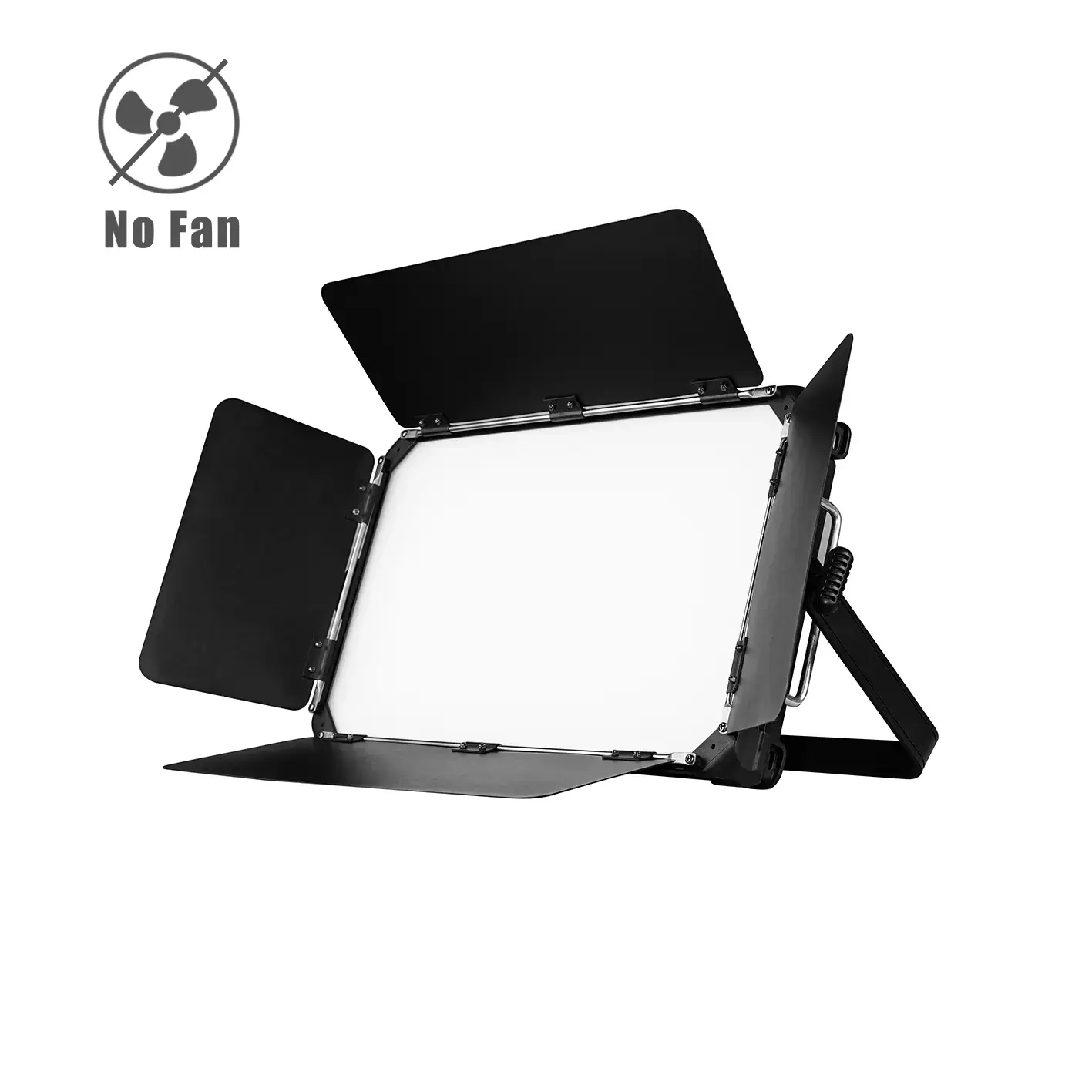

PANEL 1400

The flexible and modular concept PANEL 1400 is a new generation NO-FAN designed soft studio panel light for the industry featuring 1400*0.5W premium quality, high CRI and surface mount stable LEDs (CW+WW) with high efficiency optics, cool white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3000K to 6500K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than tradition ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

The PANEL is RDM and DMX protocol supported, offering 4 dimming curves and LED frequency adjustable from 10KHz and 15KHz.

The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.

Technical specifications

Light Source

Source: 700*0.5W cold white+700*0.5W warm white LEDs

CRI: ≥95

Flicker free operation for broadcast TV and FILM

Frequency adjustable between 10KHz and 15KHz

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

High resolution and precise front soft diffusion panel

180°Projection angle

Color System

CW+WW color mixing

3000K-6500K Color temperature adjustable

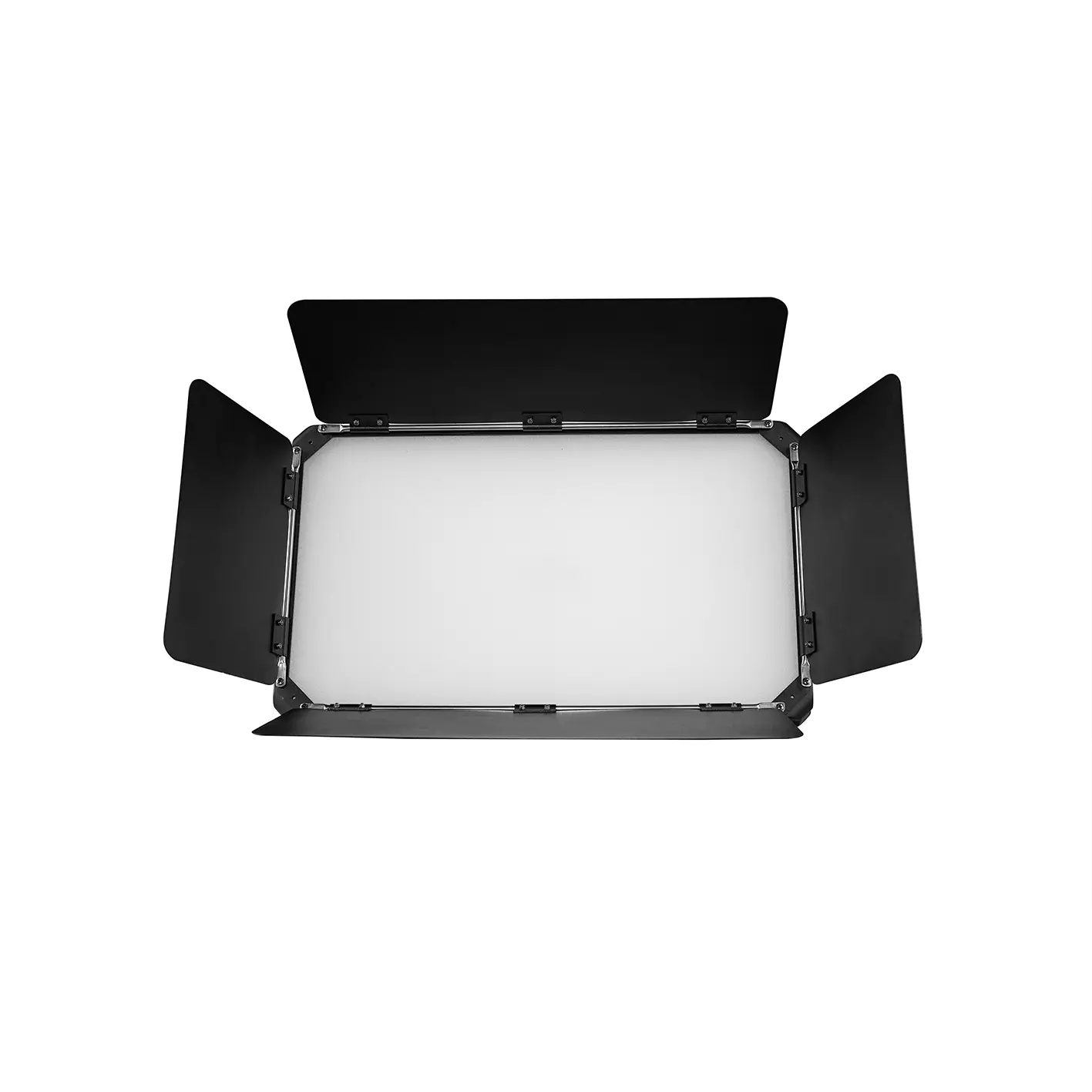

Barn Door System

4-Leaf rotating barn doors included

Dimming System

0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

2 Individual dimmer knobs

Control System

4 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

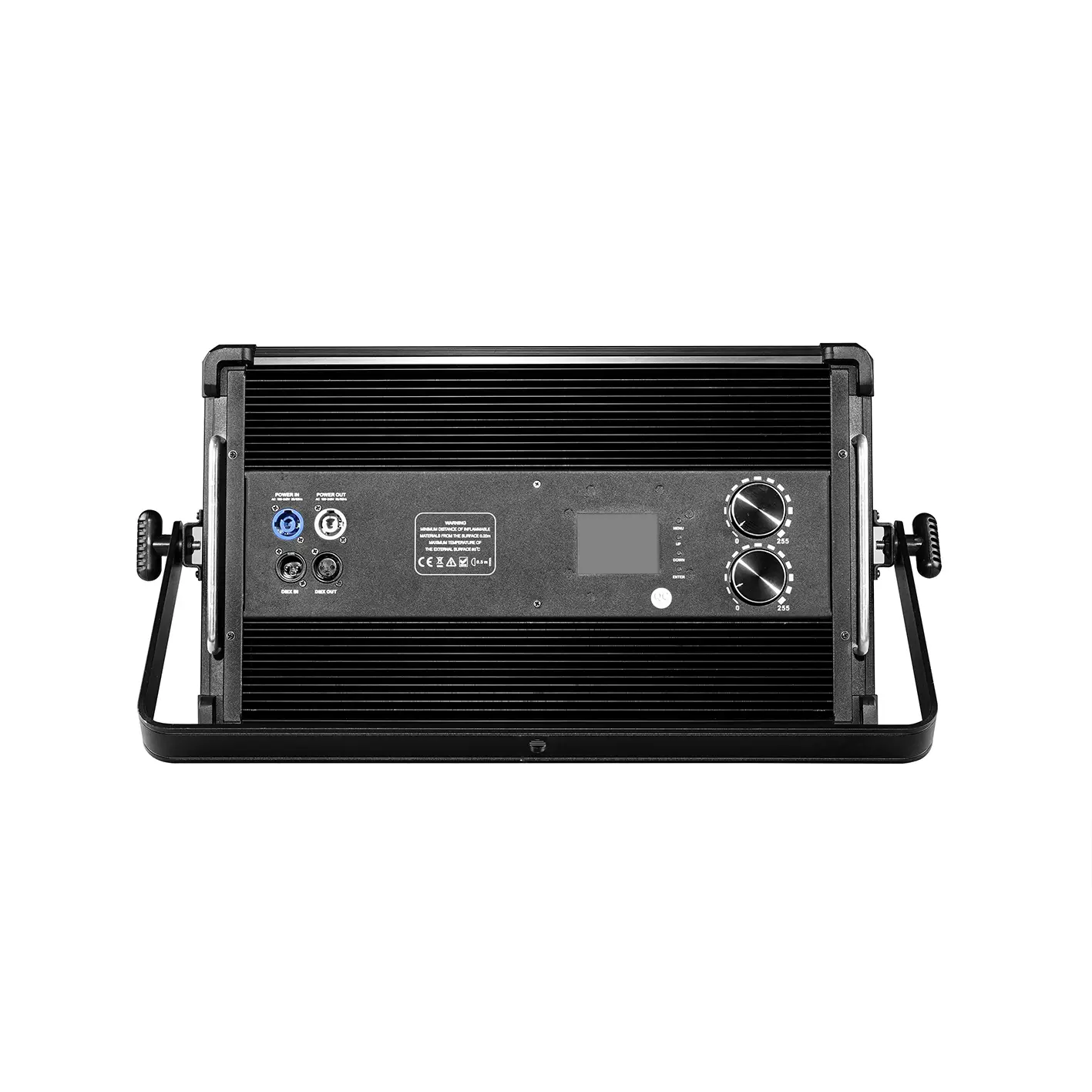

Display System

2.8″ Touch TFT LCD display

4 Control buttons

2 Control knobs

180°Reversible for LCD display

Display Auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Noise free featured (NO-FAN Designed)

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

300W Power consumption

Housing

Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Installation

Single hanging bracket

1*Safety attachment point

Operating Condition

Operating positions: all

Tripod stand as optional

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 10kg

G.W.: 11.8kg

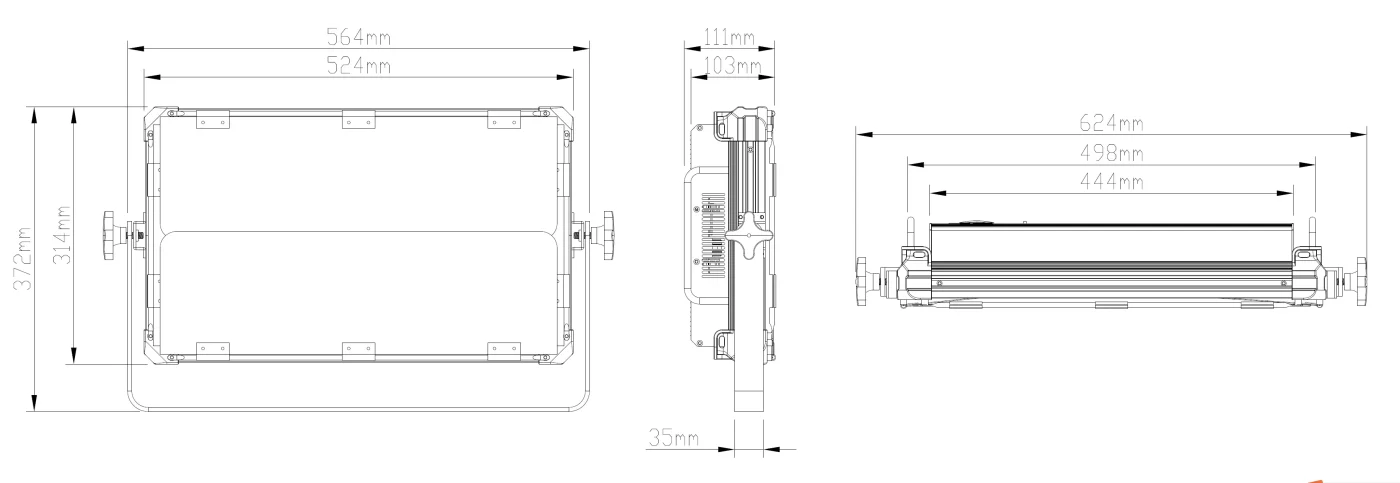

Dimensions

Product Dimensions: 111(D)*624(W)*314(H)mm

Packing Dimensions: 440(D)*670(W)*180(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
