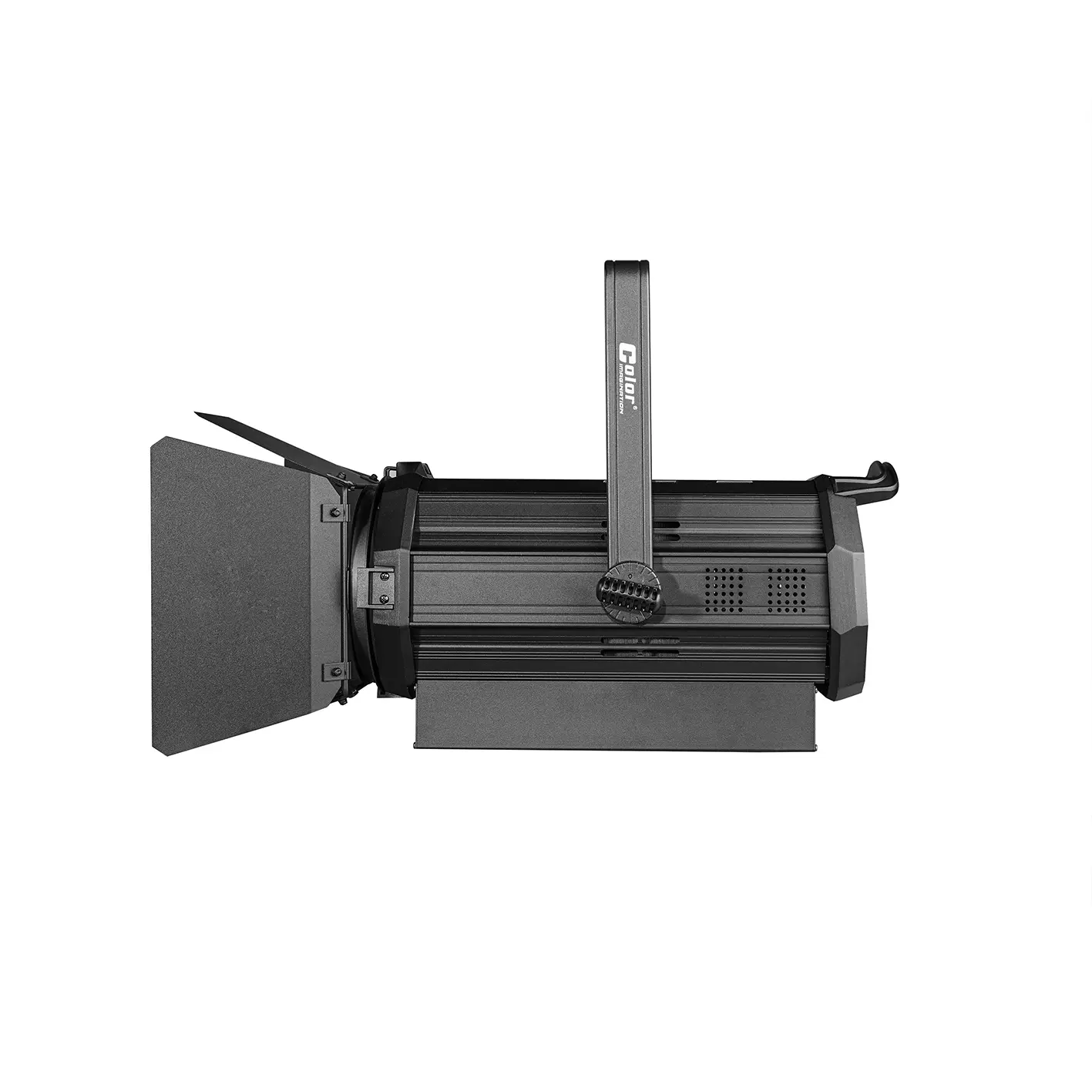

FRESNEL 300AW

The FRESNEL 300AW is a high definition and ultra quiet LED studio wash light integrated into a die-cast aluminum alloy housing. It features a CITIZEN 300W warm white LED (3200K), which delivers brightest output and the boldest rendering of the colors. The 12°-65° linear motorized zoom range and a beautifully soft/even wash with high CRI make the fixture an ideal LED replacement for aging incandescent fresnel.

The fixture is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4-leaf barn door system by which the users could adjust the projection coverage into smaller spot.

The FRESNEL is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.

Technical specifications

Light Source

Source: 1*CITIZEN 300W warm white LED (3200K)

CRI: ≥90

Flicker free operation for broadcast TV and FILM

2-25KHz Frequency adjustable

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

A set of high resolution and precise optics

Motorized zoom range: 12°-65°

Barn Door System

4-Leaf rotating barn doors included

Color System

Pure and even 3200K coverage

Color frame included

Strobe Effect

0-25Hz LED shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

4 Dimming curves

2 Dimming modes

Control System

5 DMX channels

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

Display System

2.8″ Touch TFT LCD display

180°Reversible for LCD display

Display Auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Ultra silent performance (No fan designed)

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

TRUE-1 PowerCON IN/ OUT with fuse

320W Power consumption

Housing

Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Installation

Single hanging bracket

1*Safety attachment point

Operating Condition

Operating positions: all

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 10.9kg

G.W.: 12.9kg

Dimensions

Product Dimensions:540(D)*370(W)*281(H)mm

Packing Dimensions:410(D)*660(W)*360(H)mm

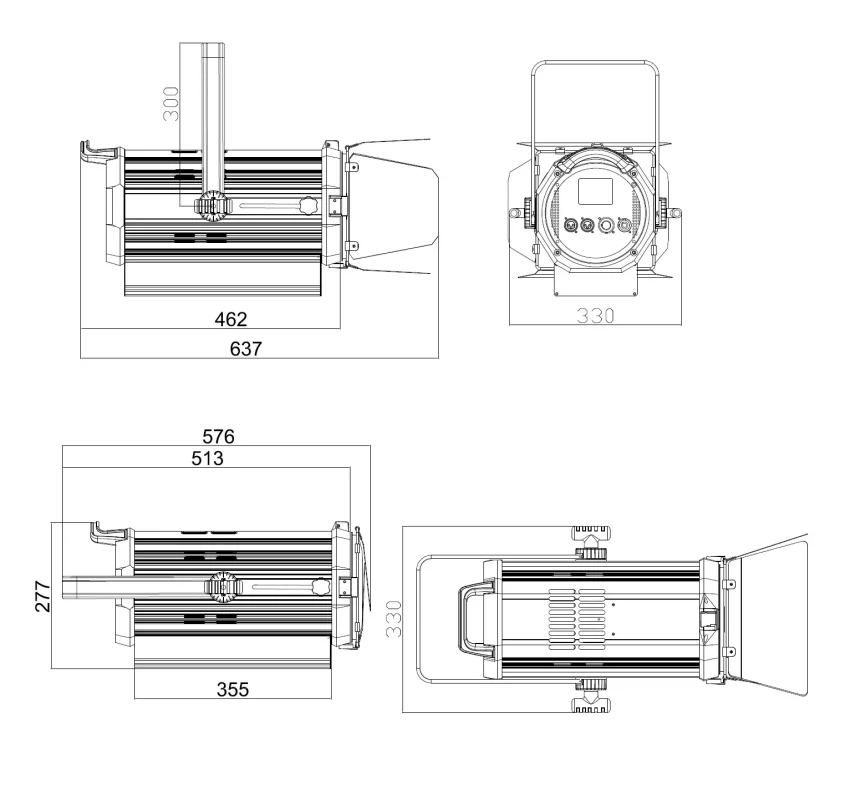

Dimensions

Accessories

Power Cable

STANDARD

code:

QTY: 1PCS

Signal Cable

STANDARD

code:

QTY: 1PCS

Omega

STANDARD

code:

QTY: 2PCS

Safety Cable

STANDARD

code:

QTY: 1PCS

Road Case

OPTIONAL

code:

Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL

code:

QTY: 2PCS
