PROFILE 300W

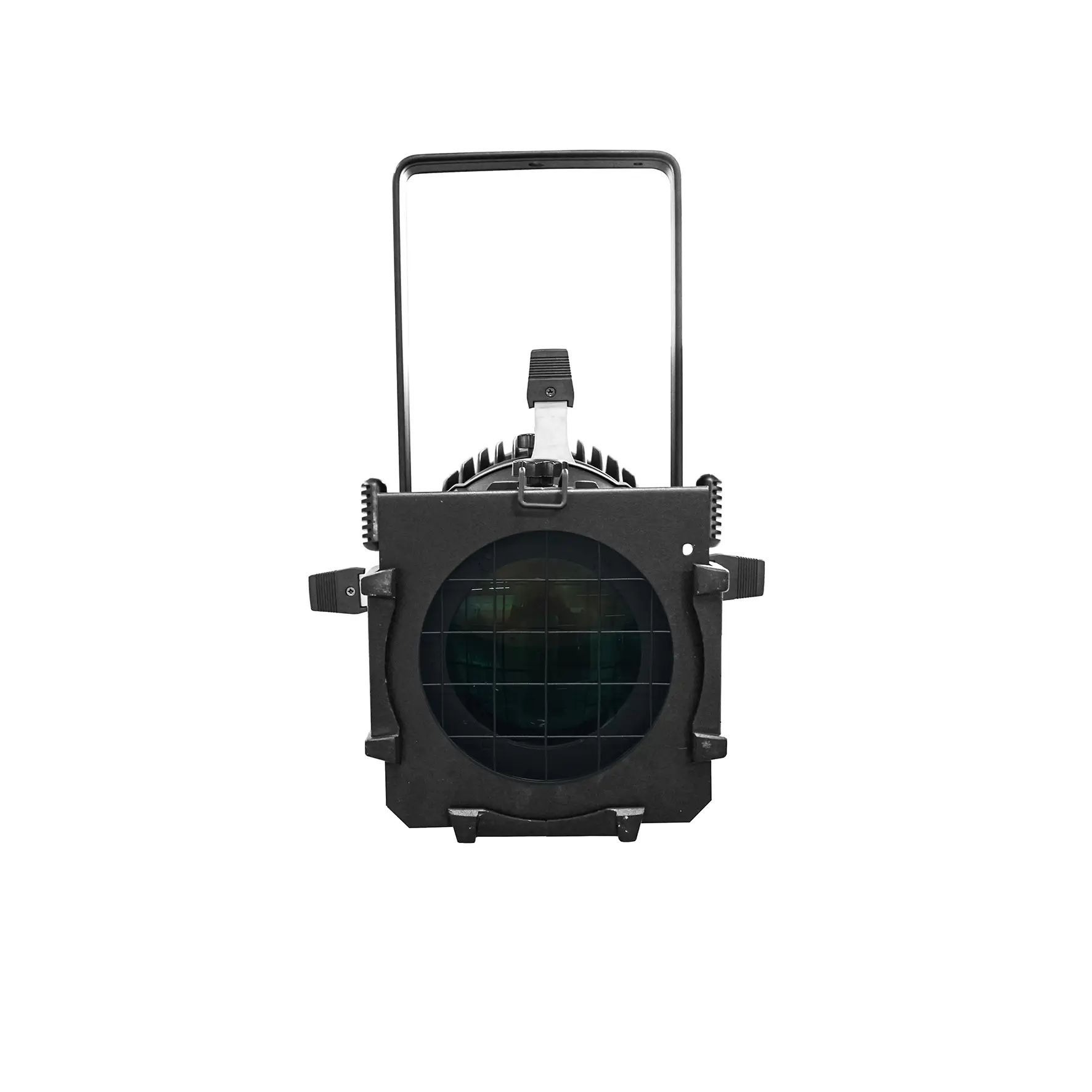

This profile is a high definition and ultra low noise LED studio light integrated into a die-cast aluminum alloy housing. It features 300W 3200K CITIZEN LED, which delivers brightest output and the boldest rendering of the colors. The fixture is a professional SPOT lighting system with the lens tube interchangeable, 5°/10°/19°/26°/36°/50°field angles optional for on-site application need.

The PROFILE is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame is included kit and gobo slot/manual IRIS system are optional kits.

The PROFILE is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.

Technical specifications

Light Source

Source: 1*300W 3200K CITIZEN LED

CRI: ≥90

Flicker free operation for broadcast TV and FILM

2-25KHz Frequency adjustable

Life Span: 50000H

The life span may vary depending on several following factors but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

Optics

A set of high resolution and precise optics

5°/10°/19°/26°/36°/50°field angles optional

Lens tube 45°rotatable

Manual focus

Framing System

4 Metal spot cutting slots

Color System

3200K Coverage

Pure and even coverage

Color frame included

Gobo System

Gobo holder as optional

IRIS System

Manual IRIS system as optional

Strobe Effect

0-25Hz LED shutter/strobe effect with variable speed

Dimming System

0-100% Smooth linear LED dimming

4 Dimming curves

2 Dimming modes

Control System

4 DMX channels

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

Display System

2.8″ Touch TFT LCD display

180°Reversible for LCD display

Display Auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Efficient ultra lower fan cooling system

Constant temperature readout and management function

Over temperature protection management

Power Supply

Electronic supply with active PFC

AC100-240V 50/60Hz

TRUE-1 PowerCON IN/ OUT with fuse

300W Power consumption

Housing

Skeleton made of aluminum and steel metal plates

Exterior finish: Black

Installation

Single hanging bracket

1*Safety attachment point

Operating Condition

Operating positions: all

-25℃ to 45℃ ambient temperature

IP20 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 10.8kg

G.W.: 13.9kg

Dimensions

Product Dimensions:300(D)*620(W)*221(H)mm

Packing Dimensions:390(D)*855(W)*360(H)mm

Dimensions

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable
STANDARD
code:
QTY: 1PCS

Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps
OPTIONAL
code:
QTY: 2PCS
