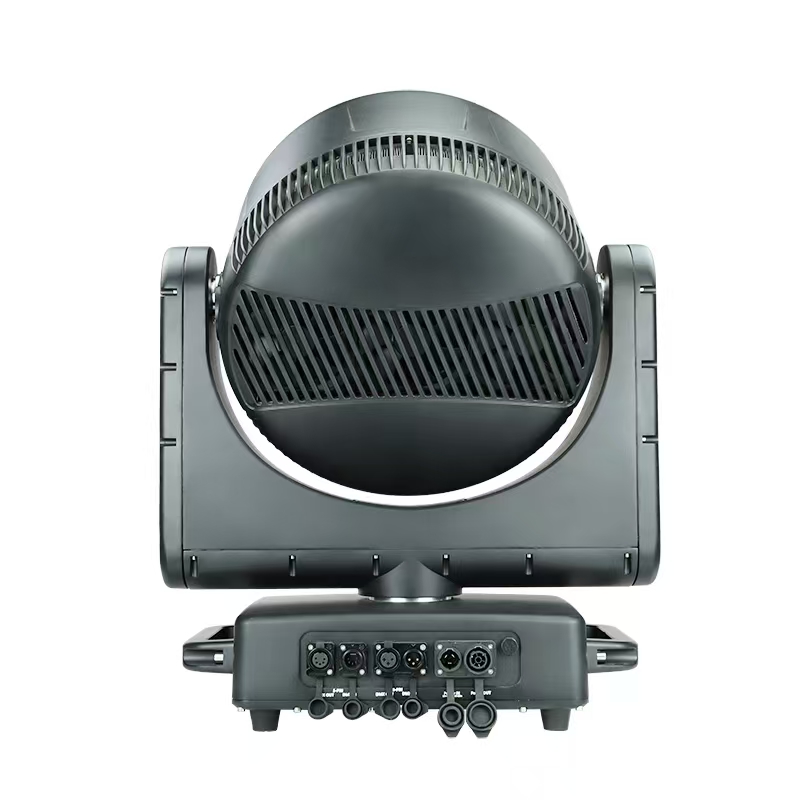

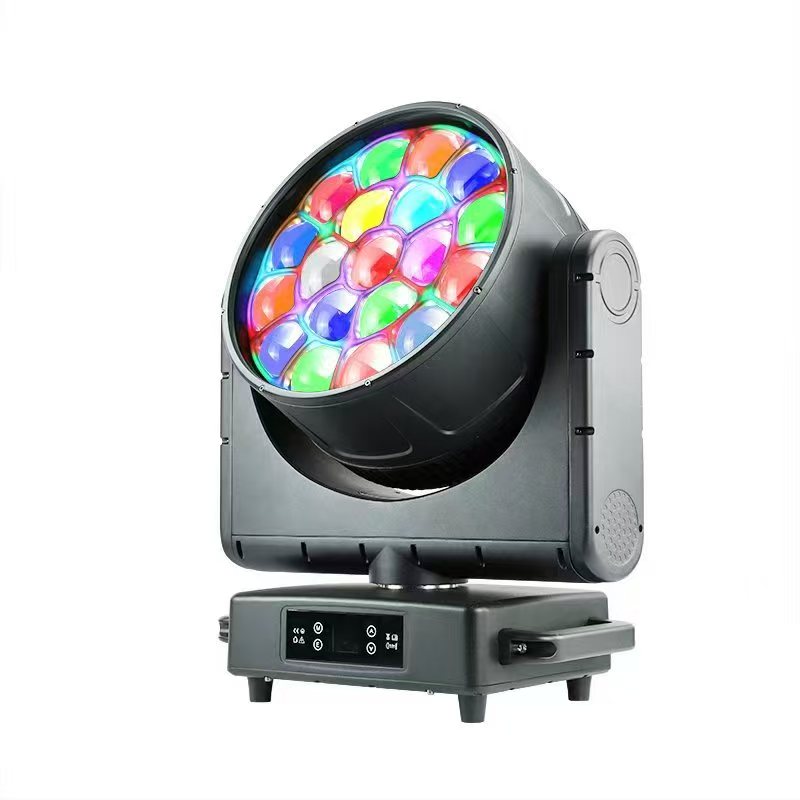

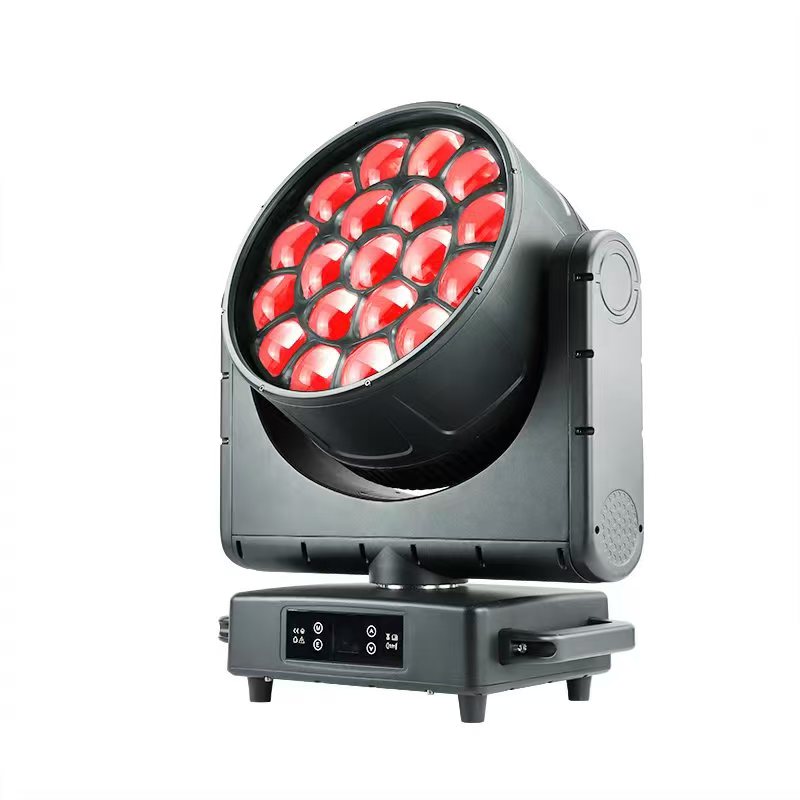

MZOOM 1980P

The MZOOM 1980P is an ultra high power LED based moving head wash with smart and compact stylish housing with a smooth, fast and quiet motorized zoom from 6°-60°range. It features 19*80W 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each led as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. It also features an ingenious front neon ring design surrounding the lens that could bring ultra brilliant and magic lighting effect to the lighting designers.The MZOOM 1980P is flicker-free fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns, preset linear color temperature adjustment options to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

The MZOOM 1980P’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.

Technical specifications

Light Source

Source: 19*80W RGBW 4-in-1 LEDs

Frequency adjustable from 1-10KHz
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: 

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics

19PCS high efficiency acrylic lens

Optimized light pipe for higher LED efficiency

6°-60°Smooth and quiet linear motorized zoom with fine control

Movement

PAN movement: 540° (8/16 bit)

TILT movement: 270° (8/16 bit)

Fast, quiet, smooth and precise 3-Phase motors

Smooth, fast and precise resolution for PAN/TILT movement with low noise operation

Scan position memory, auto reposition after unexpected movement

PAN/TILT reversible

Colors

Pixel mapping capability with each LED

Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing

Linear color temperature adjustment, 2700K-8500K

Preset color macros

Visual Effect

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

Strip Effect

Strip effect with different built-in dynamic effects

(variable speed control)

Strobe Effect

1-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Different foreground/background strobe effect

Dimming System

0-100% Smooth linear LED dimming

Fine dimming control

Control System

28/29CH/42/43CH DMX channels USITT DMX-512

DMX512, master-slave, auto operation and sound control
DMX recorder and edit function integrated
RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference
IP65 3-pin XLR DMX connectors IN/OUT

Display System

2.4″ TFT LCD display

4 Touch control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management (output decreased when over heat)

Power Supply

Electronic power supply

AC100-240V 50/60Hz

IP65 True-1 power connectors IN/OUT with fuse

1800W Power consumption

Housing

Skeleton made of Die-cast aluminum and steel metal plates

Two side handles on base

Exterior finish: Black

Installation

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

Operating Condition

Operating positions: all (device on floor or fixed to a support)

-25°to 45°ambient temperature

IP65 protection rating

Compliance

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight

N.W.: 28.6kg

G.W.: 32kg

Dimensions

Product Dimensions: 302(D)*388.1(W)*490.1(H)mm

Packing Dimensions: 400(D)*520(W)*610(H)mm

Dimensions

Accessories

Power Cable

STANDARD

code:

QTY: 1PCS

Signal Cable

STANDARD

code:

QTY: 1PCS

Omega

STANDARD

code:

QTY: 2PCS

Safety Cable

STANDARD

code:

QTY: 1PCS

Road Case

OPTIONAL

code:

Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps

OPTIONAL

code:

QTY: 2PCS

Download

MZ1980P Dimensions

Download
