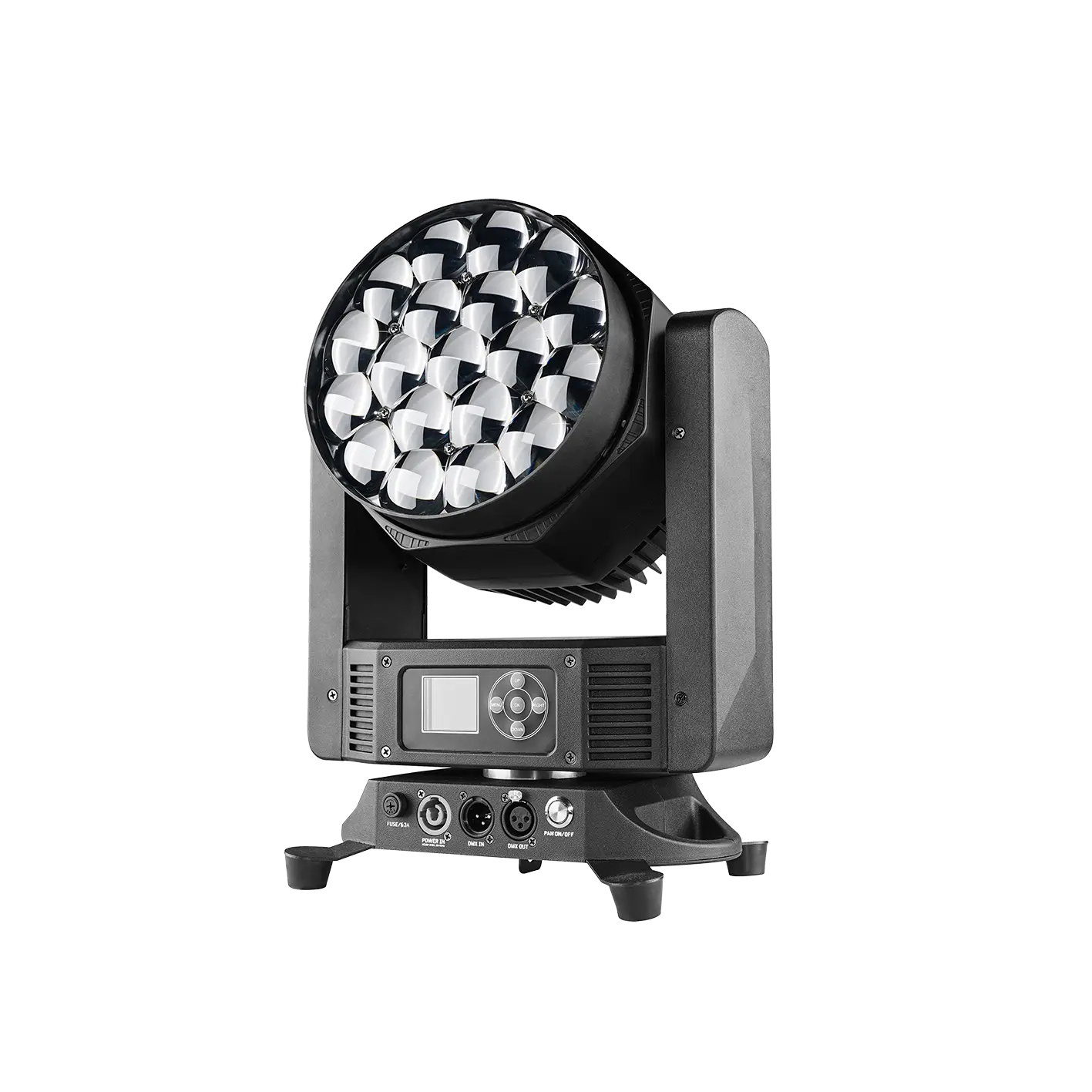

SMARTZOOM 1915

SMARTZOOM 1915

The SMARTZOOM 1915 is an intelligent moving head wash light designed aiming at providing users LOW-COST, COMPACT-SIZE, LIGHT-WEIGHT and UNIQUE-STYLE benefit. This helps to make this head much novel and differentiated than traditional moving lights. It’s with 19*15W 4-IN-1 RGBW LED light source which are designed with pixel control capability integrated with a specific lens system that offers zoom ranging from 5°-35°. Due to this advantage, the SMARTZOOM is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. The fixture could bring ultra brilliant and magic lighting effect to the lighting designers.



The SMARTZOOM also features a range of advanced lighting effects, including strobe, color macros, shape effects and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night.



The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s  a perfect option for small live concerts, road shows, DJ shows, conference halls, club/bars, etc.

Technical specifications

Light Source
Source:
19*15W 4-IN-1 RGBW LEDs
Pixel control capability
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics
Specific designed high resolution optic system
5°-35°Zoom range

Movement
PAN: 540° (8/16 bit)
TILT: 270° (8/16 bit)
Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Colors
Pixel mapping capability with each LEDs controllable individually
Sophisticated 4 colors RGBW mixed
Linear CTO 2800-8500K
Sharp beam effect
Pure and even wash effect
Preset dynamic color macros

Visual Effect
Different static shape selections
Different dynamic shape selections with variable speed
Shape fading effect
Shape color options with 0-100% dimming
Background colors options with 0-100% dimming
Foreground colors options with 0-100% dimming

Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming

Control System
20/22/34/77/110 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Art-NET (Optional)
LUMEN-RADIO wireless receiver built-in (Optional)
Shielded input signal protection for stable signal without interference
RJ45 etherCON IN/OUT (Optional with Art-Net)
3-Pin/5-pin XLR connectors IN/OUT
Software Update
Software up-datable through DMX connectors
Multi units up-datable in daisy chain

Display System
1.44″ TFT LCD display
English/Chinese menu
5 Touch control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System
Advanced self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON connectors IN/OUT with fuse
246W Power consumption

Housing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black

Installation
2*1/4 turn fastening Omega Clamps
1*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 8.6kg
G.W.: 11.2kg

Dimensions
Product Dimensions: 200.6(D)*297.9(W)*368.2@45°/398.3@3°(H)mm
Packing Dimensions: 400(D)*500(W)*320(H)mm
_MG_179-23-4--

Dimensions

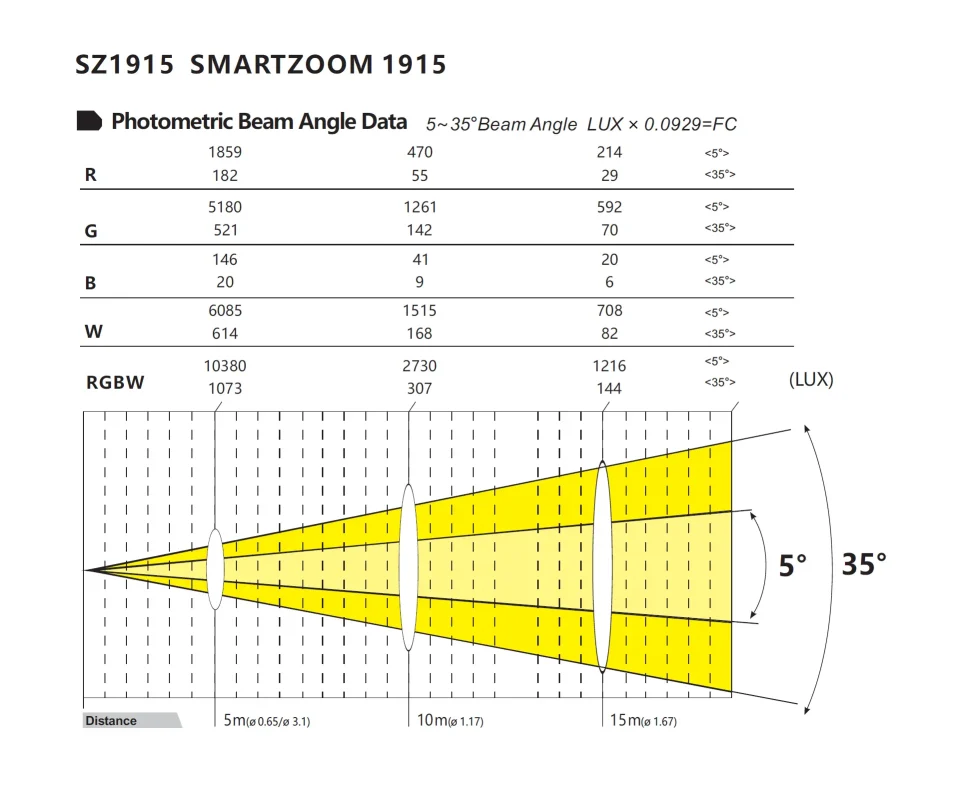

Photometric

Accessories

Power Cable
STANDARD
code:
QTY: 1PCS
Signal Cable
STANDARD
code:
QTY: 1PCS
Omega
STANDARD
code:
QTY: 2PCS
Safety Cable
STANDARD
code:
QTY: 1PCS
Road Case
OPTIONAL
code:
Available for 2-in-1, 4-in-1, 6-in-1 versions
Clamps
OPTIONAL
code:
QTY: 2PCS
