MAGICBAR 8140H

MAGICBAR 8140H

The MAGICBAR 8140H is a high-performance stage lighting bar fixture that features 8 individual moving MINI heads, each of which is equipped with a powerful 140W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICBAR 8140H is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. There is another very unique feature that the BAR provides ultra eye-catching colorful kaleidoscope effect (patented). It’s designed with a 4-facet linear prism which brings more vivid benefit to its users. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the lighting designers.

One of the standout features of the MAGICBAR 8140H is its flexible 360°continuous TILT movement, which allows each lighting head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The MAGICBAR 8140H also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the MAGICBAR 8140H is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different MAGICBAR 8140H seamlessly and get synchronized movement that produces an impressive wave of light (BEAM or WASH or kaleidoscope effect), paralleled to each other due to it’s 3°-37.5°zoom range.

Overall, the MAGICBAR 8140H is a powerful and versatile lighting fixture that is sure to impress audiences and enhance performances. Its advanced features and flexible design make it a popular choice among lighting professionals and performers alike.



The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.

Technical specifications

Light Source
Source:
8*140W 4-IN-1 RGBL LEDs
(8*32)*0.5W 3-IN-1 SMD RGB LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

Optics
8PCS high efficiency lens
3°-37.5°Zoom range
Retractable for the front part of each head when it zooms

Movement
TILT: 2 modes
1. 360° Continuous movement
2. 270° (8/16 bit)
Fast, quiet, smooth and precise 3-phase motors
Smooth, fast and precise resolution for TILT movement with low noise operation
Scan position memory, auto reposition after unexpected movement

Colors
Pixel mapping capability with each LEDs controllable individually
Sophisticated 4 colors RGBL mixed
Linear CTO 2800-8000K
Sharp beam effect
Pure and even wash effect
Preset static patterns
Preset dynamic patterns with variable speed
Preset dynamic color macro with variable speed

Strip Effect
Each head with strip effect with different built-in macros
(variable speed control)

Kaleidoscope Effect (patented)
Multi tiny beam punching out from each head
Rotatable continuously with variable speed and direction

Prism System
4-facet linear prism with variable speed and direction

Strobe Effect
1-25Hz shutter/strobe effect with variable speed
Preset pulse strobe effect with variable speed
Random strobe effect with variable speed

Dimming System
0-100% Smooth linear LED dimming
4 Dimming curves, linear/square law/Inv square law/S-curve

Control System
37/64/130 DMX channels USITT DMX-512
DMX512, master-slave, sound activated or auto operation
DMX recorder and edit function integrated
RDM available (Remote Device Management)
Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT
Software Update
Software up-datable through USB or DMX connectors
Muilt units up-datable in daisy chain

Display System
1.8″ TFT LCD display
English/Chinese menu
5 Control buttons
180°Reversible for LCD display
Display auto OFF

Cooling System
Advanced self-adjusting fan cooling system integrated aluminum
Constant temperature readout and management function
Over temperature protection management

Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
SEETRONIC’s TRUE 1 PowerCON IN/OUT with fuse
1214W Power consumption

Housing
High tension molded fire proof housing with PA6+fibre
Skeleton made of aluminum and steel metal plates
Exterior finish: Black

Installation
2*1/4 turn fastening Omega Clamps
Specific parts for seamless combination between lights
2*Safety attachment point

Operating Condition
Operating positions: all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance
CE
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

Weight
N.W.: 38.6kg
G.W.: 25kg

Dimensions
Product Dimensions: 170(D)*1288(W)*334.1(H)mm
Packing Dimensions: 460(D)*1505(W)*290(H)mm
_MG_179-23-4--

Dimensions

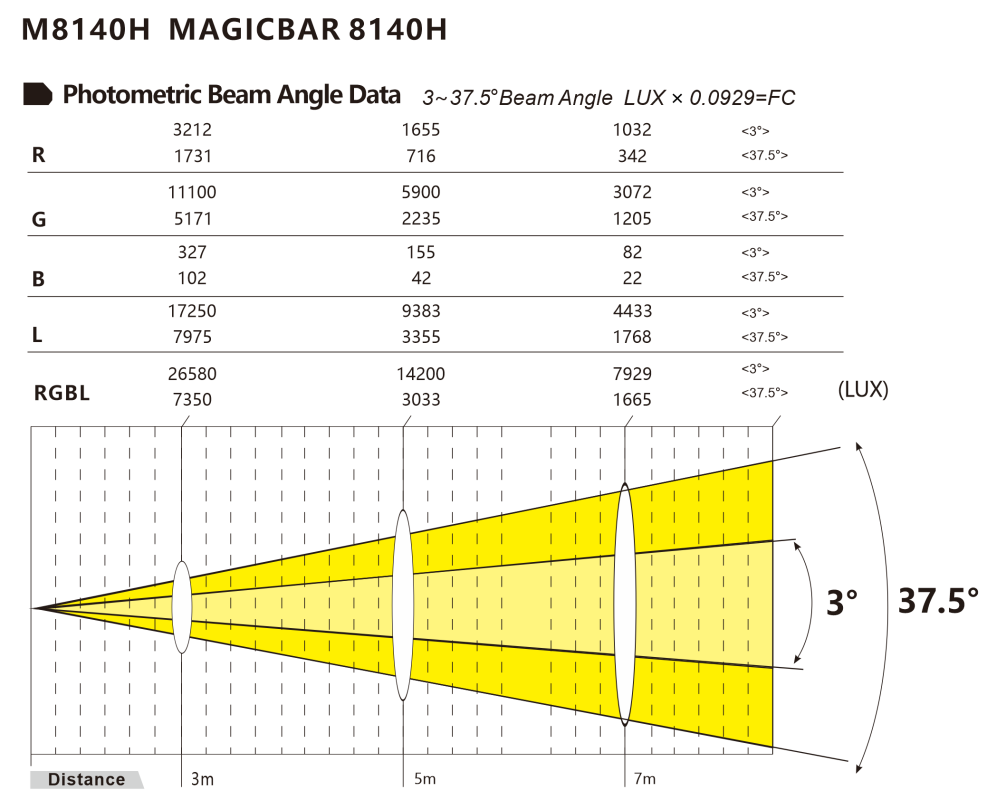

Photometric

Accessories

Power Cable

STANDARD
code:
QTY: 1PCS

Signal Cable

STANDARD
code:
QTY: 1PCS

Omega

STANDARD
code:
QTY: 2PCS

Safety Cable

STANDARD
code:
QTY: 1PCS

Road Case

OPTIONAL
code:
Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps

OPTIONAL
code:
QTY: 2PCS
